Opticis VGDF-200 VGA to Fiber DVI Converter | 500m SC Multimode WUXGA
Convert VGA to a single-fiber DVI link and transmit WUXGA (1920×1200) @ 60Hz up to 500 m (1,640 ft) over fiber with Self-EDID and VGA loop-through monitoring.
Conversion
VGA to 1-fiber DVI
Resolution
Up to WUXGA 1920×1200 @ 60Hz
Distance
500 m over SC multimode fiber
EDID
Self-EDID management
Technical Architecture & Functionality

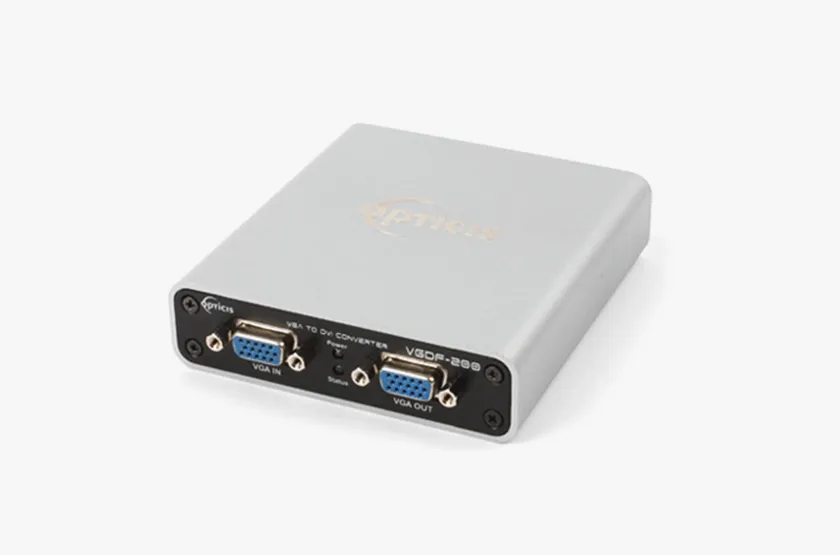

The Opticis VGDF-200 is a VGA-to-1-fiber DVI format converter designed for long-run video transport in professional and industrial environments. It accepts an analog VGA (HD15/D-Sub) input, converts it into a single-core optical DVI signal, and transmits it over SC-terminated multimode fiber to support long-distance video delivery without scaling (pure format conversion).
For better compatibility across variable-resolution display systems, VGDF-200 includes Self-EDID management, allowing it to read and store the target EDID to help prevent resolution mismatch issues during installation.
A built-in VGA loop-through output provides on-site monitoring at the source, and the unit supports flexible mounting options including VESA-compliant bracket mounting and rack installation (up to four units in a 19” 1RU rack using the optional rack kit).
Key Engineering Advantages
Legacy VGA, Modern Transport
Convert analog VGA sources into a single-fiber optical DVI link for long-distance delivery without bulky copper runs.
Self-EDID for Easy Bring-Up
Reads and stores target EDID to reduce resolution mismatch issues across variable display systems.
On-Site Source Monitoring
Built-in VGA loop-through lets you confirm the input signal locally while the optical link runs to the remote endpoint.
Rack and VESA Mount Ready
Deploy cleanly in control rooms and installations with optional 1RU rack support (up to 4 units) and VESA 75/100 bracket mounting.
Reliable Power and Status Visibility
Locking DC power input and clear LED indicators simplify stability and troubleshooting in the field.
Feature Checklist
- Accepts VGA input and converts to one (1) fiber DVI signal
- Transmits up to 500 m (1,640 ft) over SC multimode fiber (up to WUXGA @ 60Hz)
- Supports WUXGA (1920×1200) @ 60Hz (no scaling, format conversion only)
- Self-EDID management (reads/stores target EDID for compatibility)
- Loop-through VGA output for on-site monitoring
- Rack-mountable in 19” 1RU (up to 4 units with optional OPSCR-1U)
- Optional VESA 75/100 mounting bracket (OPSCB) for flexible placement
- Locking DC power input
- LED indicators: Power, Input signal status, Self EDID
- Certifications: CE / FCC, Class 1 Laser Eye Safety
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- VGDF-200
- Function
- VGA to 1-fiber DVI format converter
- Supported Resolution
- VGA up to WUXGA (1920×1200) @ 60Hz
- Scaling
- None (format conversion only)
- Input Connector
- HD15 (D-Sub) VGA
- Fiber / Connector
- SC terminated, 1-core multimode fiber
- Maximum Distance
- 500 m @ WUXGA (1920×1200) @ 60Hz (50 µm fiber)
- Max Bit Rate
- Up to 1.65 Gbps
- Optical Power
- < 1 dBm
- EDID Management
- Self EDID
- VGA Monitoring
- Loop-through VGA
- Power Input
- +5V, 3A (locking type)
- Power Consumption
- < 5 W
- LED Indicators
- Power, Input signal status, Self EDID
- Operating Temperature
- 0 ~ 50℃
- Storage Temperature
- -30 ~ 70℃
- Dimensions (W×D×H)
- 104 × 112 × 28 mm
- Certifications
- CE / FCC, Class 1 Laser Eye Safety
Documentation & Drivers
Package Contents
- VGDF-200 VGA to 1-Fiber DVI Converter
- DC power supply (locking type, 5V / 3A)
- User manual
- Mounting Bracket: **OPSCB** (VESA 75/100)
- 19" 1RU Mounting Rack: **OPSCR-1U** (up to 4 units)
- Receiver for electrical DVI recovery: **DVFX-100-R**

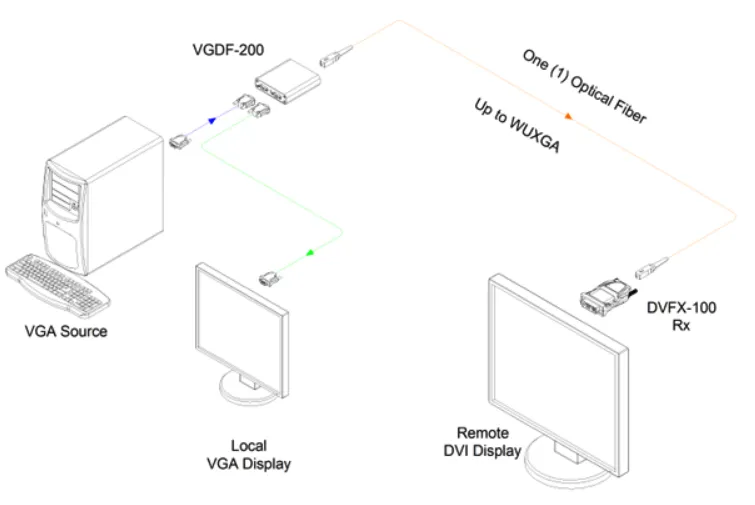

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Control rooms and monitoring stations using legacy VGA sources
- Industrial and factory floor AV distribution with EMI-sensitive environments
- Medical and lab environments needing electrical isolation
- Training and simulation systems requiring stable long-distance video links
