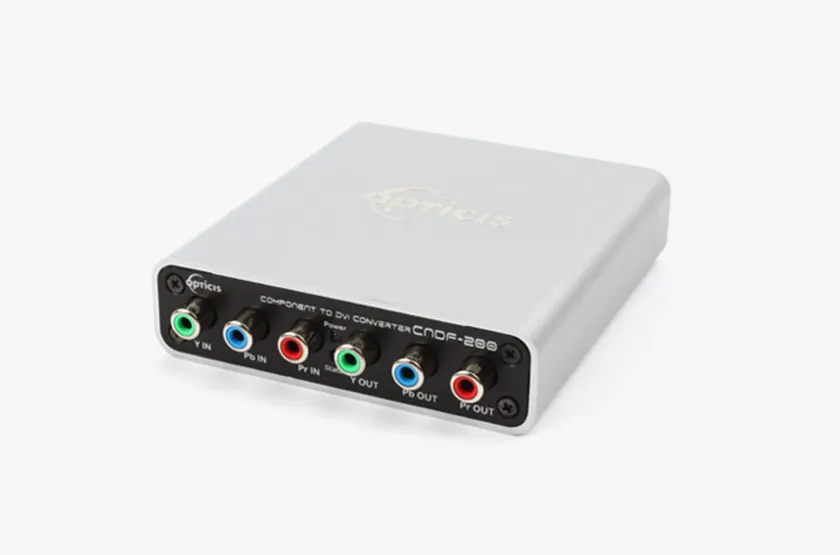

Opticis CNDF-200 Component to Fiber DVI Converter | 500m SC Multimode 1080p
Convert component (YPbPr) to 1-fiber optical DVI and send 1080p@60Hz up to 500 m over SC multimode fiber (use DVFX-100-R).
Input
Component (YPbPr)
Max Video
1080p (1920×1080) @ 60Hz
Distance
500 m over SC multimode
Monitoring
Loop-through Y/Pb/Pr outputs
Technical Architecture & Functionality
The Opticis CNDF-200 is a component video (YPbPr) to 1-fiber DVI converter built for long-distance delivery of HD component sources over fiber. It accepts component video up to 1080p (1920×1080) @ 60Hz, converts the signal to an optical DVI link, and transmits up to 500 meters (1,640 ft) over one (1) SC multimode fiber.
At the remote end, the Opticis DVFX-100-R is used to convert the optical DVI signal back into electrical DVI for connection to a DVI display.
For on-site verification, CNDF-200 provides loop-through component outputs (Y OUT / Pb OUT / Pr OUT) so you can monitor the source locally without interrupting the fiber path.
Key Engineering Advantages
Fiber Runs for Legacy Component
Extend HD component sources over a single multimode fiber where copper runs are bulky, noisy, or distance-limited.
Uncompressed 1080p Delivery
Supports up to 1080p (1920×1080) @ 60Hz with a direct optical link for stable long-distance transport.
Local Confidence Check
Loop-through Y/Pb/Pr outputs let you monitor the source locally while the remote display runs over fiber.
Simple Pairing at the Display
Use DVFX-100-R at the far end to recover electrical DVI for standard DVI displays and systems.
Install-Friendly Power
Locking 5V/3A DC power helps prevent accidental disconnects in racks and busy install areas.
Feature Checklist
- Accepts component video (YPbPr) up to 1080p (1920×1080) @ 60Hz
- Converts component input to one (1) fiber optical DVI output
- Extends up to 500 m (1,640 ft) over SC multimode fiber
- Uncompressed optical transmission
- Loop-through component outputs for on-site monitoring (Y/Pb/Pr)
- Simple point-to-point link when paired with DVFX-100-R receiver
- Locking DC power input (5V/3A)
- Compact metal enclosure for installation environments
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- CNDF-200
- Input Signal
- Component video (YPbPr)
- Max Input / Supported Video
- Up to 1080p (1920×1080) @ 60Hz
- Supported Resolutions
- 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
- Output Signal
- 1-fiber optical DVI (to DVFX-100-R for electrical DVI)
- Extension Limit
- 500 m (1,640 ft) at 1080p @ 60Hz
- Bandwidth
- 1.485 Gbps per graphic channel (at 1080p @ 60Hz)
- Fiber / Connector
- Simplex SC, multimode (62.5/125 µm or 50/125 µm core)
- Loop-through Monitoring
- Y OUT / Pb OUT / Pr OUT
- Power
- +5V DC, 3A (locking type)
- Operating Temp
- 0°C to 50°C
- Storage Temp
- -30°C to 70°C
- Humidity
- 10% to 85%
- Dimensions (W×D×H)
- 104 × 112 × 28 mm
Documentation & Drivers
Package Contents
- CNDF-200 converter (1 unit)
- AC/DC power adapter: **+5V / 3A**, locking type (1 unit)
- User manual
- Mounting bracket (**OPSCB**, VESA 75/100)
- 19" 1RU mounting rack (**OPSCR-1U**, up to 4 units)
- Receiver (required for remote display): **DVFX-100-R**

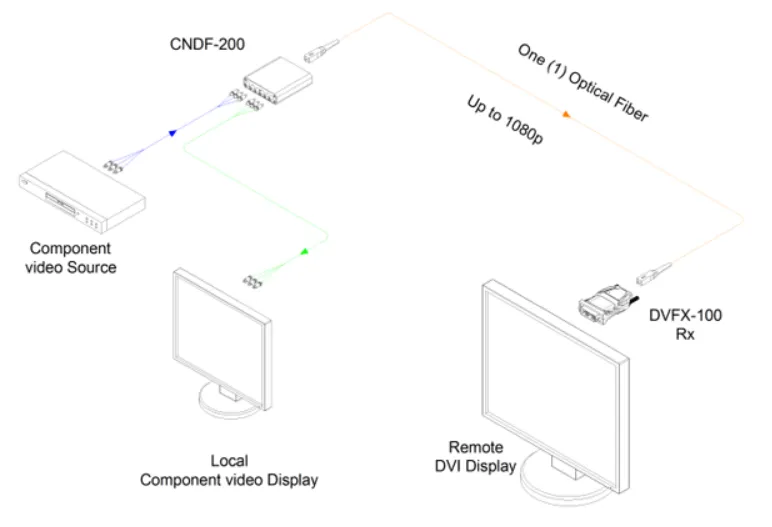

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Legacy HD component sources (DVD/medial players, cameras) feeding modern DVI displays remotely
- Control rooms and monitoring stations
- Industrial AV distribution where EMI/ground loops are a problem
- Medical and lab environments benefiting from fiber isolation
