19” 1RU Multi-Mounting Rack with Diagnosis Feature for Opticis Optical Extenders

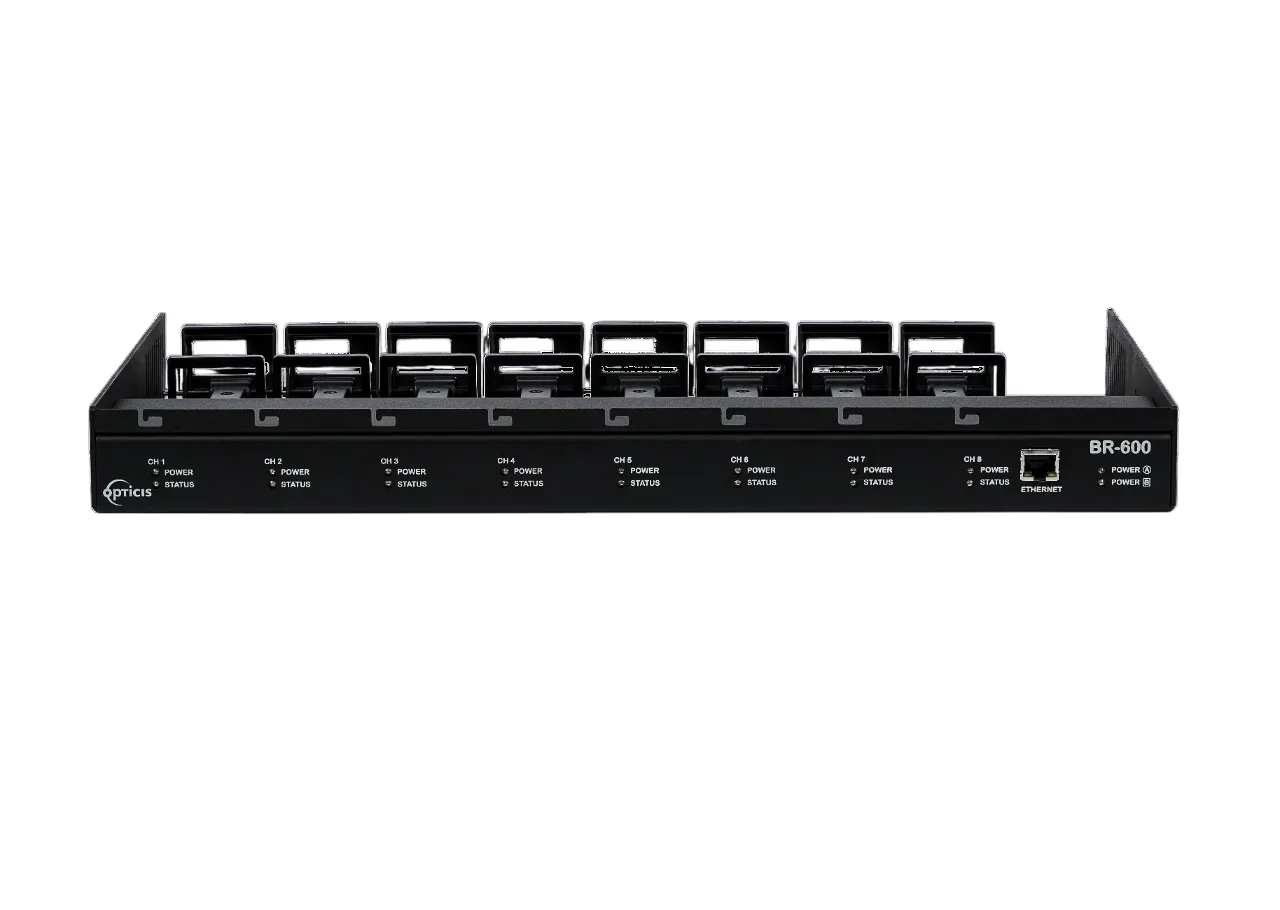

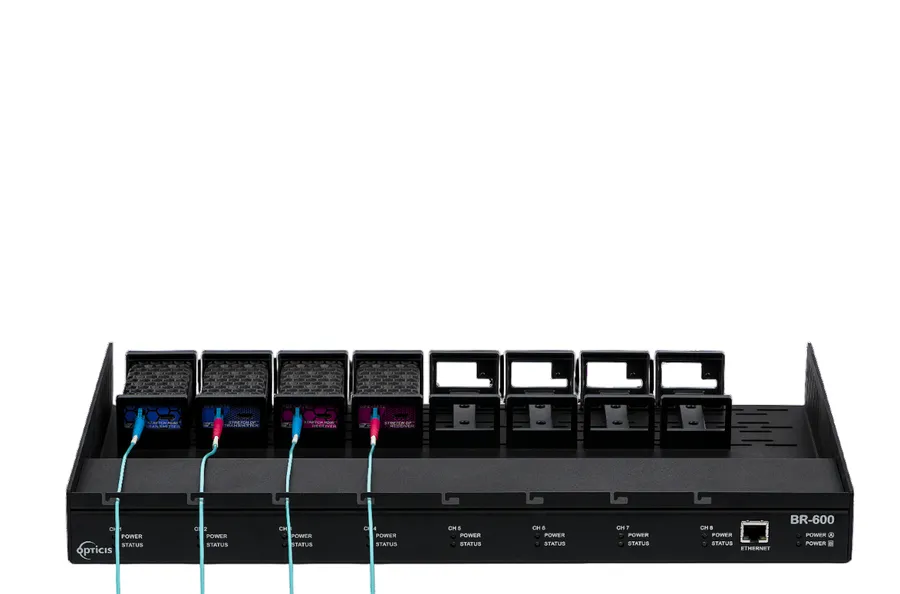

The Opticis BR-600 is a 19-inch 1RU multi-mounting power rack designed to centrally power, secure, and manage up to eight Opticis diagnosis-enabled optical extenders in professional AV, medical, and control room environments.
Unlike generic rack shelves, the BR-600 provides redundant power inputs, load-sharing, and centralized monitoring and control via LAN-connected GUI software. It supports Opticis’ Snap Lock mounting system for secure, tool-free installation of compatible extender modules, keeping large fiber deployments clean, serviceable, and organized.

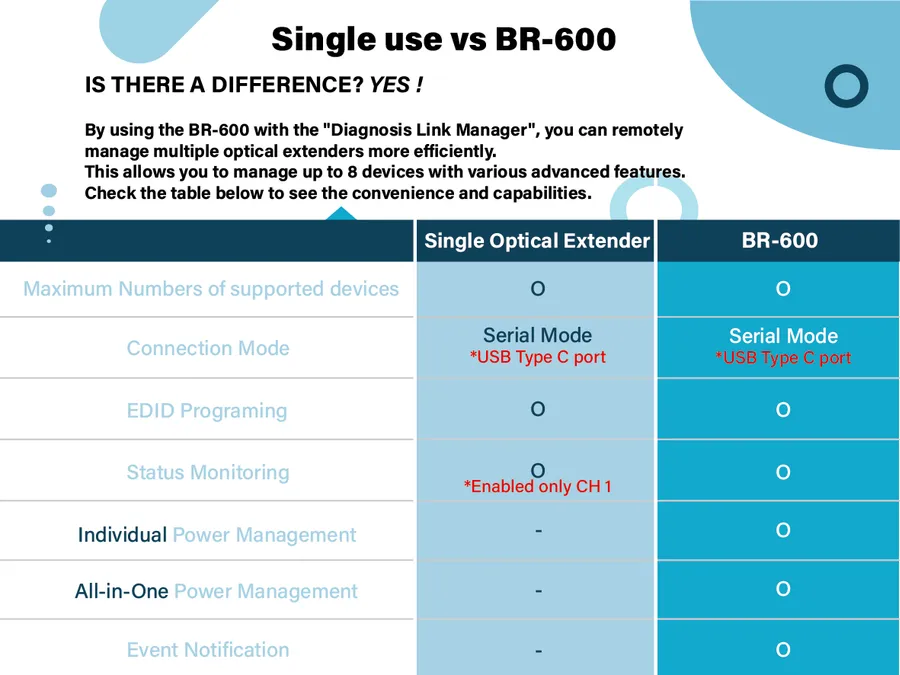

When paired with Opticis diagnosis extenders, the BR-600 enables remote monitoring of operating status, power control, and firmware upgrades across multiple extenders simultaneously, reducing downtime and simplifying maintenance in mission-critical installations.
Key Engineering Advantages
Centralized Power & Control
Manage up to 8 fiber extenders from a single rack unit.
Reduced Downtime
Redundant power inputs and load sharing improve reliability.
Fast Maintenance
One-step firmware updates and remote power cycling save service time.
Clean Rack Integration
Snap Lock mounting keeps optical extenders secure and organized.
Feature Checklist
- Supports up to 8 Opticis diagnosis optical extenders
- 19” 1RU rack-mountable chassis for AV racks and equipment rooms
- Dual redundant DC power inputs (locking DC + Phoenix connector)
- Load-sharing power architecture for stable multi-module operation
- LAN (RJ45) port for GUI-based monitoring and management
- Snap Lock mounting system for secure, tool-free extender installation
- Individual or group power on/off control
- One-step firmware upgrade for multiple extenders
- Centralized event logging and monitoring
- Designed for professional, medical, and industrial installations
Technical Specifications
Validated performance benchmarks and physical parameters.
- Rack Format
- 19” 1RU
- Max Modules
- Up to 8 units
- Input Power
- 12V / 3.0A (IT or Medical-grade PSU)
- Power Connectors
- Locking DC, Phoenix terminal
- Management Interface
- LAN (RJ45)
- Load Sharing
- Supported
- Dimensions (L × W × H)
- 482 × 280 × 44 mm
Documentation & Drivers
Package Contents
- BR-600 19” 1RU Multi-Mounting Rack
- User Manual

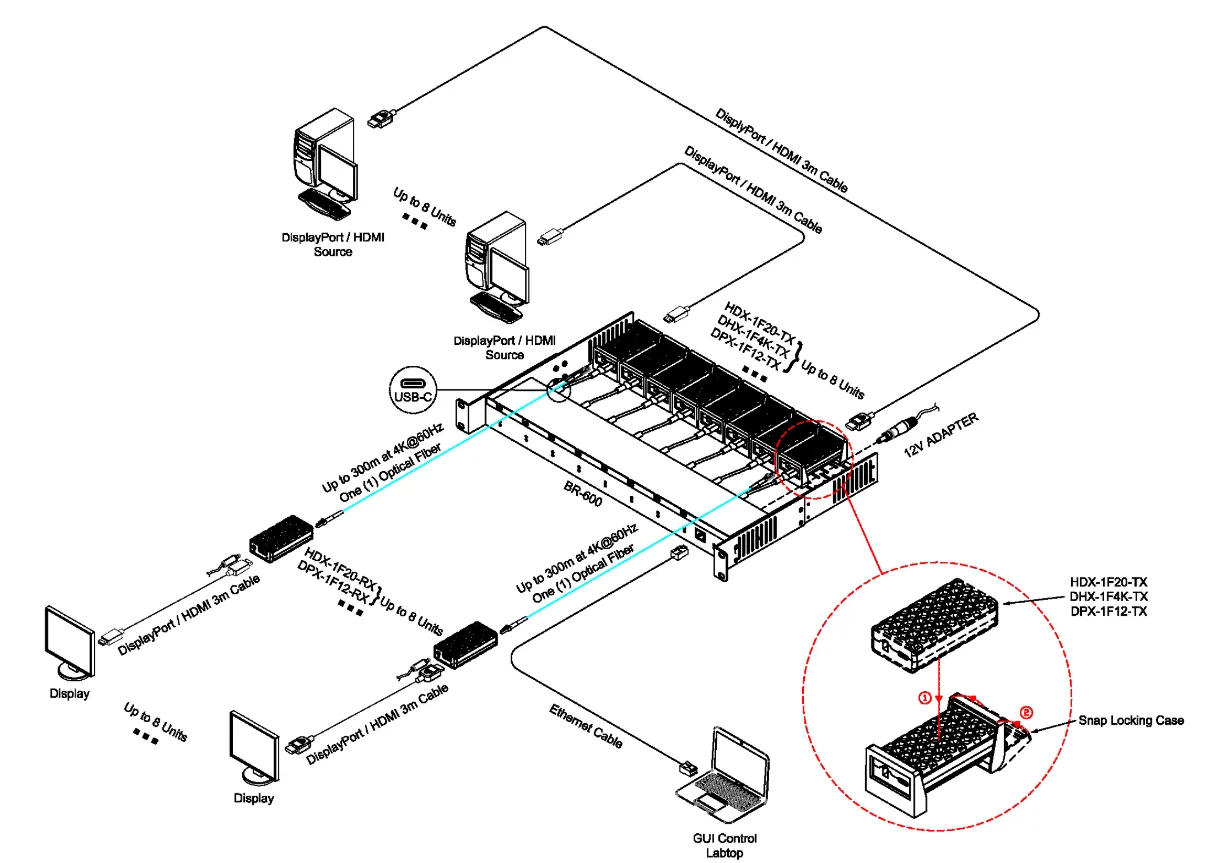

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical imaging systems
- Digital signage control racks
- Control rooms & NOCs
- Rental staging & broadcast trucks
- Simulation & training facilities
- Industrial automation environments
