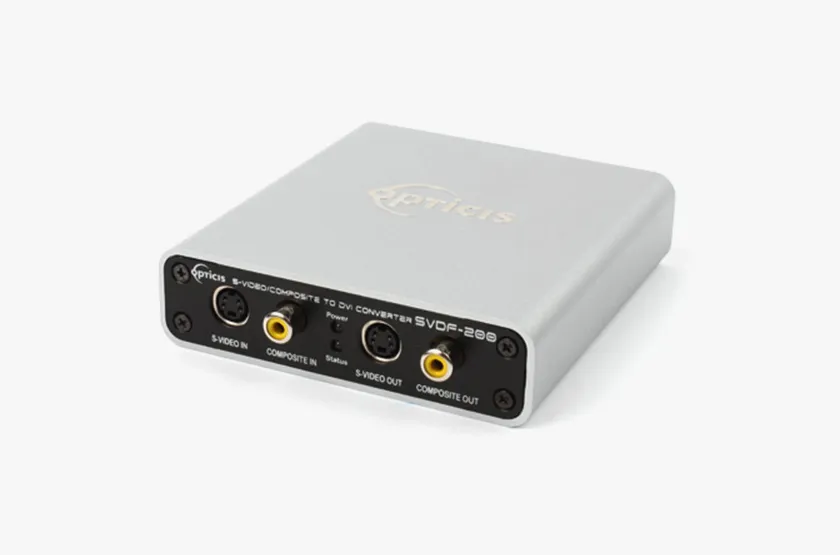

Opticis SVDF-200 S-Video/Composite to Fiber DVI Converter | 500m SC Multimode SXGA
Convert S-Video or Composite to 1-fiber optical DVI and send SXGA 1280×1024@60Hz up to 500 m over SC multimode fiber.
Input
S-Video / Composite (NTSC/PAL)
Output
1-fiber Optical DVI (to DVFX-100-R)
Resolution
SXGA 1280×1024 @ 60Hz
Distance
500 m over SC multimode
Technical Architecture & Functionality
The Opticis SVDF-200 is a single-format fiber-optic video converter that accepts S-Video or Composite inputs and converts them into a single-core optical DVI signal for long-distance transport over fiber.
It is designed for SD sources using NTSC/PAL (480i/576i). SVDF-200 upscales SD input to SXGA (1280×1024) @ 60Hz for the remote DVI display path, enabling stable long-run delivery in environments where copper cabling is impractical or noisy.
SVDF-200 automatically operates based on the first incoming input (S-Video or Composite), and provides the matching loop-through output (S-VIDEO OUT or COMPOSITE OUT) for convenient on-site monitoring at the source. For the remote endpoint, pair it with the Opticis DVFX-100-R receiver to convert the optical DVI back to electrical DVI for the display.
Key Engineering Advantages
Rescue Legacy SD Video
Bring older S-Video/Composite sources into fiber-based AV runs by converting directly to an optical DVI link.
Predictable Remote Output
Upscales NTSC/PAL (480i/576i) to SXGA 1280×1024 @ 60Hz for stable display output at the remote DVI endpoint.
First-Input Auto Selection
Automatically operates as S-Video or Composite converter based on whichever input becomes active first.
Local Monitoring Built In
Use loop-through S-VIDEO OUT or COMPOSITE OUT for on-site confidence checks without disturbing the fiber link.
Deployment Flexibility
Install cleanly with optional VESA bracket mounting or rack up to four units in 1RU using OPSCR-1U.
Feature Checklist
- Accepts S-Video or Composite (NTSC/PAL) and converts to one (1) fiber DVI
- Upscales 480i/576i to SXGA (1280×1024) @ 60Hz for the DVI output
- Transmission up to 500 m (1,640 ft) over SC multimode fiber (50/125 µm recommended)
- Auto-selects the first active input (S-Video or Composite)
- Loop-through output for on-site monitoring (matching the active input)
- Rack-mountable in 19” 1RU (up to 4 units with optional OPSCR-1U)
- Optional VESA 75/100 mounting bracket (OPSCB) for flexible placement
- Locking DC power input
- Status indication via LEDs (Power / Input status)
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- SVDF-200
- Input Signal
- S-Video / Composite (NTSC/PAL, 480i / 576i)
- Output Signal
- 1-fiber Optical DVI (paired with DVFX-100-R for electrical DVI recovery)
- Output Resolution
- SXGA (1280×1024) @ 60Hz
- Max Distance
- 500 m (1,640 ft) over multimode fiber
- Fiber / Connector
- Simplex SC (1 core), multimode (50/125 µm recommended; 62.5/125 µm supported per manual)
- Max Bit Rate (family spec)
- Up to 1.65 Gbps
- Optical Output Power (family spec)
- < 1 dBm
- Loop-through Monitoring
- S-VIDEO OUT or COMPOSITE OUT (matches active input)
- Power Input
- +5V DC, 3A (locking type)
- Power Consumption
- < 5 W
- Operating Temp
- 0°C to 50°C
- Storage Temp
- -30°C to 70°C
- Dimensions (W×D×H)
- 104 × 112 × 28 mm
Documentation & Drivers
Package Contents
- SVDF-200 converter (1 unit)
- +5V / 3A AC/DC power adapter (locking type) (1 unit)
- User manual
- Mounting Bracket: **OPSCB** (VESA 75/100)
- 19" 1RU Mounting Rack: **OPSCR-1U** (up to 4 units)
- Receiver (required for remote display): **DVFX-100-R**

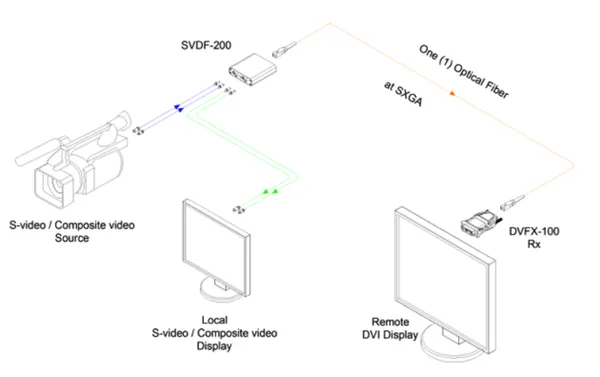

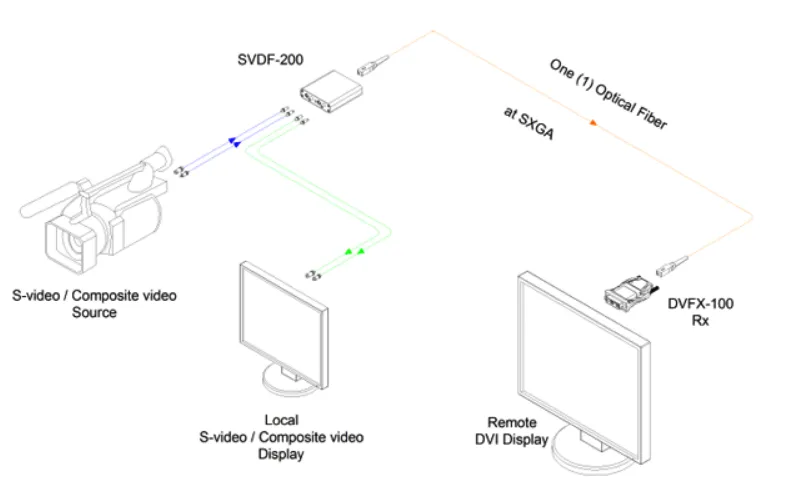

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical equipment using legacy SD video sources
- Control rooms and monitoring stations
- Conference rooms, education, and training systems
- Any long-haul AV environment needing electrical isolation and stable signal transport over fiber
