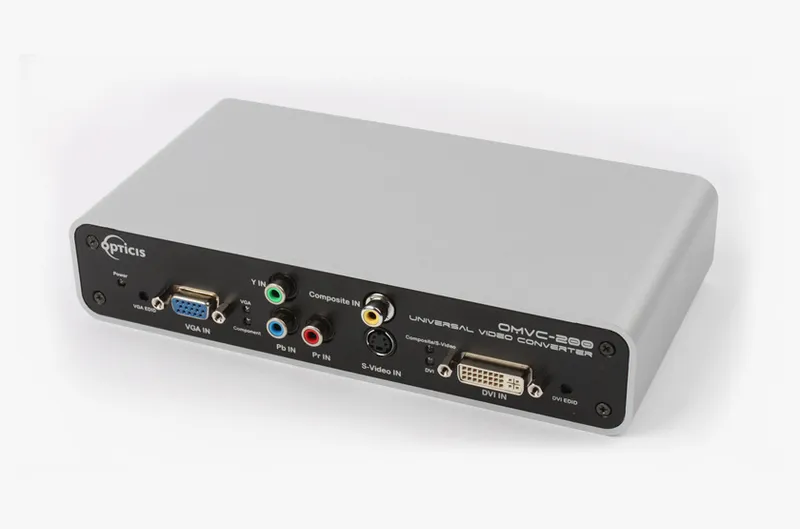

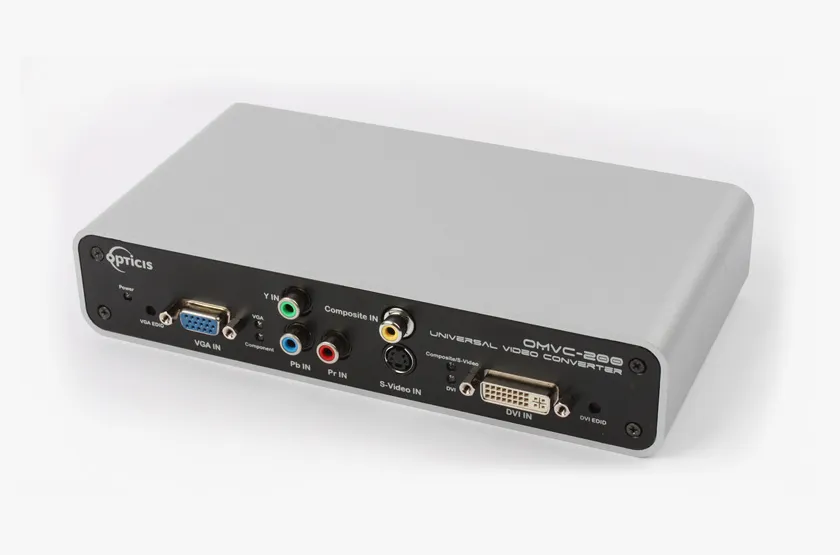

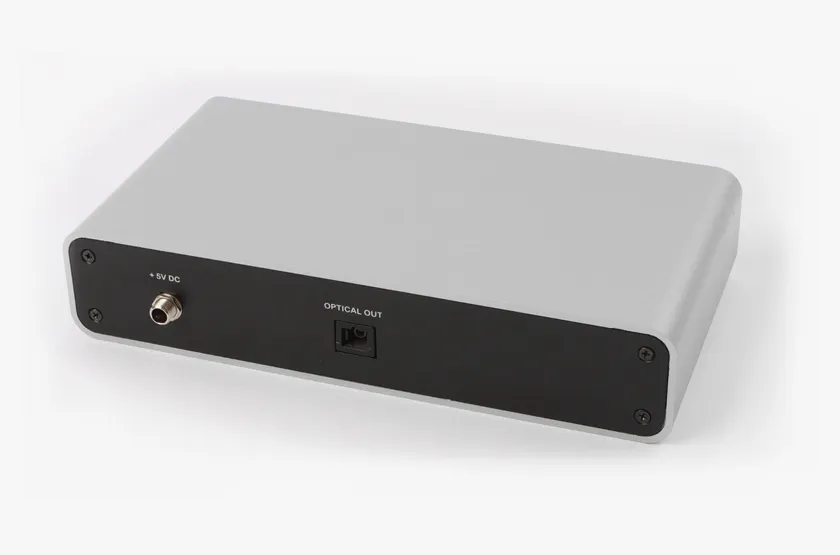

Opticis OMVC-200 Multi-Format Video Converter | DVI/VGA/Component to Fiber DVI 500m
Multi-format video converter that accepts DVI, VGA, Component, S-Video, or Composite and transmits uncompressed WUXGA DVI up to 500m over fiber.
Max Resolution
WUXGA 1920×1200@60Hz
Max Distance
500m Fiber
Inputs
DVI, VGA, Component, S-Video, Composite
Fiber Type
Single SC Multimode
Technical Architecture & Functionality
The Opticis OMVC-200 is a box-type multi-format video converter designed to accept a wide range of legacy and modern video inputs including DVI, VGA, Component, S-Video, and Composite, and convert the detected source into a single-fiber DVI optical output for long-distance transmission.
The OMVC-200 automatically detects the first active input signal and converts it to uncompressed WUXGA (1920×1200) at 60Hz DVI, transmitting up to 500 meters (1,640 ft) over one SC multi-mode fiber. For signal recovery at the display side, the Opticis DVFX-100-R receiver converts the optical DVI signal back to standard electrical DVI.
For professional installations, the OMVC-200 includes Self-EDID management for both DVI and VGA inputs, allowing EDID information to be read and stored directly from the connected display. This ensures reliable compatibility across mixed-resolution environments without complex manual configuration.
Designed for rack, wall, or display-side mounting, the OMVC-200 supports an optional OPMCB mounting bracket compliant with VESA 75 and 100 standards, making it ideal for control rooms, medical systems, conference spaces, and long-distance video distribution environments where electrical isolation and signal integrity are critical.
Key Engineering Advantages
Unifies Multiple Video Formats
Converts DVI, VGA, Component, S-Video, and Composite into a single optical DVI output for simplified long-distance transmission.
Long-Distance Fiber Transmission
Extends uncompressed WUXGA video up to 500 meters over multimode fiber without latency or quality loss.
Future-Proof Legacy Systems
Allows older analog and digital video sources to integrate into modern fiber-based AV infrastructures.
Self-EDID Compatibility
Automatically reads and stores display EDID to ensure stable resolution negotiation in mixed-display environments.
Electrical Isolation Over Fiber
Fiber transmission eliminates ground loops, EMI, and electrical interference in medical and industrial installations.
Flexible Mounting Options
Optional VESA mounting bracket allows discreet installation behind displays or inside racks and enclosures.
Feature Checklist
- Accepts DVI, VGA, Component, S-Video, and Composite video inputs
- Automatically detects the first active input signal
- Converts input signals to single-fiber DVI optical output
- Supports WUXGA (1920×1200) @ 60Hz uncompressed video
- Extends DVI signals up to 500m (1,640 ft) over SC multimode fiber
- Built-in up-scaling support for legacy video sources
- Self-EDID management for DVI and VGA inputs
- Locking DC power connector for stable operation
- Optional VESA 75 / 100 mounting bracket (OPMCB)
- CE and FCC compliant
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- OMVC-200
- Brand
- Opticis
- Product Type
- Multi-Format Video to Fiber DVI Converter
- Supported Inputs
- DVI, VGA, Component, S-Video, Composite
- Output
- Single-fiber DVI (optical)
- Max Resolution
- WUXGA (1920×1200) @ 60Hz
- Fiber Type
- SC Multimode Fiber
- Max Distance
- 500m / 1,640ft
- EDID Management
- Self-EDID (DVI & VGA)
- Power Input
- +5V DC, 3A (locking connector)
- Operating Temperature
- 0°C to 50°C
- Storage Temperature
- -30°C to 70°C
- Dimensions (W × D × H)
- 216 × 112 × 44 mm
- Certifications
- CE, FCC
Documentation & Drivers
Package Contents
- OMVC-200 Multi-Format Converter
- User Manual
- Copper cable

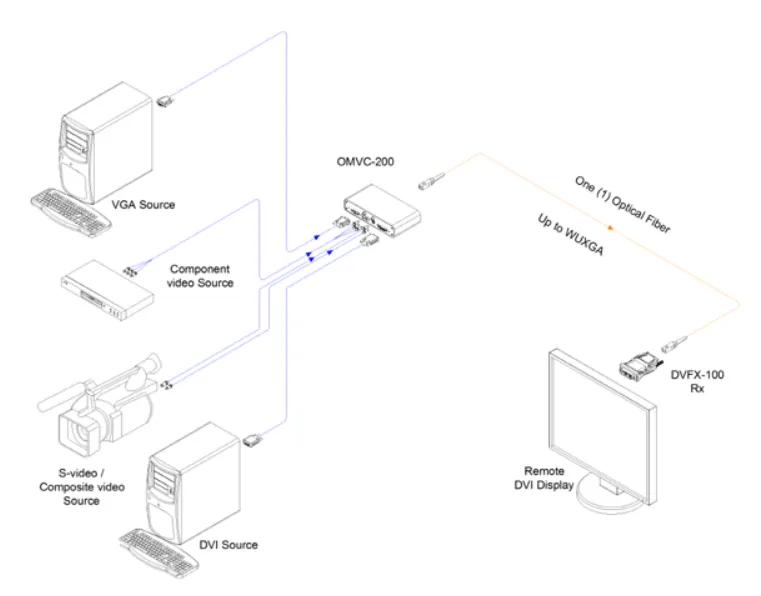

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical imaging and diagnostic systems
- Control rooms and monitoring centers
- Conference rooms and presentation systems
- Legacy video system modernization
- Long-distance AV distribution with electrical isolation
