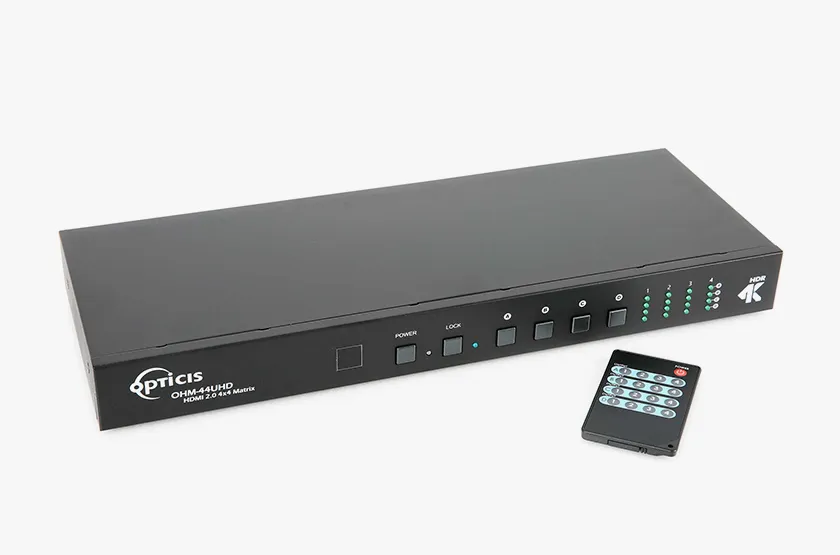

Opticis HDMI 2.0 4x4 Matrix Router, 4K60, HDR, 18Gbps (OHM-44UHD)
Professional HDMI 2.0 4x4 matrix router supporting 4K@60Hz, HDR, and 18Gbps bandwidth with flexible control via Web GUI, RS-232, telnet, and IR.
Matrix Size
4×4 HDMI
Resolution
4K60
Bandwidth
18Gbps
Control
Web GUI / RS-232
Technical Architecture & Functionality
The Opticis OHM-44UHD is a professional-grade HDMI 2.0 4×4 matrix router designed to deliver high-performance video and audio switching for modern AV systems. It supports resolutions up to 4K UHD (4096×2160) at 60Hz with full chroma sampling (RGB / YCbCr 4:4:4) and 18Gbps bandwidth, ensuring uncompromised image quality.
With support for HDR and pass-through of advanced digital audio formats, the OHM-44UHD enables realistic video presentation and lossless sound for demanding environments such as control rooms, medical imaging, video walls, conference facilities, and digital signage systems.
The unit provides four HDMI inputs and four HDMI outputs, allowing any input to be routed to any output independently. Multiple control options are supported, including front-panel buttons, RS-232, telnet, Web GUI, and IR remote, making the matrix suitable for both local and remote operation.
An intuitive Web GUI allows users to store and recall up to four routing presets, simplifying configuration and day-to-day operation. Built-in EDID management tools enable selection from internal EDIDs, EDID bypass, uploading custom EDID files, or downloading EDID directly from connected displays to ensure optimal compatibility across mixed display environments.
Key Engineering Advantages
True 4K HDMI matrix switching
Routes any of four HDMI sources to any of four displays while maintaining full 4K@60Hz 4:4:4 video quality.
Professional-grade control flexibility
Supports front-panel control, RS-232, telnet, Web GUI, and IR for seamless integration into AV control systems.
Advanced EDID management
Built-in EDID tools allow custom EDID upload, download from displays, bypass mode, and reliable compatibility across mixed systems.
HDR and lossless audio support
Supports HDR video and pass-through of LPCM 7.1 and HD audio formats for immersive AV experiences.
Preset-based operation
Stores and recalls up to four routing presets, simplifying daily operation in control rooms and conference environments.
Designed for mission-critical environments
Certified for FCC and CE compliance and built for use in medical, military, control room, and digital signage applications.
Feature Checklist
- Supports HDMI 2.0 standards
- Supports 4K UHD (4096×2160) at 60Hz with RGB / YCbCr 4:4:4
- 18Gbps total bandwidth
- 4×4 HDMI matrix switching (any input to any output)
- Supports HDR at 10-bit or 12-bit within 18Gbps
- Supports HDCP 1.4 and HDCP 2.2
- Pass-through support for LPCM 7.1, bitstream, and HD audio formats
- User-friendly EDID management
- Built-in EDIDs
- EDID bypass
- Upload and download custom EDIDs
- Stores and recalls up to four routing presets
- Controllable via front panel, RS-232, telnet, Web GUI, and IR remote
- Supports 3D content transmission
- FCC and CE certified
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- OHM-44UHD
- Brand
- Opticis
- Product Type
- HDMI 2.0 4×4 Matrix Router
- HDMI Standard
- HDMI 2.0
- Inputs
- 4 × HDMI
- Outputs
- 4 × HDMI
- Max Resolution
- 4096×2160 @ 60Hz
- Color Format
- RGB / YCbCr 4:4:4
- Max Bandwidth
- 18Gbps
- HDR Support
- Yes (10-bit / 12-bit)
- HDCP Support
- HDCP 1.4 / 2.2
- Audio Support
- LPCM 7.1, Bitstream, HD audio
- EDID Management
- Built-in, upload, download, bypass
- Presets
- Up to 4
- Control Methods
- Front panel, RS-232, Telnet, Web GUI, IR
- 3D Support
- Yes
- Certifications
- FCC, CE
- Dimensions (W × D × H)
- 436 × 150 × 44 mm
Documentation & Drivers
Package Contents
- HDMI 2.0 4×4 Matrix Router
- User Manual
- IR Remote Control (with battery)
- IR Extender
- OTG USB Converter
- Copper HDMI cables

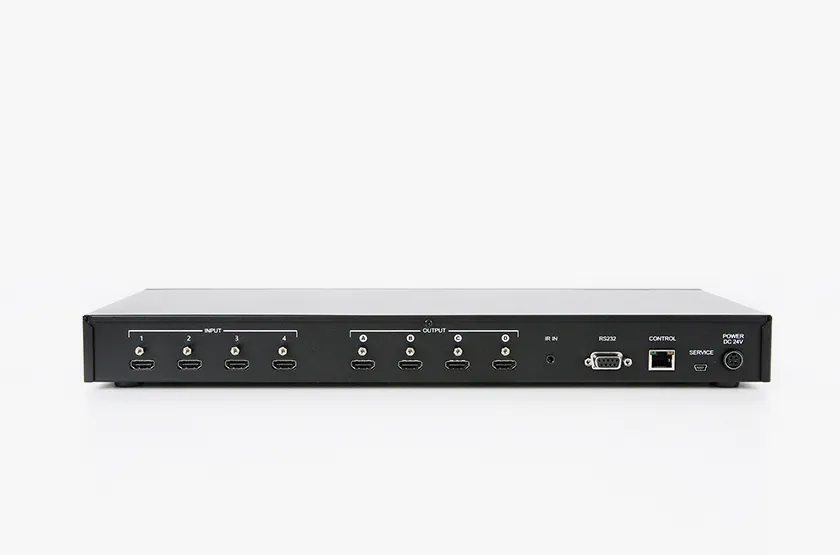

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical imaging systems
- Video wall systems
- Control rooms and command centers
- Conference rooms and meeting spaces
- Military, aerospace, and education facilities
- Digital signage installations
Related Connectivity Solutions
Opticis BR-600 19” 1RU Rack for Optical Extenders | Power & Diagnosis Mount
19” 1RU rack system for powering and managing up to 8 Opticis diagnosis optical extenders with redundant power and GUI monitoring.
Opticis CNDF-200 Component to Fiber DVI Converter | 500m SC Multimode 1080p
Convert component (YPbPr) to 1-fiber optical DVI and send 1080p@60Hz up to 500 m over SC multimode fiber (use DVFX-100-R).
Opticis DDFX-100-TR Dual-Link DVI Optical Extender | 2560×1600 60Hz, 500m Fiber
Opticis DDFX-100-TR dual-link DVI optical extender transmitting uncompressed WQXGA video up to 500 meters over two LC multimode fibers.
Need Custom Lengths or Volume Pricing?
Our engineering team can assist with high-density AV routing, custom termination, OEM integration, or government procurement specs for Opticis HDMI 2.0 4x4 Matrix Router, 4K60, HDR, 18Gbps (OHM-44UHD).
Opticis HDMI 2.0 4x4 Matrix Router, 4K60, HDR, 18Gbps (OHM-44UHD)
$1099.00
