Opticis ODM-88 8x8 DVI Matrix Router | DVI Matrix Switch with EDID & HDCP
8×8 DVI matrix router with EDID management and HDCP support. Route any of 8 DVI sources to any of 8 displays via front panel, RS-232, or LAN control.
Matrix Size
8×8 DVI Routing
Max Resolution
1920×1200 @ 60Hz
Control Methods
Front Panel, RS-232, LAN
EDID Management
Factory & Learnable EDID
Technical Architecture & Functionality

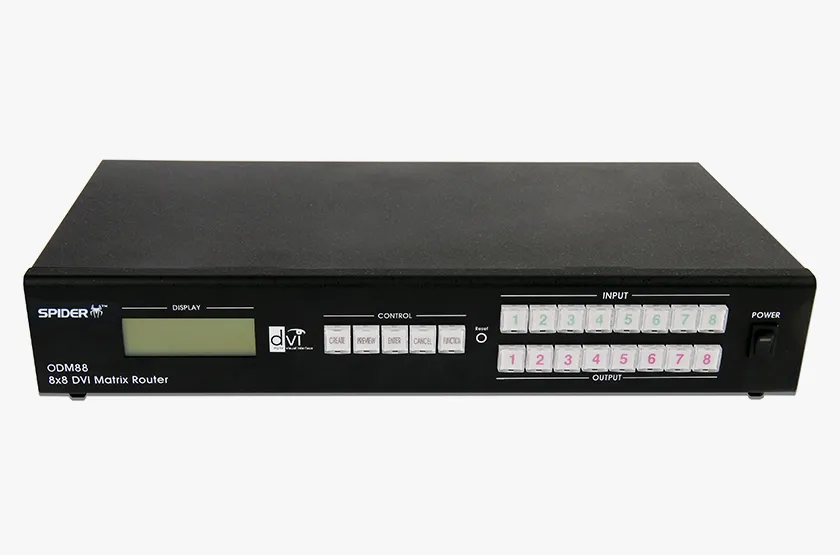

The Opticis ODM-88 is a professional 8×8 DVI matrix router designed to flexibly route eight DVI sources to eight DVI displays in control rooms, broadcast environments, and large-format AV installations. Any input can be independently switched to any output, allowing true cross-point routing without signal degradation.
The ODM-88 supports WUXGA (1920×1200) @ 60Hz and Full HD 1080p, ensuring compatibility with high-resolution DVI graphics cards, workstations, and professional displays. Full DDC and HDCP pass-through is supported on all switched connections, enabling secure content playback and stable display handshaking.
For system integration and automation, the ODM-88 can be controlled in multiple ways:
- Front-panel buttons with real-time LCD status display
- RS-232 serial control (ASCII or Binary command sets)
- LAN (TCP/IP) control via web browser or third-party control systems
- Opticis PC control software included in the package
Advanced EDID management ensures maximum compatibility with mixed display environments. Users can apply factory EDID profiles or learn EDID directly from connected displays and assign them to any input, preventing resolution or sync issues when switching sources.

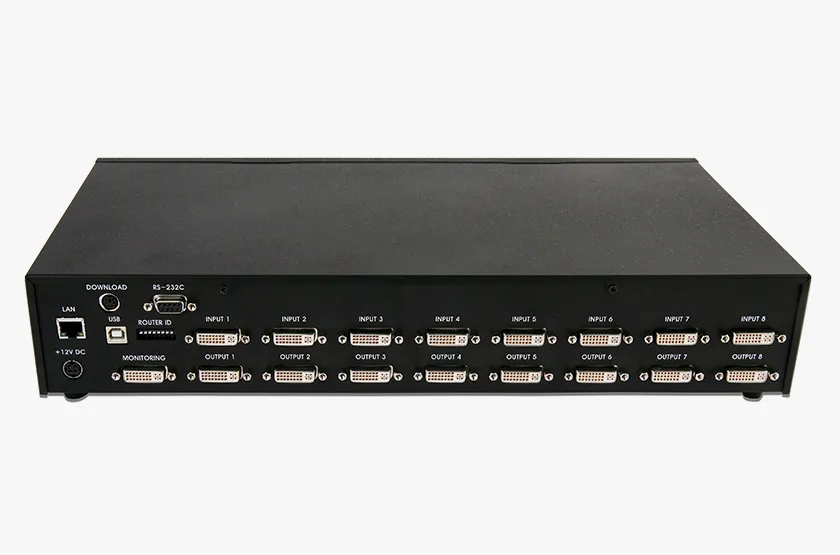

Housed in a robust 19-inch rack-mountable enclosure, the ODM-88 is built for continuous operation in mission-critical AV environments where reliability, flexibility, and centralized video routing are required.
Key Engineering Advantages
True Cross-Point Routing
Route any of eight DVI sources to any of eight displays independently for flexible AV system design.
Stable HDCP & EDID Handling
Full DDC/HDCP pass-through with EDID learning prevents resolution mismatches and black-screen issues.
Multiple Control Options
Control the matrix via front panel, RS-232, LAN, or bundled PC software for easy integration into automation systems.
Built for Control Rooms
Rack-mountable heavy-duty enclosure designed for continuous operation in mission-critical environments.
Automation Friendly
ASCII and Binary command sets allow simple integration with third-party control systems and video controllers.
Simplified Installation
Monitoring output and real-time LCD status make setup and troubleshooting faster in complex AV systems.
Feature Checklist
- 8×8 cross-point DVI matrix switching
- Routes any DVI input to any DVI output
- Supports up to WUXGA (1920×1200) @ 60Hz and 1080p
- Full DDC and HDCP pass-through
- EDID management with factory profiles and EDID learning
- Multiple control methods: Front panel, RS-232, LAN (TCP/IP), PC software
- Real-time routing status displayed on front LCD
- 19-inch rack-mountable heavy-duty enclosure
- Supports ASCII and Binary command sets for automation
- Monitoring output for simplified installation and diagnostics
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- ODM-88
- Brand
- Opticis
- Matrix Size
- 8 × 8 DVI
- Max Resolution
- WUXGA (1920×1200) @ 60Hz, 1080p
- DVI Bandwidth
- Up to 1.65 Gbps
- Video Signal Type
- TMDS
- Control Interfaces
- Front panel, RS-232, LAN (TCP/IP), PC software
- EDID Management
- Factory EDID, EDID learning
- HDCP Support
- Yes
- RS-232 Baud Rates
- Up to 115,200 bps
- LAN Port
- 10/100 Base-T
- Input Power
- AC 110–240V / 1.5A, DC 12V / 5A
- Power Consumption
- TX: 1.5W, RX: 1.9W
- Dimensions (W × D × H)
- 440 × 165 × 75 mm
- Weight
- 2.5 kg
- Operating Temperature
- 0°C to 40°C
- Certifications
- CE, FCC
Documentation & Drivers
Package Contents
- ODM-88 8×8 DVI Matrix Router
- PC control software (CD)
- Firmware download USB cable
- RS-232 crossed cable
- RJ-45 crossed Ethernet cable
- Rack ears (pair)
- User Manual

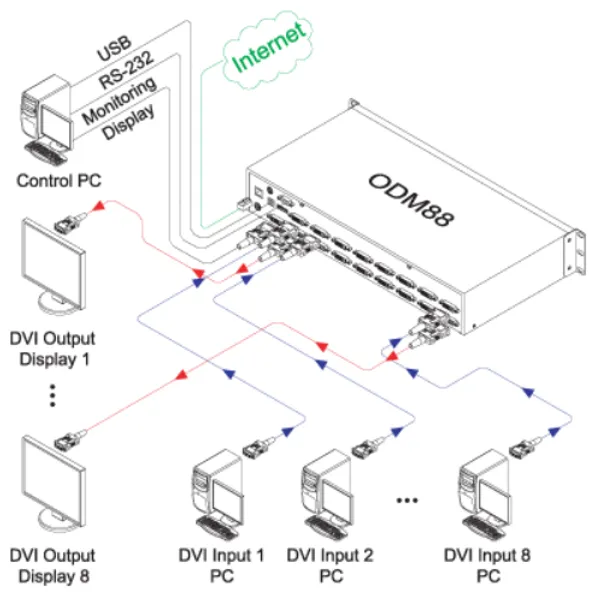

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Control rooms and monitoring centers
- Broadcast and production facilities
- Command-and-control environments
- Multi-display presentation systems
- Professional AV switching infrastructures
