Opticis MVDF Wall Plate Converter | Multi-Format Video to Fiber DVI 500m
Single-gang wall plate converter that accepts DVI, VGA, S-Video, and Composite inputs and transmits uncompressed WUXGA DVI up to 500m over fiber.
Form Factor
1-Gang Wall Plate
Max Distance
500m Fiber
Max Resolution
WUXGA 1920×1200@60Hz
Inputs
DVI, VGA, S-Video, Composite
Technical Architecture & Functionality

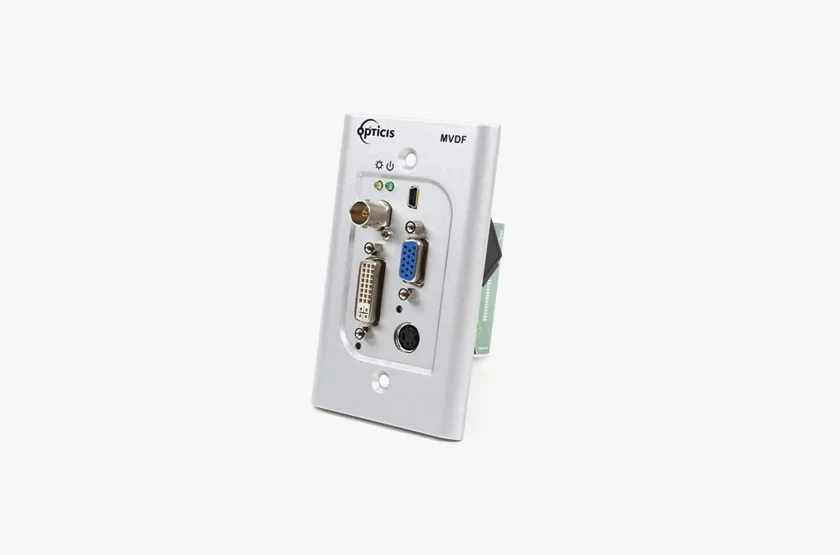

The Opticis MVDF is a single-gang, multi-format wall plate converter designed to accept DVI, VGA, S-Video, and Composite video inputs and convert the active source into a single optical DVI output for long-distance transmission over fiber.
The MVDF automatically detects the first active input signal and converts it to uncompressed DVI, transmitting video up to 500 meters (1,640 ft) over one SC-terminated multimode fiber with zero compression and zero latency. At the display end, an Opticis DVFX-100-RX receiver converts the optical DVI signal back into standard electrical DVI for connection to monitors or projectors.
For legacy video sources, the MVDF intelligently scales Composite and S-Video inputs (480i / 576i) up to SXGA (1280×1024) at 60Hz, while maintaining native resolution for DVI and VGA sources. This ensures compatibility across mixed-format AV systems commonly found in medical facilities, control rooms, and presentation environments.

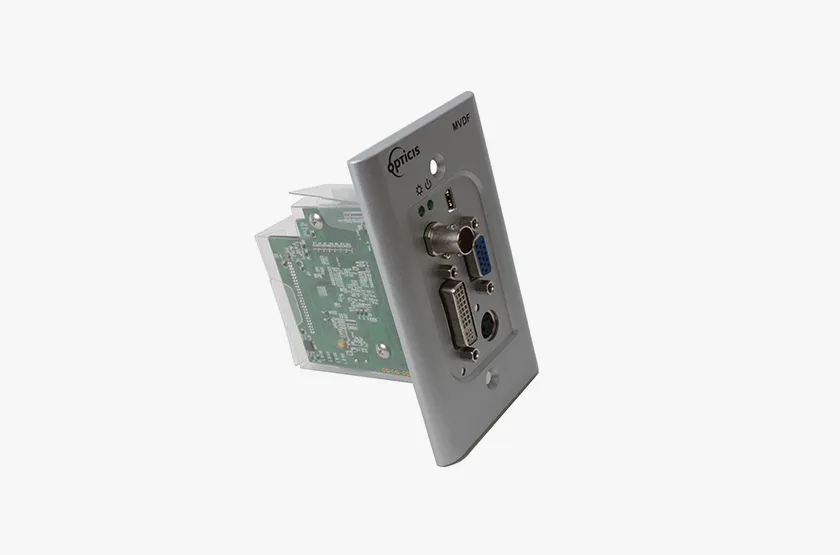

The compact 1-gang wall plate form factor eliminates the need for bulky external converters and loose copper cabling behind displays or podiums. Two front-panel LED indicators provide quick visual confirmation of power and input signal status, while Self-EDID management ensures stable resolution negotiation with connected displays. Firmware can be updated via the front mini USB port to support customized or unique display environments.
Key Engineering Advantages
Clean Wall-Plate Installation
Integrates conversion and fiber transmission directly into a single-gang wall plate for professional AV and medical installs.
Legacy & Modern Video Support
Handles DVI, VGA, S-Video, and Composite sources in one device, reducing the need for multiple converters.
Long-Distance Fiber Extension
Transmits uncompressed DVI up to 500 meters over fiber with zero latency and zero signal degradation.
Automatic Source Detection
Detects the first active input and converts it automatically, with configurable priority for multi-source environments.
Stable Resolution Negotiation
Self-EDID ensures reliable compatibility with displays across mixed-resolution environments.
Medical & Control Room Ready
Electrical isolation over fiber reduces EMI, ground loops, and interference in sensitive environments.
Feature Checklist
- Accepts DVI, VGA, S-Video, and Composite video inputs
- Converts active source to single-fiber optical DVI output
- Supports WUXGA (1920×1200) @ 60Hz for DVI and VGA
- Scales Composite and S-Video to SXGA (1280×1024) @ 60Hz
- Extends DVI signals up to 500m (1,640 ft) over SC multimode fiber
- Auto input detection with configurable priority order
- Built-in Self-EDID for DVI and VGA
- Mini USB port for firmware updates
- Two front LEDs for power and signal status
- Compact single-gang wall plate form factor
- FCC and CE compliant
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- MVDF
- Brand
- Opticis
- Product Type
- Multi-Format Wall Plate Video to Fiber DVI Converter
- Supported Inputs
- DVI, VGA, S-Video, Composite
- Output
- Optical DVI (SC multimode fiber)
- Max Resolution (DVI/VGA)
- WUXGA (1920×1200) @ 60Hz
- Scaled Output (S-Video/Composite)
- SXGA (1280×1024) @ 60Hz
- Max Distance
- 500m / 1,640ft
- EDID Management
- Self-EDID (DVI & VGA)
- Power Input
- DC 8–15V
- Power Consumption
- < 0.5W
- Operating Temperature
- 0°C to 50°C
- Dimensions (W × D × H)
- 70 × 71.5 × 115 mm
- Certifications
- CE, FCC
Documentation & Drivers
Package Contents
- MVDF Wall Plate Converter
- User Manual

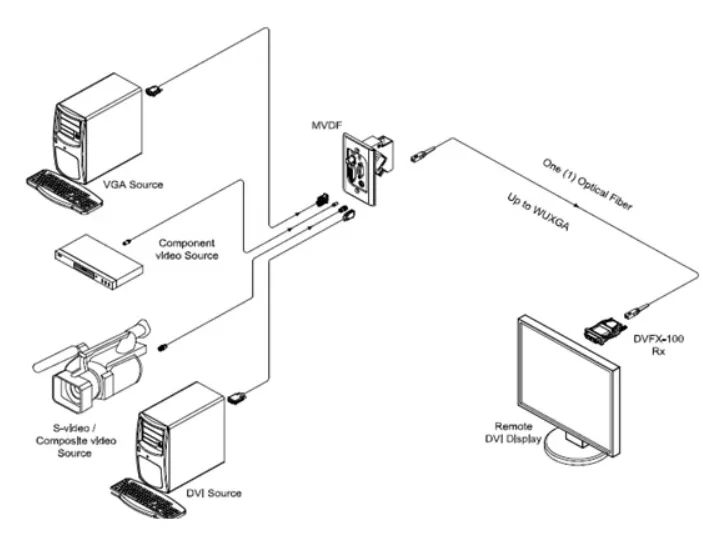

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Surgical rooms and radiology suites
- Medical imaging systems
- Control rooms and monitoring centers
- Conference rooms and presentation systems
- Long-distance AV distribution over fiber
