Opticis M2-100 USB 1.1 Optical Extension Cable | 40m Fiber USB
USB 1.1 all-fiber optical extension cable for long-distance USB devices up to 40 m with complete electrical isolation and zero EMI/RFI.
USB Speed
USB 1.1 (12 Mbps)
Distance
Up to 40 m
Isolation
Full Galvanic Isolation
EMI Immunity
Zero EMI/RFI
Technical Architecture & Functionality
The Opticis M2-100 series is a USB 1.1 all-fiber optical extension cable designed to extend USB connections far beyond the limits of copper cables. It supports reliable point-to-point USB extension up to 40 meters (130 ft) without repeaters, hubs, or software drivers.
By converting USB electrical signals to optical transmission at the source and back to electrical at the device, the M2-100 provides complete galvanic isolation, eliminating ground loops, EMI/RFI interference, and electrical noise. This makes it especially suitable for industrial, lab, medical, and surveillance environments where signal integrity and electrical safety matter more than vibes.

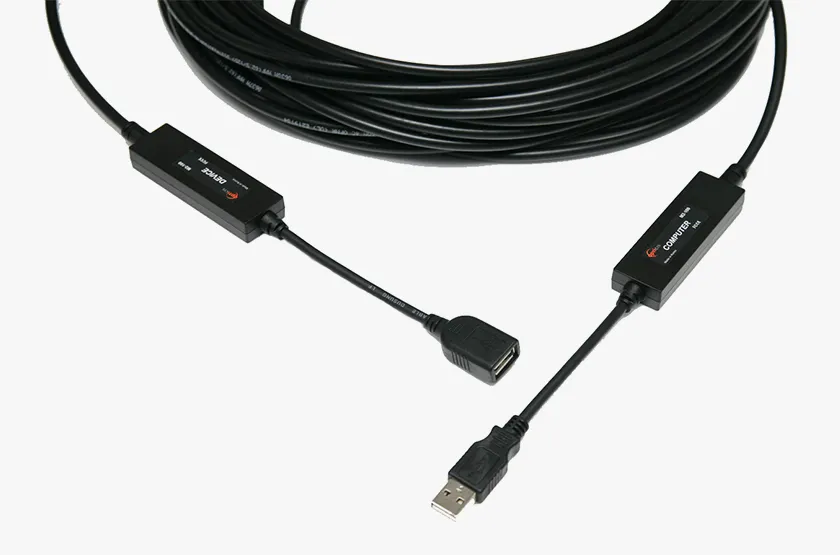

The M2-100 operates as a true plug-and-play USB extension cable with USB-A plug to USB-A receptacle ends. No drivers. No configuration. No “have you tried rebooting the cable” rituals. It simply behaves like a very long USB cable that does not hate you.
Multiple variants are available across the M2-100 series, including versions with in-cable power delivery or integrated hub options for multi-device deployments. If your setup needs power where power outlets go to die, there is a version for that.
Key Engineering Advantages
True Fiber USB Extension
Extends USB well beyond copper limits without repeaters or signal boosters.
Electrical Isolation
Completely eliminates ground loops, EMI, and electrical noise between host and device.
Plug and Play Simplicity
Works like a standard USB cable with no drivers, no configuration, and no software.
Industrial-Grade Reliability
Designed for noisy electrical environments such as factories, labs, and control rooms.
Flexible Power Options
Available in multiple variants including in-cable power and hub-enabled versions.
Feature Checklist
- Extends USB up to 40 m (130 ft) over all-fiber cable
- Supports USB 1.1 Full-Speed (12 Mbps) and Low-Speed (1.5 Mbps)
- True optical isolation for complete EMI/RFI immunity
- No software or drivers required
- Plug & play USB-A to USB-A point-to-point connection
- Lightweight fiber cable with no spark hazard
- Available variants with power-over-cable or hub options
- Reliable VCSEL/PD optical transceivers on both ends
Technical Specifications
Validated performance benchmarks and physical parameters.
- USB Standard
- USB 1.1 (Full-Speed / Low-Speed)
- Data Rate
- 12 Mbps / 1.5 Mbps
- Max Distance
- Up to 40 m (130 ft)
- Cable Type
- All-fiber optical
- Electrical Isolation
- Full galvanic isolation
- EMI/RFI
- Negligible
- Connectors
- USB-A plug to USB-A receptacle
- Software Required
- None
- Power Options
- Series variants available with in-cable power or hub options
Documentation & Drivers
Package Contents
- M2-100 Optical USB Extension Cable
- User Manual

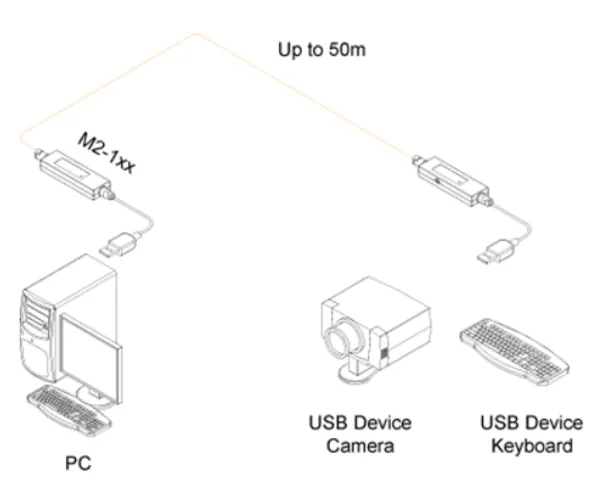

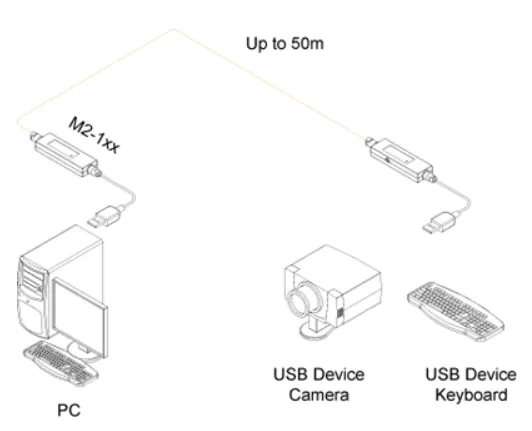

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Industrial USB peripherals in factories and control rooms
- USB cameras for surveillance systems
- USB connections for automation and motion control
- Long-distance USB audio interfaces
- Lab and test equipment requiring electrical isolation
