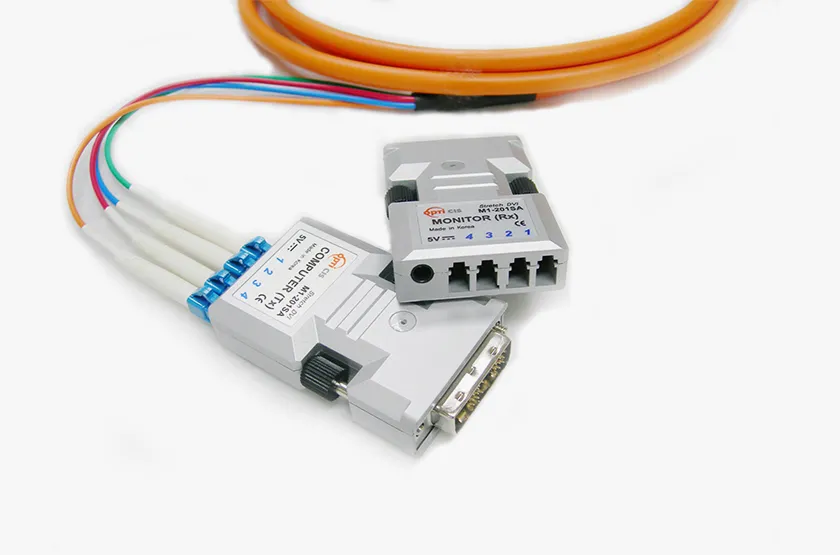

Opticis Four-Fiber Detachable DVI Optical Extender, WUXGA 60Hz, 500m (M1-201SA-TR)
Detachable optical DVI extender supporting uncompressed WUXGA (1920×1200) at 60Hz. Extends DVI up to 500m over two duplex LC links (4 fibers total).
Resolution
WUXGA 60Hz
Max Distance
500m / 1,640ft
Fiber Type
Two Duplex LC Links (4 Fibers)
Signal Type
Uncompressed DVI
Technical Architecture & Functionality
The Opticis M1-201SA-TR is a four-fiber detachable optical DVI extender designed to transmit uncompressed WUXGA (1920×1200) video at 60Hz over long distances using a pair of duplex LC multi-mode fiber connections.
Capable of extending DVI signals up to 500 meters (1,640 feet), the M1-201SA-TR overcomes the physical limitations of copper DVI cabling while maintaining zero compression, zero signal loss, and full image integrity. This makes it well suited for industrial facilities, medical environments, transportation systems, and large public venues where long-distance, interference-free video distribution is required.
The compact, detachable module design allows the extender to plug directly into DVI sources and displays without modification. Its patent-pending Self-EDID management feature simplifies installation by automatically reading and restoring the display’s EDID into the transmitter, ensuring compatibility across variable-resolution display systems without requiring physical DDC connections.
By using optical transmission for the red, green, blue, and clock channels, the M1-201SA-TR provides complete electrical isolation, eliminating EMI, RFI, and ground-loop issues commonly associated with long copper runs. The system includes clear TX/RX labeling, LED status indicators, and automatic power switching for reliable operation in professional deployments.
Key Engineering Advantages
Long-distance uncompressed DVI
Extends uncompressed WUXGA DVI video up to 500 meters with no signal degradation or compression.
Optical immunity to interference
Fiber-based transmission eliminates EMI, RFI, and ground-loop issues common in copper DVI installations.
Self-EDID installation simplicity
Patent-pending Self-EDID feature reads and restores display EDID automatically, simplifying setup across variable-resolution systems.
Compact, detachable module design
Small form factor plugs directly into DVI sources and displays without system modification.
Certified for sensitive environments
Complies with UL/EN 60601-1, 60601-1-2, FCC, and CE standards with Class 1 laser eye safety.
Reliable operation in public and industrial spaces
Designed for transportation, public venues, medical, and industrial AV deployments requiring stable long-distance video.
Feature Checklist
- Supports uncompressed WUXGA (1920×1200) at 60Hz
- Extends DVI signals up to 500m (1,640ft) over duplex LC multimode fiber
- Four optical data channels (RGB + clock)
- Self-EDID management (read & restore from display)
- Compact, detachable modules for direct DVI connection
- Auto power switching
- LED indicators for power and signal status
- Excellent EMI / RFI immunity via fiber transmission
- Certified for UL/EN 60601-1, 60601-1-2, FCC, CE
- Class 1 Laser Eye Safety compliant
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- M1-201SA-TR
- Brand
- Opticis
- Product Type
- Optical DVI Extender (Tx/Rx Set)
- Video Interface
- DVI
- Max Resolution
- WUXGA (1920×1200) @ 60Hz
- Max Data Rate
- 1.65Gbps per channel
- Fiber Type
- Two Duplex LC Links (4 Optical Fibers Total)
- Optical Channels
- Four (RGB + Clock)
- Max Distance
- 500m / 1,640ft
- EDID Management
- Self-EDID (read & restore)
- Electrical Isolation
- Yes
- EMI / RFI Immunity
- Yes
- Operating Temperature
- 0°C to 50°C
- Storage Temperature
- -30°C to 70°C
- Power Input
- +5V DC, 1A
- Power Switching
- Automatic
- Dimensions (W × D × H)
- 39 × 59 × 15 mm
- Certifications
- UL/EN 60601-1, 60601-1-2, FCC, CE
- Laser Safety
- Class 1
Documentation & Drivers
Package Contents
- Transmitter module (Tx)
- Receiver module (Rx)
- User Manual
- Copper DVI cable
- Power adapters

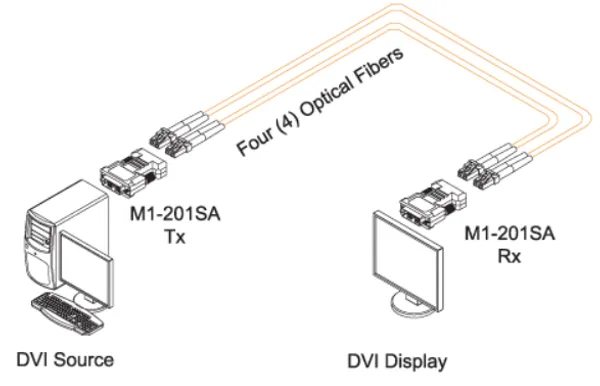

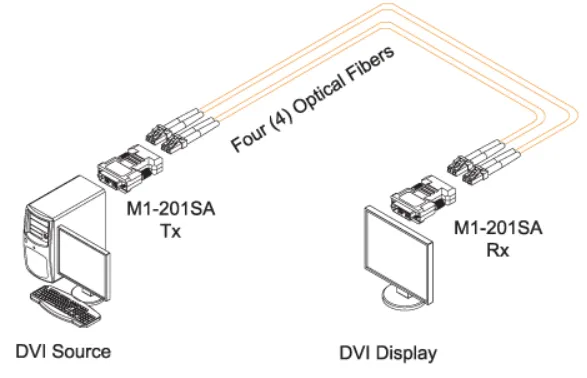

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Train cars and transportation systems
- Ferry boats and marine installations
- Shopping malls and restaurants
- Airports and public infrastructure
- Sports bars and amusement cafés
- Industrial and medical video distribution
