Opticis M1-201DA-TR DVI Optical Extender | WUXGA 60Hz, 1.5km over Fiber
Detachable optical DVI extender supporting uncompressed WUXGA (1920×1200) at 60Hz. Extends up to 1.5km over dual LC single-mode fiber.
Resolution
WUXGA & 2K DCI 60Hz
Max Distance
Up to 1.5km
Fiber Type
Duplex LC
Signal Type
Uncompressed DVI

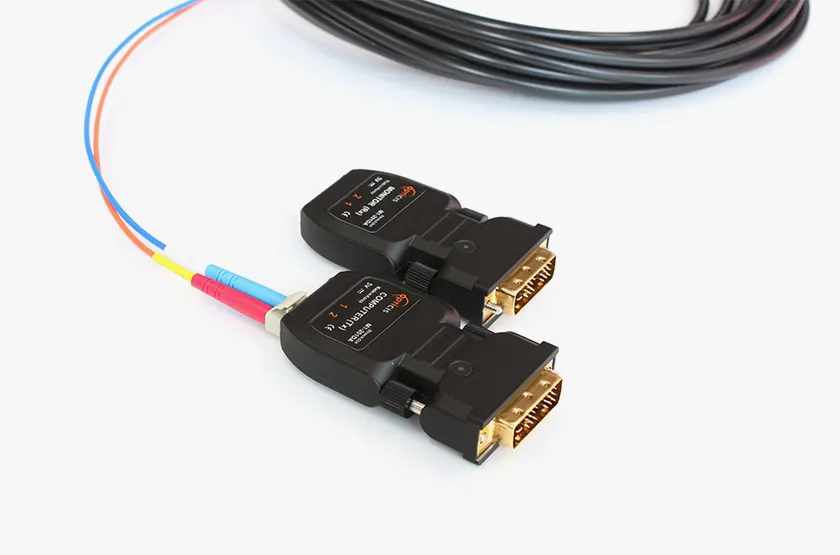

Technical Architecture & Functionality
The Opticis M1-201DA-TR is a two-fiber detachable optical DVI extender designed to transmit uncompressed WUXGA (1920×1200) video at 60Hz over long distances using duplex LC fiber connections.
Capable of extending DVI signals up to 1,500 meters (4,920 feet) over single-mode fiber or 500 meters (1,640 feet) over multi-mode fiber, the M1-201DA-TR is ideal for industrial, medical, control room, and large-facility AV installations where legacy DVI equipment must be deployed across extreme distances.
Housed in a solid aluminum die-cast enclosure, the module provides excellent EMI shielding, thermal dissipation, and durability in harsh and electrically noisy environments. Its compact, detachable design allows easy integration with existing systems without modification.
For advanced distribution scenarios, the M1-201DA-TR supports signal duplication using an optical passive splitter (OPS-216L), enabling a single transmitter to feed up to 16 receivers. This allows cost-effective, space-saving signal distribution in large installations.
To simplify setup and ensure compatibility, the unit features patent-pending Self-EDID management, allowing EDID information to be read and restored directly from the display. The extender also provides full electrical isolation and is certified for medical, industrial, and professional AV applications.
Key Engineering Advantages
Extreme long-distance DVI transmission
Extends uncompressed DVI video up to 1,500 meters over single-mode fiber or 500 meters over multi-mode fiber.
Reliable legacy video support
Designed to support uncompressed WUXGA (1920×1200) and 2K DCI at 60Hz for legacy DVI display systems in critical installations.
Scalable signal distribution
Supports optical passive splitter (OPS-216L), allowing a single transmitter to drive up to 16 receivers for large-scale deployments.
Self-EDID management
Patent-pending Self-EDID feature reads and restores display EDID to simplify setup and ensure compatibility.
Electrical isolation and EMI protection
Fiber-based transmission provides full electrical isolation and strong EMI shielding for use in noisy or sensitive environments.
Industrial-grade construction
Die-cast aluminum enclosure delivers durability, thermal dissipation, and reliable operation in harsh environments.
Certified for medical and professional use
Certified to IEC/EN 60601-1-2, FCC, and CE standards with Class 1 laser eye safety compliance.
Feature Checklist
- Supports uncompressed WUXGA (1920×1200) and 2K DCI (2048×1080) at 60Hz
- Bit rates up to 1.65Gbps per channel
- Extends DVI signals up to:
- 1,500m (4,920ft) over duplex LC single-mode fiber
- 500m (1,640ft) over duplex LC multi-mode fiber
- Two-fiber (duplex) LC optical connection
- Compatible with optical passive splitter (OPS-216L) for 1-to-16 signal duplication
- Self-EDID management (read & restore from display)
- Compact die-cast aluminum enclosure
- Excellent EMI shielding and heat dissipation
- Auto power switching
- LED indicators for power and signal status
- Certified for IEC/EN 60601-1-2, FCC, CE
- Class 1 LASER Eye Safety compliant

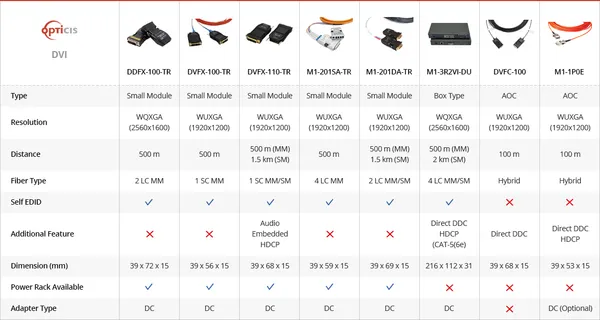

Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- M1-201DA-TR
- Brand
- Opticis
- Product Type
- Optical DVI Extender (Tx/Rx Set)
- Video Interface
- DVI
- Max Resolution
- WUXGA (1920×1200) & 2K DCI (2048×1080) @ 60Hz
- Max Data Rate
- 1.65Gbps per channel
- Fiber Type
- Duplex LC Single-Mode or Multi-Mode
- Max Distance (Single-Mode)
- 1,500m / 4,920ft
- Max Distance (Multi-Mode)
- 500m / 1,640ft
- Optical Channels
- Two (2) fibers
- EDID Management
- Self-EDID (read & restore)
- Signal Duplication
- Via OPS-216L (up to 16 outputs)
- Enclosure
- Aluminum die-cast
- EMI Shielding
- Yes
- Operating Temperature
- 0°C to 50°C
- Storage Temperature
- -30°C to 70°C
- Power Input
- +5V DC, 1A
- Power Switching
- Automatic
- Laser Safety
- Class 1
- Certifications
- IEC/EN 60601-1-2, FCC, CE
- Dimensions (W × D × H)
- 39 × 69 × 15 mm
Documentation & Drivers
Package Contents
- One (1) Transmitter and One (1) Receiver (Tx/Rx set)
- Two (2) +5V / 1A power adapters
- User Manual

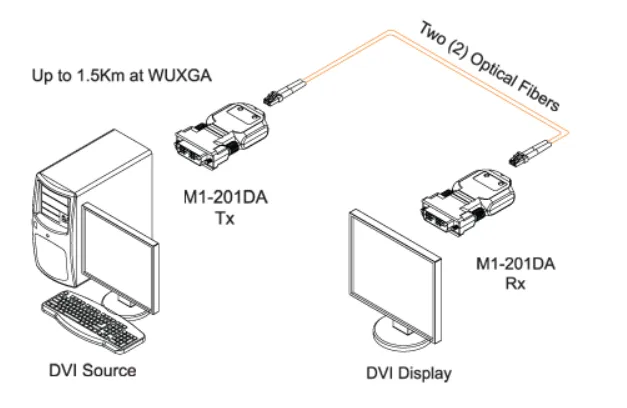

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Control rooms and command centers
- Medical imaging and diagnostic systems
- Industrial monitoring and automation
- Large-facility AV distribution
- Legacy DVI display systems over extreme distances
