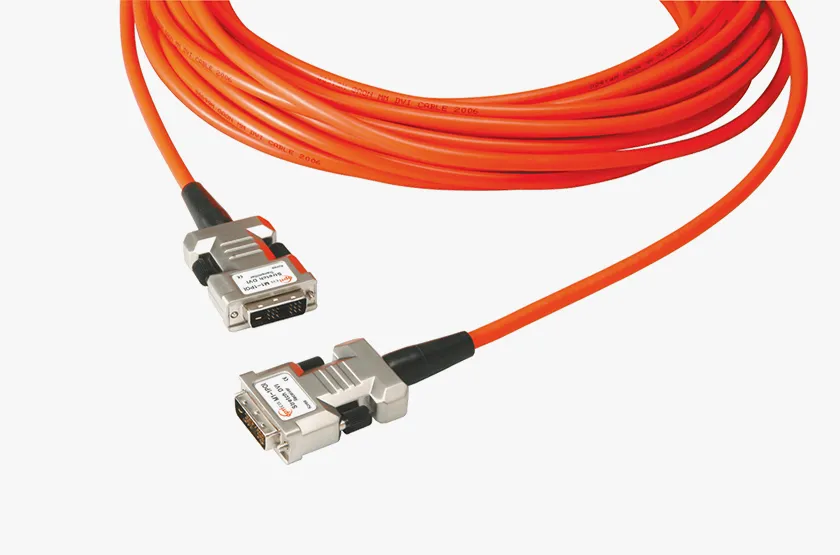

Opticis Point-to-Point DVI Hybrid Cable
Point-to-point DVI hybrid cable supporting uncompressed WUXGA (1920×1200) at 60Hz. Combines fiber and copper in an LSZH jacket for secure DVI transmission.
Resolution
WUXGA 60Hz
Max Distance
Up to 100m
Cable Type
Hybrid Fiber + Copper
Jacket Rating
LSZH / Halogen-Free
Technical Architecture & Functionality
The Opticis M1-1P0E-XX is a point-to-point DVI hybrid cable designed to transmit uncompressed digital video over extended distances by combining optical fiber for high-speed TMDS data with copper conductors for DDC and HDCP signaling within a single cable jacket.
The hybrid design uses four (4) multi-mode optical fibers for video transmission and copper wiring for control and power, overcoming the distance and interference limitations of traditional copper DVI cables. The M1-1P0E-10 supports 2K resolution or WUXGA (1920×1200) at 60Hz, and can extend 1080p DVI signals up to 100 meters (328 feet).
Compact DVI-D connectors at each end allow direct connection to host video cards and displays without additional extender modules. High-speed video transmission is achieved using a VCSEL array in the transmitter connector and a PIN photodiode array in the receiver connector, ensuring stable, high-quality signal delivery.
The cable adopts an LSZH (Low Smoke Zero Halogen), halogen-free hybrid jacket, making it suitable for safety-critical environments such as medical facilities, transportation systems, and public venues. Power is supplied via +5V DC from the video source or from the included power adapter, with automatic power switching for reliable operation.
Key Engineering Advantages
Point-to-point hybrid DVI transmission
Combines optical fiber for high-speed video with copper conductors for DDC and HDCP in a single cable.
Extended uncompressed video distance
Supports uncompressed WUXGA at 60Hz and extends 1080p DVI signals up to 100 meters.
Compact, direct-connect design
Small DVI-D connector housings plug directly into video cards and displays without external extender modules.
Interference-free optical transmission
Optical TMDS channels eliminate EMI and RFI issues common with long copper DVI cables.
Safety-rated cable construction
LSZH and halogen-free jacket makes the cable suitable for medical, transportation, and public installations.
Reliable power handling
Operates from +5V DC supplied by the video source or included adapter with automatic power switching.
Feature Checklist
- Point-to-point DVI hybrid cable design
- Supports uncompressed 2K / WUXGA (1920×1200) at 60Hz
- Extends 1080p DVI up to 100m (328ft)
- Four (4) multimode optical fibers for TMDS video transmission
- Copper conductors for DDC / HDCP
- LSZH & halogen-free hybrid cable jacket
- Compact DVI-D connectors for direct device connection
- Auto power switching
- Operates from +5V DC (source or included adapter)
- Excellent EMI / RFI immunity
- No external extender modules required

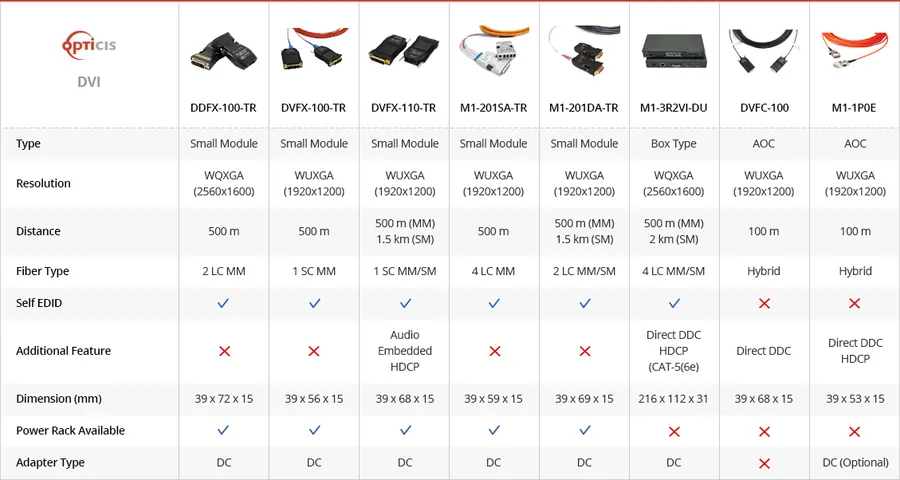

Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- M1-1P0E-XX
- Brand
- Opticis
- Product Type
- Point-to-Point DVI Hybrid Cable
- Video Interface
- DVI-D
- Max Resolution
- WUXGA (1920×1200) @ 60Hz
- Extended Resolution
- 1080p up to 100m / 328ft
- Max Data Rate
- 1.65Gbps per channel
- Transmission Medium
- 4 × Multimode Fiber (TMDS) + Copper (DDC/HDCP)
- Cable Jacket
- LSZH, Halogen-Free
- Power Requirement
- +5V DC, 1A
- Power Switching
- Automatic
- Operating Temperature
- 0°C to 50°C
- Storage Temperature
- -30°C to 70°C
- Dimensions (W × D × H)
- 39 × 53 × 15.4 mm
- Certifications
- CE, FCC
Documentation & Drivers
Package Contents
- Point-to-point DVI hybrid cable
- User Manual
- Copper cable
- Power adapter

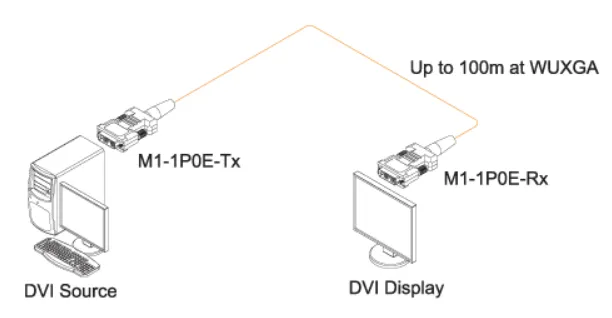

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical imaging systems
- Military and aerospace platforms
- Factory automation and control systems
- Traffic control platforms
- Conference rooms and auditoriums
- Stadiums and large venues
- Home theater systems
