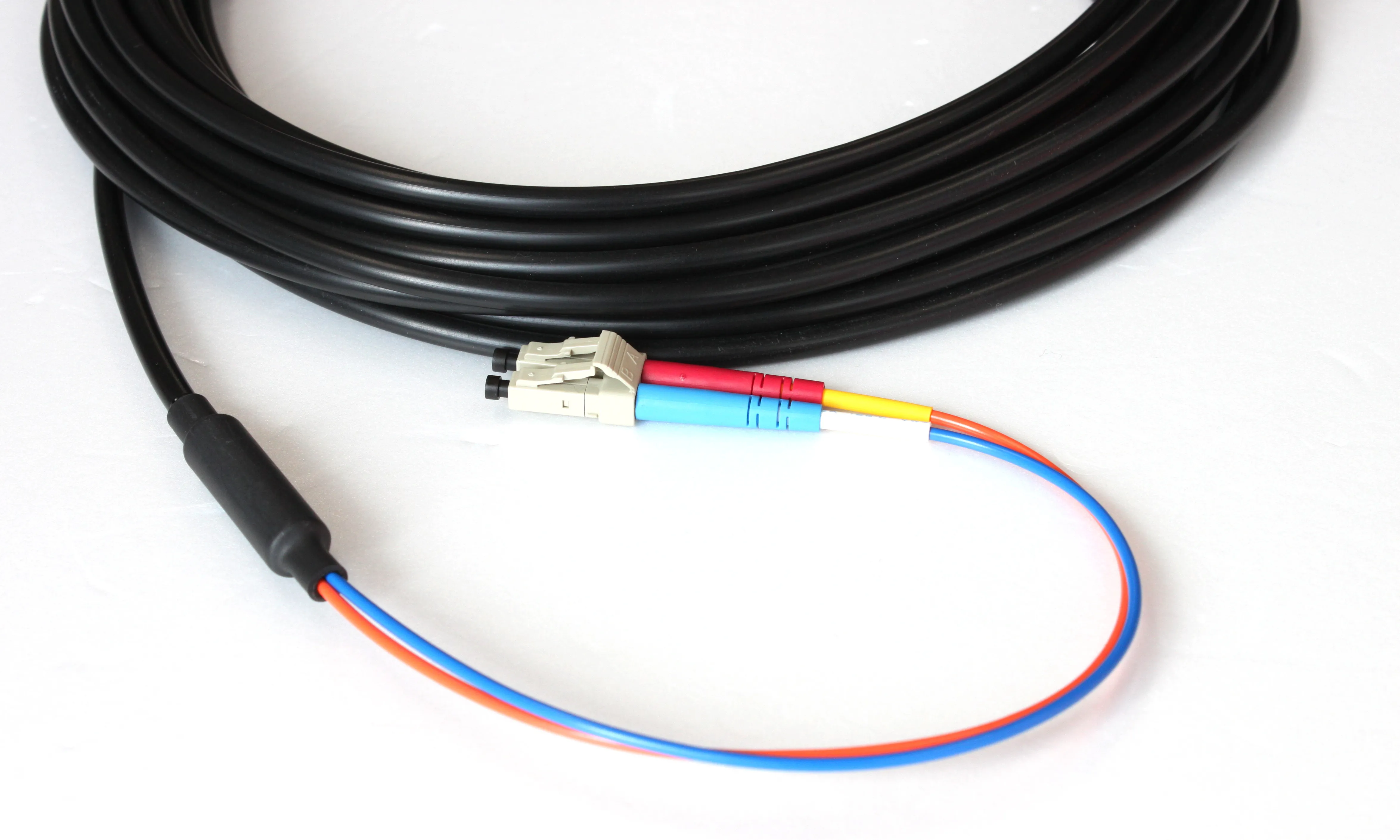

LC to LC OM3 Duplex Patch Cord | 50/125 Multimode Fiber
LC-LC OM3 50/125 duplex fiber patch cord. Length 1–100 m (custom to 30 km). Jacket options: PVC or LSZH.
Connectors
LC to LC
Fiber
OM3 multimode 50/125
Cores
Duplex (2-core)
Length
10–100 m (custom to 30 km)
Technical Architecture & Functionality
This LC to LC OM3 multimode duplex fiber patch cord is designed as a dependable, cart-friendly “grab the right cable” option for installs using detachable fiber extenders, patch panels, and standard LC-terminated multimode infrastructure.
It follows the Opticis-style ordering structure:
AABC-xyzEF-Length
- AA (Connector Pair):
LL= LC to LC - B (Fiber Type):
M= Multimode - C (Core Count):
D= Duplex (2-core) - xyz (Core Diameter):
050= 50 µm (multimode) - EF (Cable Type): (none) = Patch cord
- Length: commonly 10–100 m (custom lengths available up to 30 km upon request)
This keeps the SKU logic predictable, while letting customers choose what actually changes at checkout: length (and, if you expose it, jacket type).
Key Engineering Advantages
The Default Duplex LC Cable
LC-LC OM3 duplex is the go-to patching choice for multimode networks, racks, and AV installs.
Clean Ordering Logic
Built around the Opticis-style code: LL (LC-LC), M (multimode), D (duplex), 050 (50 µm), plus length.
Installer-Friendly Identification
Numbered and color-coded ends reduce guesswork when you’re dealing with multiple runs.
Jacket Options for Real Buildings
Choose PVC or LSZH to match site requirements and safety policies.
Standard Lengths, RFQ When Needed
Stock common lengths for cart sales, with custom options available for long-run projects.
Feature Checklist
- LC to LC termination
- Multimode OM3, 50/125 µm
- Duplex (2-core) construction
- Available as patch cord (default), with Distribution (DT) or Breakout (BO) constructions available in the broader series
- Lengths commonly offered: 10–100 m (custom lengths up to 30 km upon request)
- Connectors numbered and color coded for easier identification in bundles/trunks
- Jacket options available: PVC or LSZH (Low Smoke Zero Halogen)
- Applicable for Opticis optical fiber extender ecosystems
- UL certified (per series description)
Technical Specifications
Validated performance benchmarks and physical parameters.
- Parent SKU Format
- LLMD-050-XXm
- Connector Type
- LC to LC
- Fiber Type
- Multimode OM3
- Core / Cladding
- 50/125 µm
- Core Count
- Duplex (2-core)
- Cable Type
- Patch cord (default); DT/BO available in series
- Jacket Options
- PVC or LSZH
- Length Options
- 10–100 m standard (custom up to 30 km)
- Identification
- Numbered / color coded connectors
- Certification
- UL certified (series)
Documentation & Drivers
Package Contents
- LC-LC OM3 multimode duplex fiber patch cord (1)
Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- LC-based multimode patching in racks, closets, and panels
- Duplex fiber runs for detachable extender systems and AV links
- Industrial, medical, and pro-AV installs where consistent fiber labeling matters
- Clean “add-to-cart” fiber option for multimode LC infrastructure
