Opticis HDMI 2.0 Detachable Active Optical Cable, 4K60, up to 100m (LHM2-P Series)
Detachable HDMI 2.0 active optical cable supporting 4K DCI 60Hz over distances up to 100m with HDR and HDCP 2.2 support.
Resolution
4K60 (DCI 4096×2160)
Distance
Up to 100m (328ft)
Cable Type
Detachable Active Optical Cable
Compliance
HDR + HDCP 2.2
Technical Architecture & Functionality

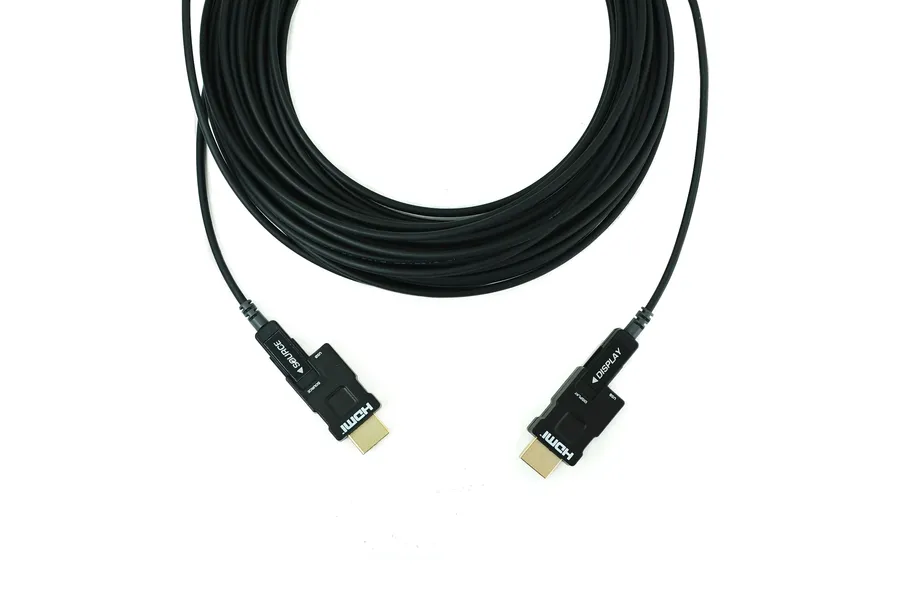

The Opticis LHM2-P is a detachable HDMI 2.0 Active Optical Cable (AOC) engineered for long-distance, high-bandwidth HDMI transmission in professional AV and mission-critical display environments. It delivers uncompressed 4K DCI (4096×2160) video at 60Hz over distances up to 100 meters (328 feet) without scaling or compression.

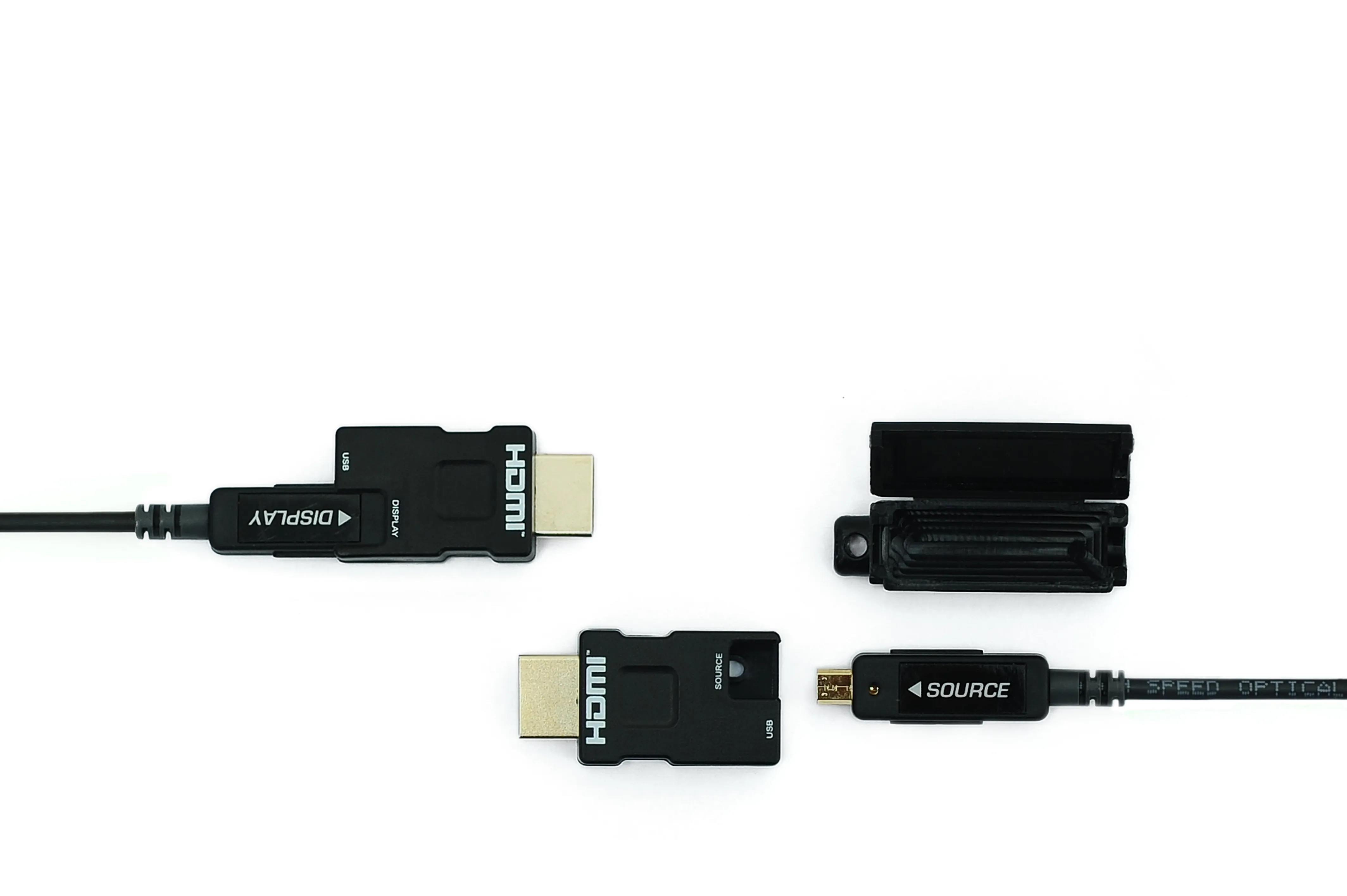

Designed for maximum installation flexibility, the LHM2-P separates the HDMI connector module from the active optical cable, allowing easier routing through conduits and tight spaces. Despite its fiber-optic construction, the cable maintains the slim, lightweight handling characteristics of standard copper HDMI cables.
The LHM2-P supports CEC, EDID, and HDCP 2.2, ensuring full compatibility with modern 4K sources and displays. It also supports HDR (10-bit / 12-bit) within the HDMI 2.0 bandwidth limit of 18Gbps. The cable is powered by an external 5V micro-USB power supply, which is included in the package.
Multiple jacket options are available for different installation environments, including Plenum-rated, LSZH, and TPU hybrid cable variants, making the LHM2-P suitable for in-wall, ceiling, and industrial routing scenarios.
Key Engineering Advantages
Long-distance 4K without compression
Transmit uncompressed HDMI 2.0 video up to 100 meters with zero scaling or latency.
Flexible detachable design
Separate HDMI connector and cable sections simplify conduit routing and tight-space installations.
Installation-grade cable jackets
Available in plenum, LSZH, and TPU variants for commercial, in-wall, and industrial installs.
Professional signal compatibility
Supports HDR, CEC, EDID, HDCP 2.2, and 3D for seamless integration with modern 4K systems.
High mechanical durability
Engineered for harsh installs with 500N pull/crush strength and tight bend radius.
Feature Checklist
- Supports HDMI 2.0 standard features
- Extends 4K DCI (4096×2160) at 60Hz (RGB & YCbCr 4:4:4)
- Transmits HDMI signals up to 100m (328ft) over hybrid active optical cable
- Detachable connector design for flexible installation
- Supports HDR (10-bit / 12-bit) within 18Gbps bandwidth
- Supports 3D content transmission
- Complies with CEC, EDID, and HDCP 2.2
- High mechanical durability: 500N pulling/crush load, 6mm bending radius
- Jacket options available:
- LHM2-PPxx – Plenum rated
- LHM2-PLxx – LSZH
- LHM2-PTxx – TPU
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- LHM2-P Series
- Brand
- Opticis
- Product Type
- Detachable HDMI 2.0 Active Optical Cable
- HDMI Standard
- HDMI 2.0
- Max Resolution
- 4K DCI (4096×2160) @ 60Hz
- Color Format
- RGB / YCbCr 4:4:4
- Max Distance
- Up to 100m / 328ft
- Max Bandwidth
- 18Gbps
- HDR Support
- Yes (10-bit / 12-bit)
- HDCP Support
- HDCP 2.2
- HDMI Features
- CEC, EDID
- Power Method
- External 5V via Micro USB
- Cable Jacket Options
- Plenum, LSZH, TPU
- Mechanical Strength
- 500N pull/crush, 6mm bend radius
- Installation
- Plug and Play
Documentation & Drivers
Package Contents
- User Manual
- Micro USB power supply cable
- Optional USB power adapter (model dependent)

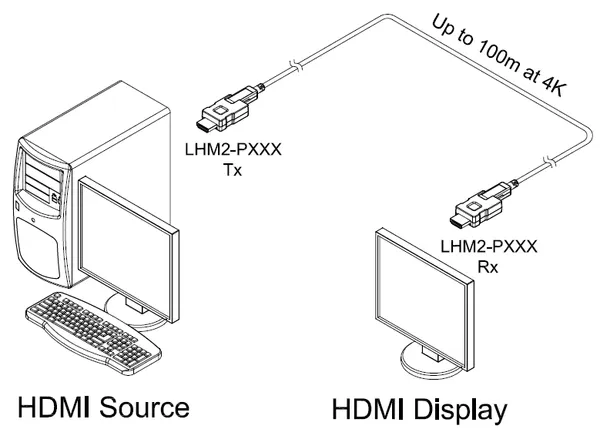

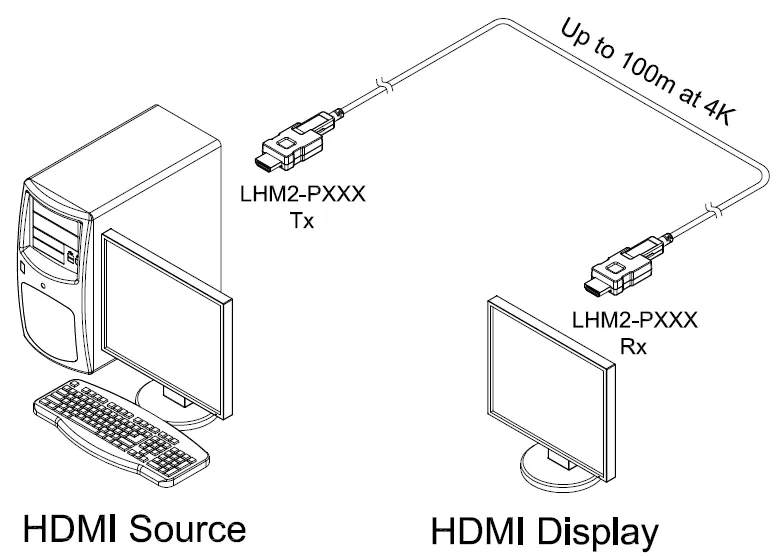

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Professional AV system interconnection
- Digital signage and video walls
- Home theater installations
- Facility automation and control rooms
- Long-distance 4K HDMI distribution
