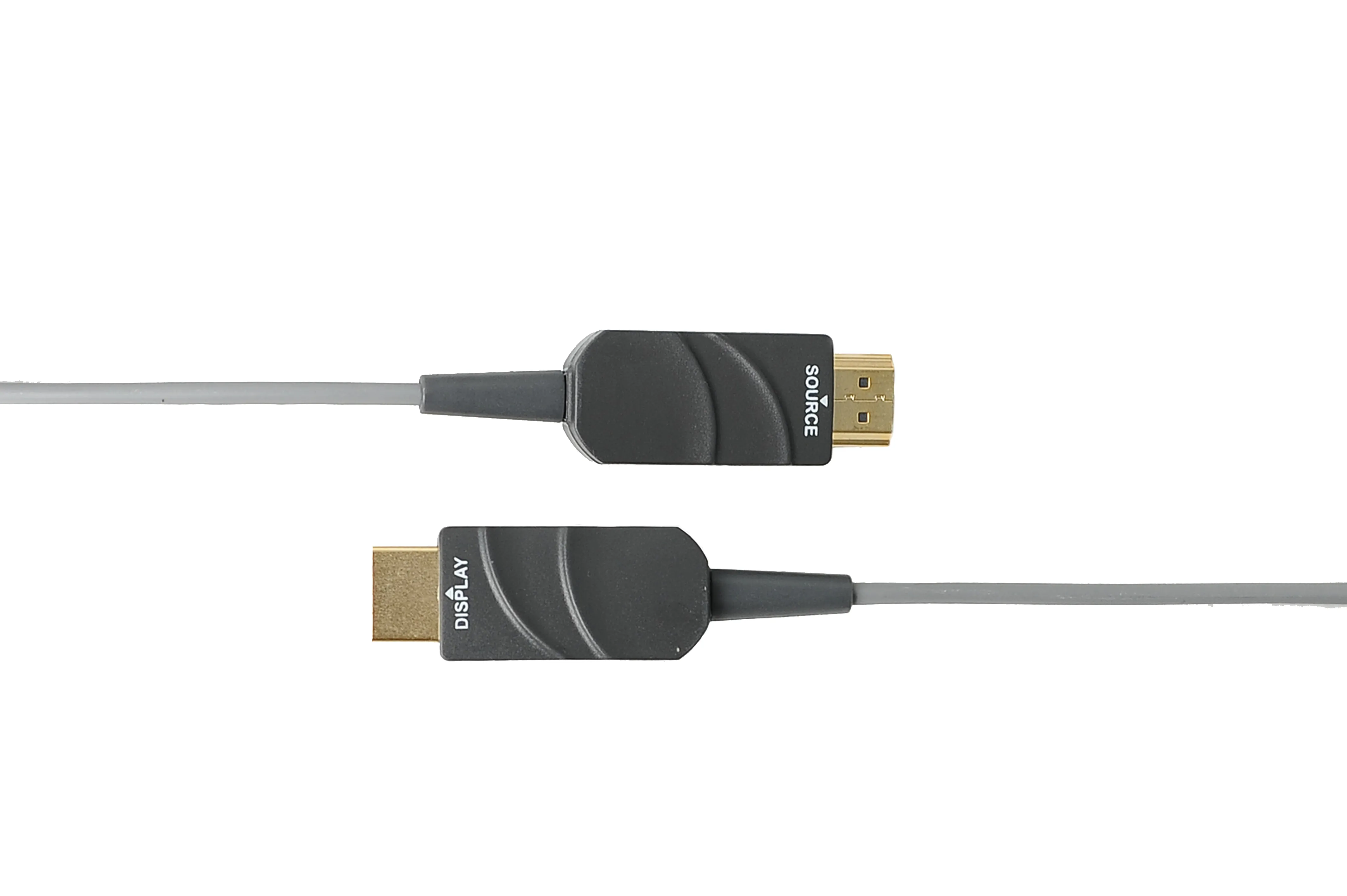

Opticis LHM2-N HDMI 2.0 Active Optical Cable | 100m 4K HDR Fiber HDMI Cable
HDMI 2.0 active optical cable supporting uncompressed 4K (4096×2160) @ 60Hz with HDR over hybrid fiber up to 100 m. No external power required.
Resolution
4K @ 60Hz
Distance
Up to 100 m
HDR Support
10-bit / 12-bit
No External Power
Plug & play
Technical Architecture & Functionality
The Opticis LHM2-N is a professional-grade HDMI 2.0 Active Optical Cable (AOC) engineered for long-distance 4K signal transmission in demanding AV installations. Designed for critical display environments, it delivers uncompressed 4K DCI (4096×2160) @ 60Hz with zero compression and zero latency over distances up to 100 meters (328 ft).
Built with hybrid optical fiber and copper conductors, the LHM2-N provides the flexibility and handling of a standard HDMI cable while delivering the distance and signal integrity of fiber. It is available in plenum-rated, LSZH, or TPU jackets, making it suitable for commercial buildings, medical facilities, and industrial installations.
Unlike many long-distance HDMI solutions, the LHM2-N requires no external power. It draws operating power directly from the HDMI source and display, enabling simple plug-and-play deployment with no additional configuration or power adapters.
The cable fully supports HDMI 2.0 features, including HDR, CEC, EDID, HDCP 2.2, and 3D, ensuring compatibility with modern displays, media players, and AV control systems.
Key Engineering Advantages
No External Power Required
Runs directly from HDMI source and display with no power adapters or USB cables needed.
Uncompressed 4K Over Fiber
Delivers pristine 4K 60Hz video with zero compression and zero latency.
Installation-Friendly Cable Options
Available in plenum, LSZH, and TPU jackets for commercial, medical, and industrial environments.
Rugged for Real-World Installs
500 N pull/crush strength and tight bend radius for conduit and in-wall routing.
Full HDMI 2.0 Feature Support
Supports HDR, HDCP 2.2, EDID, CEC, and 3D for modern AV systems.
Feature Checklist
- HDMI 2.0 Active Optical Cable (AOC)
- Supports 4K DCI (4096×2160) @ 60Hz, RGB & YCbCr 4:4:4
- Transmission distance up to 100 m (328 ft)
- Uncompressed, zero-latency video and audio
- No external power required (powered by HDMI TX/RX)
- Supports HDR (10-bit / 12-bit) within 18 Gbps bandwidth
- Complies with HDCP 2.2, EDID, CEC, 3D
- Plug & play installation
- Rugged cable design with 500 N pulling/crush strength
- Tight 6 mm bending radius for conduit-friendly routing
- Jacket options: Plenum (NP), LSZH (NL), TPU (NT)
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- LHM2-N (length-specific variants)
- HDMI Standard
- HDMI 2.0
- Max Resolution
- 4096×2160 @ 60Hz
- Color Format
- RGB & YCbCr 4:4:4
- Max Distance
- Up to 100 m (328 ft)
- HDR Support
- 10-bit / 12-bit (within 18 Gbps)
- Cable Type
- Hybrid fiber optic + copper
- Power
- No external power required
- Jacket Options
- Plenum (NP), LSZH (NL), TPU (NT)
- Bending Radius
- 6 mm
- Pull / Crush Strength
- 500 N
- Compliance
- HDCP 2.2, EDID, CEC, 3D
Documentation & Drivers
Package Contents
- LHM2-N Active Optical HDMI Cable (length & jacket per SKU)
- User Manual
- 5-pin service cable

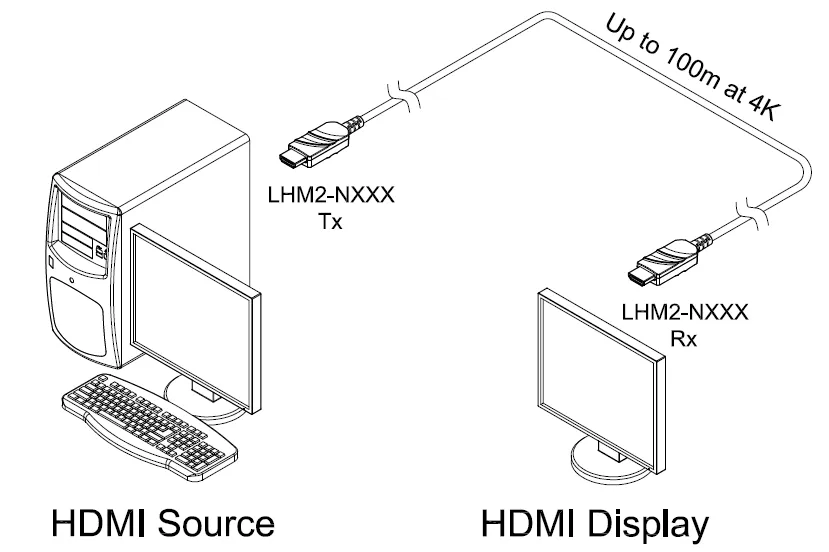

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Professional AV system interconnection
- Digital signage and video walls
- Home theater installations
- Facility automation and control systems
