Opticis KVMX-100-TR Dual-Head DVI Optical KVM | 2:1 Switch • 1km SM / 300m MM
Dual-head DVI optical KVM with 2:1 PC switch, USB HID, RS-232 & audio. WUXGA@60Hz up to 1 km SM or 300 m MM over duplex LC.
Switching
2:1 control for two PCs
Video
Dual DVI up to WUXGA 1920×1200@60Hz
Distance
1 km SM or 300 m MM
Fiber
Two duplex LC links (4 fibers total)
Technical Architecture & Functionality

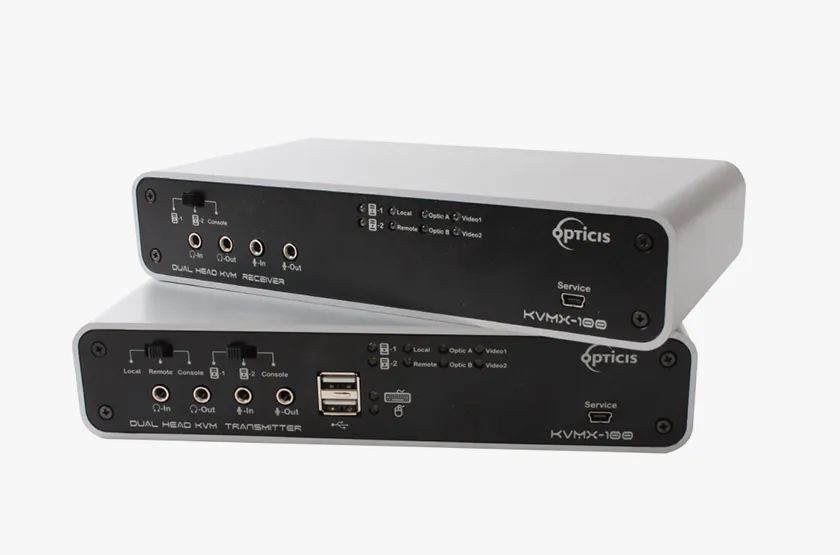

The Opticis KVMX-100-TR is a dual-head DVI optical KVM extender that carries two single-link DVI channels, USB HID (keyboard/mouse), RS-232, and bi-directional stereo audio over fiber.
Its defining trick is the built-in 2:1 KVM switch function: connect two PCs as hosts and select which one you control from either the local or remote side (video is still delivered to both local and remote displays). It’s designed for environments where the computers belong in a rack room, but the operator belongs somewhere quieter.
For distance, it supports:
- Up to 1.0 km (3,280 ft) over two (2) duplex LC single-mode fibers
- Up to 300 m (985 ft) over two (2) duplex LC multi-mode fibers
To simplify setup across mixed displays, it includes Auto-mix EDID programming, reading both local and remote display EDIDs and selecting the lowest common resolution for stable operation.
Key Engineering Advantages
Two PCs, One Console
Built-in 2:1 switching lets one dual-display console select and control either of two host PCs.
True Dual-Head Over Fiber
Run two single-link DVI displays plus keyboard/mouse as a complete operator station at distance.
Long-Run Flexibility
Choose up to 1 km on single-mode or 300 m on multi-mode using duplex LC fiber links.
Auto-mix EDID Stability
Reads local and remote display EDIDs and selects the common resolution to reduce setup headaches.
Full Control + Audio Transport
Carries USB HID, RS-232, and bi-directional stereo audio alongside video for integrated workflows.
Local Loop-Through Options
Local DVI and USB loop-through ports support nearby displays and keyboard/mouse without extra devices.
Feature Checklist
- 2:1 KVM switch: switch and control two (2) PCs
- Dual-head DVI: supports two (2) single-link DVI displays up to WUXGA (1920×1200) @ 60Hz
- Extends DVI + USB HID + RS-232 + bi-directional stereo audio over fiber
- Distance options:
- 1.0 km using two (2) duplex LC single-mode fibers
- 300 m using two (2) duplex LC multi-mode fibers
- Local loop-through for two displays and keyboard/mouse
- Lossless image quality with no frame dropping
- RS-232C via 9-pin D-sub
- Auto-mix EDID for flexible installs across variable display resolutions
- Optional remote console switch
- Optional 19” 1RU rack and mounting bracket support
- Power: +12V, 3A adapter
- Certifications: CE / FCC
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- KVMX-100-TR
- KVM Switching
- 2:1 (switch/control two PCs)
- Supported Video
- Dual single-link DVI up to WUXGA (1920×1200) @ 60Hz
- Video Bit Depth
- 8 bits per channel, 3 channels (RGB)
- DVI Connectors (Tx)
- 2× DVI-D input (female), 2× DVI-D local out (female)
- DVI Connectors (Rx)
- 2× DVI-D remote out (female)
- USB
- USB HID
- USB Connectors (Tx)
- 2× USB-B (to PCs), 2× USB-A (local keyboard/mouse)
- USB Connectors (Rx)
- 2× USB-A (remote keyboard/mouse)
- Audio (3.5mm)
- Audio In/Out + Mic In/Out (Tx and Rx)
- Serial
- RS-232C (Tx: female 9-pin D-sub, Rx: male 9-pin D-sub)
- Optical Interconnect
- 4 fibers total via 4× LC connectors (two duplex LC links)
- Wavelength
- 1310 / 1550 nm
- Max Distance (SM)
- 1.0 km (3,280 ft) with two (2) duplex LC single-mode fibers
- Max Distance (MM)
- 300 m (985 ft) with two (2) duplex LC multi-mode fibers
- Power
- +12V DC, 3A
- Operating Temp
- 0°C to 50°C
- Storage Temp
- -30°C to 70°C
- Humidity
- 10% to 85%
- Dimensions (W×D×H)
- 216 × 112 × 44 mm
- Certifications
- CE / FCC
Documentation & Drivers
Package Contents
- KVMX-100-TR Transmitter (Tx)
- KVMX-100-TR Receiver (Rx)
- Two (2) +12V / 3A power adapters (with AC cords)
- User manual
- Remote console switch + LED indicator
- 1RU mounting rack and mounting bracket
- Duplex LC patch cords (single-mode or multi-mode)

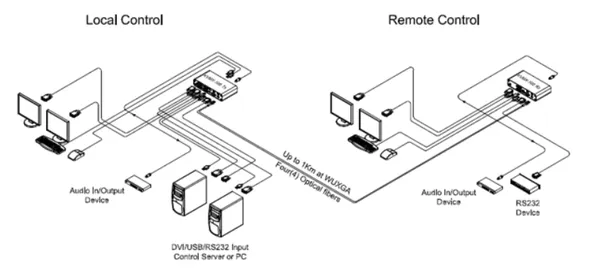

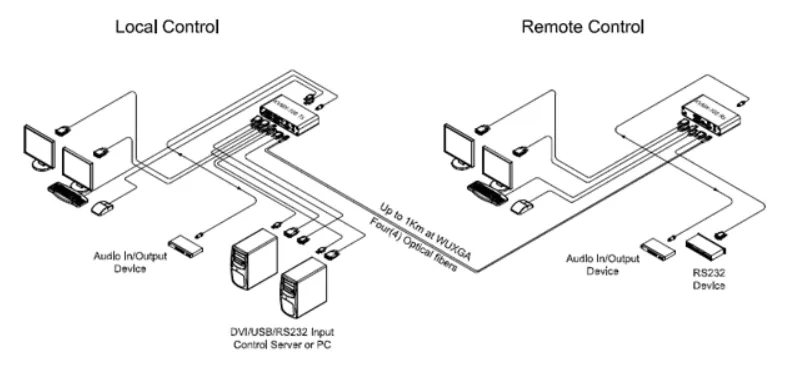

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Control rooms and command centers
- Industrial and secure facilities where PCs must be isolated
- Broadcast / studio environments using dual-display operator stations
- Medical and lab environments needing distance and electrical isolation
- Any setup where two PCs need to share one dual-display console over fiber
