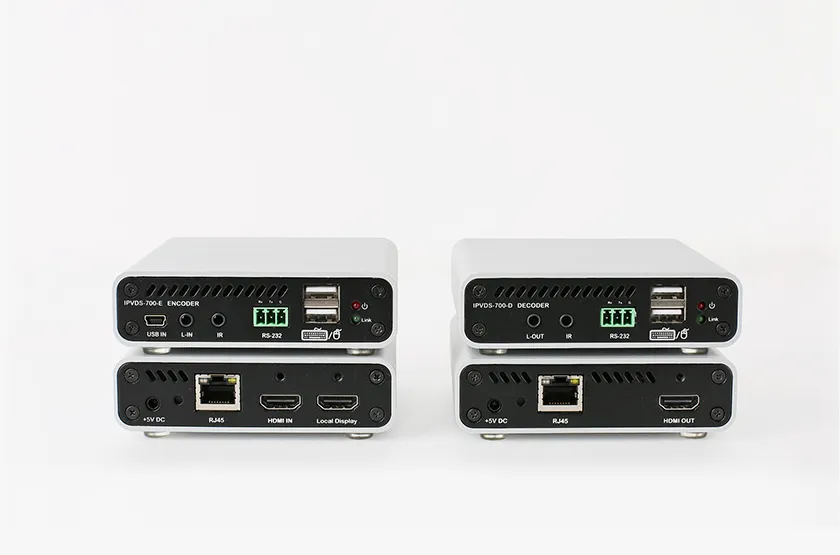

Opticis IPVDS-700-ED 4K HDMI IP Video Wall Controller | Presets • Scheduling • PoE
4K HDMI IP video wall controller with drag-and-drop layouts, presets, and scheduling. Supports 4K30/1080p60 over GigE, PoE.
Input
Up to 4K (3840×2160) @ 30Hz 4:4:4 / 60Hz 4:2:0
Output
Up to 4K (3840×2160) @ 30Hz 4:4:4
Control
Drag & drop layouts, presets, scheduling
Network
Gigabit Ethernet + 802.3af PoE
Technical Architecture & Functionality
The IPVDS-700-ED is an integrated 4K HDMI IP video wall controller built for AV-over-IP systems that need flexible layout control without the usual “matrix-switcher tax.”
It plays and manages multi-source audio/video across a video wall and multiple individual displays simultaneously, using an AV-over-IP architecture with compatible encoders/decoders for distribution and wall creation.
On the control side, the included software is designed for fast configuration and daily operation: drag-and-drop source allocation, layout management (merge/split/overlay), preview-before-apply, presets, and scheduling.
Key Engineering Advantages
Drag-and-Drop Wall Control
Quickly allocate sources and build layouts with simple mouse-driven control, plus preview-before-apply.
Powerful Layout Tools
Allocate, merge, split, and overlay (PIP) sources to create flexible multi-wall configurations.
Presets + Scheduling
Save unlimited layouts and automate changes with sequential dwell-time and weekly schedules.
Matrix-Like Flexibility Over IP
Build scalable M:N distribution with multicasting and multi-source playback over standard IP networks.
Installer-Friendly Integration
RS-232 and IP control options support automation and third-party control system workflows.
Cleaner Deployments
PoE support and low-latency switching simplify installs while keeping performance crisp.
Feature Checklist
- TCP/IP-based AV-over-IP control over Gigabit Ethernet
- Supports 4K input up to 3840×2160@30Hz (4:4:4) or 3840×2160@60Hz (4:2:0)
- Supports 4K output up to 3840×2160@30Hz (4:4:4)
- Drag-and-drop host/source allocation and layout control
- Layout tools: allocate, merge, split, overlay (PIP)
- Preview screen before pushing layouts live
- Limitless presets for user-defined layouts
- Preset scheduling: sequential (dwell-time) and weekly (hourly/weekly)
- Control via RS-232 and IP network
- Supports analog/HDMI audio input and output
- Transmits HDMI/DVI video, audio, USB, RS-232, IR signals over IP network
- HDMI loop-through for local display (up to 4K 60Hz 4:2:0)
- Supports 802.3af PoE (Power-over-Ethernet)
- Bezel compensation in 0.1 mm increments
- Fast switching time / low video latency
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- IPVDS-700-ED
- Network
- TCP/IP, Gigabit Ethernet
- Video Input
- Up to 3840×2160@30Hz (4:4:4) or 3840×2160@60Hz (4:2:0)
- Video Output
- Up to 3840×2160@30Hz (4:4:4)
- Audio
- Analog/HDMI audio input & output
- Control
- RS-232 and IP network
- Layout Functions
- Allocate, merge, split, overlay (PIP)
- Preview
- Preview before applying layouts
- Presets
- User-defined presets (no limits on save/load)
- Scheduling
- Sequential (dwell-time) and weekly schedules
- PoE
- 802.3af PoE
- Bezel Compensation
- 0.1 mm increments
- Latency
- Low video latency / fast switching
Documentation & Drivers
Package Contents

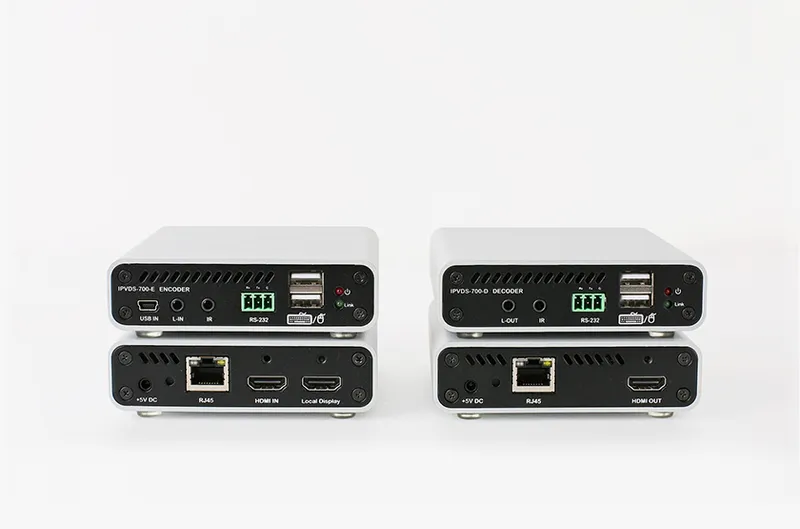

- IPVDS-700-ED Controller Unit
- DC Power Adapter
- Copper cable (as supplied)
- User Manual

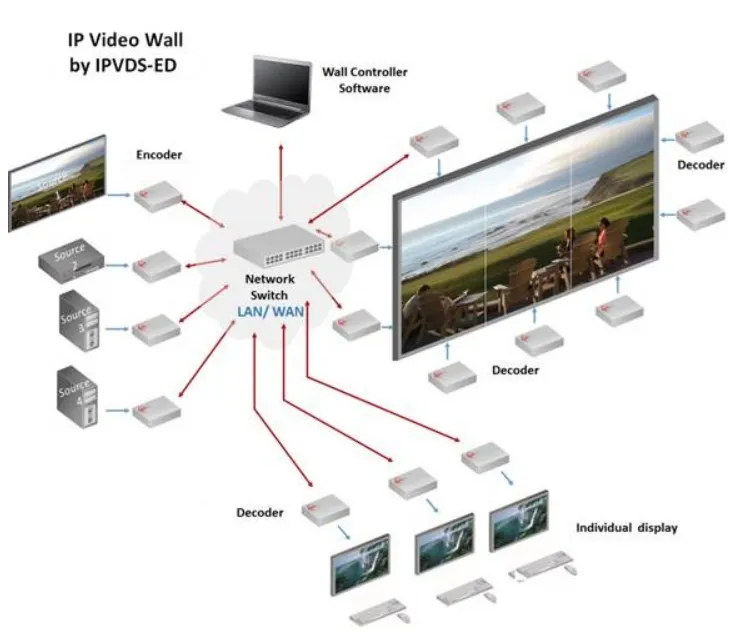

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Control rooms and monitoring centers
- Security and traffic control facilities
- Digital signage and Pro AV venues
- Conference rooms, classrooms, and training environments
- Worship facilities and presentation rooms
