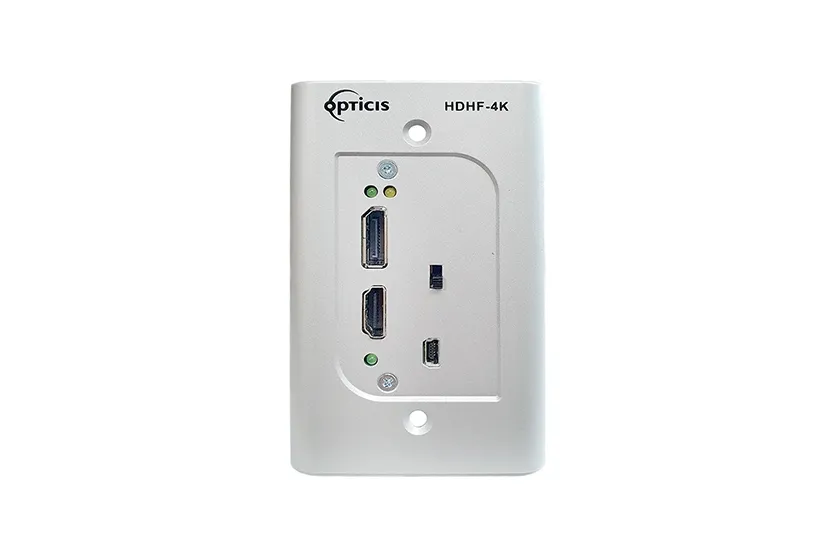

Opticis HDHF-4K HDMI 2.0 & DisplayPort 1.2 Wall Plate Fiber Converter, 4K60, 300m (984ft)
Compact 1-gang wall plate converter that converts HDMI 2.0 or DisplayPort 1.2 into optical HDMI 2.0 for 4K@60Hz transmission up to 300m over LC OM3 fiber.
Inputs
HDMI 2.0 & DisplayPort 1.2
Max Resolution
4K60 (4:4:4)
Fiber Type
Single LC OM3 Multimode
Form Factor
1-Gang Wall Plate
Technical Architecture & Functionality
The Opticis HDHF-4K is a 1-gang wall plate HDMI & DisplayPort fiber converter designed for clean, professional AV installations requiring long-distance, uncompressed 4K video transport. It accepts either HDMI 2.0 or DisplayPort 1.2 input and converts the signal into optical HDMI 2.0, enabling 4K UHD (4096×2160) at 60Hz (4:4:4) transmission over a single LC OM3 multimode fiber.
By eliminating the need for external converters and short copper jumpers behind wall plates, the HDHF-4K simplifies installations in medical rooms, control rooms, broadcast environments, and professional AV systems. The converted optical HDMI signal is restored at the display using compatible receivers such as the Opticis HDFX-500-RX or HDFX-700-RX.
Input selection is handled via a DIP switch, allowing installers to choose between HDMI 2.0 and DisplayPort 1.2 sources. Three integrated LED indicators provide immediate visual confirmation of power status and active input signal.
Key Engineering Advantages
Clean wall plate fiber integration
Combines conversion and fiber transmission in a single 1-gang wall plate, eliminating external converters and messy copper jumpers.
Dual-format input support
Accepts both HDMI 2.0 and DisplayPort 1.2 sources, simplifying mixed-device AV environments.
Uncompressed 4K over long distance
Delivers true 4K UHD at 60Hz (4:4:4) up to 300 meters over OM3 fiber with zero compression or latency.
Fiber-based EMI immunity
Optical transmission eliminates EMI, ground loops, and electrical interference common in medical and industrial environments.
Fast, installer-friendly setup
DIP switch input selection and LED indicators allow quick setup and troubleshooting during installation.
Receiver compatibility
Works seamlessly with Opticis HDFX-500-RX and HDFX-700-RX receivers for easy HDMI signal recovery at the display.
Feature Checklist
- Converts HDMI 2.0 or DisplayPort 1.2 input to optical HDMI 2.0
- Supports 4K UHD (4096×2160) @ 60Hz, RGB / YCbCr 4:4:4
- Transmits up to 300m (984ft) over single LC OM3 multimode fiber
- DIP switch for HDMI / DisplayPort input selection
- Three (3) LED indicators for power and input signal status
- Compact 1-gang wall plate form factor
- Compatible with Opticis HDFX-500-RX and HDFX-700-RX
- No compression or latency
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- HDHF-4K
- Brand
- Opticis
- Product Type
- HDMI/DP to Optical HDMI Wall Plate Converter
- Input Interfaces
- HDMI 2.0, DisplayPort 1.2 (selectable)
- Output Interface
- Optical HDMI 2.0
- Max Resolution
- 4096×2160 @ 60Hz (4:4:4)
- Max Distance
- 300m / 984ft
- Fiber Type
- Single LC Multimode (OM3)
- Compression
- None
- Latency
- None
- Input Selection
- DIP switch
- Status Indicators
- Power, HDMI, DisplayPort LEDs
- Form Factor
- 1-Gang Wall Plate
- Receiver Compatibility
- HDFX-500-RX, HDFX-700-RX
- Installation
- Wall plate / boom mount
- EMI / RFI Immunity
- Yes (fiber optic transmission)
Documentation & Drivers
Package Contents
- HDHF-4K Wall Plate Converter
- User Manual

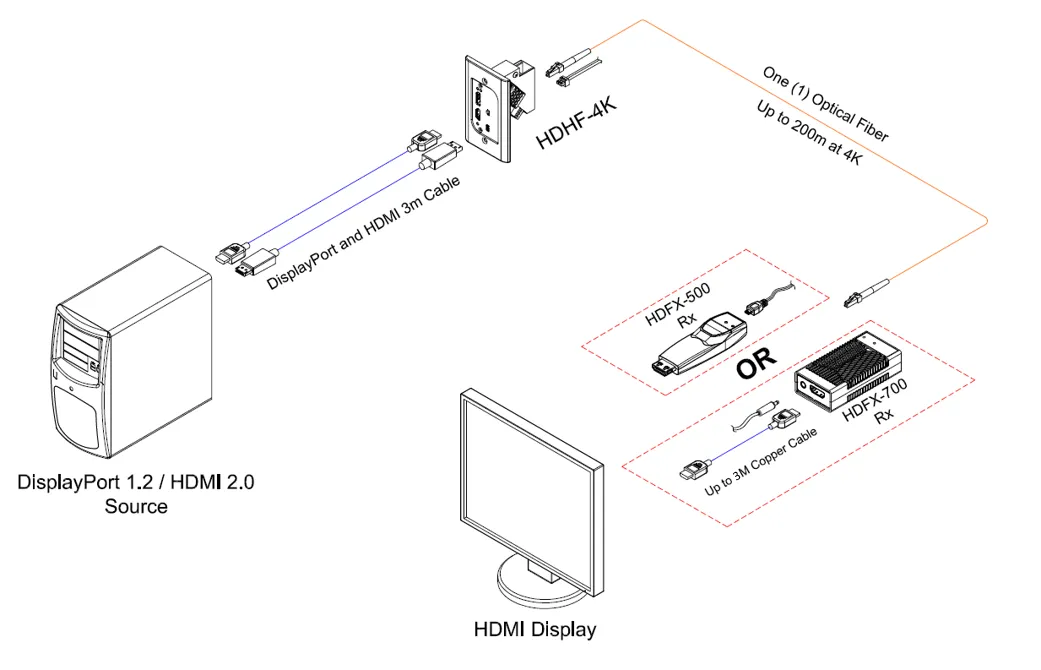

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Surgical and operating rooms
- Radiology and medical imaging suites
- Control rooms and command centers
- Broadcast and studio installations
- Clean wall-integrated AV systems
