Opticis HDHF-1F20 HDMI 2.0 Fiber Wall Plate Extender, 4K60, 300m (984ft)
Single-gang HDMI 2.0 fiber wall plate extender supporting uncompressed 4K@60Hz over 300m LC OM3 fiber with HDCP 2.2 compliance.
Resolution
4K60 (4:4:4)
Distance
300m Fiber Extension
Form Factor
Single-Gang Wall Plate
Content Protection
HDCP 2.2
Technical Architecture & Functionality

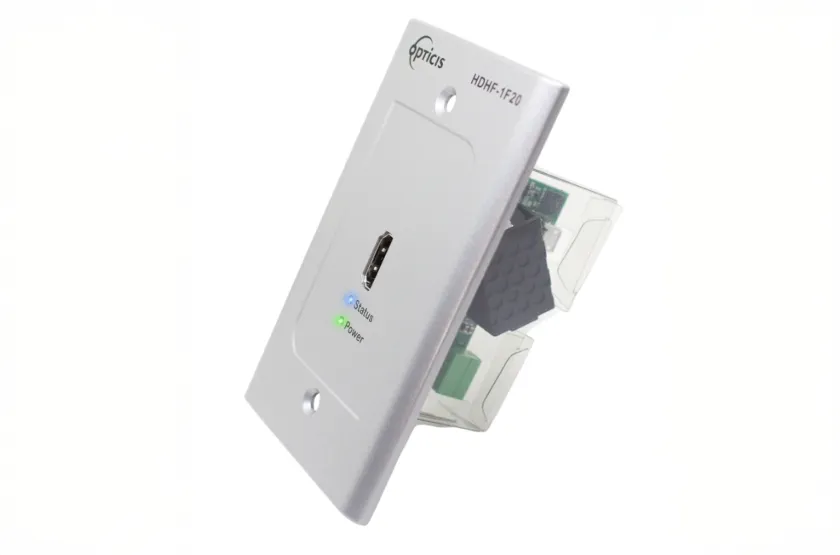

The Opticis HDHF-1F20 is a high-performance HDMI 2.0 fiber optic wall plate extender designed for professional AV and medical installations requiring long-distance, uncompressed 4K video transmission in a clean, integrated wall-mounted form factor.
Housed in a compact single-gang wall plate, the HDHF-1F20 transmits 4K UHD (4096×2160) at 60Hz with full RGB / YCbCr 4:4:4 color sampling up to 300 meters (984 feet) over a single LC OM3 multimode fiber, with zero compression and zero latency. This ensures pristine image quality for surgical displays, control rooms, conference environments, and broadcast installations.
Flexible receiver compatibility allows the HDHF-1F20 to integrate into different system designs. It can connect directly to a display using the Opticis HDFX-500-RX, or extend up to 3 meters via copper HDMI using the HDFX-700-RX for equipment-dense or recessed display installations.
The unit is HDCP 2.2 compliant, supports secure content delivery, and includes a mini USB port for firmware updates, allowing maintenance and future compatibility updates. Two integrated LED indicators provide immediate status feedback for power and HDMI signal detection.
Note: For stable operation, displays should be set to HDMI 2.0 mode. HDMI 2.1 automatic switching is not supported.
Key Engineering Advantages
Clean wall plate fiber integration
Built directly into a single-gang wall plate, eliminating external converters and messy in-wall copper connections.
True uncompressed 4K over fiber
Delivers 4K UHD at 60Hz with full 4:4:4 color sampling up to 300 meters with zero compression or latency.
Medical and professional AV ready
Designed for operating rooms, radiology suites, and control rooms where reliability and image integrity are critical.
Flexible receiver deployment
Supports direct display connection or extended copper reach using compatible Opticis fiber receivers.
Future-proof firmware updates
Mini USB port allows firmware upgrades to maintain compatibility with evolving display and source devices.
Feature Checklist
- Supports HDMI 2.0 uncompressed video
- Extends 4K UHD (4096×2160) @ 60Hz, RGB / YCbCr 4:4:4
- Transmits up to 300m (984ft) over single LC OM3 multimode fiber
- Single-gang wall plate form factor for clean installations
- HDCP 2.2 compliant
- Compatible with Opticis HDFX-500-RX and HDFX-700-RX
- Mini USB port for firmware updates
- Two (2) LED indicators for power and HDMI signal status
- Zero compression, zero latency
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- HDHF-1F20
- Brand
- Opticis
- Product Type
- HDMI 2.0 Fiber Wall Plate Extender
- Input Interface
- HDMI 2.0
- Output Interface
- Optical HDMI 2.0
- Max Resolution
- 4096×2160 @ 60Hz (4:4:4)
- Max Distance
- 300m / 984ft
- Fiber Type
- Single LC Multimode (OM3)
- Compression
- None
- Latency
- None
- HDCP Support
- HDCP 2.2
- Status Indicators
- Power LED, HDMI Signal LED
- Firmware Upgrade
- Mini USB
- Form Factor
- 1-Gang Wall Plate
- Receiver Compatibility
- HDFX-500-RX, HDFX-700-RX
- Installation
- Wall plate mount
- EMI / RFI Immunity
- Yes (fiber optic transmission)
Documentation & Drivers
Package Contents
- HDHF-1F20 Wall Plate Extender
- User Manual

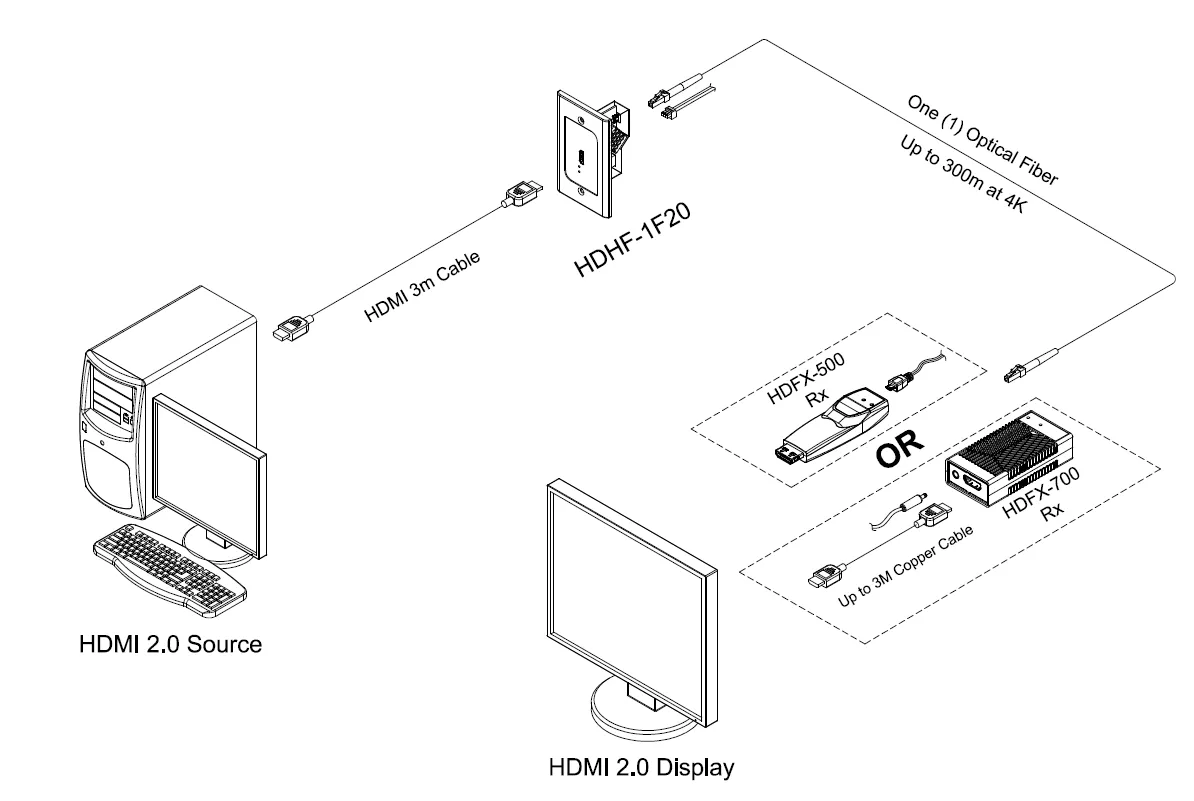

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical environments (Operating rooms, radiology, imaging suites)
- Control rooms and command centers
- Conference rooms and boardrooms
- Broadcast and professional AV installations
- Clean wall-integrated AV systems
