Opticis HDFX-700-TR HDMI 2.0 Optical Extender | 4K60 over 1 LC Fiber, 300m
HDMI 2.0 optical extender supporting uncompressed 4K UHD at 60Hz over a single LC fiber. Extends HDMI signals up to 300m with ARC and HDR support.
Resolution
4K60
Bandwidth
18Gbps
Distance
300m / 984ft
Fiber Type
Single LC (OM3)
Technical Architecture & Functionality

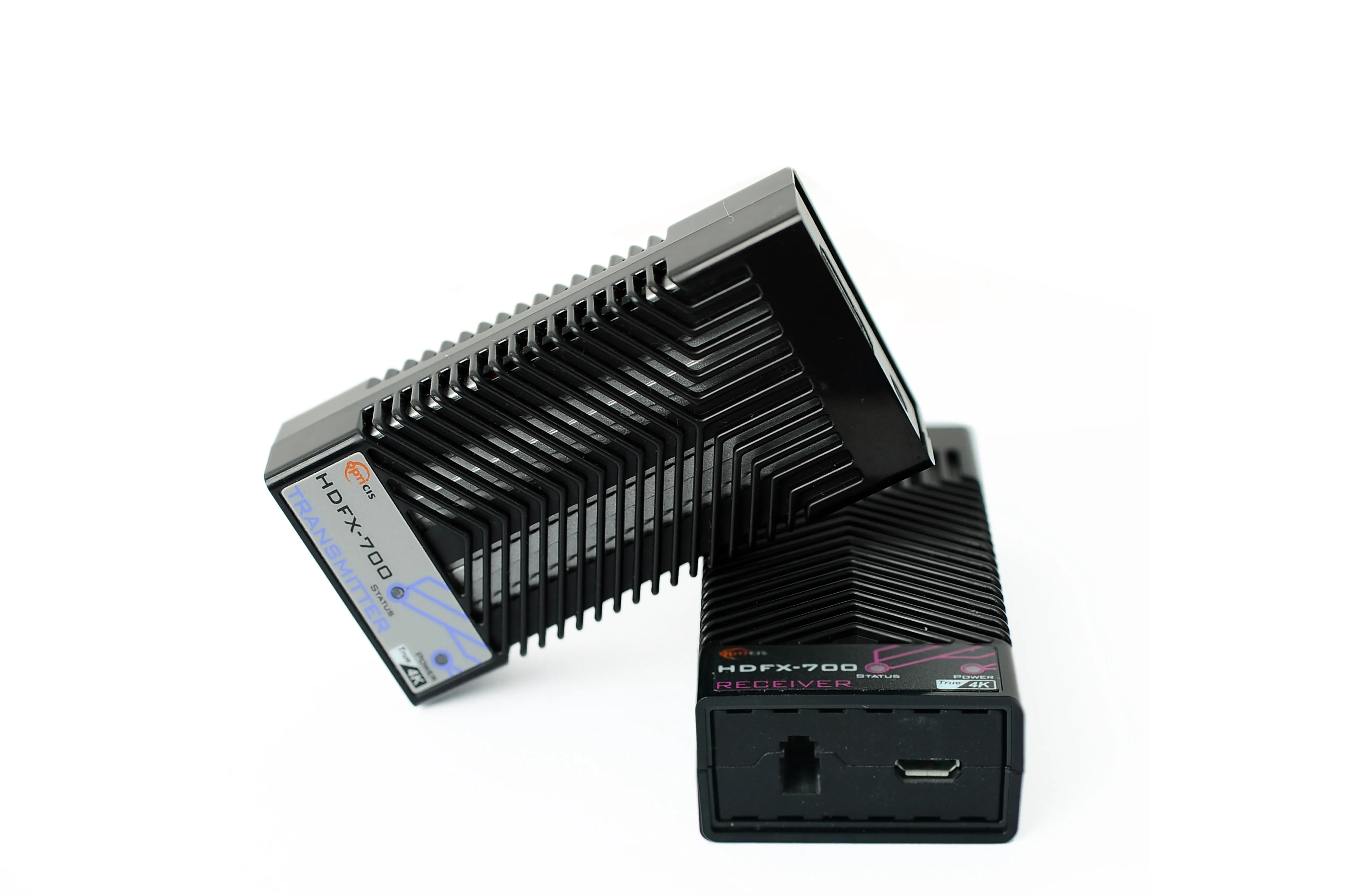

The Opticis HDFX-700-TR is a one-fiber HDMI 2.0 optical extender designed to transmit uncompressed 4K UHD (4096×2160) video at 60Hz over long distances using a single LC multi-mode fiber (OM3).
Capable of extending HDMI 2.0 signals up to 300 meters (984 feet), the HDFX-700-TR delivers full 18Gbps bandwidth with support for HDR, CEC, EDID, and HDCP 2.2/1.4, making it suitable for professional AV, broadcast, control room, and large-scale display installations.
To simplify installation in confined or equipment-dense environments, the HDFX-700-TR supports copper HDMI extension up to 3 meters on both TX and RX sides. The standard package includes 2-meter copper cables for each end, allowing flexible placement when direct fiber termination is impractical.
The extender offers two selectable operating modes, determined by firmware:
- ARC Mode (default): ARC supported up to 300m
- Compatibility Mode: Enables direct interoperability with the Opticis HDFX-500 module for mixed installations
Firmware can be upgraded via the micro USB port, allowing system behavior to be adapted to specific deployment requirements.
Key Engineering Advantages
Uncompressed 4K HDMI over fiber
Transmits uncompressed HDMI 2.0 video up to 4096×2160 at 60Hz with full 18Gbps bandwidth and no signal degradation.
Long-distance HDMI distribution
Extends HDMI signals up to 300 meters over a single LC multimode fiber, far beyond the limits of copper HDMI cables.
Flexible installation with copper extensions
Supports up to 3 meters of copper HDMI cable on both transmitter and receiver sides for use in confined or equipment-dense spaces.
Firmware-selectable operating modes
Offers ARC mode up to 300m or compatibility mode for direct interoperability with Opticis HDFX-500 modules.
Broad HDMI feature compatibility
Supports HDR, CEC, EDID, and HDCP 2.2/1.4 for compatibility with modern 4K sources and displays.
Electrical isolation and EMI immunity
Fiber-based transmission provides electrical isolation with negligible EMI emission for reliable operation in sensitive environments.
Scalable professional deployments
Optional BR-400 power rack supports mounting up to eight units, simplifying large-scale AV installations.
Feature Checklist
- Supports HDMI 2.0 standards
- Extends 4K UHD (4096×2160) at 60Hz
- Full color formats RGB / YCbCr 4:4:4
- Transmits HDMI signals up to 300m (984ft) over one LC multimode fiber (OM3)
- 18Gbps total bandwidth
- HDR support at 10-bit or 12-bit within 18Gbps
- Supports ARC (firmware selectable)
- Fully compatible with HDFX-500 modules (firmware selectable)
- Allows up to 3m copper HDMI extension on both TX and RX sides
- Firmware upgradable via micro USB
- Supports CEC, EDID, and HDCP 2.2/1.4
- Plug and Play
- Excellent data security with negligible EMI emission
- Label color distinction:
- TX: Silver
- RX: Black
- FCC and CE certified for EMI/RFI compliance
- Optional BR-400 power rack supports mounting up to 8 units
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- HDFX-700-TR
- Brand
- Opticis
- Product Type
- HDMI 2.0 Optical Extender
- Fiber Type
- Single LC Multimode Fiber (OM3)
- Max Distance
- 300m / 984ft
- HDMI Standard
- HDMI 2.0
- Max Bandwidth
- 18Gbps
- Max Resolution
- 4096×2160 @ 60Hz
- Color Format
- RGB / YCbCr 4:4:4
- HDR Support
- Yes (10-bit / 12-bit)
- ARC Support
- Yes (firmware selectable)
- Copper Extension
- Up to 3m on TX and RX
- HDCP Support
- HDCP 2.2 / 1.4
- HDMI Features
- CEC, EDID
- Firmware Upgrade
- Micro USB
- Power Requirement
- DC 5V / 1A
- Electrical Isolation
- Yes
- EMI Emission
- Negligible
- Certifications
- FCC, CE
Documentation & Drivers
Package Contents
- User Manual
- DC Power Adapter
- Copper HDMI Cables
- Two (2) HDMI Male-to-Male Cables

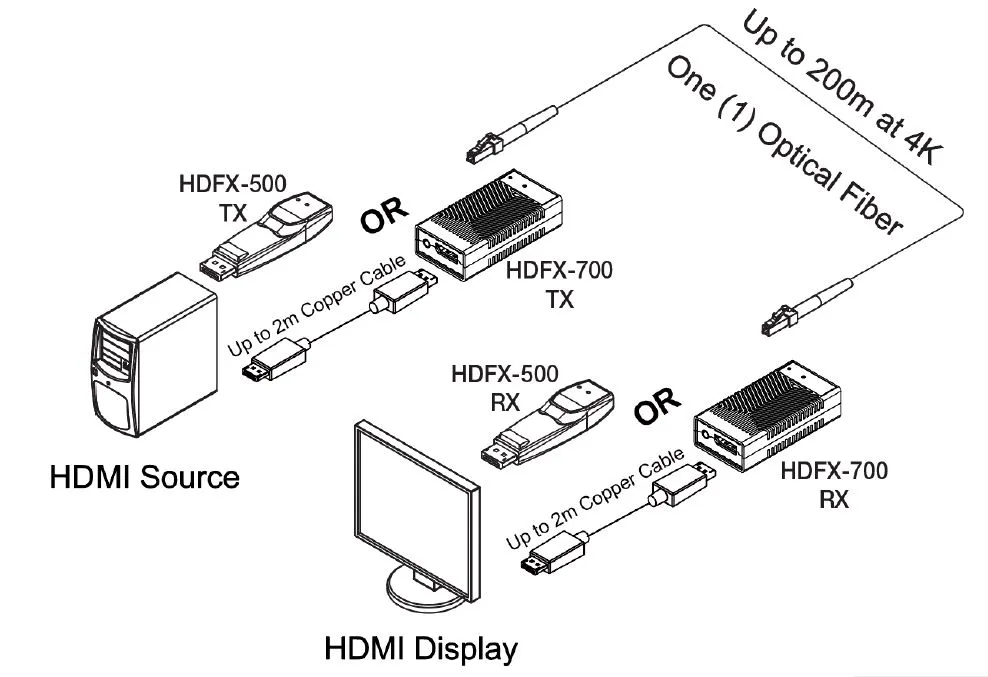

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Professional AV and broadcast systems
- Control rooms and command centers
- Large-scale digital signage and video walls
- Conference rooms and auditoriums
- Long-distance HDMI distribution over fiber
