Opticis 1-Fiber LC Detachable Optical HDMI 2.0 Module, 4K60, 200m (656ft) (HDFX-500-TR)
Optical HDMI 2.0 module extending 4K UHD video up to 200m over a single LC multimode fiber. Supports HDR, HDCP 2.2, CEC, and EDID.
Resolution
4K60
Bandwidth
18Gbps
Distance
200m / 656ft
Fiber Type
Single LC (OM3)
Technical Architecture & Functionality

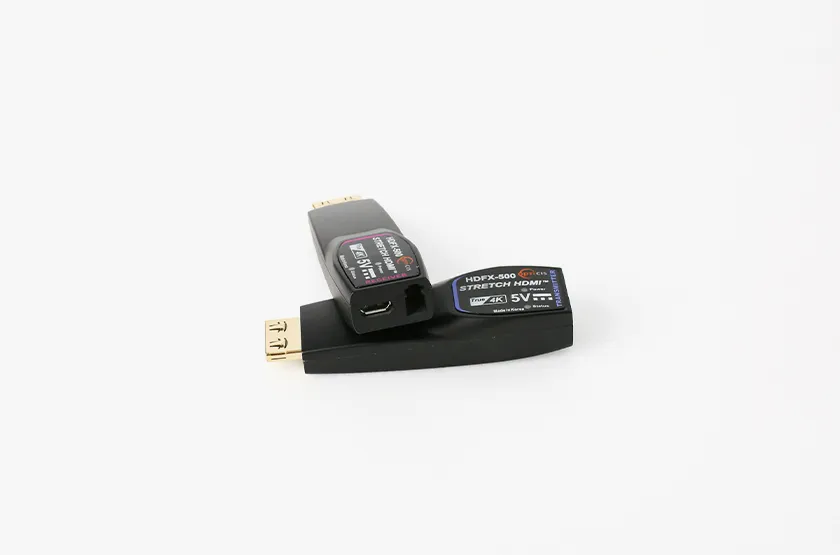

The Opticis HDFX-500-TR is a detachable optical HDMI 2.0 extension module designed to transmit 4K UHD (4096×2160) video at 60Hz over long distances using a single LC multi-mode fiber (OM3).
Capable of extending HDMI 2.0 signals up to 200 meters (656 feet), the HDFX-500-TR delivers full-bandwidth 18Gbps performance with no video or audio degradation, making it ideal for professional AV, broadcast, control rooms, and mission-critical installations.
Its compact and lightweight design allows installation in space-constrained environments while providing complete electrical isolation, eliminating risks from electrical interference, ground loops, and EMI. A high-retention HDMI connector ensures stronger holding force than standard HDMI connectors, reducing the risk of accidental disconnections.
The HDFX-500-TR supports key HDMI features including CEC, EDID, HDCP 2.2, and HDR, ensuring broad compatibility with modern 4K sources and displays. Power flexibility is built in, allowing operation via USB power or DDC 5V from the HDMI source (Tx only), with automatic power switching for improved reliability.
Key Engineering Advantages
Uncompressed 4K HDMI over fiber
Transmits uncompressed HDMI 2.0 video up to 4096×2160 at 60Hz with full 18Gbps bandwidth and no signal degradation.
Long-distance HDMI extension
Extends HDMI signals up to 200 meters over a single LC multimode fiber, far beyond copper HDMI limitations.
Electrical isolation for sensitive environments
Fiber-based design provides complete electrical isolation, eliminating ground loops, EMI, and interference.
Secure, high-retention HDMI connection
High-retention HDMI connector reduces the risk of accidental disconnection in professional installations.
Flexible and reliable power options
Operates via USB power on both ends or DDC 5V from the HDMI source, with automatic power switching for reliability.
Broad HDMI feature compatibility
Supports HDR, CEC, EDID, HDCP 2.2, and 3D content for compatibility with modern 4K sources and displays.
Compact design for tight installations
Lightweight, detachable module fits easily into space-constrained racks, enclosures, and AV setups.
Feature Checklist
- Supports HDMI 2.0 standard features
- Extends 4K UHD (4096×2160) at 60Hz
- Full color formats RGB / YCbCr 4:4:4
- Transmits HDMI 2.0 data up to 200m (656ft) over one LC multimode fiber (OM3)
- High-retention HDMI connector prevents accidental disconnection
- Operates via USB power (Tx & Rx) or DDC 5V from HDMI source (Tx only)
- Auto power-switching for improved reliability
- Built-in diagnosis feature
- Supports 3D content transmission
- Complies with CEC, EDID, and HDCP 2.2
- Supports HDR at 10-bit or 12-bit within 18Gbps bandwidth
- Provides full electrical isolation for interference-free transmission

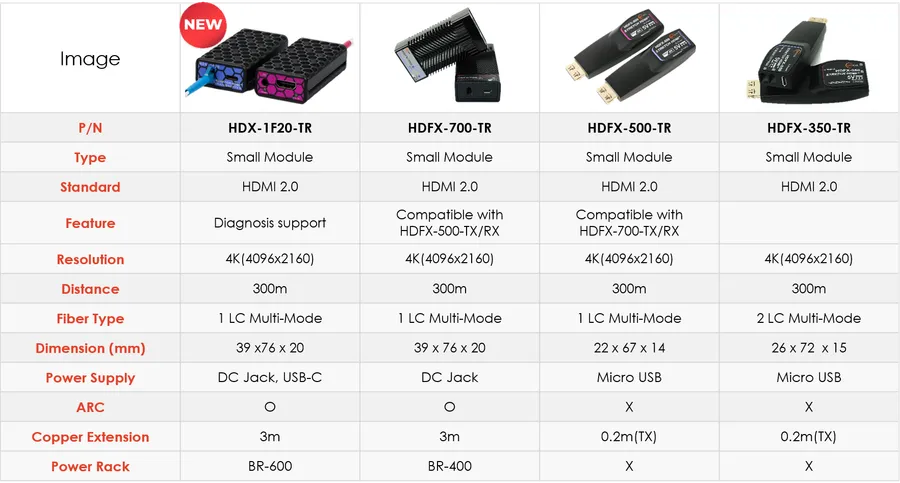

Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- HDFX-500-TR
- Brand
- Opticis
- Product Type
- Optical HDMI 2.0 Extender Module
- Fiber Type
- Single LC Multimode Fiber (OM3)
- Max Distance
- 200m / 656ft
- HDMI Standard
- HDMI 2.0
- Max Bandwidth
- 18Gbps
- Max Resolution
- 4096×2160 @ 60Hz
- Color Format
- RGB / YCbCr 4:4:4
- HDR Support
- Yes (10-bit / 12-bit)
- HDCP Support
- HDCP 2.2
- HDMI Features
- CEC, EDID
- Connector Type
- High-Retention HDMI
- Electrical Isolation
- Yes
- Power Options
- USB power (Tx/Rx), DDC 5V (Tx only)
- Power Switching
- Automatic
- Diagnostic Feature
- Yes
Documentation & Drivers
Package Contents
- One (1) Transmitter (Tx)
- One (1) Receiver (Rx)
- Two (2) Micro USB to USB cables
- Two (2) 5V / 1A power adapters
- One (1) customized male-to-female HDMI cable (0.2m)
- User’s Manual

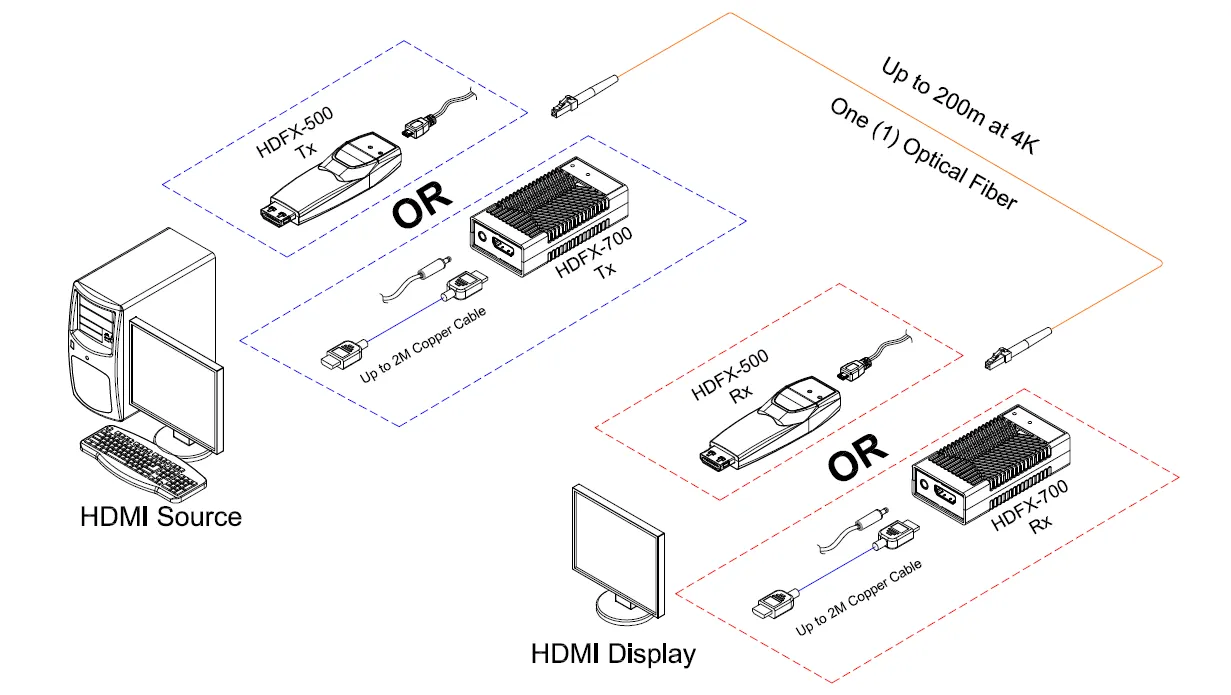

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Broadcast and studio environments
- Control rooms and command centers
- Digital signage and video walls
- Conference rooms and auditoriums
- Medical and industrial AV systems
- Long-distance 4K HDMI distribution
