Opticis HDFX-350-TR HDMI 2.0 Optical Extender | 200m Dual LC OM3 Fiber
HDMI 2.0 fiber extender supporting 4K (4096×2160) @ 60Hz over dual LC OM3 multimode fiber up to 200 m with zero compression or latency.
Resolution
4K @ 60Hz
Distance
200 m over fiber
HDCP
HDCP 2.2
Fiber Type
Dual LC OM3
Technical Architecture & Functionality

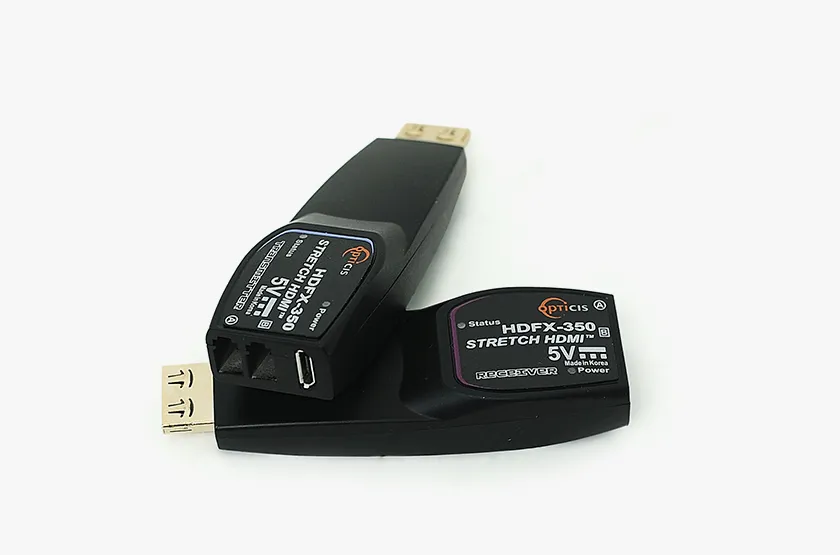

The Opticis HDFX-350-TR is a compact HDMI 2.0 optical fiber extender designed for professional AV, medical imaging, and mission-critical installations that demand long-distance 4K video transmission without signal degradation.
Using duplex LC OM3 multimode fiber, the HDFX-350-TR extends 4K UHD (4096×2160) @ 60Hz with full RGB & YCbCr 4:4:4 color fidelity up to 200 meters (656 feet). The link is fully optical, providing complete electrical isolation to eliminate EMI, ground loops, and interference in electrically noisy environments.
The transmitter and receiver feature high-retention HDMI connectors to prevent accidental disconnection in racks, carts, or mobile setups. Full support for CEC, EDID, and HDCP 2.2 ensures compatibility with modern displays, sources, and protected content workflows.
Powering is flexible and installer-friendly. The transmitter and receiver can be powered via USB, and the transmitter can also draw 5V from the HDMI source (DDC). An auto power-switching circuit selects the available power source automatically for maximum reliability. A short 0.2 m HDMI jumper cable is included to simplify tight installations.
Key Engineering Advantages
True Fiber Isolation
Optical transmission eliminates EMI, ground loops, and electrical interference in sensitive environments.
Uncompressed 4K Video
Delivers pristine 4K 60Hz video with no compression or latency over long distances.
Secure Physical Connection
High-retention HDMI connectors reduce the risk of accidental disconnects in mobile or rack-mounted installs.
Flexible Power Options
Operate using USB power or HDMI source power with automatic switching for reliability.
Installer-Friendly Design
Compact modules and included short HDMI jumper simplify tight installations.
Professional-Grade Reliability
Built for medical, control room, and mission-critical AV deployments.
Feature Checklist
- HDMI 2.0 compliant optical extender
- Extends 4K UHD (4096×2160) @ 60Hz with RGB & YCbCr 4:4:4
- Transmission up to 200 m (656 ft) over duplex LC OM3 multimode fiber
- Uncompressed, zero-latency video and audio
- Full electrical isolation with negligible EMI emission
- High-retention HDMI connectors prevent accidental disconnects
- Supports CEC, EDID, and HDCP 2.2
- Supports 3D video formats
- USB-powered operation (TX/RX) or HDMI 5V DDC power (TX)
- Auto power-switching for reliable operation
- Compact module design for tight installations
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- HDFX-350-TR
- HDMI Standard
- HDMI 2.0
- Max Resolution
- 4096×2160 @ 60Hz (RGB & YCbCr 4:4:4)
- Fiber Type
- Duplex LC OM3 multimode fiber
- Max Distance
- 200 m (656 ft)
- HDCP
- HDCP 2.2 compliant
- CEC / EDID
- Supported
- 3D Support
- Yes
- Power Options
- USB power (TX/RX) or HDMI 5V DDC (TX only)
- Power Switching
- Automatic
- Certifications
- CE, FCC, Class 1 Laser Eye Safety
Documentation & Drivers
Package Contents
- HDFX-350-TR Transmitter
- HDFX-350-TR Receiver
- 0.2 m HDMI male-to-female jumper cable
- Two (2) USB-to-DC power cables
- Two (2) DC power adapters
- 5-pin adapter
- User Manual

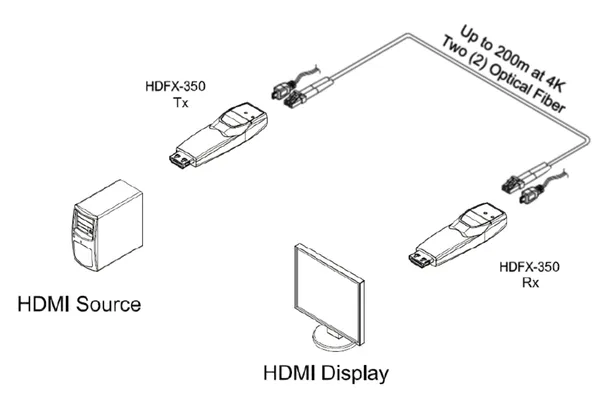

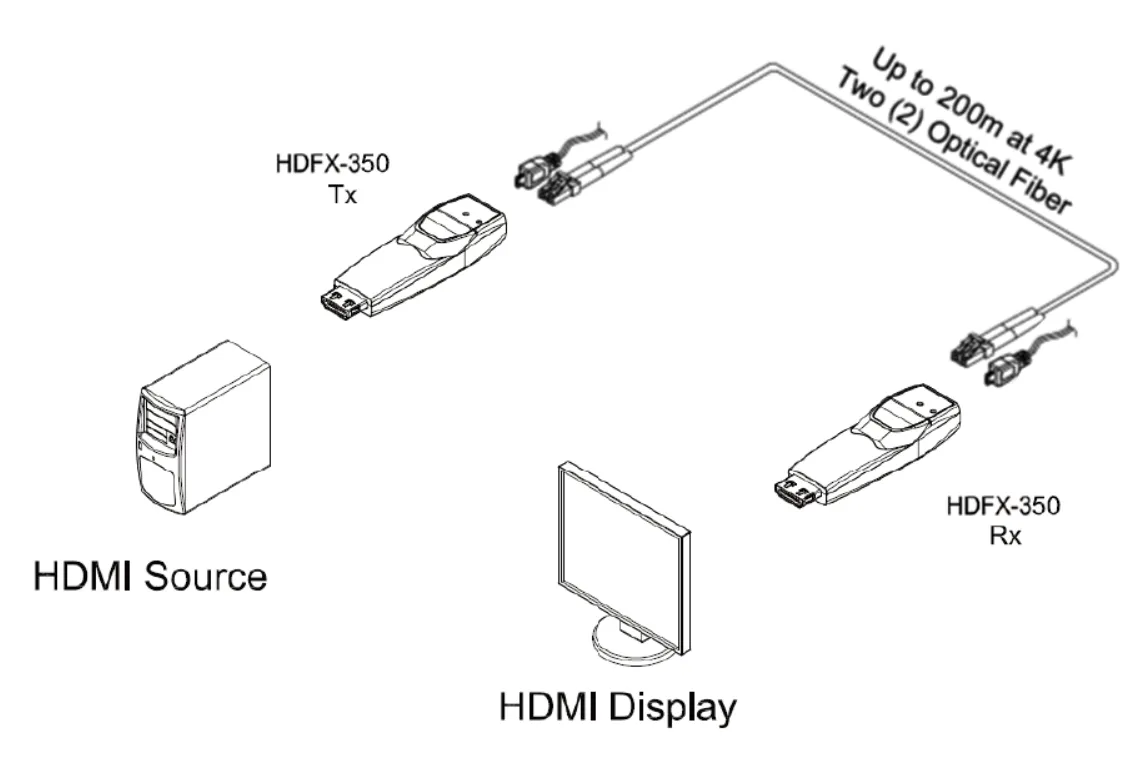

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical imaging and surgical displays
- Digital signage and video walls
- Control rooms and command centers
- Simulation and training environments
- Rental staging and mobile AV systems
Related Connectivity Solutions
Opticis BR-600 19” 1RU Rack for Optical Extenders | Power & Diagnosis Mount
19” 1RU rack system for powering and managing up to 8 Opticis diagnosis optical extenders with redundant power and GUI monitoring.
Opticis CNDF-200 Component to Fiber DVI Converter | 500m SC Multimode 1080p
Convert component (YPbPr) to 1-fiber optical DVI and send 1080p@60Hz up to 500 m over SC multimode fiber (use DVFX-100-R).
Opticis DDFX-100-TR Dual-Link DVI Optical Extender | 2560×1600 60Hz, 500m Fiber
Opticis DDFX-100-TR dual-link DVI optical extender transmitting uncompressed WQXGA video up to 500 meters over two LC multimode fibers.
Need Custom Lengths or Volume Pricing?
Our engineering team can assist with high-density AV routing, custom termination, OEM integration, or government procurement specs for Opticis HDFX-350-TR HDMI 2.0 Optical Extender | 200m Dual LC OM3 Fiber.
Opticis HDFX-350-TR HDMI 2.0 Optical Extender | 200m Dual LC OM3 Fiber
$1399.00
