Opticis HDMI 2.0 HDBaseT Extender with USB 2.0 & RS-232, 4K60, 100m (HDCX-100)
HDMI 2.0 HDBaseT extender for 4K@60Hz (4:2:0) and 4K@30Hz (4:4:4) over single CAT5e/CAT6 up to 100m, with USB 2.0 and RS-232.
Resolution
4K60
Distance
100m / 328ft
Connectivity
HDMI + USB + RS-232
Cable Type
CAT5e / CAT6
Technical Architecture & Functionality
The Opticis HDCX-100 is a compact HDMI 2.0 HDBaseT extender designed to transmit 4K UHD video, USB 2.0, and RS-232 control over a single CAT5e or CAT6 Ethernet cable. With a maximum extension distance of 100 meters (328 feet), it provides a simple, cost-effective solution for long-distance AV and control signal distribution.
Supporting HDMI 2.0 video up to 4K at 60Hz (YCbCr 4:2:0) and 4K at 30Hz (4:4:4), the HDCX-100 maintains compatibility with modern UHD sources while adhering to HDBaseT bandwidth constraints. It fully supports HDCP 1.4 / 2.2, CEC, EDID, and 3D video pass-through, ensuring reliable interoperability with a wide range of HDMI devices.
In addition to video, the HDCX-100 extends USB 2.0 for HID devices, touch panels, mass storage, and virtual COM ports (VCP), as well as RS-232 control, making it suitable for KVM applications, control rooms, digital signage, and interactive installations.

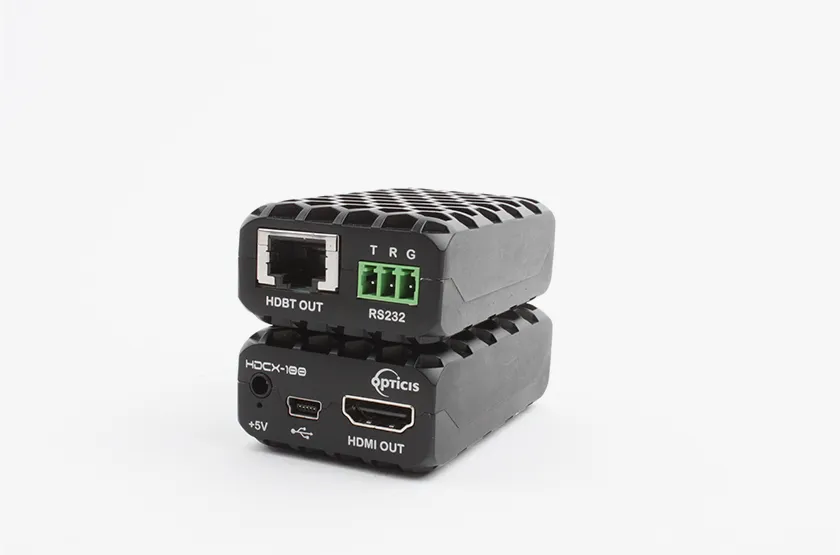

The transmitter and receiver share the same compact mechanical design, allowing flexible mounting in tight spaces. Installation is straightforward using standard RJ45 terminations, with plug-and-play operation and no configuration required.
Key Engineering Advantages
Single-cable HDBaseT simplicity
Transmits HDMI 2.0 video, USB 2.0, and RS-232 control over a single CAT5e or CAT6 cable up to 100 meters.
Integrated USB and control extension
Extends USB devices and RS-232 control signals alongside HDMI for KVM, touch panels, and control systems.
Reliable 4K UHD support
Supports 4K at 60Hz (4:2:0) and 4K at 30Hz (4:4:4) with full HDMI 2.0 compatibility.
Compact, installation-friendly design
Small enclosure and optional brackets allow deployment in tight spaces behind displays or inside racks.
Standards-compliant interoperability
Supports HDCP 1.4/2.2, CEC, EDID, and 3D for compatibility with modern UHD sources and displays.
Cost-effective long-distance AV transport
Uses standard CAT5e/CAT6 cabling to reduce installation cost compared to fiber-based solutions.
Feature Checklist
- Supports HDMI 2.0 standards
- Extends 4K UHD video up to 100m over CAT5e / CAT6
- 4K @ 60Hz (YCbCr 4:2:0)
- 4K @ 30Hz (RGB / YCbCr 4:4:4)
- 12-bit Deep Color support
- Maximum pixel clock: 300 MHz
- HDCP 1.4 / HDCP 2.2 compliant
- CEC, EDID, and 3D pass-through
- Extends USB 2.0
- HID
- Touch panel
- Mass storage
- Virtual COM port (VCP)
- RS-232 control extension
- Compact enclosure with optional mounting brackets
- Plug & Play operation
- FCC and CE certified
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- HDCX-100
- Brand
- Opticis
- Product Type
- HDMI 2.0 HDBaseT Extender (Tx/Rx)
- Transmission Medium
- CAT5e / CAT6
- Max Distance
- 100m / 328ft
- HDMI Standard
- HDMI 2.0
- Max Resolution
- 4K @ 60Hz (YCbCr 4:2:0)
- 4:4:4 Support
- 4K @ 30Hz
- Pixel Clock
- 300 MHz
- HDCP Support
- HDCP 1.4 / 2.2
- USB Extension
- USB 2.0
- USB Applications
- HID, Touch, Mass Storage, VCP
- Control Extension
- RS-232
- CEC / EDID
- Supported
- Installation
- Plug and Play
- Dimensions (W × D × H)
- 44 × 73 × 25 mm
- Certifications
- FCC, CE
Documentation & Drivers
Package Contents
- HDMI 2.0 HDBaseT Transmitter
- HDMI 2.0 HDBaseT Receiver
- DC Power Adapters
- RS-232 3-pin connector
- User Manual
- Mounting brackets (optional)

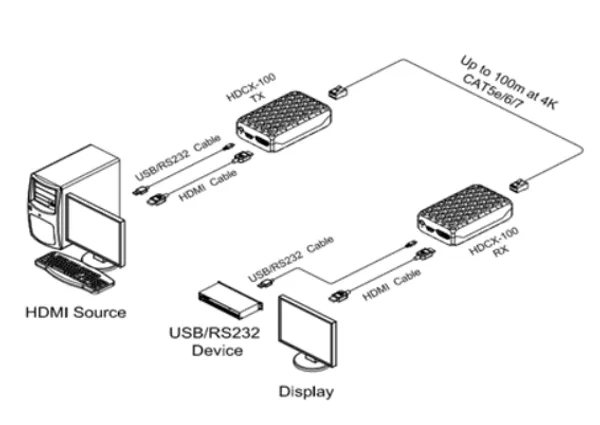

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Digital signage systems
- Home theater installations
- Control rooms and monitoring centers
- KVM and remote workstation setups
- Interactive 4K display solutions
