Opticis 1-Fiber Detachable DVI Optical Extender, WUXGA 60Hz, up to 500m (DVFX-100-TR)
1-fiber detachable DVI optical extender supporting uncompressed WUXGA 60Hz up to 500m over SC multimode fiber with Self-EDID and medical safety compliance.
Resolution
WUXGA 60Hz / 2K
Distance
Up to 500m over 1 fiber
Connector
Single SC Fiber
Compliance
Medical Grade IEC 60601
Technical Architecture & Functionality

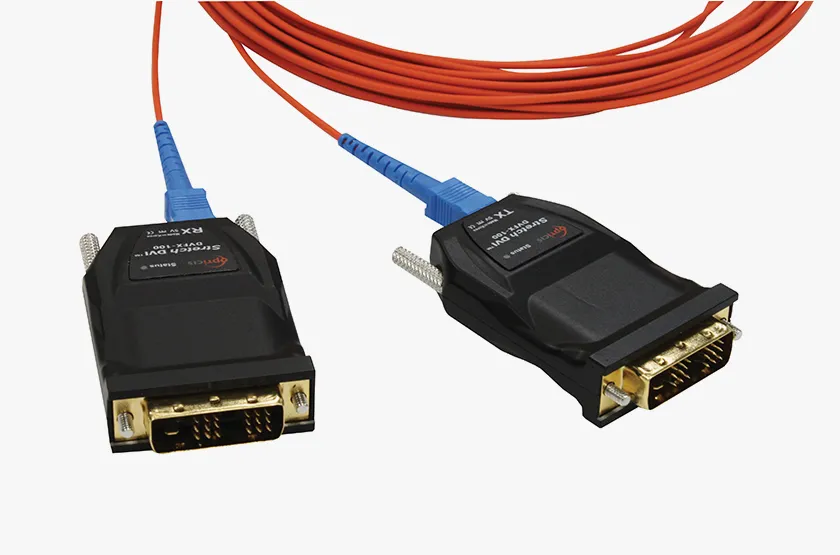

The Opticis DVFX-100-TR is a 1-fiber detachable DVI optical extender designed to transmit uncompressed WUXGA (1920×1200) and 2K DVI signals at 60Hz over long distances using a single SC-terminated multimode fiber. Its compact form factor allows direct connection to standard DVI sources and displays without system modification.
Engineered with Opticis fiber-optic technology, the DVFX-100-TR extends DVI signals up to 500 meters (1,640 feet) over OM2/OM3 multimode fiber, and up to 300 meters (984 feet) over OM1 fiber, delivering full-quality video with zero compression and no latency.
The unit features a solid aluminum die-cast enclosure for excellent EMI shielding and heat dissipation, making it suitable for electrically noisy and mission-critical environments. Its patent-pending Self-EDID management allows EDID information to be read and restored simply by plugging the transmitter into the display, simplifying setup across mixed display environments.
Certified for medical, industrial, and professional AV use, the DVFX-100-TR complies with UL/EN 60601-1, IEC/EN 60601-1-2, FCC, and CE standards, and features a Class 1 laser eye-safe optical interface.
Key Engineering Advantages
Ultra-long DVI extension with one fiber
Transmit uncompressed DVI video up to 500 meters using a single SC multimode fiber link.
Medical and industrial safety certified
Complies with IEC/EN 60601-1 and 60601-1-2 standards for safe deployment in medical and clinical environments.
Self-EDID simplifies installation
Automatically reads and restores display EDID for hassle-free setup across mixed display systems.
Rugged EMI-shielded enclosure
Die-cast aluminum housing provides superior EMI protection and thermal dissipation in noisy environments.
Cost-effective single-fiber design
Reduces fiber count and infrastructure costs while maintaining full uncompressed video quality.
Feature Checklist
- Supports uncompressed DVI up to WUXGA (1920×1200) at 60Hz
- Supports 2K resolution and 36-bit color depth at 1080p
- Transmits DVI signals up to:
- 500m (1,640ft) over OM2/OM3 multimode fiber
- 300m (984ft) over OM1 multimode fiber
- Single-fiber (SC connector) optical transmission
- Self-EDID management (read & restore from display)
- Auto power switching
- LED indicators for power, TX signal, and RX signal detection
- Solid aluminum die-cast enclosure for EMI shielding and heat dissipation
- Plug & Play installation
- Class 1 laser eye-safe optical interface
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DVFX-100-TR
- Brand
- Opticis
- Product Type
- 1-Fiber Detachable DVI Optical Extender (Tx/Rx Set)
- Video Interface
- DVI
- Max Resolution
- WUXGA (1920×1200) @ 60Hz
- Max Data Rate
- Up to 2.25Gbps
- Fiber Type
- Multimode Fiber (OM1 / OM2 / OM3)
- Connector Type
- SC
- Max Distance (OM2/OM3)
- 500m / 1,640ft
- Max Distance (OM1)
- 300m / 984ft
- EDID Management
- Self-EDID (read & restore)
- Enclosure
- Aluminum die-cast
- EMI Shielding
- Yes
- Operating Temperature
- 0°C to 50°C
- Storage Temperature
- -30°C to 70°C
- Power Input
- +5V DC, 1A
- Dimensions (W × D × H)
- 39 × 56 × 14.6 mm
- Laser Safety
- Class 1
- Certifications
- UL/EN 60601-1, IEC/EN 60601-1-2, FCC, CE
Documentation & Drivers
Package Contents
- User Manual
- Copper DVI cable

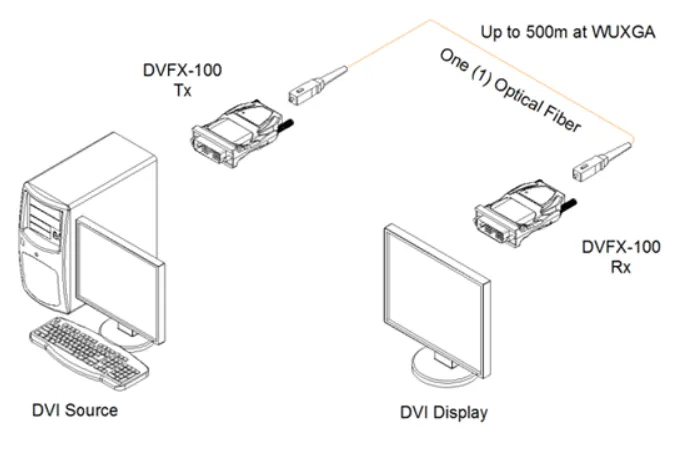

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical imaging and diagnostic systems
- Video wall systems
- Digital signage installations
- Broadcast environments
- Military and aerospace AV systems
