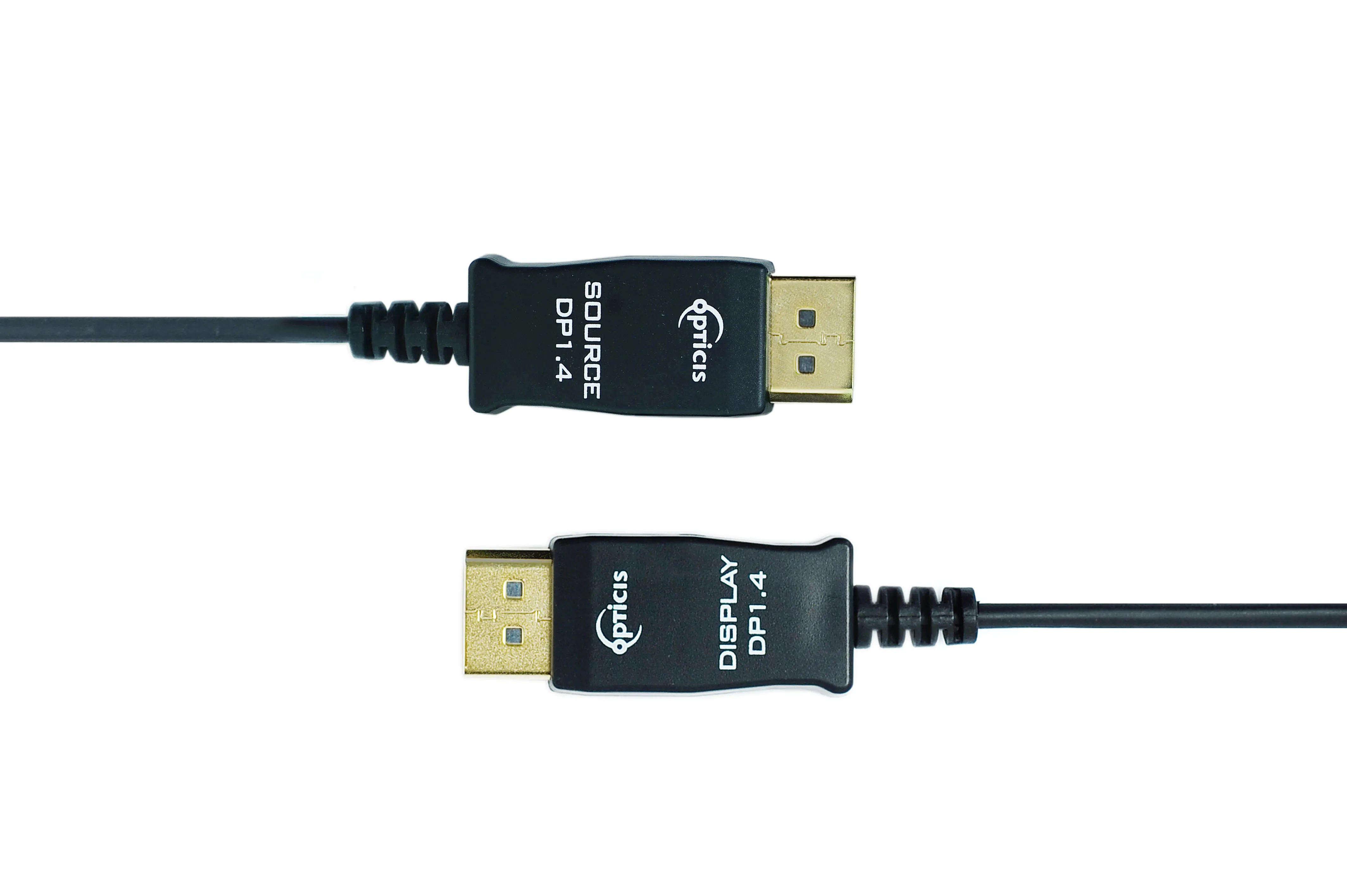

Opticis DPOC-14N-P DisplayPort 1.4 Active Optical Cable, 8K60 DSC, Plenum
Opticis DPOC-14N-P DisplayPort 1.4 active optical cable supporting up to 8K@60Hz DSC over distances up to 100m, with no external power required.
Resolution
8K60 DSC
Bandwidth
32.4Gbps
Distance
100m / 328ft
Power
No External Power
Technical Architecture & Functionality
The Opticis DPOC-14N is a DisplayPort 1.4 Active Optical Cable (AOC) designed to deliver ultra-high-bandwidth video over long distances while maintaining the simplicity and form factor of a standard DisplayPort cable.
Supporting up to 8K UHD (7680×4320) at 60Hz using Display Stream Compression (DSC) and a maximum bandwidth of 32.4Gbps (8.1Gbps per lane, HBR3), the DPOC-14N enables reliable long-distance DisplayPort transmission without scaling, recompression, or external extender hardware.
Unlike traditional extenders, the DPOC-14N requires no external power supply. It draws all necessary power directly from the DisplayPort TX and RX interfaces, enabling true plug-and-play operation with no configuration or setup. This makes it ideal for environments where simplicity, portability, and fast deployment are critical.
The cable uses a hybrid fiber architecture, combining optical fiber for high-speed video transport with copper conductors for control and handshake signals. It supports bi-directional hardware handshaking for EDID and DPCP, ensuring stable link training and compatibility across a wide range of DisplayPort sources and displays.
To suit diverse installation environments, the DPOC-14N is available with multiple jacket options, including plenum-rated, LSZH, and TPU, making it suitable for permanent installations as well as portable and rental use.
Key Engineering Advantages
Cable-like simplicity at 8K
Installs and operates like a standard DisplayPort cable while supporting ultra-high-bandwidth 8K video.
No power adapters or extenders
Draws all required power directly from DisplayPort interfaces with no external power supplies.
Long-distance DisplayPort without compromise
Extends DisplayPort 1.4 signals up to 100 meters with no scaling, recompression, or signal degradation.
Reliable DisplayPort handshaking
Supports bi-directional EDID and DPCP hardware handshake for stable link training and compatibility.
Flexible installation environments
Available with plenum, LSZH, or TPU jackets to suit permanent, safety-critical, or portable installations.
Immersive audio and 3D support
Supports multi-channel audio formats and 3D content for advanced AV and visualization systems.
Feature Checklist
- Supports DisplayPort 1.4
- Extends 8K (7680×4320) at 60Hz using DSC
- Transmits DisplayPort signals up to 100m (328ft) over hybrid optical cable
- 32.4Gbps total bandwidth (8.1Gbps per lane, HBR3)
- No external power required
- Plug-and-play operation like a standard DP cable
- Supports bi-directional EDID and DPCP handshaking
- Supports 3D content transmission
- Supports multi-channel audio, including Dolby TrueHD and DTS-HD Master Audio
- Available in Plenum, LSZH, or TPU jacket types
- Slim, lightweight cable design for easy installation
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DPOC-14N-P (Plenum)
- Brand
- Opticis
- Product Type
- DisplayPort 1.4 Active Optical Cable
- DisplayPort Standard
- DisplayPort 1.4
- Max Resolution
- 8K (7680×4320) @ 60Hz (DSC)
- Max Distance
- 100m / 328ft
- Max Bandwidth
- 32.4Gbps
- Lane Bandwidth
- 8.1Gbps per lane (HBR3)
- Transmission Medium
- Hybrid Optical Cable
- External Power
- Not required
- Handshake Support
- Bi-directional EDID / DPCP
- Audio Support
- Multi-channel, Dolby TrueHD, DTS-HD Master Audio
- Jacket Options
- Plenum, LSZH, TPU
- Installation
- Plug and Play
Documentation & Drivers
Package Contents
- DisplayPort 1.4 Active Optical Cable
- User Manual

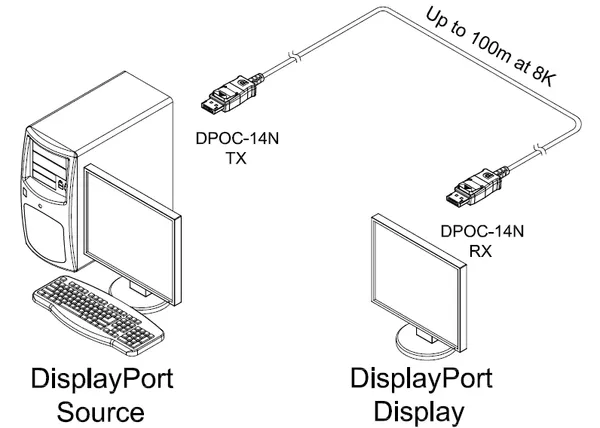

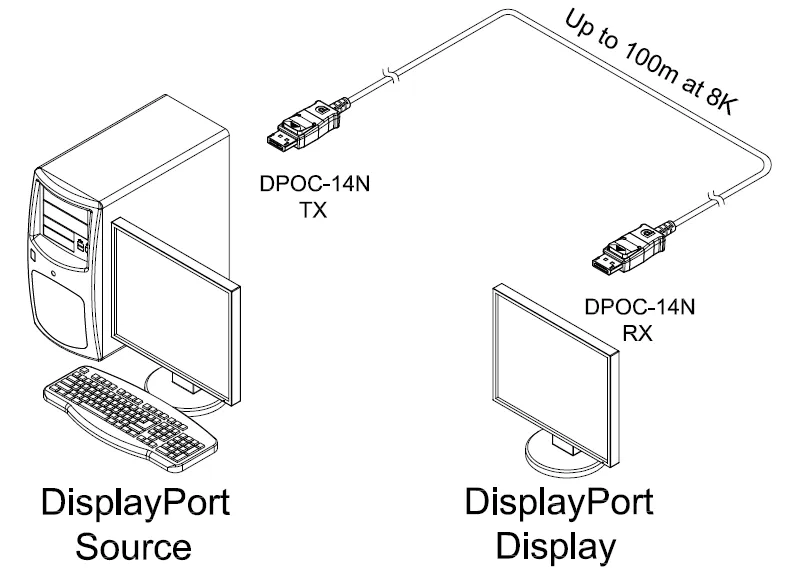

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Home AV systems
- Digital signage installations
- Control rooms and command centers
- Conference rooms and corporate AV
- Rental and staging environments
- Flight simulation and visualization systems
