Opticis 1-Fiber LC Detachable Optical DisplayPort 1.2 Module, 4K60, 200m (656ft) (DPFX-300-TR)
Optical DisplayPort 1.2 module extending 4K UHD video up to 200m over a single LC multimode fiber. Supports MST, DP++, and full electrical isolation.
Resolution
4K60
Bandwidth
21.6Gbps
Distance
Up to 300m / 984ft
Fiber Type
Single LC (OM3)
Technical Architecture & Functionality

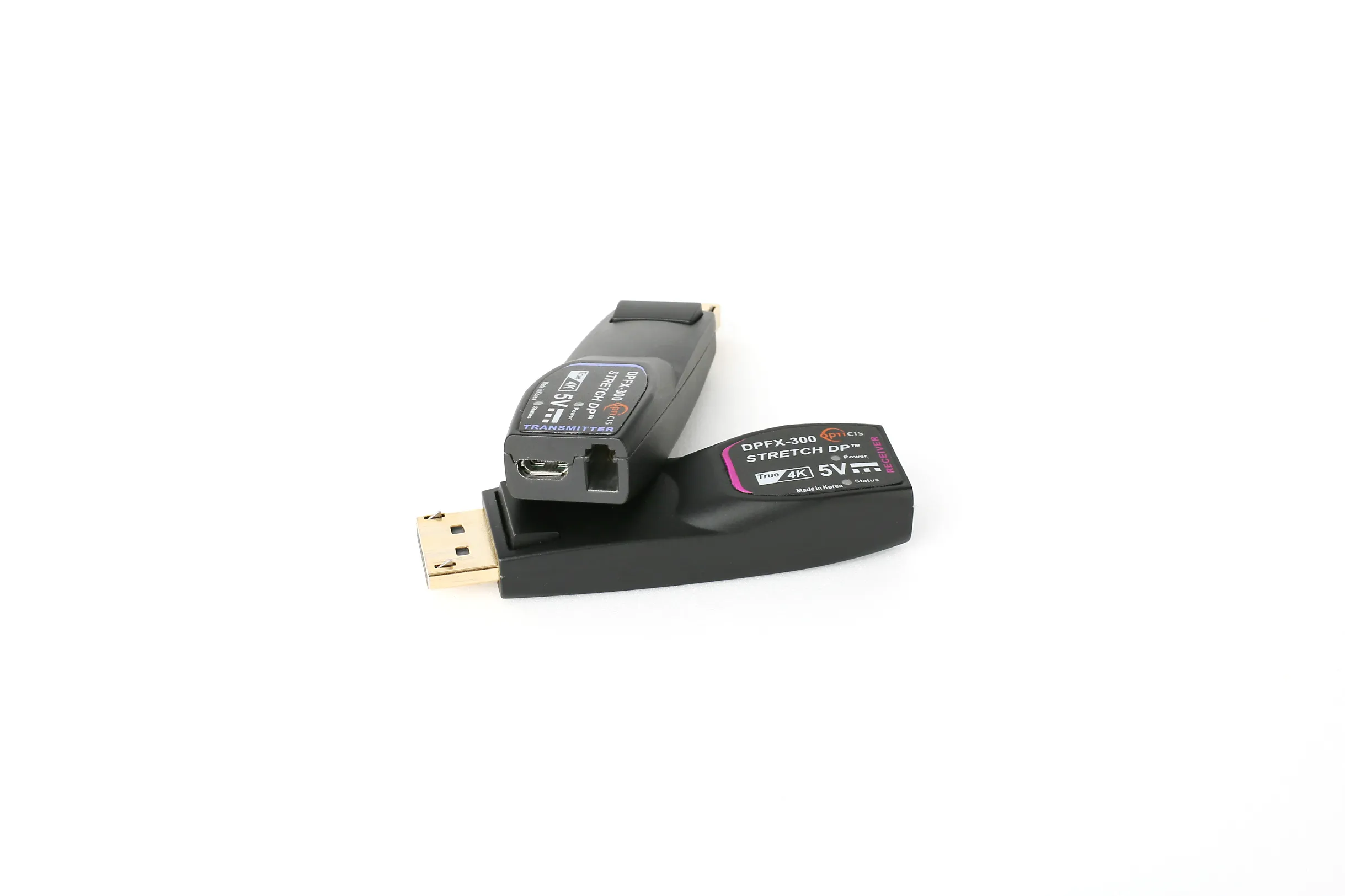

The Opticis DPFX-300-TR is a detachable optical DisplayPort 1.2 extension module designed to transmit 4K UHD (4096×2160) video at 60Hz over long distances using a single LC multi-mode fiber (OM3).
Supporting a total bandwidth of 21.6Gbps (5.4Gbps per lane), the DPFX-300-TR delivers uncompromised DisplayPort 1.2 performance with no video degradation, making it well suited for professional AV, broadcast environments, control rooms, and high-resolution display installations.
Its compact, lightweight design allows the module to be fitted directly into DisplayPort source and display devices, enabling clean installations in space-constrained environments. The use of pure fiber connectivity between transmitter and receiver provides complete electrical isolation, eliminating EMI, RFI, and electrical hazard concerns.
The DPFX-300-TR operates via USB power, requiring no external DC power adapter. Supplied micro-USB cables allow power to be drawn directly from source or display devices, while auto power switching ensures stable operation.
Key Engineering Advantages
Uncompressed 4K DisplayPort over fiber
Delivers uncompressed DisplayPort 1.2 video up to 4096×2160 at 60Hz with full 21.6Gbps bandwidth and no signal degradation.
Long-distance DisplayPort extension
Extends DisplayPort signals up to 300 meters over a single LC multimode fiber, far exceeding copper DisplayPort limits.
Direct-connect, space-saving design
Compact, lightweight module plugs directly into DisplayPort source and display devices for clean, space-constrained installations.
Electrical isolation and EMI immunity
Pure fiber connection provides complete electrical isolation, eliminating EMI, RFI, and ground loop issues.
USB-powered operation
Operates from USB power with automatic power switching, eliminating the need for external DC adapters.
Advanced DisplayPort feature support
Supports DP++, Multi-Stream Transport (MST), and auxiliary/I²C channels over fiber for flexible system integration.
Professional-grade compliance
FCC and CE certified for EMI/RFI compliance, suitable for broadcast, medical, and industrial environments.
Feature Checklist
- Supports DisplayPort 1.2 standards
- Extends 4K UHD (4096×2160) at 60Hz
- Full color formats RGB / YCbCr 4:4:4
- Transmits DisplayPort 1.2 data up to 300m (984ft) over one LC multimode fiber (OM3)
- 21.6Gbps total bandwidth (5.4Gbps per lane)
- Supports Dual-Mode DisplayPort (DP++)
- Supports Auxiliary / I²C channel over fiber
- Supports Multi-Stream Transport (MST)
- Firmware upgradable via micro-USB
- Compact design for direct connection to DP source or display
- Plug and Play
- Auto power switching
- Excellent data security with negligible EMI emission
- FCC and CE certified for EMI/RFI compliance
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DPFX-300-TR
- Brand
- Opticis
- Product Type
- Optical DisplayPort 1.2 Extender Module
- Fiber Type
- Single LC Multimode Fiber (OM3)
- Max Distance
- Up to 300m / 984ft
- DisplayPort Standard
- DisplayPort 1.2
- Max Bandwidth
- 21.6Gbps
- Max Resolution
- 4096×2160 @ 60Hz
- Color Format
- RGB / YCbCr 4:4:4
- Lane Bandwidth
- 5.4Gbps per lane
- DP++ Support
- Yes
- MST Support
- Yes
- Auxiliary Channel
- Supported over fiber
- Electrical Isolation
- Yes
- Power Method
- USB power
- Power Switching
- Automatic
- Firmware Upgrades
- Micro-USB
- EMI / RFI Compliance
- FCC, CE
- Installation
- Plug and Play
Documentation & Drivers
Package Contents
- One (1) Transmitter (Tx)
- One (1) Receiver (Rx)
- One (1) 0.2m Male-to-Female DisplayPort copper cable
- Two (2) Micro USB to USB cables
- Two (2) 5V / 1A power adapters
- User’s Manual

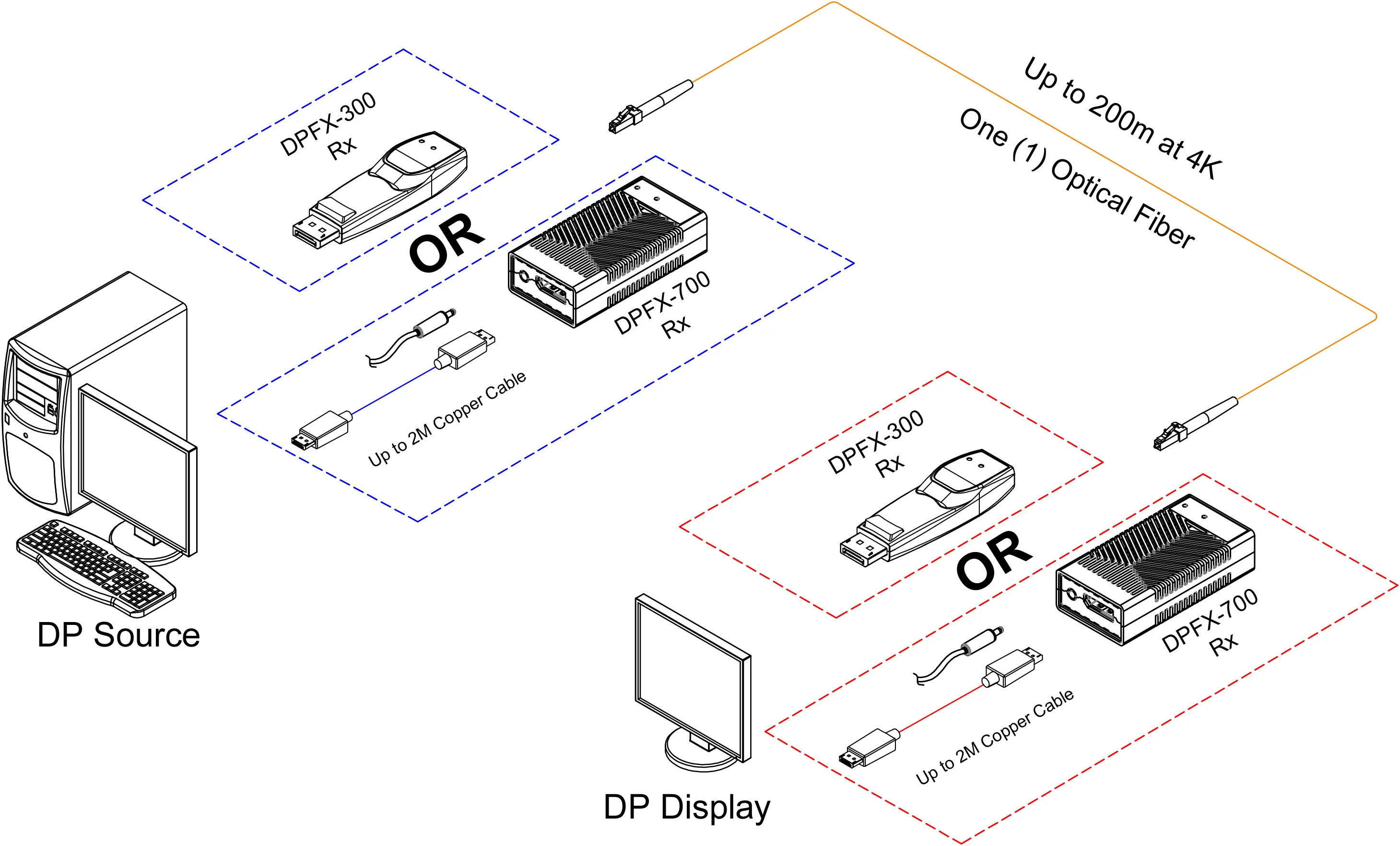

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Broadcast and studio environments
- Control rooms and command centers
- Digital signage and video walls
- Medical and industrial display systems
- High-resolution workstation displays
- Long-distance DisplayPort signal distribution
