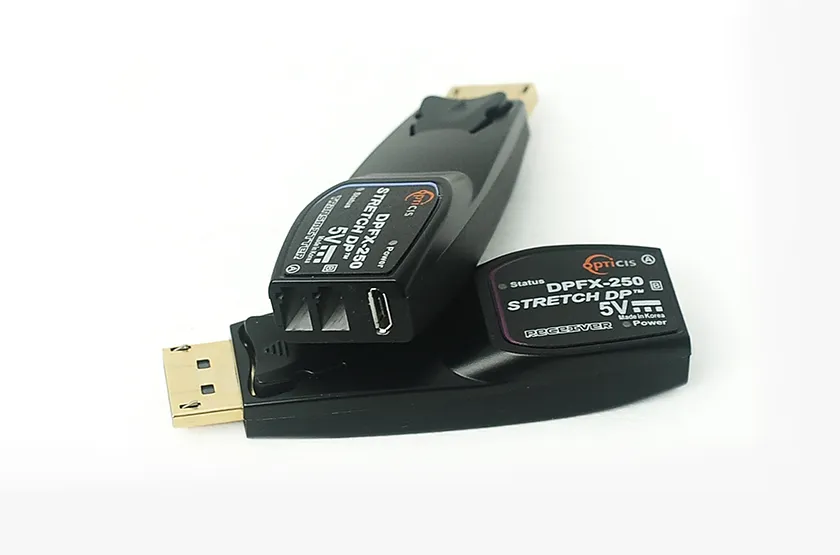

Opticis DPFX-250-TR DisplayPort 1.2 Optical Extender | 200m Dual LC OM3 Fiber
DisplayPort 1.2 fiber extender supporting 4K (4096×2160) @ 60Hz over dual LC OM3 multimode fiber up to 200 m with zero compression or latency.
Resolution
4K @ 60Hz
Distance
200 m over fiber
Bandwidth
21.6 Gbps
Fiber Type
Dual LC OM3
Technical Architecture & Functionality

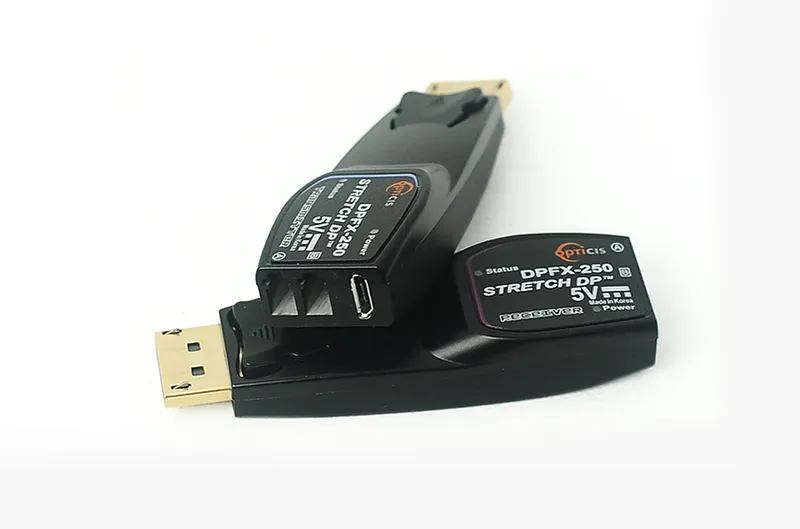

The Opticis DPFX-250-TR is a compact DisplayPort 1.2 optical extender designed for long-distance 4K signal transmission in professional AV, medical imaging, and control room environments.
Using dual LC OM3 multimode fiber, the DPFX-250-TR extends 4K UHD (4096×2160) @ 60Hz up to 200 meters (656 feet) with zero compression and zero latency. With a total data throughput of 21.6 Gbps (5.4 Gbps per lane), it preserves full video fidelity for demanding DisplayPort 1.2 applications.
The fully optical link provides complete electrical isolation, eliminating EMI, ground loops, and interference in electrically noisy environments. The compact transmitter and receiver modules are designed for direct connection to source and display, making the system easy to deploy in tight installations.
Power is drawn directly from the 3.3V DisplayPort interface by default, with USB power support available when additional power is required. Included short DisplayPort jumper cables make it easy to adapt to installations where direct connection is impractical.
Key Engineering Advantages
True Fiber Isolation
Optical transmission eliminates EMI and ground loops in electrically noisy environments.
Uncompressed 4K Signal
Delivers pristine 4K 60Hz DisplayPort video with zero compression or latency.
Compact Direct-Connect Modules
Small form factor modules plug directly into source and display for clean installs.
Flexible Power Options
Runs from DisplayPort 3.3V or USB power when additional power is needed.
Professional-Grade Reliability
Engineered for medical, military, and control room deployments.
Feature Checklist
- DisplayPort 1.2 compliant optical extender
- Extends 4K UHD (4096×2160) @ 60Hz
- Transmission up to 200 m (656 ft) over dual LC OM3 multimode fiber
- Uncompressed, zero-latency video transmission
- 21.6 Gbps total bandwidth (5.4 Gbps per lane)
- Full electrical isolation with negligible EMI emission
- Supports DisplayPort auxiliary channel
- Compact modules for direct source-to-display connection
- Powered via DisplayPort 3.3V or USB power
- Plug & play installation

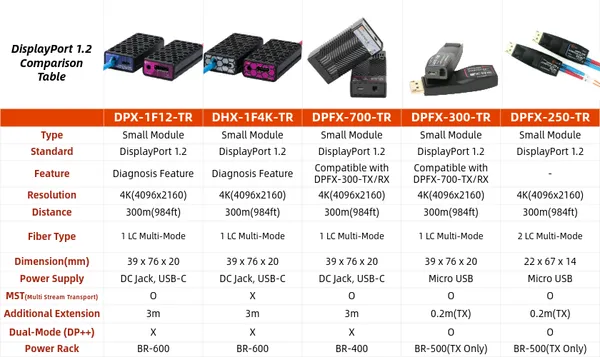

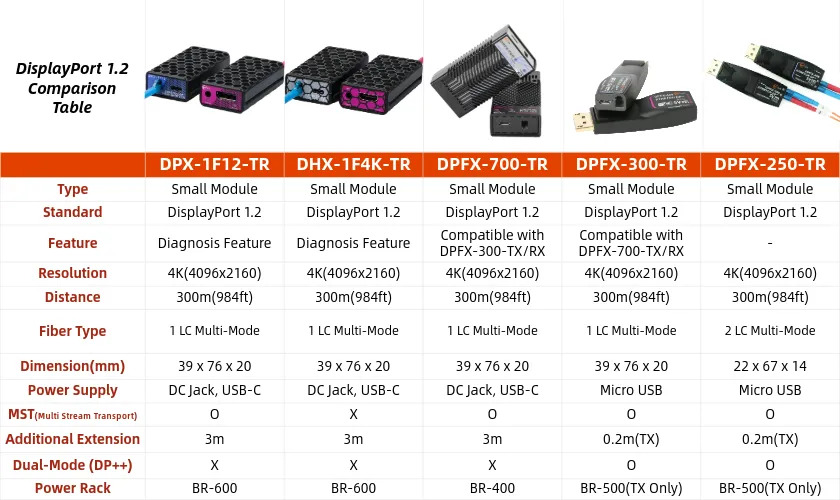

Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DPFX-250-TR
- DisplayPort Standard
- DisplayPort 1.2
- Max Resolution
- 4096×2160 @ 60Hz
- Fiber Type
- Dual LC OM3 multimode fiber
- Max Distance
- 200 m (656 ft)
- Total Bandwidth
- 21.6 Gbps (5.4 Gbps per lane)
- Auxiliary Channel
- Supported
- Power Options
- DisplayPort 3.3V or USB
- Certifications
- CE, FCC, UL IT, Class 1 Laser Eye Safety
Documentation & Drivers
Package Contents
- DPFX-250-TR Transmitter
- DPFX-250-TR Receiver
- 0.2 m DisplayPort male-to-female jumper cable
- Two (2) Micro USB to USB power cables
- Two (2) AC power adapters (110–240V to 5V 1A)
- User Manual

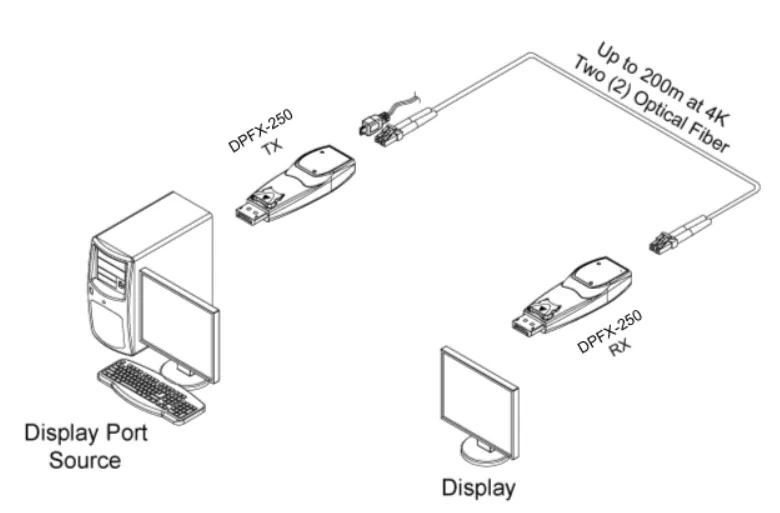

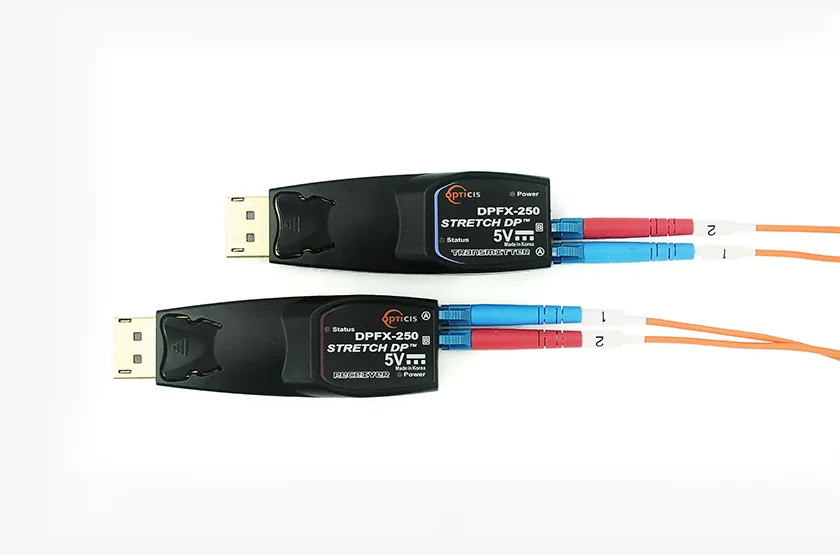

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical imaging systems
- Military and aerospace AV
- Control rooms and monitoring centers
- Simulation and training environments
