Opticis DisplayPort 1.4 Optical Extender, 8K60 DSC over 1 LC Fiber, 300m (984ft)
DisplayPort 1.4 optical extender supporting 8K DSC at 60Hz and 4K@144Hz over 1 LC fiber up to 200m (OM3) / 300m (OM4) with electrical isolation.
Resolution
8K60 DSC
Bandwidth
32.4Gbps
Distance
200m (OM3) / 300m (OM4)
Fiber Type
Single LC (OM3/OM4)
Technical Architecture & Functionality

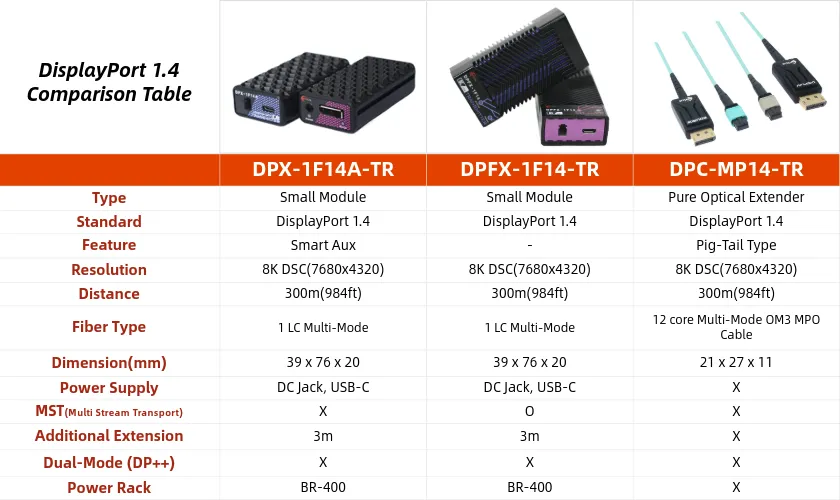

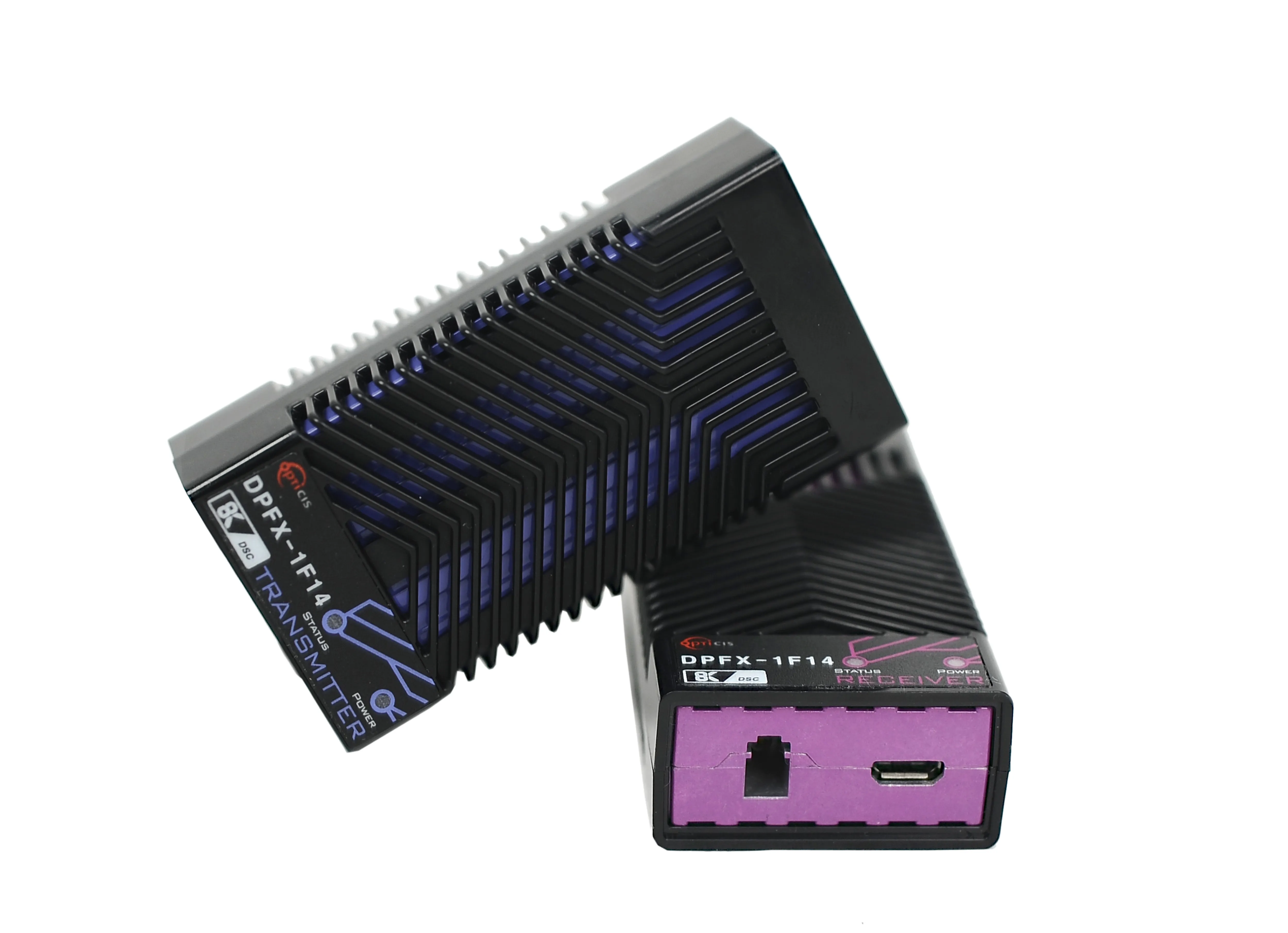

The Opticis DPFX-1F14-TR is a high-performance DisplayPort 1.4 optical extender engineered to transmit visually lossless 8K DSC (7680×4320) video at 60Hz and uncompressed 4K at 144Hz over long distances using a single LC multi-mode fiber.
Capable of extending DisplayPort 1.4 signals up to 200 meters (656 feet) on OM3 fiber and up to 300 meters (984 feet) on OM4 fiber, the DPFX-1F14-TR delivers full-bandwidth 32.4Gbps performance, making it ideal for 8K professional AV, broadcast, control rooms, simulation systems, and high-resolution visualization environments.
For installation flexibility, the DPFX-1F14-TR supports intermediate copper connections up to 3 meters on each side (TX/RX). This allows integration into confined or equipment-dense spaces where direct fiber termination may not be practical. A 2-meter copper cable is included in the standard package.
The DPFX-1F14-TR is fully interoperable with Opticis DPFX-700-TR and DPFX-300-TR modules, allowing mixed configurations and modular system design. Its compact, lightweight form factor provides full electrical isolation with negligible EMI emission, ensuring reliable and interference-free operation in demanding professional environments.
The unit operates using an external DC power adapter, with field firmware upgrades supported conveniently via USB Type-C, delivering stable performance across a wide range of AV installations.
Key Engineering Advantages
8K DSC and high-refresh 4K
Delivers DisplayPort 1.4 video up to 8K DSC at 60Hz and uncompressed 4K at 144Hz with full 32.4Gbps bandwidth.
Extreme long-distance extension
Extends DisplayPort signals up to 200m over OM3 and up to 300m over OM4 single LC multimode fiber.
Flexible installation
Supports up to 3m copper extension on both transmitter and receiver sides for confined spaces.
Modular system compatibility
Fully interoperable with Opticis DPFX-700-TR and DPFX-300-TR modules for mixed deployments.
Electrical isolation and signal integrity
Fiber-based design provides electrical isolation with negligible EMI for reliable operation.
Feature Checklist
- Supports DisplayPort 1.4 standards
- Extends 8K DSC (7680×4320) at 60Hz
- Supports 4K (3840×2160) at 144Hz
- Transmits DP 1.4 data up to 200m (656ft) on OM3 and 300m (984ft) on OM4 over one LC multimode fiber
- 32.4Gbps total bandwidth (8.1Gbps per lane)
- Supports Multi-Stream Transport (MST)
- Allows up to 3m copper extension on both TX and RX sides
- Firmware upgradable via USB Type-C
- Plug and Play operation
- Excellent data security with negligible EMI emission
- Electrical isolation for interference-free transmission
- Label color distinction for easy identification:
- TX: Purple heart
- RX: Red violet
- FCC and CE certified for EMI/RFI compliance
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DPFX-1F14-TR
- Brand
- Opticis
- Product Type
- DisplayPort 1.4 Optical Extender
- Fiber Type
- Single LC Multimode Fiber (OM3 / OM4)
- Max Distance
- 200m (OM3) / 300m (OM4)
- DisplayPort Standard
- DisplayPort 1.4
- Max Bandwidth
- 32.4Gbps
- Max Resolution
- 8K DSC (7680×4320) @ 60Hz
- Additional Video Support
- 4K @ 144Hz
- Lane Bandwidth
- 8.1Gbps per lane
- MST Support
- Yes
- Copper Extension
- Up to 3m on TX and RX sides
- Electrical Isolation
- Yes
- EMI Emission
- Negligible
- Power Method
- External DC power adapter
- Firmware Upgrades
- USB Type-C
- Installation
- Plug and Play
- Certifications
- FCC, CE
Documentation & Drivers
Package Contents
- DPFX-1F14-TR Transmitter (TX)
- DPFX-1F14-TR Receiver (RX)
- Two (2) 0.2m DisplayPort copper jumper cables
- Two (2) USB Type-C to USB-A power cables
- Two (2) 5V 1A DC power adapters
- User Manual

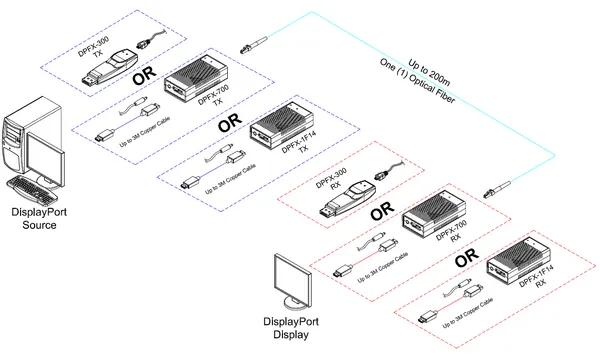

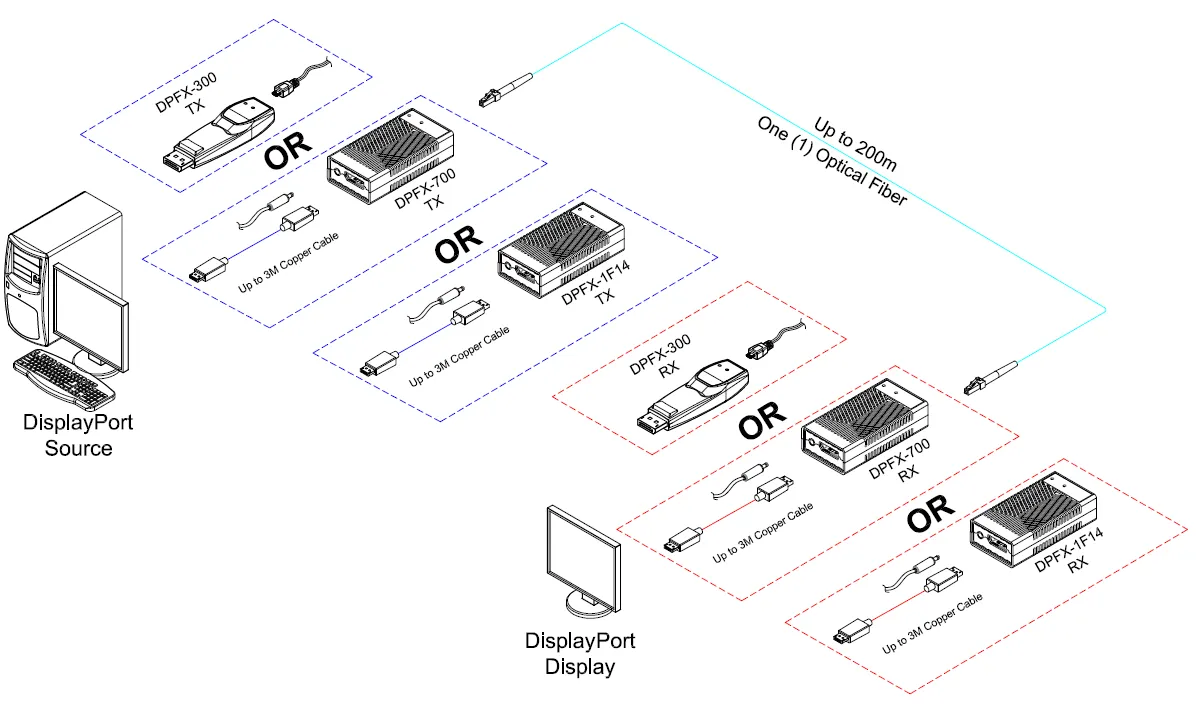

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- 8K professional AV systems
- Broadcast and studio environments
- Control rooms and command centers
- Simulation and visualization systems
- High-refresh-rate 4K and 8K display installations
- Long-distance DisplayPort distribution over fiber
