Opticis DPFC-200D Detachable DisplayPort 1.2 AOC | 4K60, 100m Plenum/LSZH
Detachable DisplayPort 1.2 active optical cable extending uncompressed 4K@60Hz video up to 100 meters over plenum or LSZH hybrid fiber.
Max Distance
100m / 328ft
Resolution
4K 60Hz
Cable Rating
Plenum or LSZH
DisplayPort
DP 1.2 with MST
Technical Architecture & Functionality
The Opticis DPFC-200D is a detachable DisplayPort 1.2 active optical cable (AOC) engineered to transmit uncompressed 4K (4096×2160) at 60Hz video over long distances of up to 100 meters (328 feet) using plenum-rated or LSZH hybrid fiber cable. It delivers pristine image quality with zero compression and zero latency, making it ideal for professional AV environments where signal integrity matters.
Unlike standard copper DisplayPort cables, the DPFC-200D uses active optical technology to overcome distance limitations while preserving full RGB and YCbCr 4:4:4 color fidelity. This allows reliable long-distance DisplayPort connections without repeaters or external extenders.

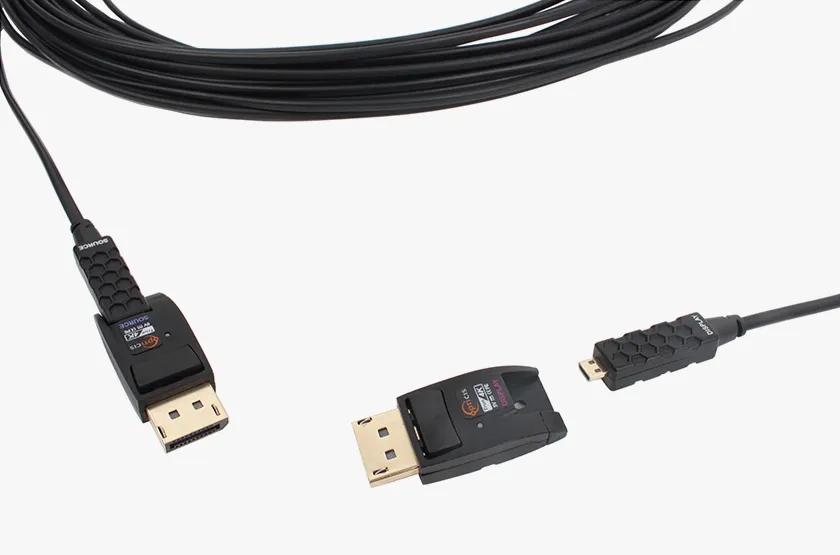

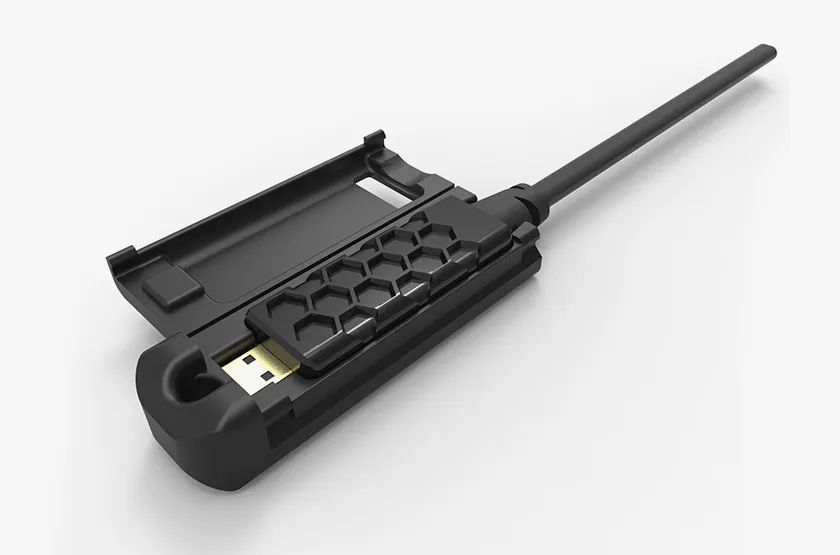

The detachable connector design separates the DisplayPort connector head from the cable body, simplifying conduit pulls and tight-space installations. This modular construction provides a slim, lightweight installation experience similar to copper cables, but with fiber-optic performance and immunity to EMI/RFI.
For compatibility with devices that provide limited DisplayPort bus power, an optional USB power cable can be supplied for the TX and/or RX side to ensure stable operation with non-standard sources or displays. The DPFC-200D also supports Multi-Stream Transport (MST), enabling DisplayPort daisy-chaining and multi-display configurations where supported by the source and display devices.
Key Engineering Advantages
Long-Distance 4K Without Loss
Transmit uncompressed 4K@60Hz DisplayPort video up to 100 meters with zero latency or image degradation.
Installer-Friendly Detachable Design
Detachable connector heads make conduit pulls and tight-space installations fast and clean.
No Repeaters or Extenders Needed
Active optical design eliminates the need for external extenders or boosters.
MST Support for Multi-Display Setups
Supports DisplayPort Multi-Stream Transport for daisy-chained or multi-monitor configurations.
Code-Compliant Cable Options
Available in plenum-rated or LSZH jackets for commercial and in-wall installations.
Optional USB Power for Edge Cases
Optional USB power ensures compatibility with low-power or non-standard DisplayPort devices.
Feature Checklist
- Extends 4K (4096×2160) at 60Hz up to 100m (328ft)
- Uncompressed, zero-latency DisplayPort 1.2 transmission
- Supports RGB & YCbCr 4:4:4 color formats
- Plenum-rated or LSZH hybrid fiber cable options
- Detachable connector design for easier conduit routing
- Supports DisplayPort 1.2 MST (Multi-Stream Transport)
- Supports 3D content transmission
- Optional USB power on TX and/or RX for low-power devices
- Slim, lightweight cable for clean professional installations
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DPFC-200D
- Brand
- Opticis
- Product Type
- DisplayPort 1.2 Active Optical Cable (Detachable)
- Max Resolution
- 4096×2160 @ 60Hz
- DisplayPort Standard
- DisplayPort 1.2
- Cable Type
- Hybrid fiber (Plenum or LSZH)
- Max Distance
- 100m / 328ft
- Color Format
- RGB, YCbCr 4:4:4
- Compression
- None
- Latency
- None
- MST Support
- Yes
- 3D Support
- Yes
- Power
- DisplayPort bus power (optional USB power available)
- Installation
- Detachable connector heads
- EMI/RFI
- Immune (fiber-optic transmission)
- Certifications
- FCC, CE (typical Opticis compliance)
Documentation & Drivers
Package Contents
- DPFC-200D Active Optical Cable
- User Manual

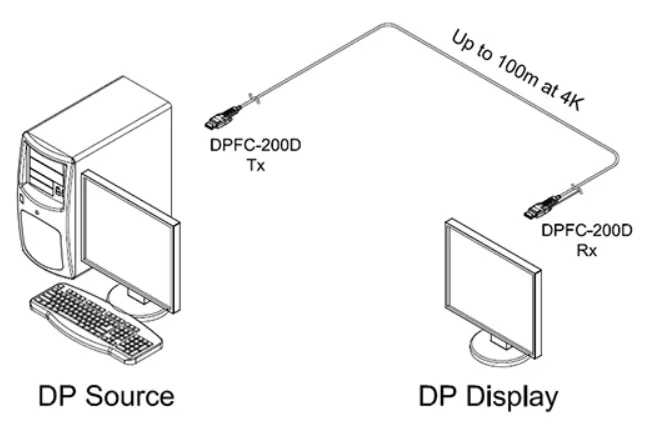

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Digital signage and video walls
- Control rooms and command centers
- Conference rooms and lecture halls
- Rental staging and live events
- Professional AV system interconnection
