Opticis DPAX DisplayPort 1.2 Repeater | 4K60 Data Recovery, MST, 21.6Gbps
Compact DisplayPort 1.2 data recovery repeater for extending 4K@60Hz DisplayPort signals over longer copper or fiber-optic extender runs.
Max Resolution
4K 60Hz
Data Rate
21.6Gbps
Standards
DisplayPort 1.2 + MST
Power Options
USB or 5V DC
Technical Architecture & Functionality

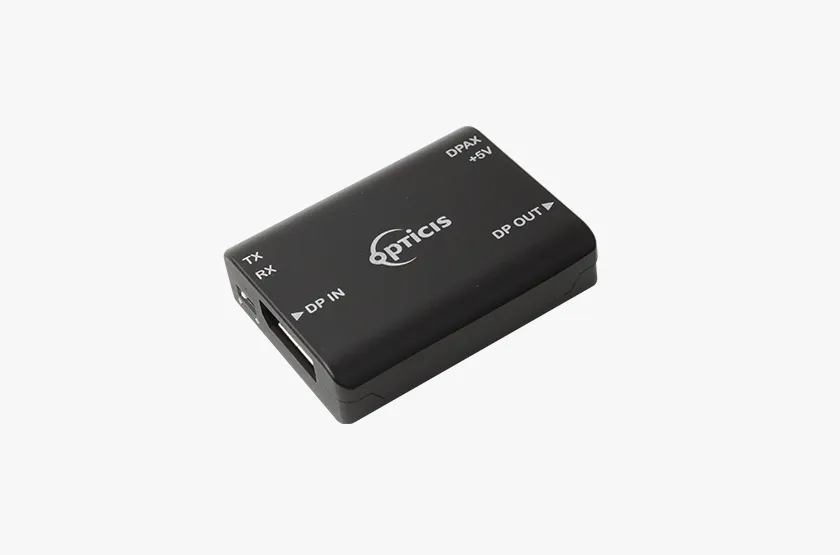

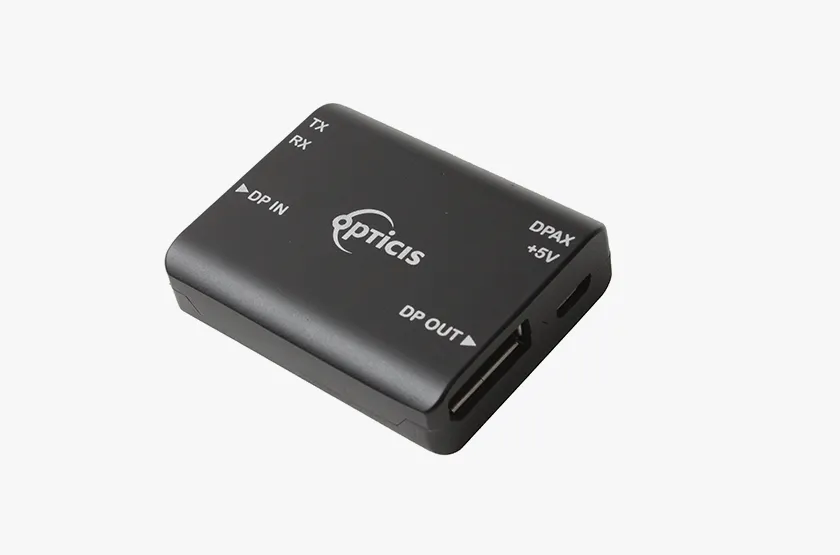

The Opticis DPAX is a DisplayPort 1.2 data recovery repeater designed to extend the usable distance of DisplayPort video connections by regenerating and stabilizing the signal between long cable runs or extender segments. It enables reliable transmission of 4K UHD (4096×2160) at 60Hz over longer combined cable lengths while maintaining signal integrity for high-bandwidth DisplayPort 1.2 links.
When used with standard DisplayPort copper cables, DPAX supports extended total distances such as:
- Up to 8m (26ft) total at DP 1.2 (3m from source + 5m to display)
- Up to 15m (49ft) total at DP 1.1 (5m from source + 10m to display)
DPAX is especially designed to integrate seamlessly with Opticis fiber-optic DisplayPort extenders and active optical cables, allowing system designers to push DisplayPort signals even farther in complex installations. It supports auxiliary channel communication, Multi-Stream Transport (MST), and full DisplayPort 1.2 bandwidth up to 21.6Gbps (5.4Gbps per lane).
The compact inline form factor makes DPAX easy to install in tight AV racks, behind displays, or inside equipment enclosures. It can be powered via USB or an optional 5V DC adapter, providing flexible power options for different installation environments.
Key Engineering Advantages
Restores Signal Integrity
Regenerates DisplayPort signals to maintain 4K stability over long copper or mixed copper/fiber runs.
Extends Copper Cable Reach
Safely pushes DisplayPort copper connections beyond normal length limits without degrading image quality.
Perfect Companion for Fiber Extenders
Designed to work seamlessly with Opticis DP fiber extenders and active optical cables for extreme-distance installations.
Supports MST for Multi-Display Systems
Preserves auxiliary channel and MST features for daisy-chained DisplayPort configurations.
Flexible Power Options
Can be powered via USB or external 5V DC for easy deployment in racks or behind displays.
Compact Inline Design
Small form factor makes it easy to hide behind displays or inside equipment enclosures.
Feature Checklist
- Complies with DisplayPort 1.2 standards
- Supports 4K UHD (4096×2160) at 60Hz
- Data recovery and signal regeneration for long cable runs
- Total bandwidth up to 21.6Gbps (5.4Gbps per lane)
- Supports Auxiliary Channel and MST (Multi-Stream Transport)
- Extends usable DisplayPort cable length:
- DP 1.2: 3m (source) + 5m (display)
- DP 1.1: 5m (source) + 10m (display)
- Designed for seamless compatibility with Opticis DP fiber extenders and AOC cables
- Supports daisy-chaining for longer system architectures
- Powered via USB or optional 5V DC adapter
- Compact inline form factor for clean installations
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DPAX
- Brand
- Opticis
- Product Type
- DisplayPort 1.2 Data Recovery Repeater
- Max Resolution
- 4096×2160 @ 60Hz
- DisplayPort Standard
- DisplayPort 1.2
- Total Bandwidth
- 21.6Gbps (5.4Gbps per lane)
- Supported Distances
- DP 1.2: 3m + 5m / DP 1.1: 5m + 10m
- MST Support
- Yes
- Auxiliary Channel
- Supported
- Power
- USB or optional 5V DC adapter
- Dimensions (W × D × H)
- 39.5 × 50 × 13 mm
- Installation
- Inline repeater
- Certifications
- FCC, CE (per Opticis standards)
Documentation & Drivers
Package Contents
- DPAX DisplayPort 1.2 Repeater
- USB-A to Micro-USB power cable (3m)
- User Manual

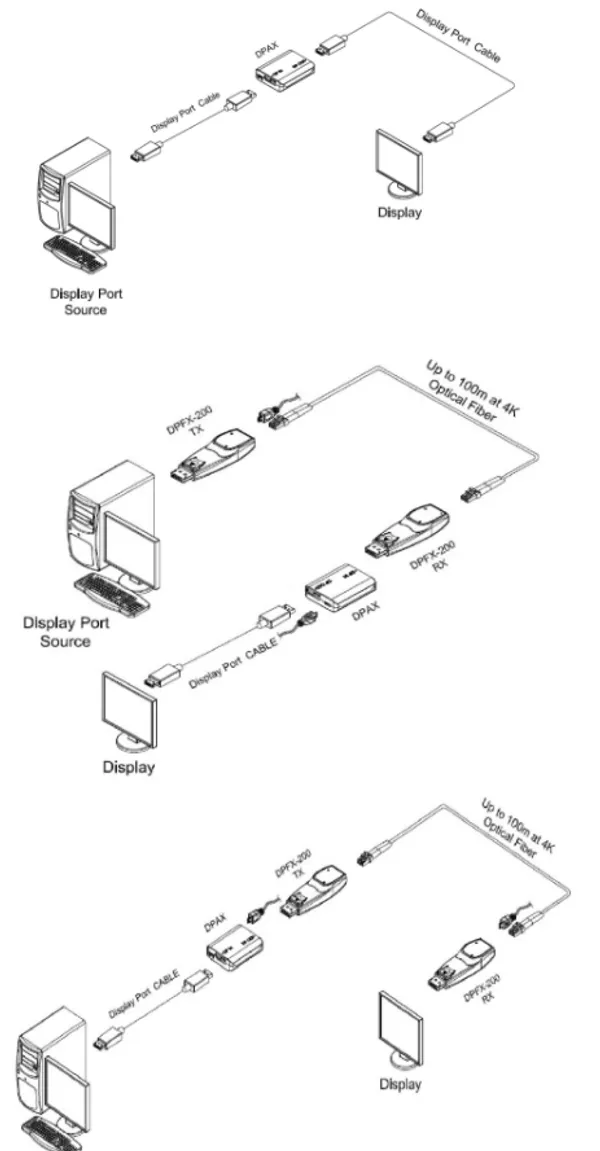

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Digital signage systems
- Control rooms and command centers
- Medical imaging and diagnostic displays
- Long-distance DisplayPort distribution systems
- Hybrid copper + fiber DisplayPort installations
Related Connectivity Solutions

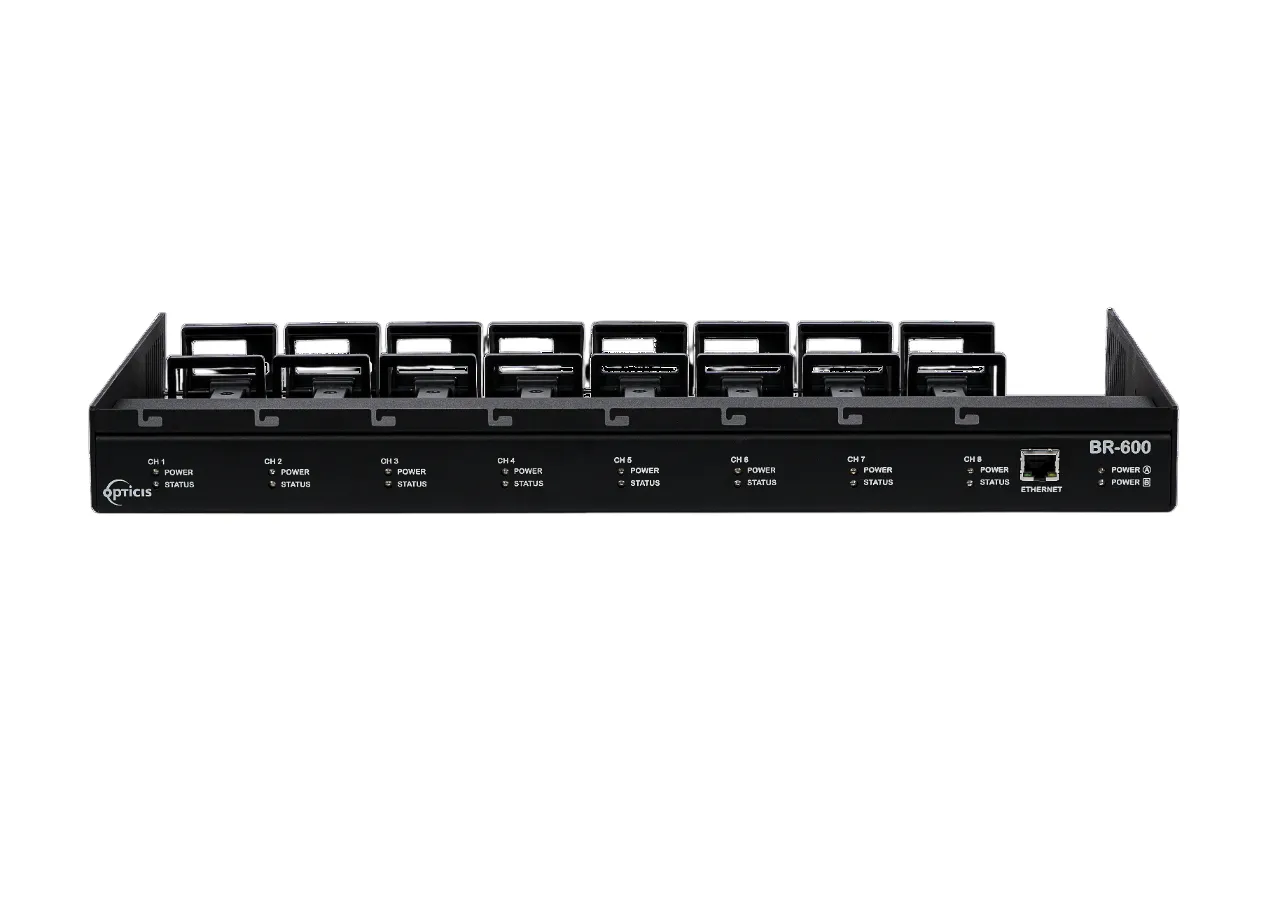

Opticis BR-600 19” 1RU Rack for Optical Extenders | Power & Diagnosis Mount
19” 1RU rack system for powering and managing up to 8 Opticis diagnosis optical extenders with redundant power and GUI monitoring.

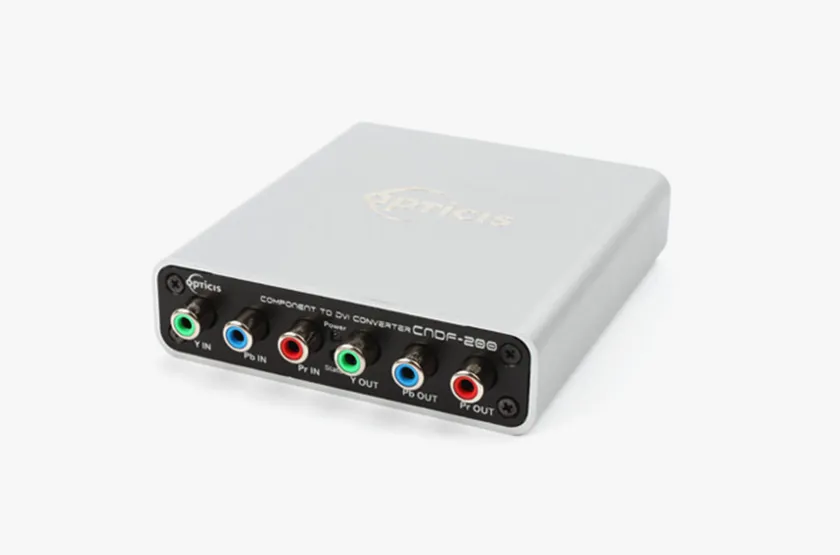

Opticis CNDF-200 Component to Fiber DVI Converter | 500m SC Multimode 1080p
Convert component (YPbPr) to 1-fiber optical DVI and send 1080p@60Hz up to 500 m over SC multimode fiber (use DVFX-100-R).

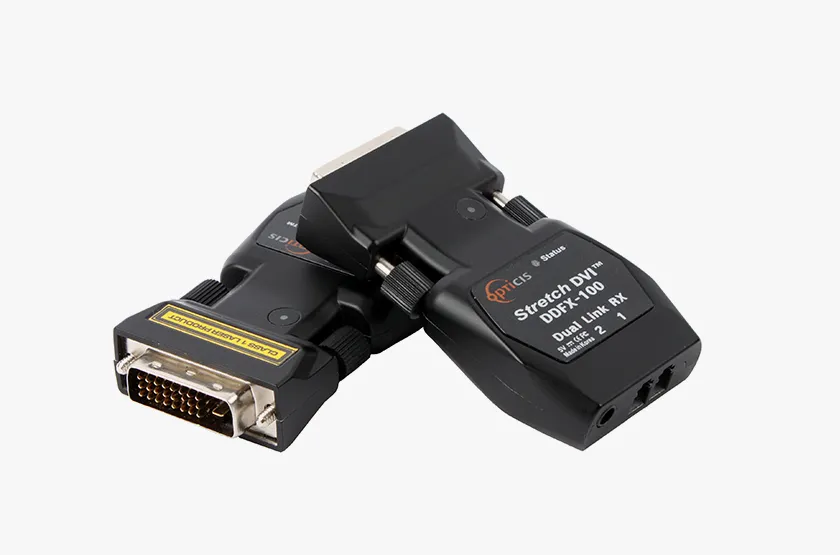

Opticis DDFX-100-TR Dual-Link DVI Optical Extender | 2560×1600 60Hz, 500m Fiber
