Opticis DHFC-200D Detachable DP 1.2 to HDMI 2.0 AOC | 4K60, 100m Plenum/LSZH
Detachable DisplayPort 1.2 to HDMI 2.0 active optical cable with high-retention HDMI, extending uncompressed 4K@60Hz up to 100m over hybrid fiber.
Max Distance
100m / 328ft
Resolution
4K 60Hz
Conversion
DP 1.2 → HDMI 2.0
Cable Rating
Plenum or LSZH
Technical Architecture & Functionality
The Opticis DHFC-200D is a detachable active optical cable (AOC) that converts DisplayPort 1.2 to HDMI 2.0 while extending uncompressed 4K (4096×2160) at 60Hz video up to 100 meters (328 feet) over plenum-rated or LSZH hybrid fiber cable. It is designed for professional AV installations that require long-distance DP-to-HDMI conversion without compression, latency, or signal degradation.
Unlike passive copper adapters, the DHFC-200D performs real-time DP 1.2 to HDMI 2.0 conversion within the cable assembly itself, eliminating the need for external converters. The active optical design preserves full image quality and supports RGB and YCbCr 4:4:4 color formats.

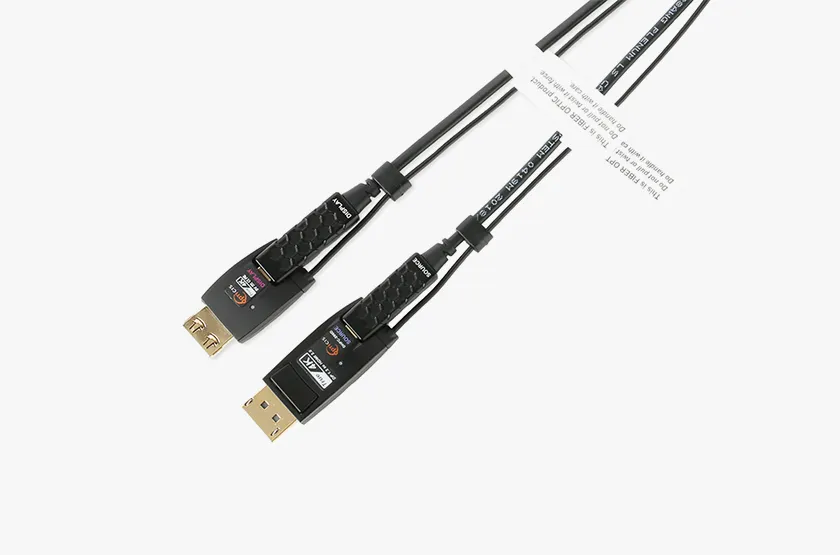

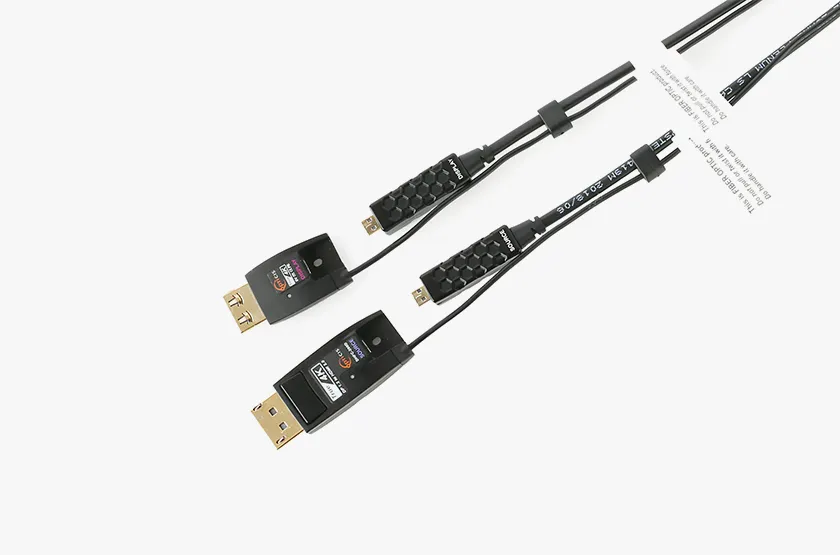

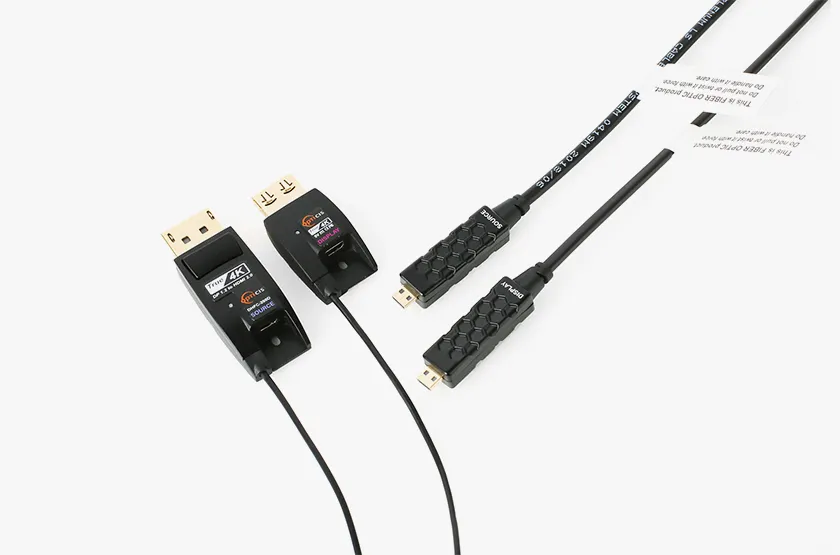

The detachable connector design separates the DisplayPort and HDMI heads from the cable body, making it easier to route through conduits and tight spaces. This modular structure provides cleaner installations in wall cavities, racks, and ceiling pathways, while maintaining the slim, lightweight feel of a standard copper cable.
For secure connections in professional environments, the HDMI end features a high-retention HDMI connector, while the DisplayPort end uses the standard locking DP connector to prevent accidental disconnection. The DHFC-200D supports CEC, EDID, and HDCP 2.2, ensuring compatibility with modern 4K sources and displays.
Key Engineering Advantages
Built-In DP to HDMI Conversion
Converts DisplayPort 1.2 to HDMI 2.0 directly inside the cable with no external adapter required.
Long-Distance 4K Without Loss
Transmit uncompressed 4K@60Hz video up to 100 meters with zero latency or signal degradation.
Installer-Friendly Detachable Design
Separate connector heads make conduit routing and wall installations cleaner and easier.
Secure Connections for Pro AV
High-retention HDMI and locking DisplayPort connectors prevent accidental unplugging.
Code-Compliant Cable Options
Available in plenum-rated or LSZH jackets for commercial building installations.
Full HDMI Feature Support
Supports CEC, EDID, HDCP 2.2, and 3D for modern 4K display compatibility.
Feature Checklist
- Converts DisplayPort 1.2 to HDMI 2.0
- Extends 4K (4096×2160) at 60Hz up to 100m (328ft)
- Supports RGB & YCbCr 4:4:4 color formats
- Uncompressed, zero-latency transmission
- Plenum-rated or LSZH hybrid fiber cable options
- Detachable connector design for easy conduit routing
- High-retention HDMI connector (RX) and locking DisplayPort connector (TX)
- Supports CEC, EDID, and HDCP 2.2
- Supports 3D content transmission
- Slim, lightweight cable design for clean installations
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DHFC-200D
- Brand
- Opticis
- Product Type
- DisplayPort 1.2 to HDMI 2.0 Active Optical Cable
- Max Resolution
- 4096×2160 @ 60Hz
- Video Conversion
- DisplayPort 1.2 → HDMI 2.0
- Cable Type
- Hybrid fiber (Plenum or LSZH)
- Max Distance
- 100m / 328ft
- Color Format
- RGB, YCbCr 4:4:4
- HDMI Features
- CEC, EDID, HDCP 2.2
- Connector Security
- High-retention HDMI (RX), locking DisplayPort (TX)
- Compression
- None
- Latency
- None
- Installation
- Detachable connector heads
- Certifications
- FCC, CE (typical for Opticis AOC products)
Documentation & Drivers
Package Contents
- DHFC-200D Active Optical Cable
- User Manual

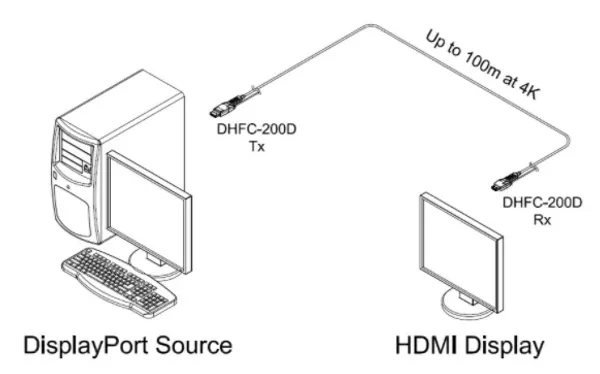

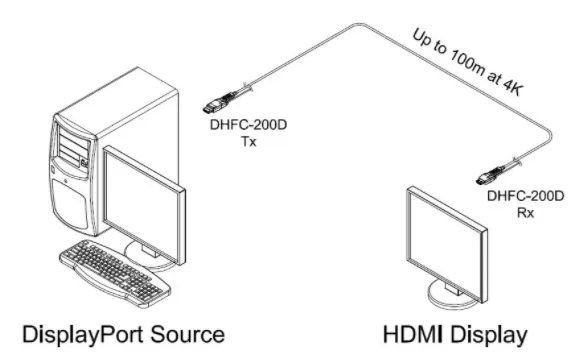

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Professional AV system interconnection
- Digital signage and video walls
- Control rooms and command centers
- Conference rooms and lecture halls
- Rental staging and live events
