Newnex FireNEX-uLINK-10G Active USB-C Cable | 10Gbps + DP 1.4 Alt Mode + 60W PD up to 15m
Active USB-C to USB-C repeater cable: 10Gbps USB 3.2 Gen 2 + DP 1.4 Alt Mode + PD up to 60W, extending full-feature USB-C up to 15m.
USB
USB 3.2 Gen 2 up to 10Gbps
Video
DP 1.4 Alt Mode (2- or 4-lane)
Length
Active extension up to 15m
Build
Metal repeater module + TPE jacket
Technical Architecture & Functionality
The Newnex FireNEX™-uLINK-10G series is an active USB-C to USB-C multi-function repeater cable built to break past the practical limits of standard full-feature USB-C cabling. It carries USB 3.2 Gen 2 (10Gbps) data, DisplayPort™ 1.4 Alt Mode, and USB Power Delivery (PD) up to 60W simultaneously through a single USB-C connection, at lengths up to 15 meters (50 ft.).
This series supports DP Alt Mode in either 2-lane or 4-lane operation. DP 1.4 HBR3 is supported (up to 8.1Gbps per lane), with resolution capability determined by lane mode.

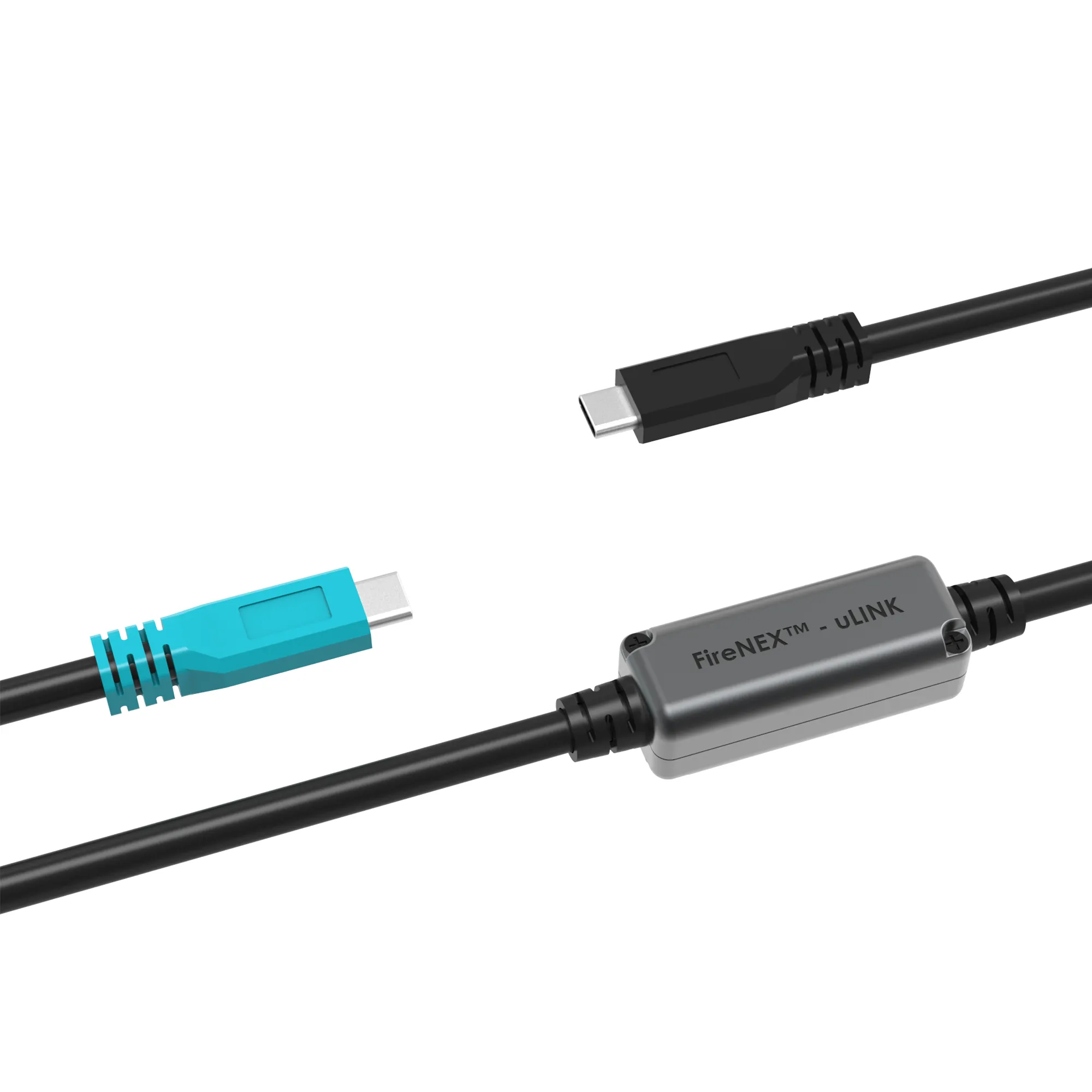

A compact, rugged metal repeater module is integrated into the cable to help maintain signal integrity and simplify conduit-friendly installation. No drivers are required for Windows, macOS, and Linux.
Key Engineering Advantages
Breaks the 1m USB-C Barrier
Active repeater design enables full-feature USB-C operation out to 15m in a single cable.
Choose Data-First or Display-First
Pick 2-lane DP + USB 3.2 variants for 10Gbps data, or 4-lane DP variants for maximum DP bandwidth with USB 2.0.
DP 1.4 Alt Mode Support
Supports HBR3 DP 1.4 Alt Mode, scaling from 4K@60Hz (2-lane) up to 8K@60Hz (4-lane).
Power While You Work
Bidirectional USB PD 3.0 supports common voltage profiles with up to 60W available at 20V/3A.
Installer-Friendly Construction
Compact metal repeater module supports rugged installs and conduit routing without driver hassles.
Standards and Compliance Coverage
FCC/CE Class B, RoHS, VW-1 flammability, and AIA USB3 Vision compliance listed for easier procurement.
Feature Checklist
- Active USB-C extension up to 15m (50 ft.)
- USB 3.2 Gen 2 data rate up to 10Gbps
- Backward compatible with USB 3.2 Gen 1 / USB 3.0 / USB 2.0 / 1.1
- DisplayPort 1.4 Alt Mode (HBR3) with 2-lane or 4-lane operation
- Bidirectional USB PD 3.0 support up to 60W (20V/3A)
- No driver required (Windows, macOS, Linux)
- Compact metal repeater unit for rugged installs and conduit routing
Technical Specifications
Validated performance benchmarks and physical parameters.
- Product Family
- FireNEX-uLINK-10G
- USB
- USB 3.2 Gen 2 10Gbps; USB 3.0/USB 3.2 Gen 1 5Gbps; USB 2.0/1.1 backward compatible
- Display (4-lane DP 1.4)
- Up to one 8K@60Hz, or two 4K@60Hz
- Display (2-lane DP 1.4)
- Up to one 4K@60Hz, or two 2K@60Hz
- DP Signaling
- DP 1.4, HBR3 up to 8.1Gbps per lane
- Power Delivery
- USB PD 3.0, bidirectional; 20V/15V/9V/5V; up to 3A (max 60W at 20V/3A)
- Repeater Module Size
- 16 × 18 × 46 mm
- Cable Diameter
- 6.4 ± 0.1 mm
- Jacket
- TPE, black
- Connectors
- USB-C male (Host side: aqua; Device side: black)
- Operating Temp
- 0°C to 40°C
- Operating Humidity
- 20% to 80% RH, non-condensing
- Compliance
- FCC (Class B), CE (Class B), RoHS, VW-1, AIA USB3 Vision™ compliant
- Warranty
- 1-year manufacturer warranty
Documentation & Drivers
Package Contents
- FireNEX-uLINK-10G active USB-C to USB-C repeater cable (1)

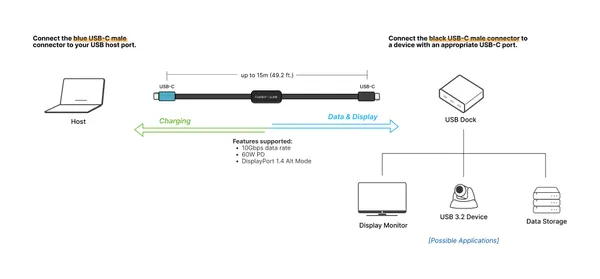

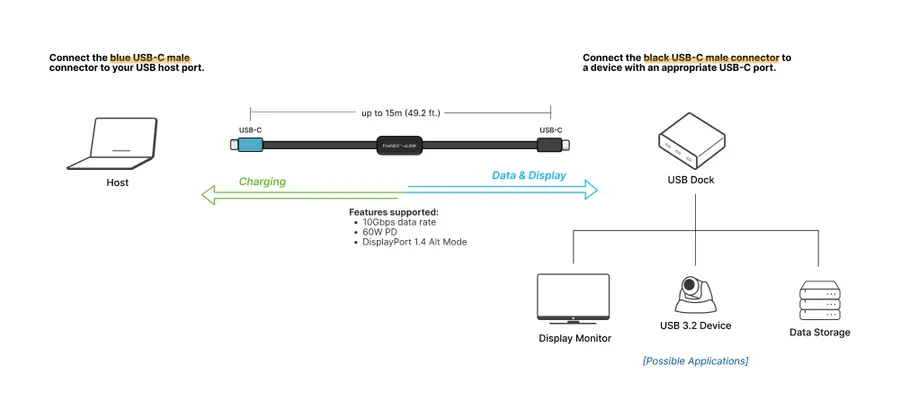

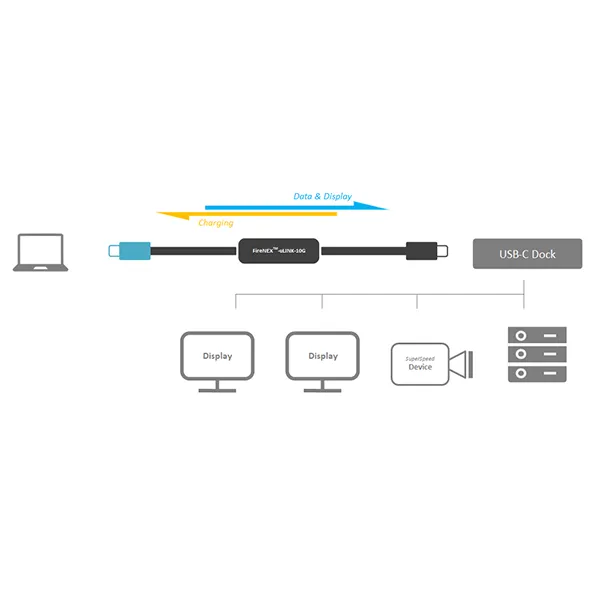

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Long-run USB-C connections for conferencing, AV, and production setups
- USB-C display + data workflows requiring DP Alt Mode
- Lab/industrial installs where 1m USB-C cable limits are impractical
- Conduit-based routing where a compact repeater module helps with installation
Related Connectivity Solutions

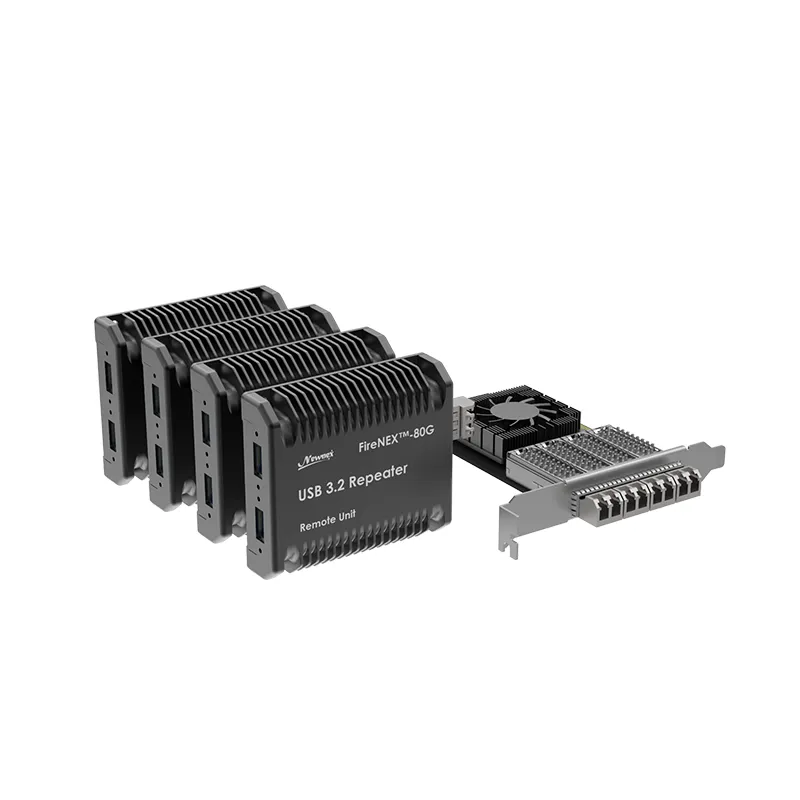

Newnex FireNEX-80G USB 3.2 Fiber Extension System | Up to 8 Devices • 80Gbps • 700m
Expandable USB 3.2 fiber extension system: 1 PCIe local + up to 4 remotes (2× USB-A each). Up to 8 devices, 80Gbps total, 700m max.

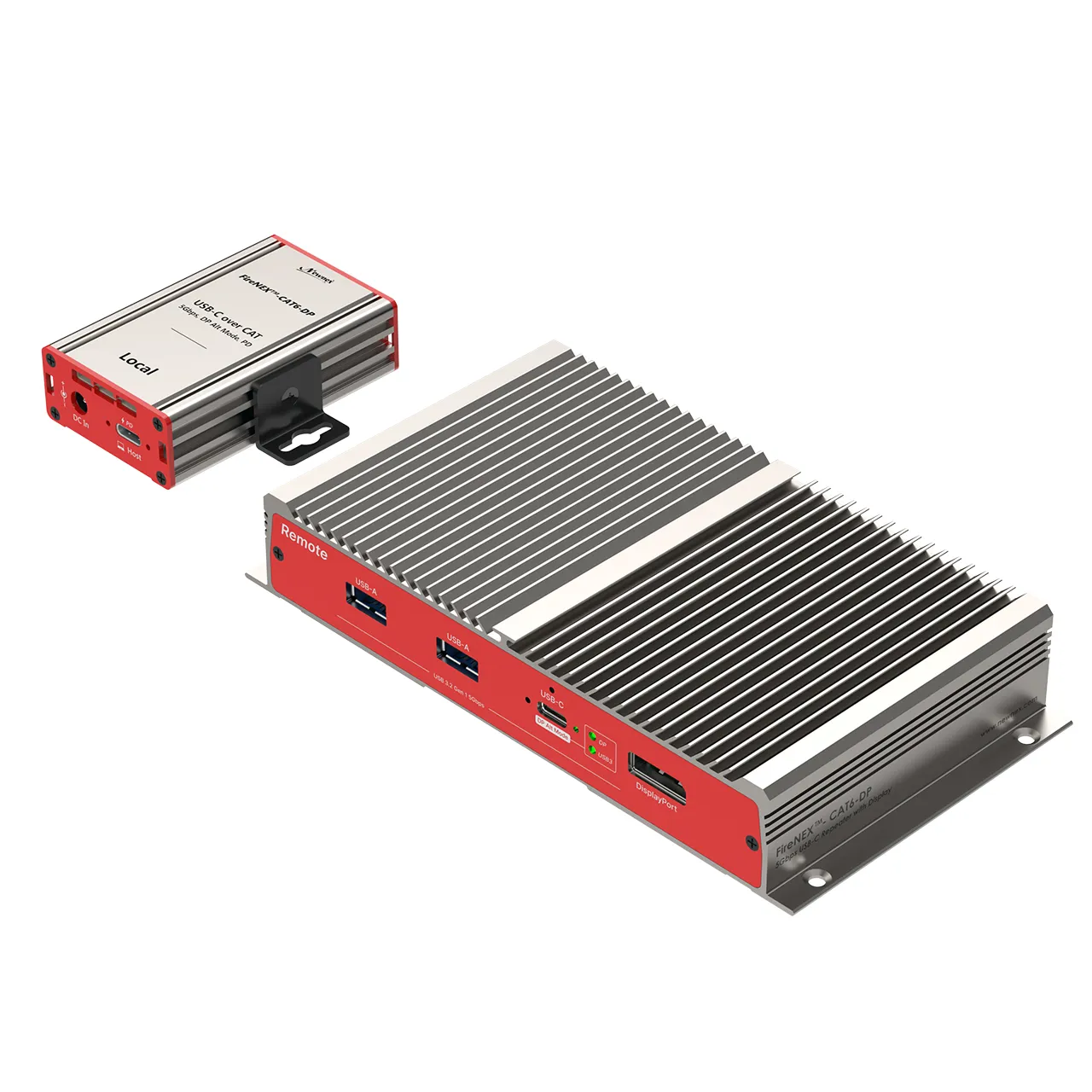

Newnex FireNEX-CAT6-DP USB-C over CAT6a/7 Extender | 5Gbps • 4K DP Alt Mode • 60W PD • GigE
USB-C over CAT6a/7 extender: 5Gbps USB 3.2 + 4K DP Alt Mode + GigE + RS-232, with 60W host PD, up to 90m.

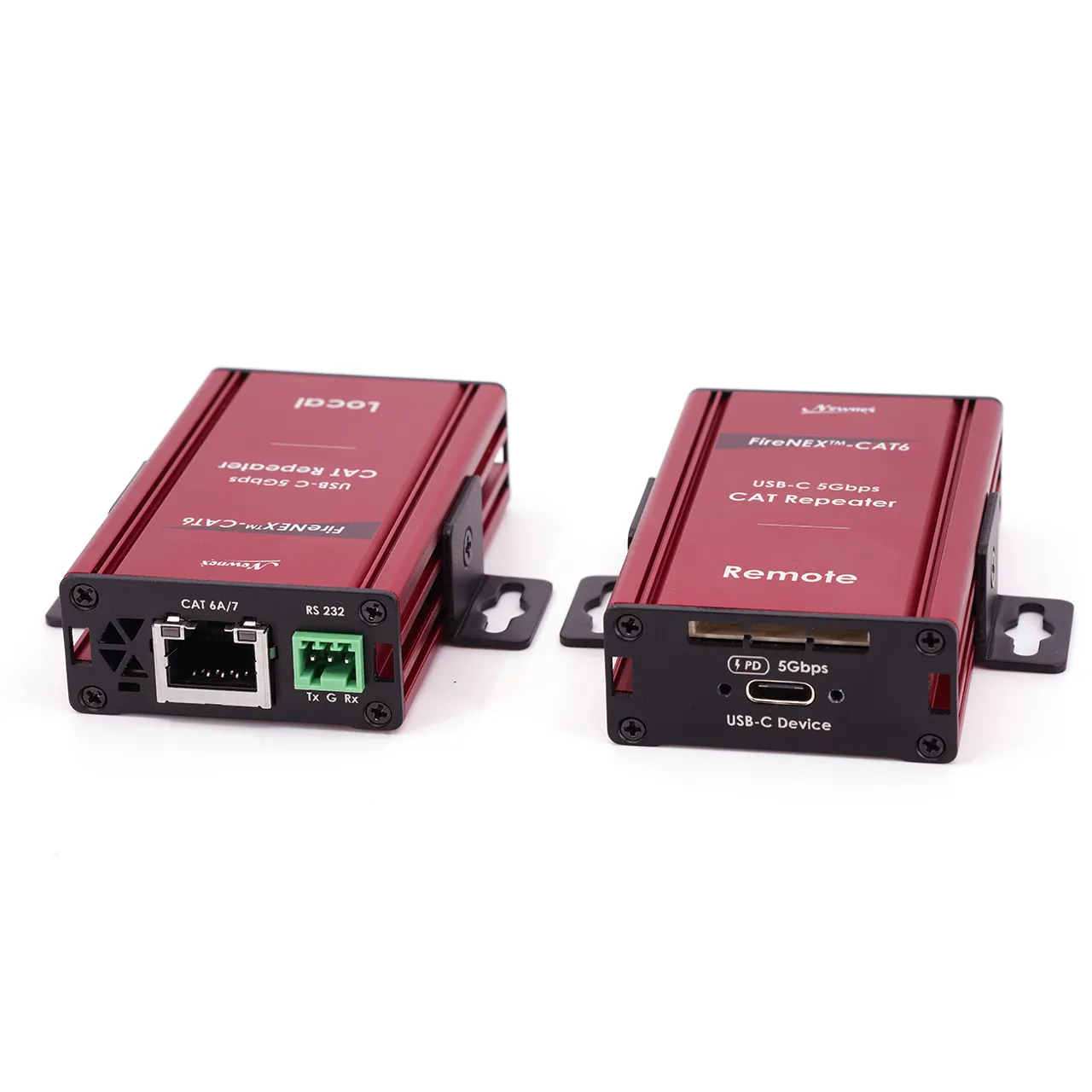

Newnex FireNEX-CAT6 USB-C 3.2 Repeater over CAT6a/7 Cable, 5Gbps, 90m (300ft), USB-PD 27W, RS-232
