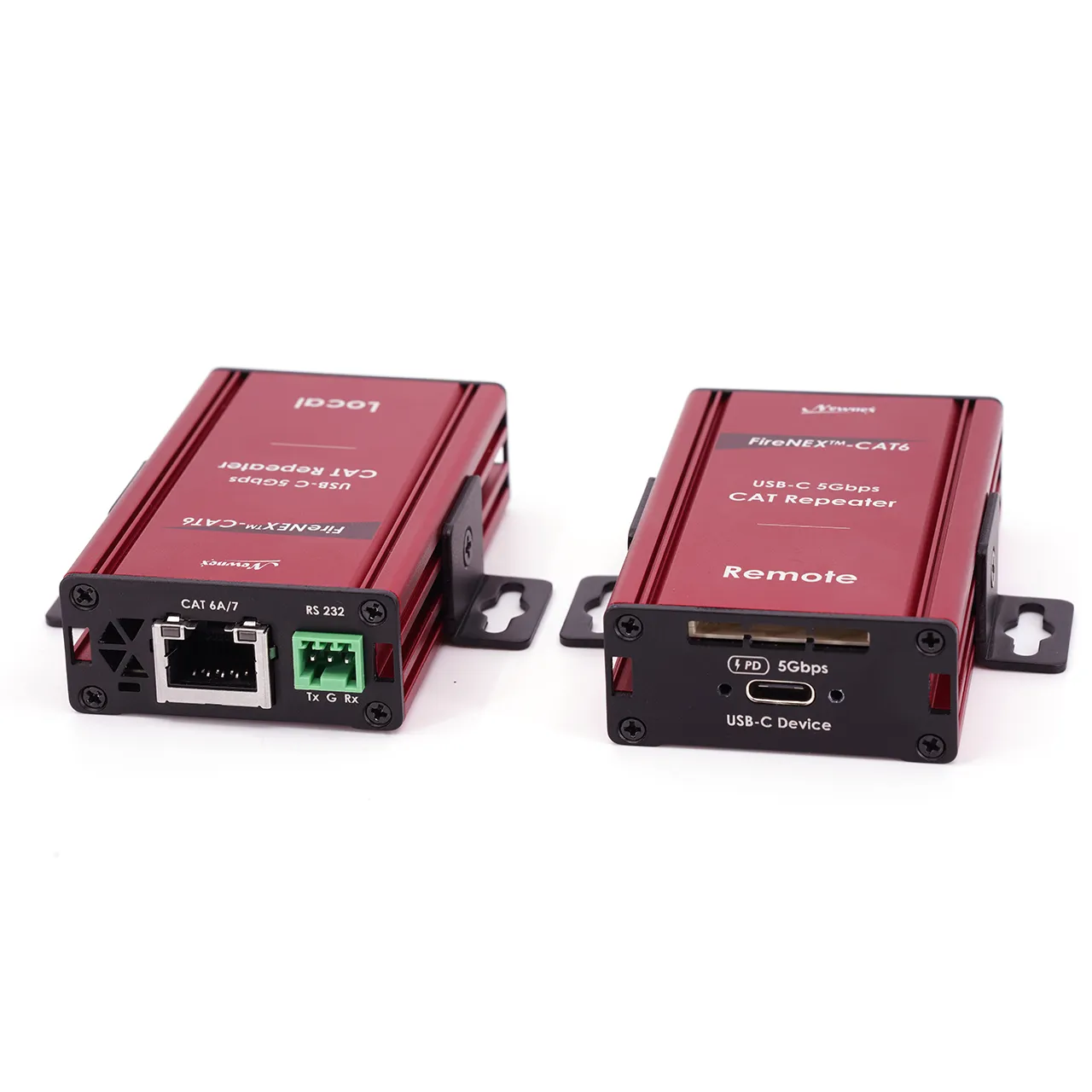

Newnex FireNEX-CAT6 USB-C 3.2 Repeater over CAT6a/7 Cable, 5Gbps, 90m (300ft), USB-PD 27W, RS-232
Extend USB-C 3.2 data and power up to 300ft over CAT6a/7. Supports 5Gbps, USB-PD up to 27W, and RS-232 pass-through.
Data Rate
5Gbps
Extension Distance
90m / 300ft
Power Delivery
Up to 27W
Cable Type
CAT6a / CAT7
Technical Architecture & Functionality
The FireNEX-CAT6 is a high-performance USB-C 3.2 extension system designed to deliver reliable 5Gbps data transfer and USB Power Delivery over long distances using standard CAT6a or CAT7 Ethernet cabling.
Capable of extending USB-C connections up to 90 meters (300 feet), the FireNEX-CAT6 transmits both high-speed data and power over a single CAT cable. With support for USB Power Delivery up to 27W and multiple PD profiles (5V, 9V, 12V, 20V), it is ideal for powering and connecting demanding USB-C devices well beyond the limits of conventional USB cables.
Designed for professional and industrial environments, the FireNEX-CAT6 features a rugged metal enclosure, USB-IF compliant locking USB-C ports, and bi-directional RS-232 serial pass-through, making it a reliable solution for machine vision, AV installations, industrial automation, and control systems.
Key Engineering Advantages
Long-distance USB-C over Ethernet
Extends USB-C data and power up to 90 meters over a single CAT6a or CAT7 Ethernet cable.
High-speed USB performance
Supports USB 3.2 Gen 1 data rates up to 5Gbps with backward compatibility to USB 2.0 and 1.1.
Integrated power delivery
Delivers up to 27W of USB Power Delivery with support for 5V, 9V, 12V, and 20V profiles over CAT cable.
Ideal for bus-powered devices
Designed to power and extend USB-C devices such as PTZ cameras, portable displays, and 3D cameras over long distances.
Secure, professional-grade connections
Features USB-IF standard screw-locking USB-C ports and a durable metal enclosure for stable, reliable installations.
Added control and integration flexibility
Includes bi-directional RS-232 serial pass-through for control and system integration applications.
Plug-and-play deployment
No drivers required; supports Windows, macOS, Linux, and Chrome OS for quick installation.
Feature Checklist
- Extend USB-C data and power up to 90m (300ft) over CAT6a/7 cable
- Supports USB 3.2 Gen 1 (USB 3.0) data rates up to 5Gbps
- Backward compatible with USB 2.0 and USB 1.1
- USB Power Delivery up to 27W over CAT cable
- Supports multiple USB-PD profiles: 5V, 9V, 12V, 20V
- Isochronous USB support for real-time data streams
- Bi-directional RS-232 serial pass-through
- USB-IF compliant locking USB-C ports
- Durable metal enclosure
- Plug-and-play operation with no drivers required
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- FireNEX-CAT6
- Product Type
- USB-C 3.2 Repeater / Extender
- Extension Medium
- CAT6a / CAT7 Ethernet Cable
- Maximum Distance
- 90m / 300ft
- USB Standard
- USB 3.2 Gen 1 (USB 3.0)
- Data Rate
- Up to 5Gbps
- USB Compatibility
- USB 3.2 / 3.0 / 2.0 / 1.1
- Power Delivery
- USB-PD up to 27W
- Supported PD Profiles
- 5V, 9V, 12V, 20V
- Serial Support
- Bi-directional RS-232 pass-through
- Enclosure
- Metal
- Connector Type
- USB-C (USB-IF locking)
- OS Support
- Windows, macOS, Linux, Chrome OS
- Installation
- Plug and Play
- Power Supply
- 36V DC adapter (included)
Documentation & Drivers
Package Contents
- 1x FireNEX-CAT6 Local Unit
- 1x FireNEX-CAT6 Remote Unit
- 1x 36V DC Power Adapter
- 1x USB 3.2 A-to-C Cable, 1m
- 1x FireNEX-CAT6 User Manual

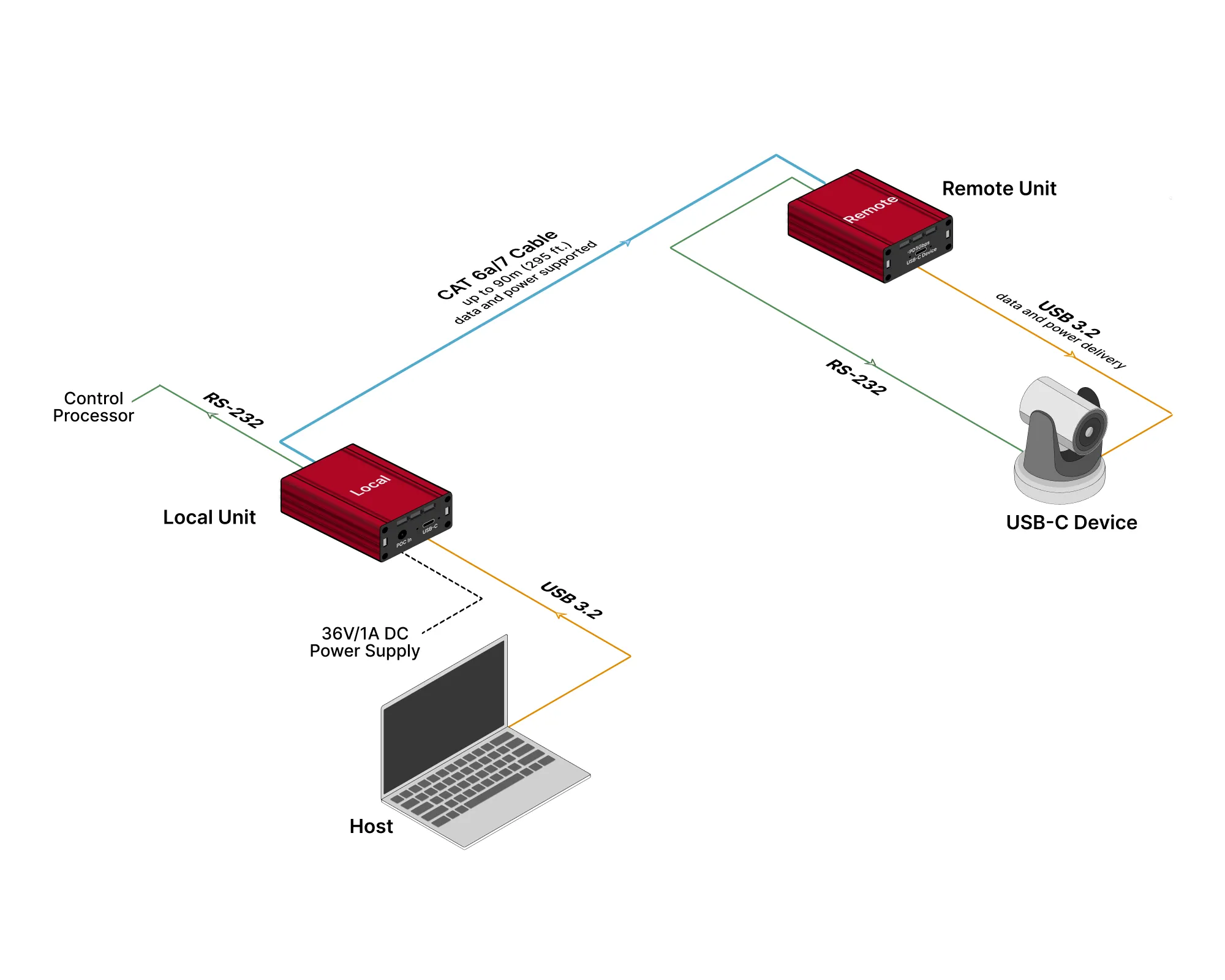

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- PTZ and machine-vision cameras
- Portable and industrial displays
- 3D cameras and sensors
- USB-C powered peripherals
- AV, industrial, and automation systems
