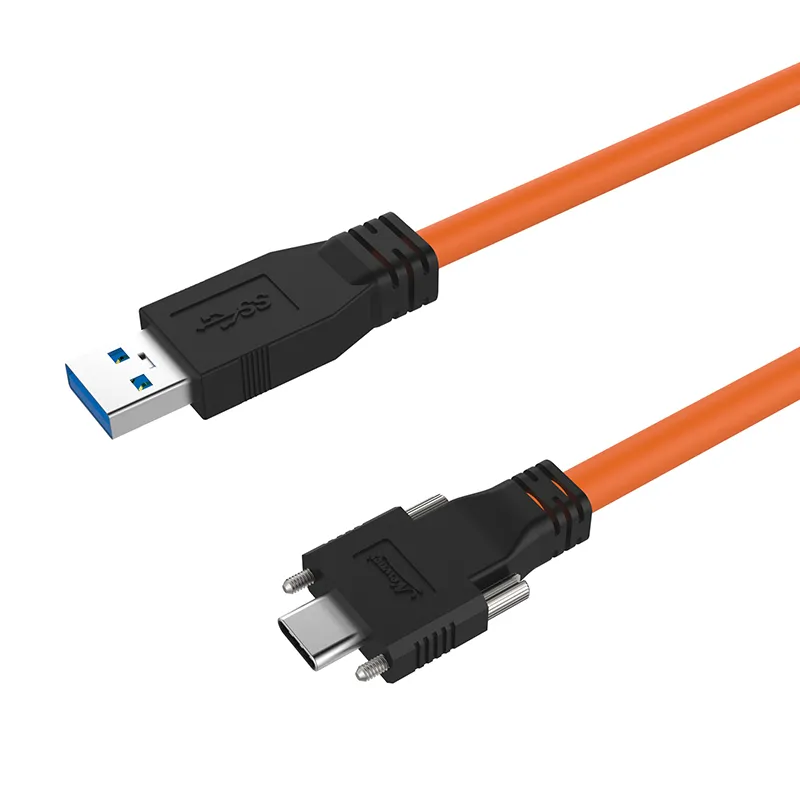

Newnex Active High Flex USB-A to USB-C Screw Locking Cable | ULHLU11AC12 Series
Active high-flex USB-A to USB-C screw-locking cable with embedded repeater. 5Gbps up to 8m, rated 6M flex cycles, 5V/1.5A.
Connectors
USB-A to USB-C (dual screw locking)
Speed
USB 3.2 / 5Gbps (both variants)
Lengths
5m or 8m (travel distance varies)
Flex Life
Rated 6,000,000 cycles
Technical Architecture & Functionality
The Newnex ULHLU11AC12 series is an active high-flex USB-A to USB-C cable with dual screw locking and an embedded FireNEX™-uLINK active repeater. It’s made for motion systems that need longer USB reach than passive high-flex cables can reliably deliver, without turning into a troubleshooting hobby.
This series supports USB 3.2 Gen 1 (5Gbps) performance while extending cable lengths to 5m and 8m, using an integrated active repeater to maintain signal integrity. It keeps the industrial basics: shielding, a durable TPE jacket, rugged overmolds, and a flex-life target of 6,000,000 continuous bending cycles.
Performance changes by length (important)
Both variants are 5Gbps, but travel distance differs with cable length:
| Part Number | Cable Length | Max Travel Distance (at min bend radius) | Max Data Rate | Max Power |
|---|---|---|---|---|
| ULHLU11AC12-5M | 5m (16.4 ft) | 4.7m | 5Gbps | 5V / 1.5A |
| ULHLU11AC12-8M | 8m (26.2 ft) | 2.8m | 5Gbps | 5V / 1.5A |
What this means:
- Choose 5m if your motion system needs longer travel distance.
- Choose 8m when you need maximum reach, but accept shorter travel in moving setups.
Key Engineering Advantages
Active Repeater Extends Reach
Embedded FireNEX-uLINK active repeater helps maintain stable 5Gbps performance at 5m and 8m.
Secure USB-C in Motion
Dual screw locking reduces disconnects in vibration-heavy and moving equipment environments.
Motion-Aware Variant Choice
Both are 5Gbps, but travel distance differs: 4.7m (5m cable) vs 2.8m (8m cable).
Built for Continuous Flexing
Designed for high flex life with a 6 million cycle continuous bending target.
Rugged Industrial Construction
Shielding, durable TPE jacket, and rugged overmolds support harsh install conditions.
Feature Checklist
- Embedded FireNEX™-uLINK active repeater for extended range
- USB 3.2 / 5Gbps data support (USB-A to USB-C)
- Dual screw locking for secure USB-C connections
- High-flex design rated for 6,000,000 continuous bending cycles
- Rugged overmold connectors for harsh environments
- Shielded construction
- Durable TPE jacket
- UL flammability: VW-1
- Compliance: RoHS and REACH
Technical Specifications
Validated performance benchmarks and physical parameters.
- Series
- ULHLU11AC12
- Connector (Host)
- USB-A Male
- Connector (Device)
- USB-C Male, Dual Screw Locking
- Cable Type
- Active High Flex
- Embedded Repeater
- FireNEX™-uLINK active repeater
- Max Data Rate
- 5Gbps
- Max Power
- 5V / 1.5A
- Shielding
- Shielded
- Jacket
- Durable TPE
- Cable OD
- 6.2 mm
- Flex Life
- 6,000,000 cycles (continuous bending)
- UL Flammability
- VW-1
- Compliance
- RoHS, REACH
Documentation & Drivers
Package Contents
- Active High Flex USB-A to USB-C Screw Locking Cable (1)
Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Drag chain and motion systems needing longer USB reach
- Robotics and automation cells using USB-C peripherals
- Industrial inspection rigs and moving camera/vision setups
- Test stands and fixtures requiring secure, repeatable cabling
- Any USB connection where passive high-flex cables are distance-limited
Related Connectivity Solutions
Newnex FireNEX-80G USB 3.2 Fiber Extension System | Up to 8 Devices • 80Gbps • 700m
Expandable USB 3.2 fiber extension system: 1 PCIe local + up to 4 remotes (2× USB-A each). Up to 8 devices, 80Gbps total, 700m max.
Newnex FireNEX-CAT6-DP USB-C over CAT6a/7 Extender | 5Gbps • 4K DP Alt Mode • 60W PD • GigE
USB-C over CAT6a/7 extender: 5Gbps USB 3.2 + 4K DP Alt Mode + GigE + RS-232, with 60W host PD, up to 90m.
Newnex FireNEX-CAT6 USB-C 3.2 Repeater over CAT6a/7 Cable, 5Gbps, 90m (300ft), USB-PD 27W, RS-232
Extend USB-C 3.2 data and power up to 300ft over CAT6a/7. Supports 5Gbps, USB-PD up to 27W, and RS-232 pass-through.
Need Custom Lengths or Volume Pricing?
Our engineering team can assist with high-density AV routing, custom termination, OEM integration, or government procurement specs for Newnex Active High Flex USB-A to USB-C Screw Locking Cable | ULHLU11AC12 Series.
Newnex Active High Flex USB-A to USB-C Screw Locking Cable | ULHLU11AC12 Series
$399.00
