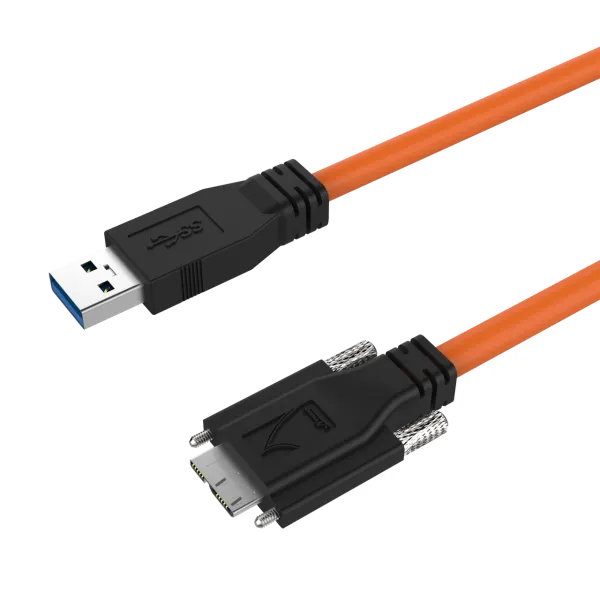

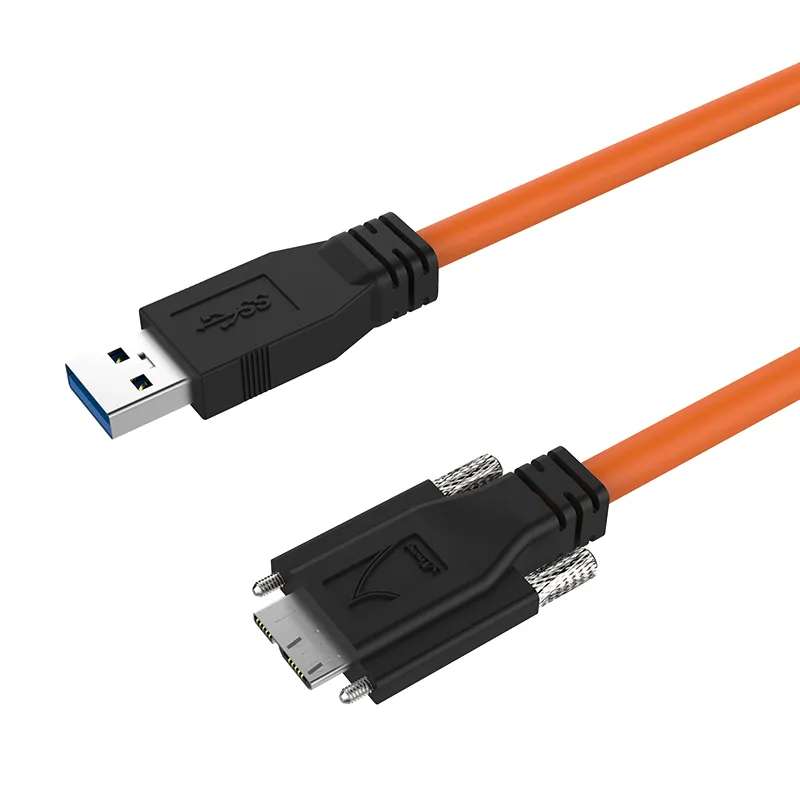

Newnex High Flex USB-A to Micro-B Screw Locking Cable | U3HLA01MCI Series
High-flex USB-A to screw-locking Micro-B (USB3 Vision). 5Gbps. Travel-distance rated: 3m cable (2m travel, 5V/3A) or 5m (1m travel, 5V/1.5A).
Connectors
USB-A to screw-locking Micro-B
Speed
5Gbps (USB 3.x Gen 1)
Flex Life
Rated 6,000,000 cycles
Jacket
Durable TPE + shielding
Technical Architecture & Functionality
The Newnex U3HLA01MCI series is a high-flex USB-A to Micro-B cable with screw locking, designed for motion-heavy systems where standard USB cables fail early and fail often. It uses a USB3 Vision standard screw-locking Micro-B connector to keep connections secure under vibration and continuous movement, making it a strong fit for machine vision, industrial cameras, and moving fixtures.
This series supports USB 3.x Gen 1 (5Gbps), includes shielding, and uses a durable TPE jacket with rugged overmolds to survive repetitive bending. It’s rated for 6,000,000 continuous flex cycles and includes bend-radius guidance for both static routing and dynamic motion.
Performance changes by length (important)
Both variants are 5Gbps, but travel distance and max power differ by length:
| Part Number | Cable Length | Max Travel Distance (at min bend radius) | Max Data Rate | Max Power |
|---|---|---|---|---|
| U3HLA01MCI-030 | 3m (9.8 ft) | 2m | 5Gbps | 5V / 3A |
| U3HLA01MCI-050 | 5m (16.4 ft) | 1m | 5Gbps | 5V / 1.5A |
What this means:
- Choose 3m when you need more travel and full 3A power.
- Choose 5m when you need the extra length, but accept shorter travel and lower max power.
Key Engineering Advantages
USB3 Vision Screw Locking
Secure Micro-B connection reduces disconnects in machine vision and motion environments.
Motion-Rated Variant Selection
Both are 5Gbps, but travel and power differ: 3m (2m travel, 3A) vs 5m (1m travel, 1.5A).
Built for Continuous Flexing
Designed for high flex life with a 6 million cycle continuous bending target and bend-radius guidance.
Industrial Construction
Shielding, durable TPE jacket, and rugged overmolds support harsh routing and repetitive motion.
Consistent 5Gbps Performance
USB 3.x Gen 1 5Gbps support for high-throughput Micro-B devices across both lengths.
Feature Checklist
- USB-A to Micro-B (Micro-B includes screw locking)
- USB 3.x Gen 1 (5Gbps) support up to 5m
- USB3 Vision standard screw-locking connector
- High-flex design rated for 6,000,000 continuous bending cycles
- Rugged overmold interfaces for harsh environments
- Shielded construction
- Durable TPE jacket
- UL flammability rating: VW-1
- UL Recognized AWM
- RoHS compliant
Technical Specifications
Validated performance benchmarks and physical parameters.
- Series
- U3HLA01MCI
- Connector (Host)
- USB-A Male
- Connector (Device)
- USB 3.0 Micro-B Male, Screw Locking (USB3 Vision)
- Data Rate
- 5Gbps (USB 3.x Gen 1 / USB 3.1 Gen 1)
- Cable Type
- High Flex
- Shielding
- Shielded
- Jacket
- Durable TPE
- Cable OD
- 6.2–6.3 mm
- Flex Life
- 6,000,000 cycles (continuous bending)
- Operating Temp
- -30°C to 80°C (-22°F to 176°F)
- Recommended Static Bend Radius
- 7.5 × OD
- Recommended Dynamic Bend Radius
- 12 × OD
- UL
- UL Recognized AWM
- RoHS
- Compliant
- UL Flammability
- VW-1
Documentation & Drivers
Package Contents
- High Flex USB-A to Screw Locking Micro-B Cable (1)

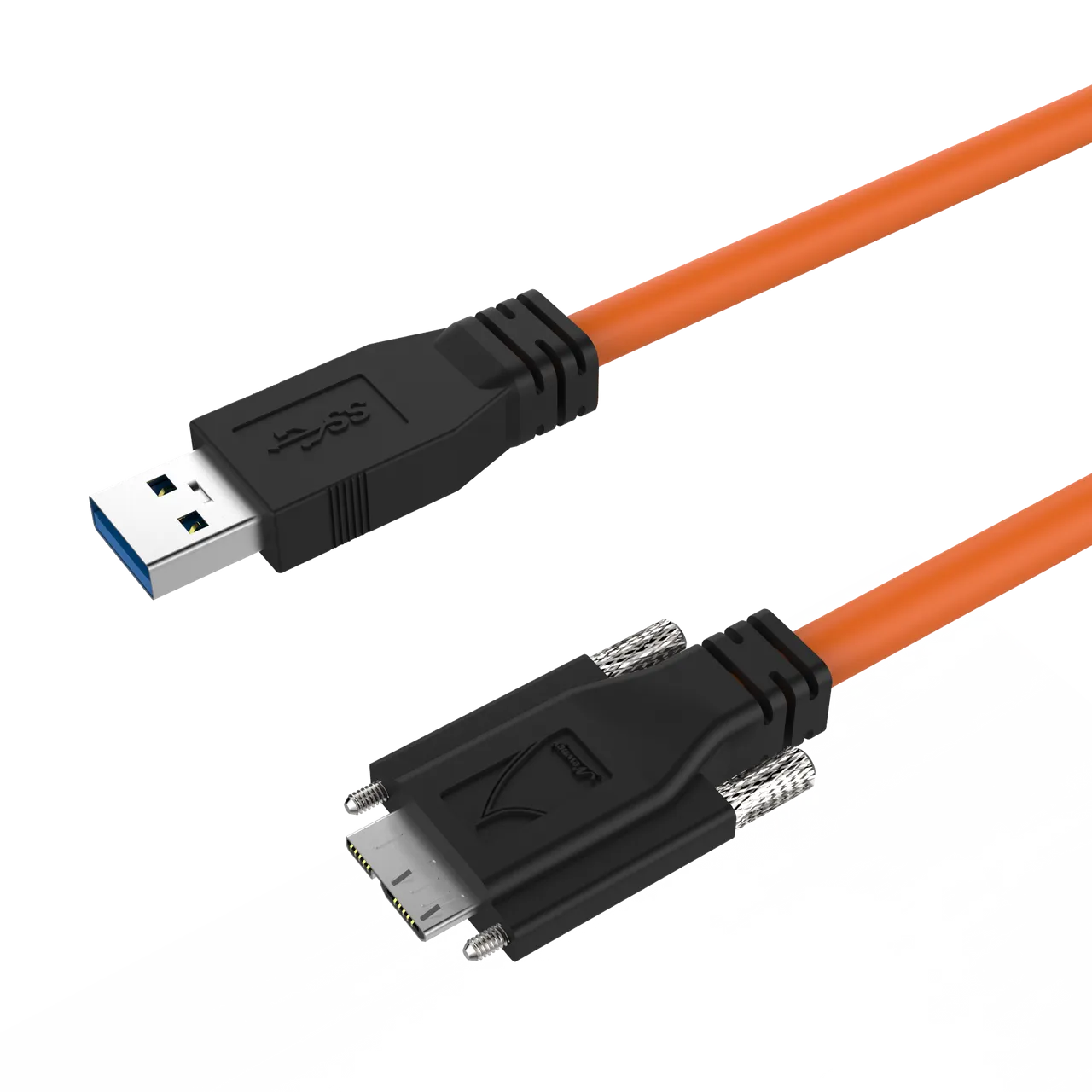

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- USB3 Vision cameras and machine vision systems
- Robotics and automation fixtures with moving cable carriers
- Industrial inspection and metrology equipment
- Test stands and motion stages using USB Micro-B
- Any USB Micro-B device in a drag chain environment
