Newnex High Flex USB-A to Right Angle USB-C Screw Locking Cable | U3HLA01C6D Series
High-flex USB-A to right-angle USB-C cable with dual screw locking. 10Gbps at 1m, 5Gbps up to 5m, rated 6M flex cycles.
Connectors
USB-A to right-angle USB-C (dual screw locking)
Speed
10Gbps at 1m; 5Gbps up to 5m
Flex Life
Rated 6,000,000 cycles
Routing
Right-angle USB-C for tight spaces
Technical Architecture & Functionality

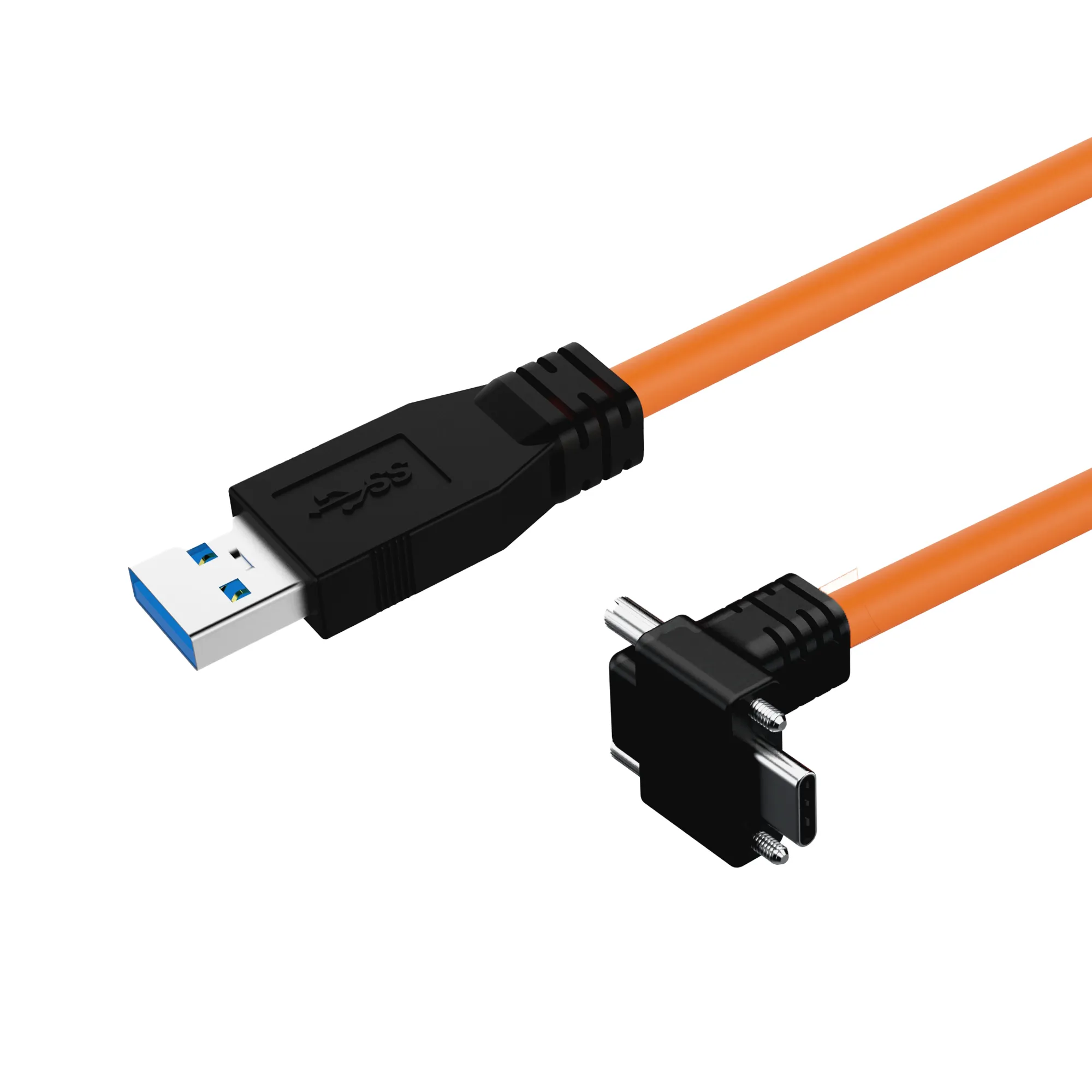

The Newnex U3HLA01C6D series is a high-flex USB-A to USB-C cable with a right-angle USB-C connector and dual screw locking, designed for motion systems and tight equipment layouts where a straight connector sticks out too far and becomes a liability.
This series is built for repetitive movement and industrial routing, with a durable TPE jacket, shielded construction, rugged overmolds, and a design target of 6,000,000 continuous flex cycles. The right-angle USB-C device-end connector helps reduce cable stress, improve clearance, and make routing cleaner in cramped installations.
Performance changes by length (important)
Like the straight version, this series does not deliver identical performance across every length. Data rate, travel distance, and max power vary by SKU:
| Part Number | Cable Length | Max Travel Distance (at min bend radius) | Max Data Rate | Max Power |
|---|---|---|---|---|
| U3HLA01C6D-010 | 1m (3.3 ft) | 1m | 10Gbps | 5V / 3A |
| U3HLA01C6D-030 | 3m (9.8 ft) | 2m | 5Gbps | 5V / 3A |
| U3HLA01C6D-050 | 5m (16.4 ft) | 1m | 5Gbps | 5V / 1.5A |
What this means in plain English:
- If you need 10Gbps, choose the 1m version.
- If you need longer cable length, the 3m and 5m versions run at 5Gbps.
- If you need 5V / 3A power, choose 1m or 3m.
- If you need the longest cable (5m), max power drops to 5V / 1.5A.
- If your application is in a drag chain, choose by travel distance as well as cable length.
Key Engineering Advantages
Right-Angle USB-C for Tighter Routing
The angled device-end connector helps reduce cable protrusion and stress in cramped installs.
Locked USB-C for Industrial Movement
Dual screw locking helps prevent disconnects in vibration-heavy and moving equipment environments.
Speed Depends on Length
Get 10Gbps at 1m, or choose 3m/5m variants for 5Gbps applications.
Travel-Aware Variant Selection
Motion travel distance changes by SKU, so choose based on movement as well as cable length.
Built for Continuous Flexing
Designed for high flex life with a 6 million cycle continuous bending target.
Industrial-Grade Construction
Shielding, TPE jacket, rugged overmolds, and UL-recognized materials support demanding installs.
Feature Checklist
- USB-A to right-angle USB-C cable
- Dual screw-locking USB-C for secure industrial connections
- USB 3.2 Gen 2 (10Gbps) supported at 1m
- USB 3.2 Gen 1 (5Gbps) supported up to 5m
- Rated for 6,000,000 continuous flex cycles
- Right-angle USB-C connector helps with tight routing and reduced connector stress
- USB-IF standard screw-locking connector
- Rugged overmold interfaces
- Shielded construction
- Durable TPE jacket
- UL flammability rating: VW-1
- UL Recognized AWM
- RoHS compliant
Technical Specifications
Validated performance benchmarks and physical parameters.
- Series
- U3HLA01C6D
- Connector (Host)
- USB-A Male
- Connector (Device)
- USB-C Male, Right Angle, Dual Screw Locking
- Cable Type
- High Flex
- Shielding
- Shielded
- Jacket
- Durable TPE
- Cable OD
- 6.2–6.3 mm
- Flex Life
- 6,000,000 cycles
- Operating Temp
- -30°C to 80°C (-22°F to 176°F)
- Recommended Static Bend Radius
- 7.5 × OD
- Recommended Dynamic Bend Radius
- 12 × OD
- UL
- UL Recognized AWM
- RoHS
- Compliant
- UL Flammability
- VW-1
Documentation & Drivers
Package Contents
- High Flex USB-A to Right Angle USB-C Dual Screw Locking Cable (1)
Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Drag chain and cable carrier systems
- Robotics and motion-control equipment
- Industrial PCs, cameras, and USB-C devices with tight rear/side clearance
- Test stands and automation fixtures
- Any install where a **right-angle USB-C** connector reduces stress and improves routing
