Newnex FireNEX-uHUB-10G 10Gbps USB-C Industrial Hub | 7 Ports + 100W PD
Industrial 10Gbps USB-C hub with 7 downstream ports and bidirectional 100W USB PD 3.0. Metal enclosure, 24V input, 20kV ESD.
Ports
7 downstream + 1 upstream USB-C host
Speed
USB 3.1 Gen 2 up to 10Gbps
Protection
IEC 6100-4-2 Level 4, 20kV ESD
Build
Metal enclosure + surface mount ready
Technical Architecture & Functionality
Newnex FireNEX™-uHUB-10G is a rugged industrial USB-C hub built for harsh environments and professional deployments where flaky hubs and weak power delivery are not “quirks”, they’re outages.

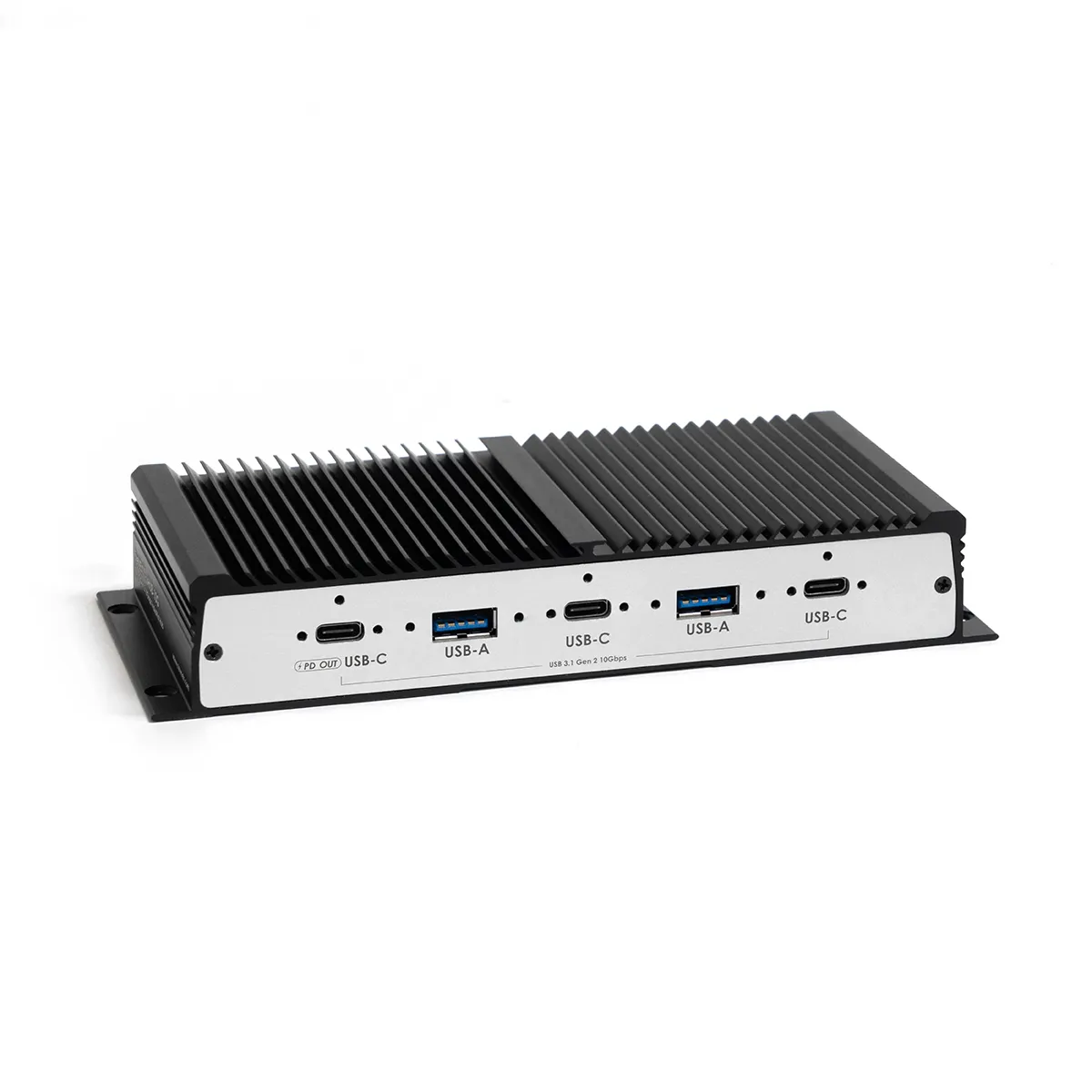

It provides 7 downstream ports: five 10Gbps USB 3.1 Gen 2 ports for high-speed devices (three USB-C and two USB-A), plus two USB 2.0 ports for peripherals like keyboards, mice, and low-speed control devices. An upstream USB-C host port connects to the computer at 10Gbps.
Power is the other half of the story: FireNEX-uHUB-10G supports bidirectional USB Power Delivery 3.0. With sufficient power input, it can deliver up to 100W (20V/5A) to the host and up to 100W (20V/5A) to a PD-capable downstream USB-C device at the same time. Non-PD ports also provide practical charging current for peripherals.
The enclosure is anodized aluminum for durability and EMI protection, and it’s designed for surface mounting with an included bracket style suitable for wall/rail installs.
Key Engineering Advantages
Real 10Gbps Hub for Harsh Environments
Five 10Gbps downstream ports for high-speed devices, plus two USB 2.0 ports for peripherals.
Bidirectional 100W Power Delivery
With sufficient power input, deliver up to 100W to the host and up to 100W to a PD downstream device.
Industrial Power Input Options
24V DC input via DC jack or screw terminal supports serious power budgets up to 240W.
Locking Ports for Secure Installs
Screw-lock compliance helps prevent accidental disconnects in vibration and motion-heavy deployments.
ESD and Overcurrent Protection
20kV ESD protection across all USB ports helps protect systems from shocks and faulty peripherals.
No Drivers, No Drama
Plug-and-play operation across Windows, macOS, and Linux.
Feature Checklist
- 7 downstream ports total:
- 3× USB-C (10Gbps)
- 2× USB-A (10Gbps)
- 2× USB-A (USB 2.0)
- Upstream USB-C host port: USB 3.1 Gen 2 10Gbps
- Supports USB 10Gbps, 5Gbps, and USB 2.0/1.1
- USB Power Delivery 3.0:
- Upstream USB-C PD up to 100W
- One downstream USB-C PD port up to 100W
- Additional downstream charging support:
- USB-C (non-PD) up to 5V/3A
- USB-A (10Gbps) up to 5V/2.4A (USB BC 1.2 + Apple charging support)
- USB-A (USB 2.0) up to 5V/0.5A

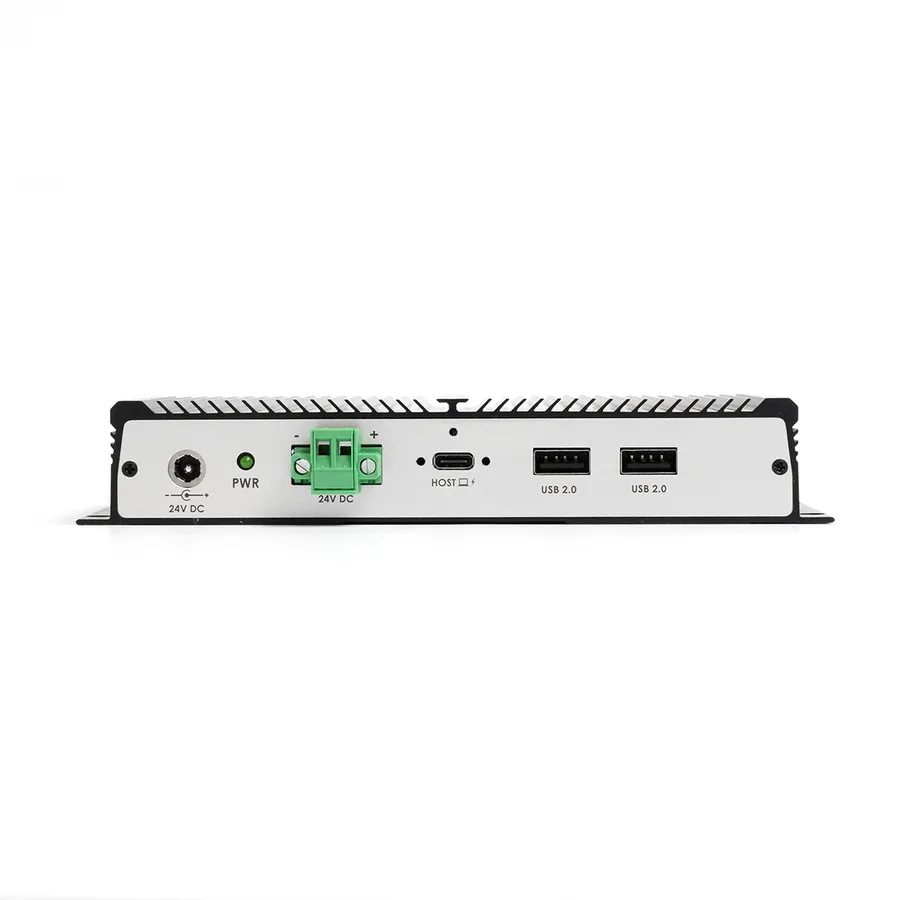

- 24V industrial DC power input (DC jack and screw terminal options)
- Screw-lock ports compliant with USB-C locking and USB3 Vision screw-locking standards
- Plug and Play (no drivers)
- IEC 6100-4-2 Level 4 ESD protection (20kV) on all USB ports
- Metal enclosure for industrial durability + EMI protection
- Works with Windows, macOS, and Linux
- Compliance: CE, FCC, RoHS, REACH
- Warranty: 1 year
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- FireNEX-uHUB-10G
- Hub Class
- Industrial USB-C hub with Power Delivery
- Total Downstream Ports
- 7
- 10Gbps Downstream
- 3× USB-C (10Gbps), 2× USB-A (10Gbps)
- USB 2.0 Downstream
- 2× USB-A (USB 2.0)
- Upstream Port
- 1× USB-C host (USB 3.1 Gen 2 10Gbps)
- Data Rates Supported
- 10Gbps, 5Gbps, USB 2.0/1.1
- USB-C (PD) Output
- Up to 100W (20V/5A; 3A max with non-E-marker cable)
- USB-C (Non-PD) Output
- Up to 5V/3A
- USB-A (10Gbps) Charging
- Up to 5V/2.4A (BC 1.2 + Apple charging)
- USB-A (USB 2.0) Charging
- 5V/0.5A
- Power Input
- 24V DC (DC jack or screw terminal), up to 240W
- Power Planning
- 240W for 100W host + 100W device PD; 125W for one-side 100W PD
- ESD Protection
- IEC 6100-4-2 Level 4, 20kV (all USB ports)
- Enclosure
- Anodized aluminum
- Dimensions
- 175 × 75 × 29 mm
- Weight
- 334 g
- Operating Temp
- 0°C to 85°C
- Storage Temp
- -10°C to 95°C
- Operating Humidity
- 20% to 80% RH, non-condensing
- Storage Humidity
- 10% to 90% RH, non-condensing
- Compliance
- CE, FCC; RoHS, REACH
- Warranty
- 1-year manufacturer warranty
Documentation & Drivers
Package Contents
- FireNEX™-uHUB-10G unit (1)
- USB-C to USB-C cable, 1m (E-marker cable supporting 100W PD) (1)
- 24V DC power adapter (1)
- Quick Start Guide (1)

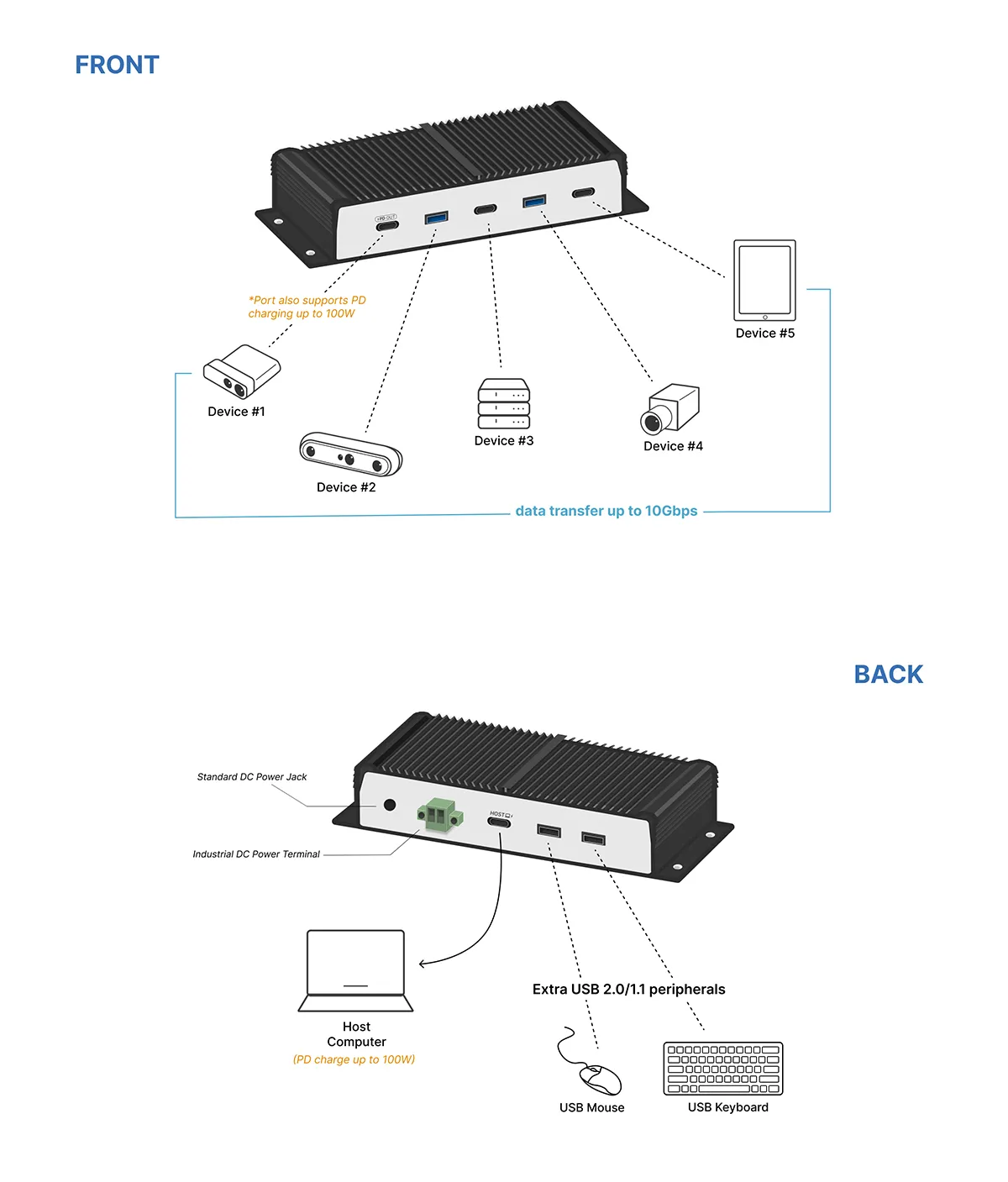

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Industrial automation and factory-floor USB distribution
- Machine vision and USB3 Vision ecosystems (locking ports)
- High-power laptop docking via USB-C PD (when powered appropriately)
- Test benches and lab setups needing stable 10Gbps + protected ports
- Permanent installs requiring surface/wall/rail mounting
