Unibrain Fireboard800-e V.3 FireWire 800 PCIe Adapter (2-Port IEEE 1394b)
Dual-port FireWire 800 (IEEE 1394b) PCIe adapter with TI XIO2213B chipset for reliable legacy device connectivity on modern PCs.
Interface
PCIe x1
Ports
2× FireWire 800
Speed
Up to 800 Mbps
Chipset
TI XIO2213B
Technical Architecture & Functionality

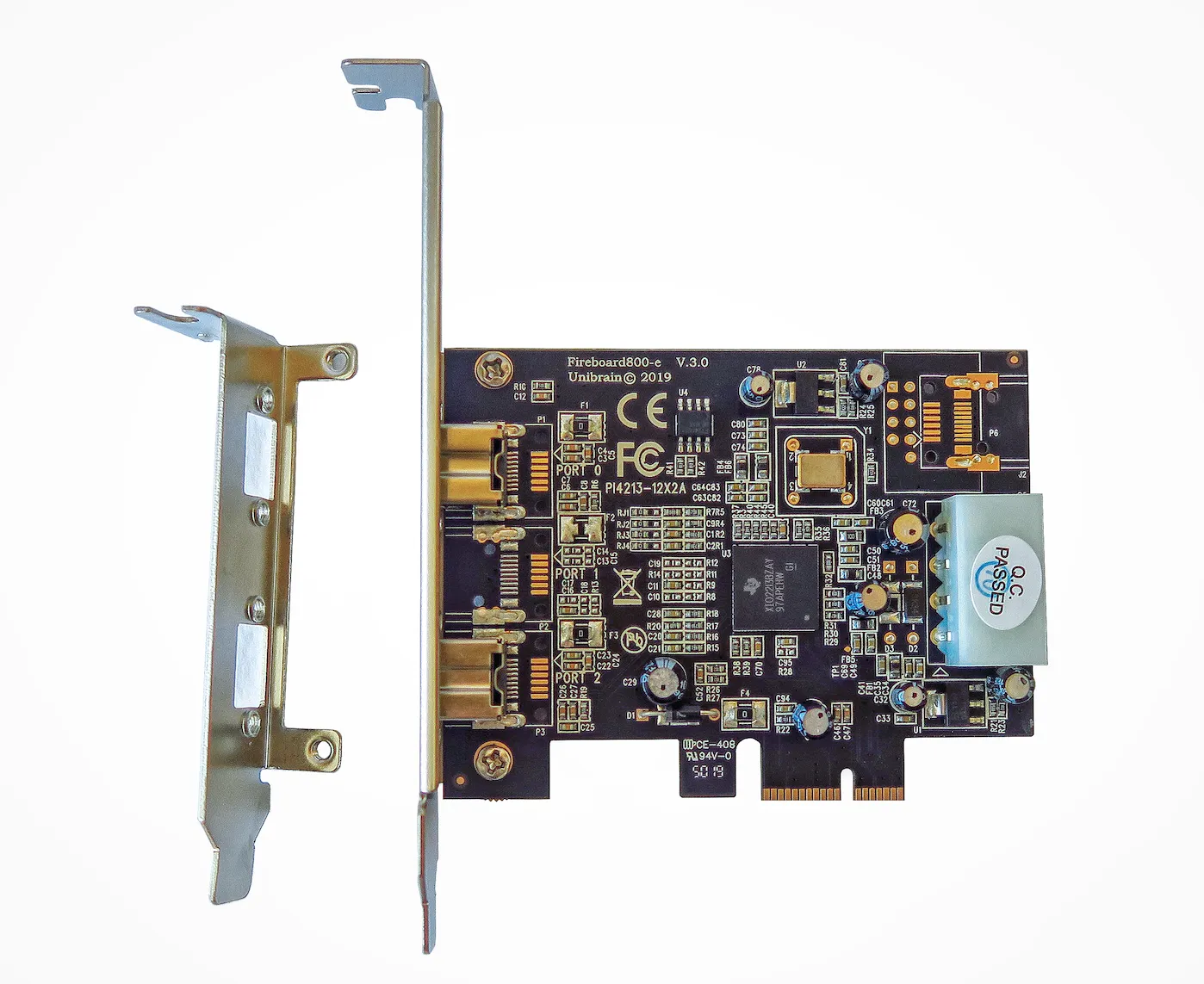

The Unibrain Fireboard800-e™ V.3 is a FireWire 800 (IEEE 1394b) PCI Express host adapter designed to bring high-performance FireWire connectivity to modern desktop systems. Built on the proven Texas Instruments XIO2213B PCIe-to-1394b OHCI controller, this card delivers stable, low-latency performance for professional AV, industrial, and legacy hardware workflows.
Featuring two external bilingual 9-pin FireWire ports, the Fireboard800-e V.3 supports 100 / 200 / 400 / 800 Mbps transfer rates and remains fully backward compatible with FireWire 400 (IEEE 1394a) devices. This makes it ideal for connecting legacy cameras, audio interfaces, capture devices, storage enclosures, and industrial equipment that still rely on FireWire.
Designed for workstation and rackmount environments, the card supports industrial screw-locking FireWire cables for secure connections and includes both standard and low-profile brackets, ensuring compatibility with compact PCs and full-size systems alike.
With hardware support for four DMA channels and large FIFO buffering, the Fireboard800-e V.3 handles multiple concurrent isochronous streams smoothly, making it well suited for real-time video capture, audio interfaces, and professional media workflows.
Key Engineering Advantages
True FireWire 800 Performance
Delivers full IEEE 1394b speeds up to 800 Mbps for professional audio, video, and storage devices.
Proven TI Chipset
Built on the Texas Instruments XIO2213B for stable, low-latency performance and broad compatibility.
Legacy Device Support
Maintains backward compatibility with FireWire 400 peripherals used in professional and industrial environments.
Secure Industrial Connections
Supports screw-lock FireWire cables to prevent accidental disconnections in racks and field deployments.
Multi-Stream Ready
Four DMA channels allow concurrent isochronous data streams for cameras and audio interfaces.
Fits Any Chassis
Includes both standard and low-profile brackets for workstations and compact PCs.
Feature Checklist
- FireWire 800 (IEEE 1394b) PCIe adapter
- Two (2) external 9-pin bilingual FireWire ports
- Supports 100 / 200 / 400 / 800 Mbps
- Built on Texas Instruments XIO2213B chipset
- OHCI compliant for wide device compatibility
- Four (4) DMA channels for concurrent isochronous streams
- Large FIFO buffering for high host latency tolerance
- Backward compatible with FireWire 400 devices
- Industrial screw-lock cable support
- Includes standard & low-profile brackets
- RoHS / WEEE compliant
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- 1233
- Brand
- Unibrain
- Product Type
- FireWire 800 PCIe Host Adapter
- Interface
- PCI Express x1
- FireWire Standard
- IEEE 1394b (FireWire 800)
- Ports
- 2 × External 9-pin FireWire
- Data Rates
- 100 / 200 / 400 / 800 Mbps
- Chipset
- Texas Instruments XIO2213B
- DMA Channels
- 4
- Power Connector
- 4-pin Molex (internal)
- Brackets
- Standard + Low Profile Included
- Compliance
- RoHS, WEEE
- Cable Support
- Industrial screw-locking FireWire cables
Documentation & Drivers
Package Contents
- 1x Unibrain Fireboard800-e V.3 PCIe Card
- 1x Standard Profile Bracket
- 1x Low-Profile Bracket
Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Legacy FireWire cameras and capture devices
- Professional audio interfaces (FireWire-based)
- Broadcast and post-production equipment
- Scientific and industrial imaging systems
- FireWire storage enclosures
- Digital video transfer from legacy devices
Related Connectivity Solutions

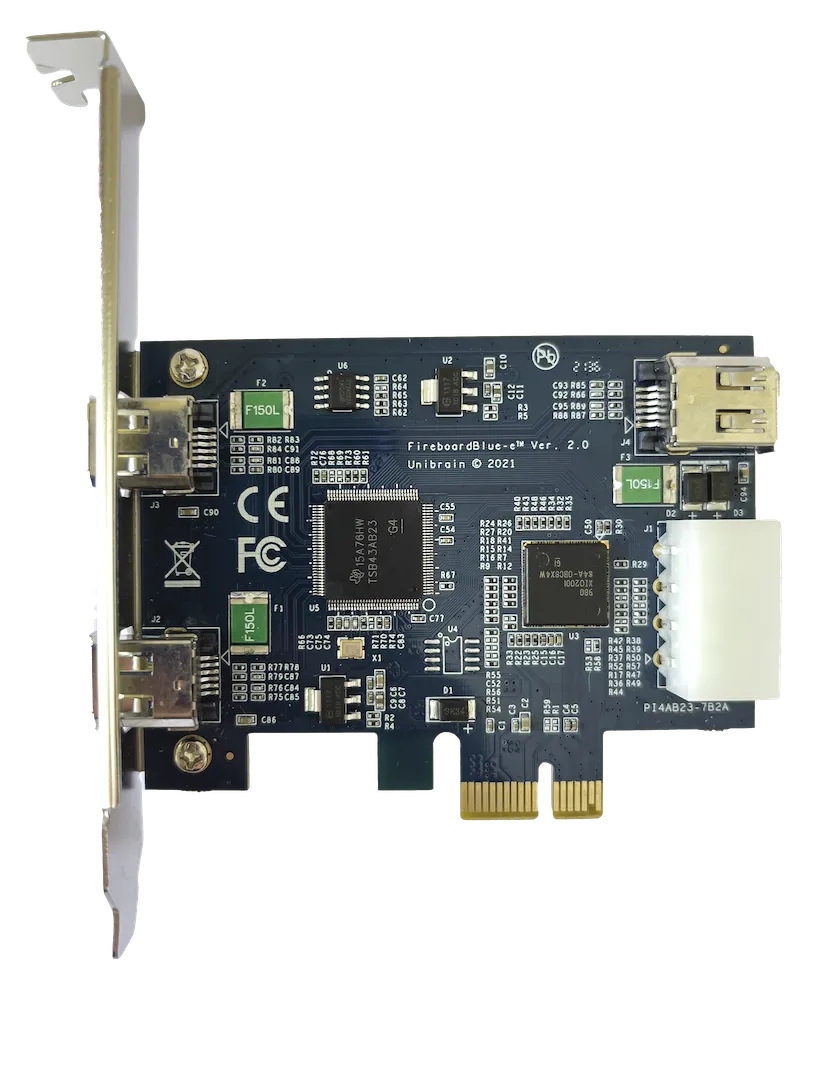

Unibrain FireboardBlue-e FireWire 400 PCIe Adapter (3-Port IEEE 1394a)
3-port FireWire 400 (IEEE 1394a) PCIe adapter with TI chipset for legacy cameras, audio, and storage devices on modern PCs.

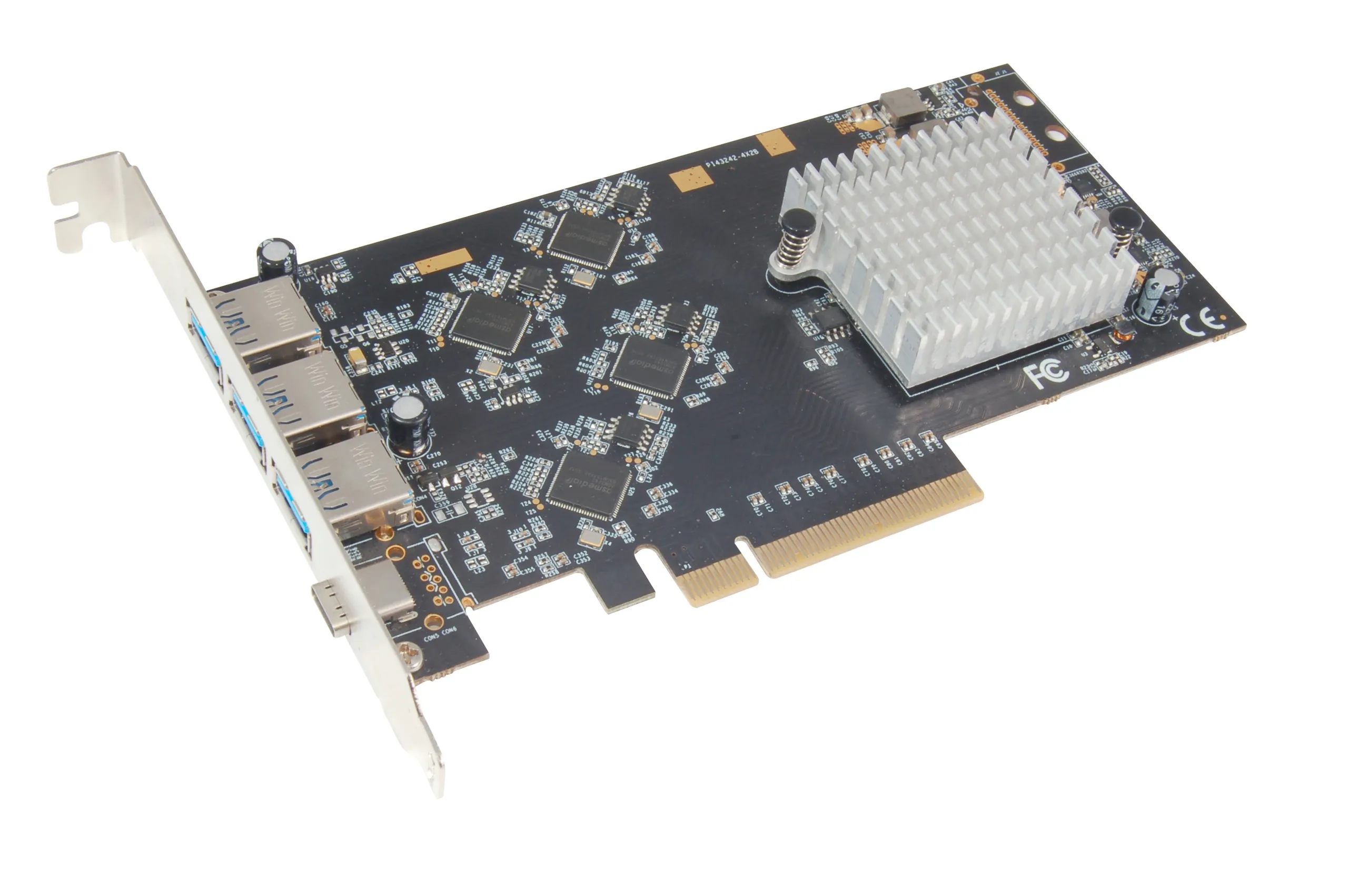

Unibrain USB 3.2 Quad-Channel PCIe Host Adapter, 3×10Gbps USB-A + 1×20Gbps USB-C (1242)
USB 3.2 PCIe host adapter with three 10Gbps USB-A ports and one 20Gbps USB-C port, delivering full per-port bandwidth via PCIe Gen3 x8.

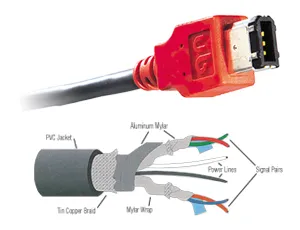

Unibrain FireWire 400 6-Pin to 6-Pin Cable | IEEE 1394a S400
