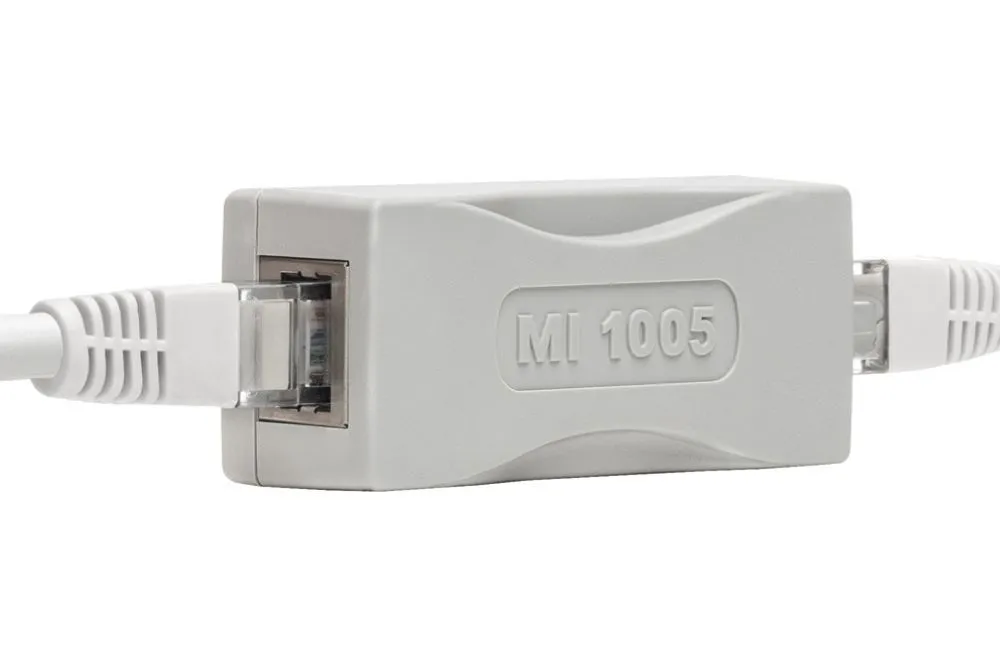

Part #2005674 Baaske MI-1005 Medical Gigabit Network Isolator
Medical-grade Gigabit Ethernet network isolator providing galvanic isolation up to 5 kV AC. IEC 60601-1 compliant with 2 MOPP for patient protection.
Ethernet Speed
Gigabit (1GbE)
Isolation Strength
5 kV AC
Patient Safety
2 MOPP
Power Requirement
Passive
Technical Architecture & Functionality
The Baaske Medical MI-1005 Network Isolator is a TÜV-certified, medical-grade Ethernet isolator designed to provide galvanic isolation for Ethernet data lines in patient environments and other electrically sensitive applications.
Compliant with IEC 60601-1 (Edition 3.2) and EN 60601-1-2, the MI-1005 protects patients, users, and connected equipment from dangerous leakage currents that may occur due to installation faults, potential differences, or environmental influences such as lightning-induced overvoltages.
The MI-1005 supports Gigabit Ethernet (10/100/1000 Mbps) and operates completely transparently within the data network. Despite its high isolation performance, it maintains excellent signal quality with a maximum insertion loss of only 1.1 dB, enabling reliable operation over standard 100-meter copper Ethernet links.
Designed specifically for use in the patient environment, the MI-1005 provides two independent Means of Patient Protection (2 MOPP), ensuring standard-compliant isolation between medical devices and non-medical network equipment such as PCs, printers, or hospital IT infrastructure.
The device is fully passive, requires no external power supply, and can be commissioned by simply inserting it inline between Ethernet cables. Protection against hazardous leakage currents is established in less than 5 seconds, with no drivers or software installation required.
Key Engineering Advantages
Medical-grade patient protection
Provides two independent Means of Patient Protection (2 MOPP) in accordance with IEC 60601-1 for safe use in patient environments.
High-voltage galvanic isolation
Delivers up to 5 kV AC isolation and 10 kV DC insulation resistance to protect against leakage currents and overvoltages.
Transparent Gigabit Ethernet performance
Supports 10/100/1000 Mbps Ethernet with minimal insertion loss and no impact on network configuration.
Instant, tool-free deployment
Passive inline design requires no power, drivers, or software and protects within seconds of installation.
Reliable operation in harsh environments
Designed to withstand ESD events, lightning-induced surges, and wide temperature ranges.
Low operating cost and long service life
No power consumption, rugged construction, and a 5-year warranty reduce total cost of ownership.
Feature Checklist
- Medical-grade Ethernet galvanic isolation
- Supports 10 / 100 / 1000 Mbps Gigabit Ethernet
- Complies with IEC 60601-1:2005/AMD1:2012/AMD2:2020 (Edition 3.2)
- Complies with EN 60601-1-2:2015 (EMC)
- Provides 2 MOPP (Means of Patient Protection)
- 5 kV AC dielectric strength (60 seconds, type tested)
- 10 kV DC insulation resistance (10 seconds)
- ESD protection: 8 kV contact, 16 kV air discharge
- Passive, inline design with no power supply required
- Plug-and-play operation with no configuration
- Compact, lightweight, and durable housing
Technical Specifications
Validated performance benchmarks and physical parameters.
- Manufacturer
- Baaske Medical
- Model
- MI-1005
- Item Number
- 2005674
- Product Type
- Medical Ethernet Network Isolator
- Ethernet Speed
- 10 / 100 / 1000 Mbps (Gigabit Ethernet)
- Network Standard
- IEEE 802.3, IEEE 802.3ab
- Connections
- 2 × RJ45 (Input / Output)
- Isolation Type
- Galvanic isolation
- Means of Patient Protection
- 2 MOPP
- Dielectric Strength
- 5 kV AC (60 s), 10 kV DC (10 s)
- ESD Resistance
- 8 kV contact / 16 kV air

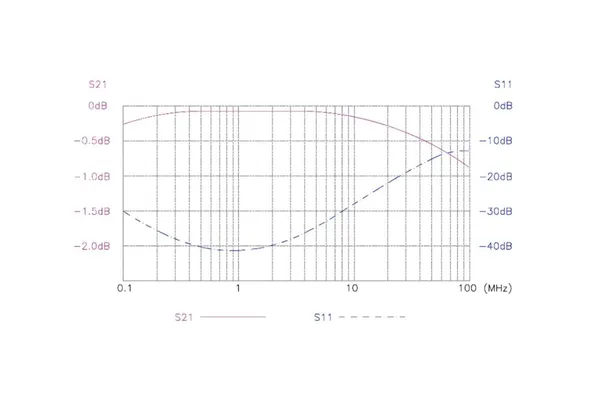

- Insertion Loss
- Max. 1.1 dB
- Return Loss
- Min. 10 dB
- Operating Mode
- Continuous operation
- Operating Temperature
- −10 °C to +85 °C
- Relative Humidity
- 10% to 90% (non-condensing)
- Housing Material
- UL94V-0, RoHS & REACH compliant
- Dimensions (D × W × H)
- 65 × 29 × 23 mm
- Weight
- 50 g
- Protection Class
- IPX0
- MTBF
- 0.21 × 10⁸ hours
- Power Requirement
- None (passive device)
- Certifications
- IEC 60601-1 Ed. 3.2, EN 60601-1-2, UL 60601 (E504923-D1000), FCC, CE
- Warranty
- 5 years
Documentation & Drivers
Package Contents
- 1x Baaske Medical MI-1005 Network Isolator
- 1x Cat6 RJ45 Patch Cable (25cm)
- 1x User Manual

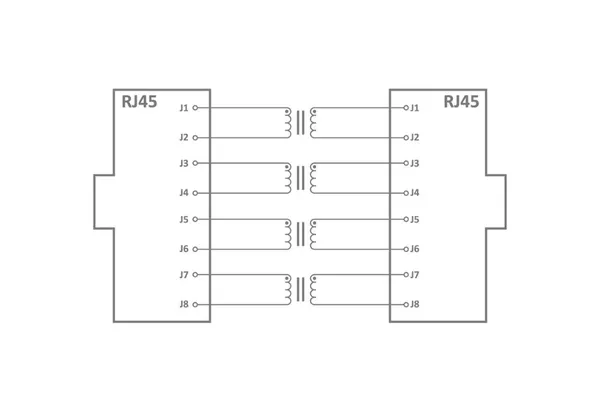

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases

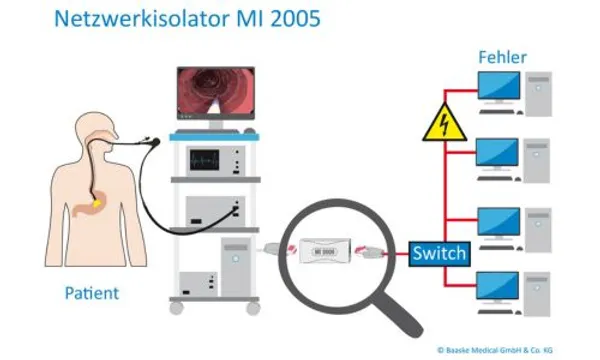

- Galvanic isolation of Ethernet connections in patient environments
- Protection of patients from leakage currents in accordance with IEC 60601-1
- Protection of sensitive test and monitoring systems against interference voltages and potential differences
- Prevention of failures and equalization currents in long copper Ethernet runs
- Reduction of mains hum, overvoltage damage, and interference noise in audio systems
