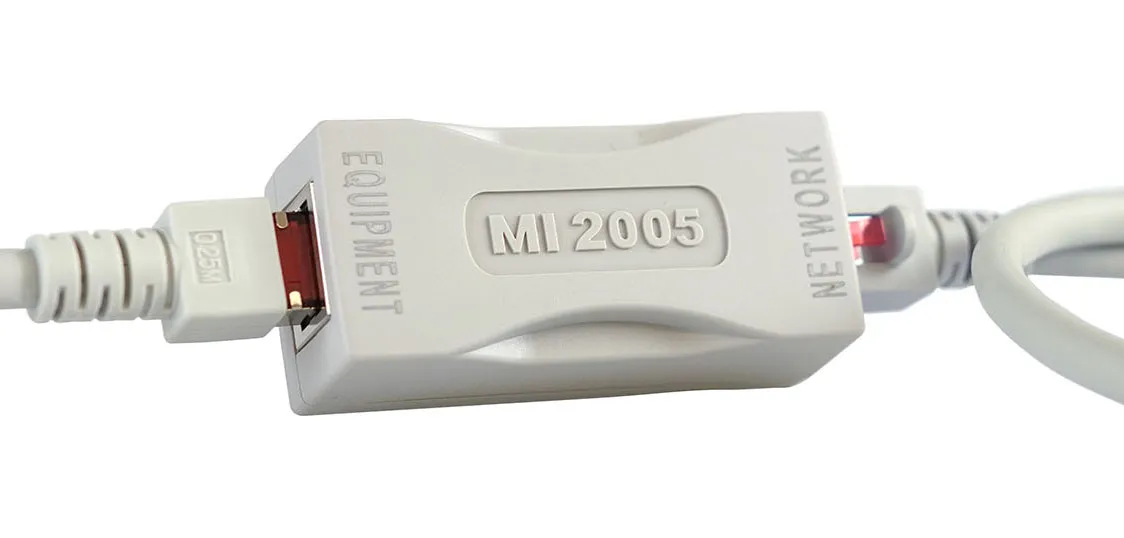

Baaske Medical MI-2005 2.5GBase-T Network Isolator, IEC 60601-1, Cat6 Compatible
Medical-grade Ethernet network isolator supporting 2.5GBase-T. IEC 60601-1 compliant with 2 MOPP patient protection. Passive, inline, no power required.
Ethernet Speed
Up to 2.5GBase-T
Isolation Strength
5 kV AC
Patient Safety
2 MOPP
Power Requirement
Passive
Technical Architecture & Functionality
The Baaske Medical MI-2005 Network Isolator provides galvanic isolation for Ethernet connections in patient environments and other electrically sensitive applications. Designed for modern networks, it supports data transmission rates up to 2.5 Gbit/s (2.5GBase-T) and is fully compatible with existing Cat6 cabling, allowing seamless integration without infrastructure changes.
The MI-2005 is engineered to comply with IEC 60601-1 (Edition 3.2) and IEC 60601-1-2 medical safety and EMC standards. It provides two Means of Patient Protection (2 MOPP), helping to protect patients, users, and connected equipment from hazardous leakage currents that may be introduced through Ethernet networks.
In addition to patient protection, the MI-2005 offers robust electrostatic discharge (ESD) and surge protection, and has been type tested to withstand 5 kV AC for 60 seconds. These characteristics ensure reliable electrical isolation in demanding medical, laboratory, industrial, server, and professional audio environments.
The compact, passive design requires no drivers and no external power supply. Installation is simple and non-invasive: the isolator is inserted inline into existing Ethernet cabling.
Key Engineering Advantages
Medical-grade patient protection
Provides two independent Means of Patient Protection (2 MOPP) in accordance with IEC 60601-1 for safe use in patient environments.
High-voltage galvanic isolation
Delivers up to 5 kV AC isolation and 10 kV DC insulation resistance to protect against leakage currents and overvoltages.
Transparent high-speed networking

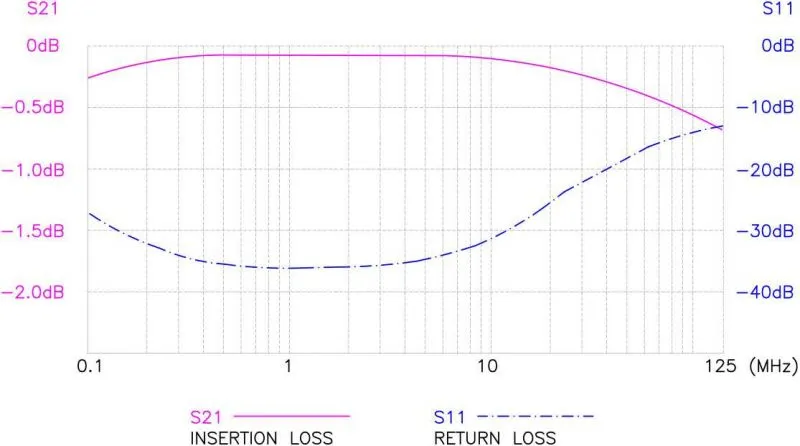

Supports Ethernet speeds up to 2.5GBase-T with minimal insertion loss and no network configuration changes.
Instant, tool-free deployment
Passive, inline design requires no power supply, drivers, or software and protects within seconds of installation.
Reliable protection in harsh environments
Designed to withstand ESD, lightning-induced surges, and wide temperature ranges in medical, industrial, and IT installations.
Long service life and low operating cost
Lightweight, durable construction with no power consumption and a 5-year warranty.
Feature Checklist
- Supports 2.5GBase-T Ethernet (up to 2.5 Gbit/s)
- Fully compatible with Cat6 Ethernet cabling
- Galvanic isolation for Ethernet connections
- Complies with IEC 60601-1:2005/AMD1:2012/AMD2:2020 (Edition 3.2)
- Complies with EN 60601-1-2:2015 / IEC 60601-1-2:2014
- Provides 2 MOPP (Means of Patient Protection)
- Leakage current reduction for patient and device safety
- Protection against ESD and lightning-induced surges
- ESD resistance: 8 kV contact, 16 kV air
- Isolation strength: 5 kV AC for 60 seconds (type tested)
- Passive device with no external power required
- Driverless, plug-and-play inline installation
- Compact form factor for space-constrained installations
Technical Specifications
Validated performance benchmarks and physical parameters.
- Manufacturer
- Baaske Medical
- Part Number
- 2012413 / MI-2005
- Product Type
- 2.5GBase-T Network Isolator
- Maximum Data Rate
- Up to 2.5 Gbit/s
- Cabling Compatibility
- Cat6
- Isolation Type
- Galvanic isolation
- Means of Patient Protection
- 2 MOPP
- Safety Compliance
- IEC 60601-1:2005/AMD1:2012/AMD2:2020 (Edition 3.2)
- EMC Compliance
- EN 60601-1-2:2015 / IEC 60601-1-2:2014
- Isolation Strength
- 5 kV AC for 60 seconds (type tested)
- ESD Resistance
- 8 kV contact, 16 kV air
- Protection Features
- Leakage current reduction, ESD and surge protection
- Power Requirement
- Passive, no external power supply
- Installation Method
- Inline insertion into Ethernet cabling
- Drivers Required
- No
Documentation & Drivers
Package Contents
- 1x Baaske Medical MI-2005 Network Isolator
- 1x Cat6 RJ45 Patch Cable (25cm)
- 1x User Manual

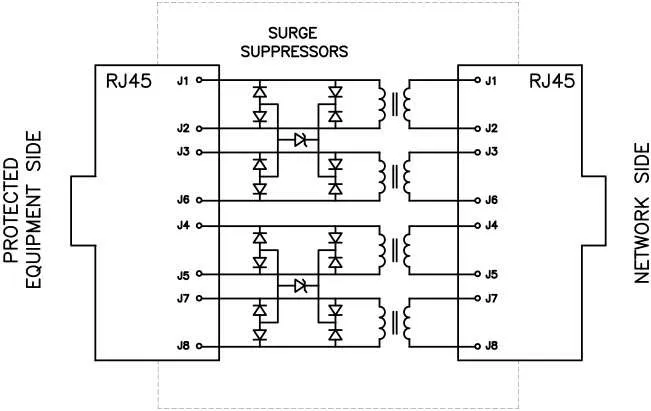

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases

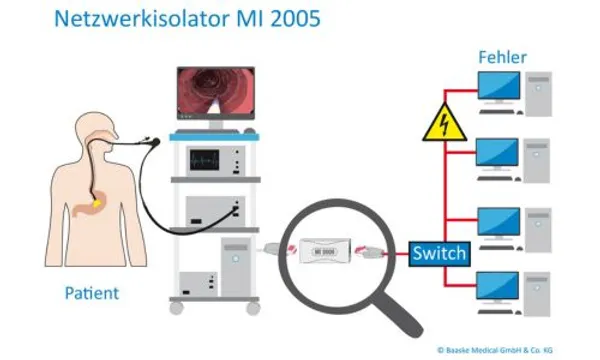

- Medical devices connected to hospital Ethernet networks
- Measuring and monitoring systems in testing laboratories
- Long-distance Ethernet links in server and IT systems
- Audio installations requiring reduction of low-frequency hum and interference
