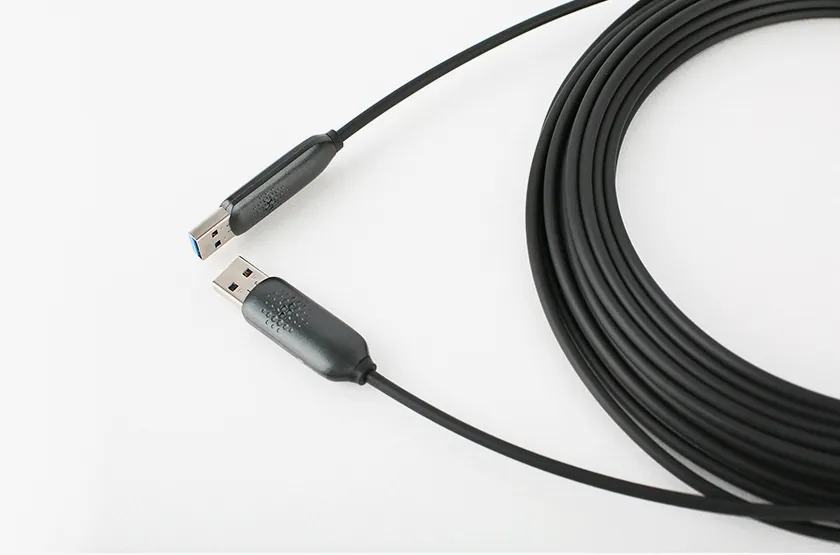

Opticis USB-FC30AA USB 3.0 Active Optical Cable, Plenum Rated
Opticis USB 3.0 active optical cable with USB-A to USB-A connectors. Supports 5Gbps data over long distances using plenum-rated hybrid fiber cable.
Data Rate
5Gbps
Max Distance
Up to 100m / 328ft
Connectors
USB-A to USB-A
Power
USB Host-Powered
Technical Architecture & Functionality
The Opticis USB-FC30AA is a USB 3.0 active optical extension cable designed to transmit SuperSpeed USB data at up to 5Gbps over extended distances without the need for external repeaters or local AC power.
Using advanced VCSEL (Vertical-Cavity Surface-Emitting Laser) and photodetector (PD) technology, the USB-FC30AA enables secure and reliable USB data transmission through a hybrid fiber cable that integrates optical fiber with electrical wiring. This design delivers long-distance performance while remaining cost-effective compared to pure optical solutions.
The cable features USB Type-A male to Type-A male connectors and supports bi-directional transmission, eliminating the need to distinguish between transmitter and receiver ends during installation. Its plenum-rated UL hybrid cable construction makes it suitable for in-wall and ceiling installations where fire safety requirements apply.
The USB-FC30AA-10 operates from the 5V power supplied by the USB host, requiring no external power source. Connected USB devices must be self-powered for proper operation. Optional accessories, including a short A-to-B copper cable and a locking housing, allow compatibility with Type-B devices such as cameras and USB hubs.
Key Engineering Advantages
SuperSpeed USB over long distances
Carries USB 3.0 data at up to 5Gbps over hybrid fiber at distances up to 100 meters.
No local AC power required
The cable operates from 5V USB source power; the connected USB device must be self-powered.
Direction-insensitive installation
Bi-directional design removes the need to identify separate transmitter and receiver ends.
Plenum-grade hybrid construction
Combines OM3 optical fiber and electrical conductors in a PVC plenum jacket.
Simple, driverless deployment
Plug-and-play operation requires no software installation or external repeater.
Feature Checklist
- Supports USB 3.0 SuperSpeed data rates up to 5Gbps
- Extends USB data transmission up to 100m (328ft) over hybrid fiber cable
- USB Type-A male to Type-A male
- TX / RX insensitive design (bi-directional operation)
- Uses VCSEL and PD optical technology
- Plenum-rated UL hybrid cable
- Operates from 5V USB source power
- No external power supply required
- Plug and Play operation with no drivers required
- Ideal for installations without nearby AC power
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- USB-FC30AA-10
- Brand
- Opticis
- Product Type
- USB 3.0 Active Optical Cable
- USB Standard
- USB 3.0
- Max Data Rate
- Up to 5Gbps
- Cable Length
- 10m / 32ft or 15m / 49ft
- Max Extension Distance
- Up to 100m / 328ft
- Connector Type
- USB Type-A Male to Type-A Male
- Transmission
- Bi-directional (TX/RX insensitive)
- Cable Type
- UL-rated plenum hybrid fiber cable
- Power Source
- USB 5V (host-powered)
- External Power Required
- No
- Device Power Requirement
- Self-powered USB devices
- Installation
- Plug and Play
Documentation & Drivers
Package Contents
- One (1) USB 3.0 Active Optical Cable
- One (1) User’s Manual
- One (1) USB Type-A to Type-B Cable (15cm)
- One (1) Locking Housing

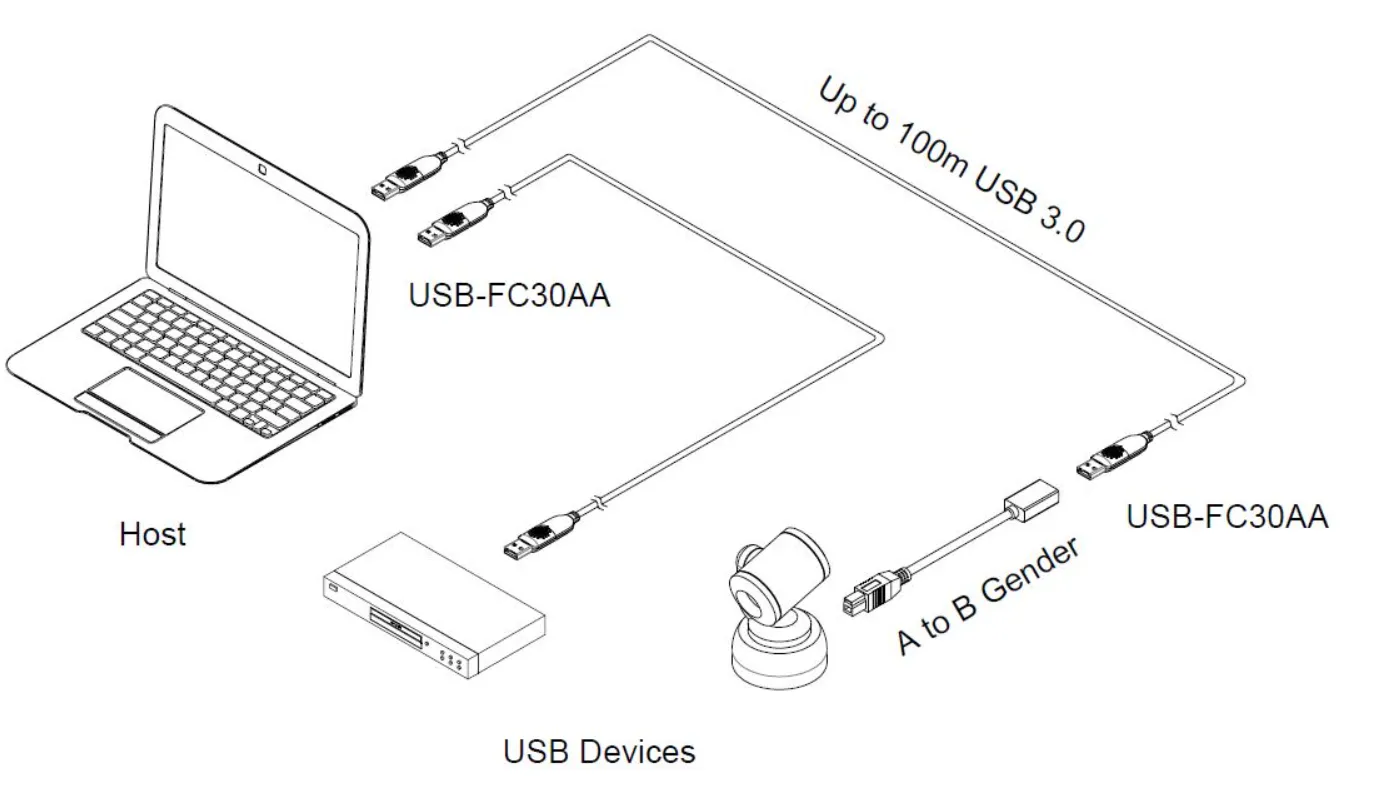

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Industrial and commercial USB extensions
- USB cameras and imaging systems
- Remote USB hubs and peripherals
- In-wall or ceiling plenum installations
- Long-distance USB connections without repeaters
