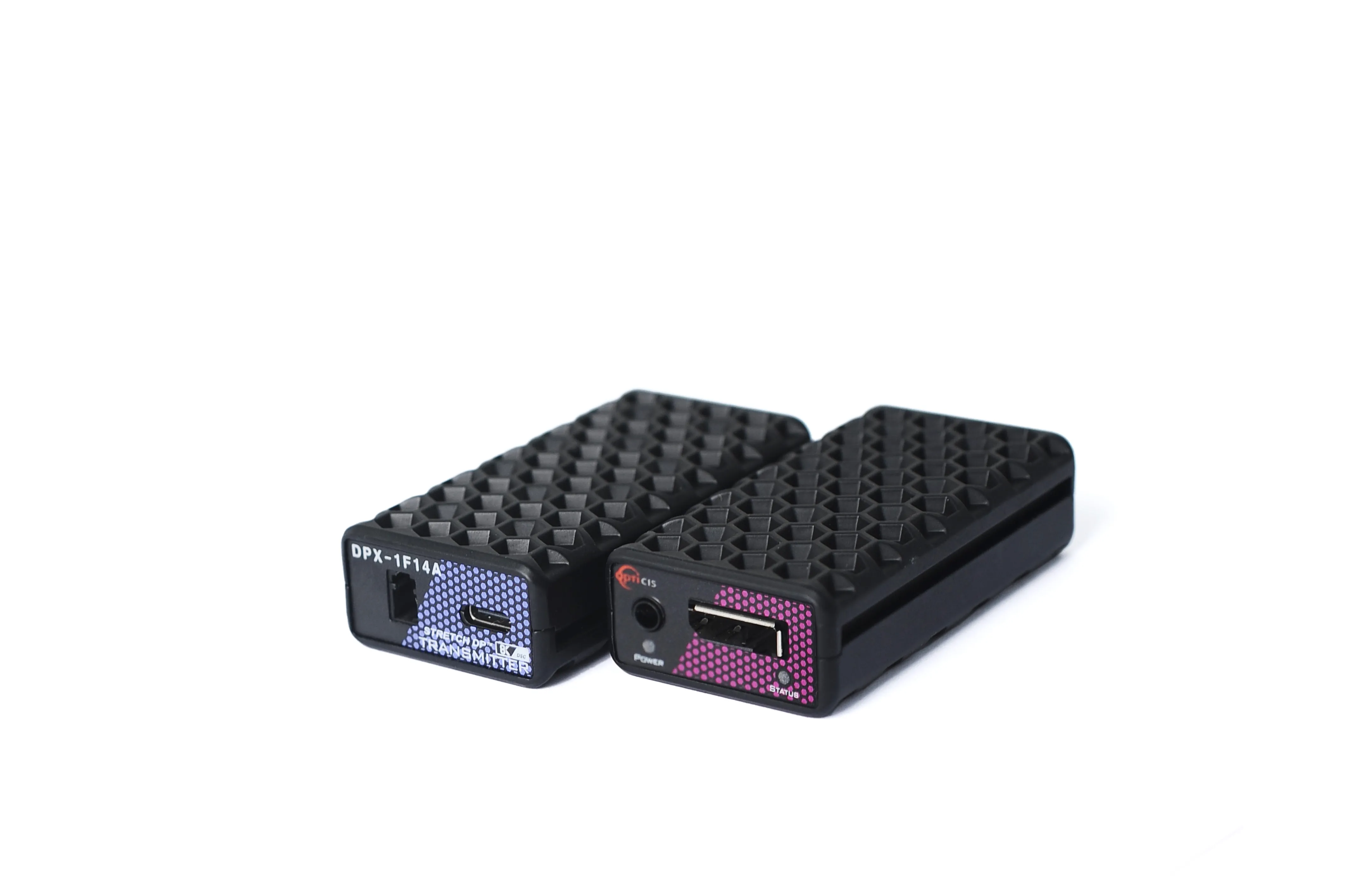

Opticis DisplayPort 1.4 One-Fiber Optical Extender with Smart Aux, 8K60 DSC, 300m (DPX-1F14A-TR)
DisplayPort 1.4 optical extender supporting up to 8K@60Hz DSC over a single LC fiber, featuring Smart Aux for stable AUX channel management and reliability.
Resolution
8K60 DSC
Bandwidth
32.4Gbps
Distance
300m / 984ft
Smart Feature
Smart Aux
Technical Architecture & Functionality
The Opticis DPX-1F14A-TR is a high-performance DisplayPort 1.4 one-fiber optical extender designed to transmit up to 8K UHD (7680×4320) video at 60Hz using Display Stream Compression (DSC) over long distances via a single LC multi-mode fiber (OM3).
Capable of extending DisplayPort 1.4 signals up to 300 meters (984 feet), the DPX-1F14A-TR delivers full 32.4Gbps bandwidth (8.1Gbps per lane) while maintaining transparent, uncompressed signal behavior from the system’s perspective.
A defining feature of this model is Smart Aux, Opticis’ advanced auxiliary channel management technology. Smart Aux improves system stability by managing DisplayPort AUX channel communication, automatically maintaining video settings and resolution even after events such as cable disconnection, reconnection, or power cycling. This significantly reduces troubleshooting time and minimizes display handshake issues in complex AV environments.
For installation flexibility, the extender supports up to 3 meters of copper extension on both the transmitter and receiver sides, enabling deployment in confined or thermally sensitive spaces where direct fiber termination is impractical. The unit transmits stable video even when copper extensions are used as intermediaries.
The DPX-1F14A-TR is firmware upgradable via USB Type-C, provides excellent data security with negligible EMI emission, and is certified to FCC and CE standards, making it well suited for cutting-edge professional AV and visualization systems.
Key Engineering Advantages
Stable 8K DisplayPort over fiber
Transmits DisplayPort 1.4 video up to 8K at 60Hz using DSC with full 32.4Gbps bandwidth over a single fiber.
Smart Aux channel management
Actively manages DisplayPort AUX channel communication to preserve video settings and resolution after reconnection or power cycles.
Long-distance, single-fiber design
Extends DisplayPort signals up to 300 meters over one LC multimode fiber, reducing cabling complexity.
Flexible installation in tight spaces
Supports up to 3 meters of copper extension on both transmitter and receiver sides for constrained or thermally sensitive installations.
Secure, interference-free transmission
Fiber-based architecture provides electrical isolation with negligible EMI, ideal for sensitive AV environments.
Future-ready maintainability
Firmware upgradable via USB Type-C, allowing feature updates and long-term system support.
Feature Checklist
- Supports DisplayPort 1.4
- Extends 8K (7680×4320) at 60Hz using DSC
- Supports 4K (4096×2160) at 144Hz
- Transmits DisplayPort signals up to 300m (984ft) over one LC multimode fiber (OM3)
- 32.4Gbps total bandwidth (8.1Gbps per lane)
- Smart Aux technology for AUX channel management
- Maintains video settings after disconnection or power cycling
- Allows up to 3m copper extension on both TX and RX sides
- Firmware upgradable via USB Type-C
- Excellent data security with negligible EMI emission
- FCC and CE certified for EMI/RFI compliance
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DPX-1F14A-TR
- Brand
- Opticis
- Product Type
- DisplayPort 1.4 Optical Extender with Smart Aux
- Fiber Type
- Single LC Multimode Fiber (OM3)
- Max Distance
- 300m / 984ft
- DisplayPort Standard
- DisplayPort 1.4
- Max Resolution
- 8K (7680×4320) @ 60Hz (DSC)
- Additional Video Support
- 4K @ 144Hz
- Max Bandwidth
- 32.4Gbps
- Lane Bandwidth
- 8.1Gbps per lane
- Copper Extension
- Up to 3m on TX and RX
- AUX Channel Management
- Smart Aux
- Firmware Upgrade
- USB Type-C
- EMI Emission
- Negligible
- Certifications
- FCC, CE
Documentation & Drivers
Package Contents
- DisplayPort 1.4 Optical Extender (Tx/Rx set)
- DC Power Adapter
- User Manual
- Copper cable

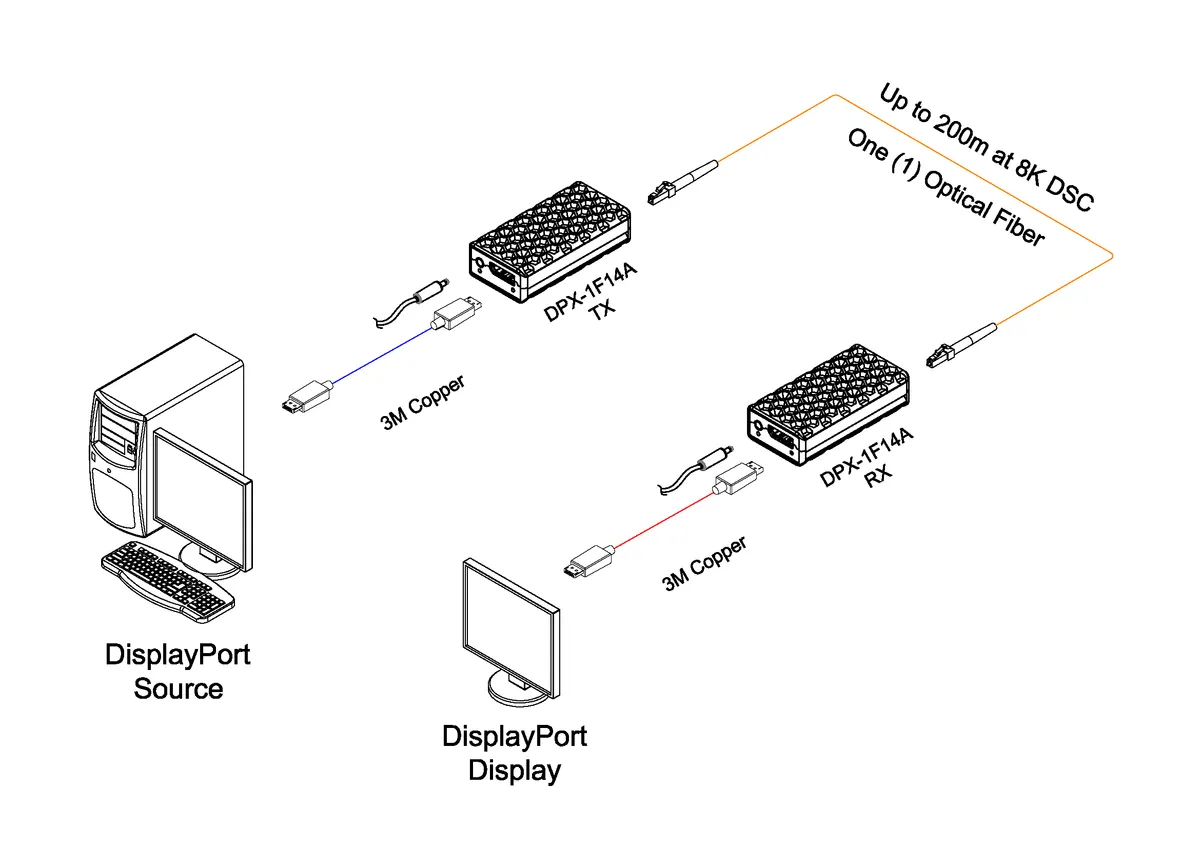

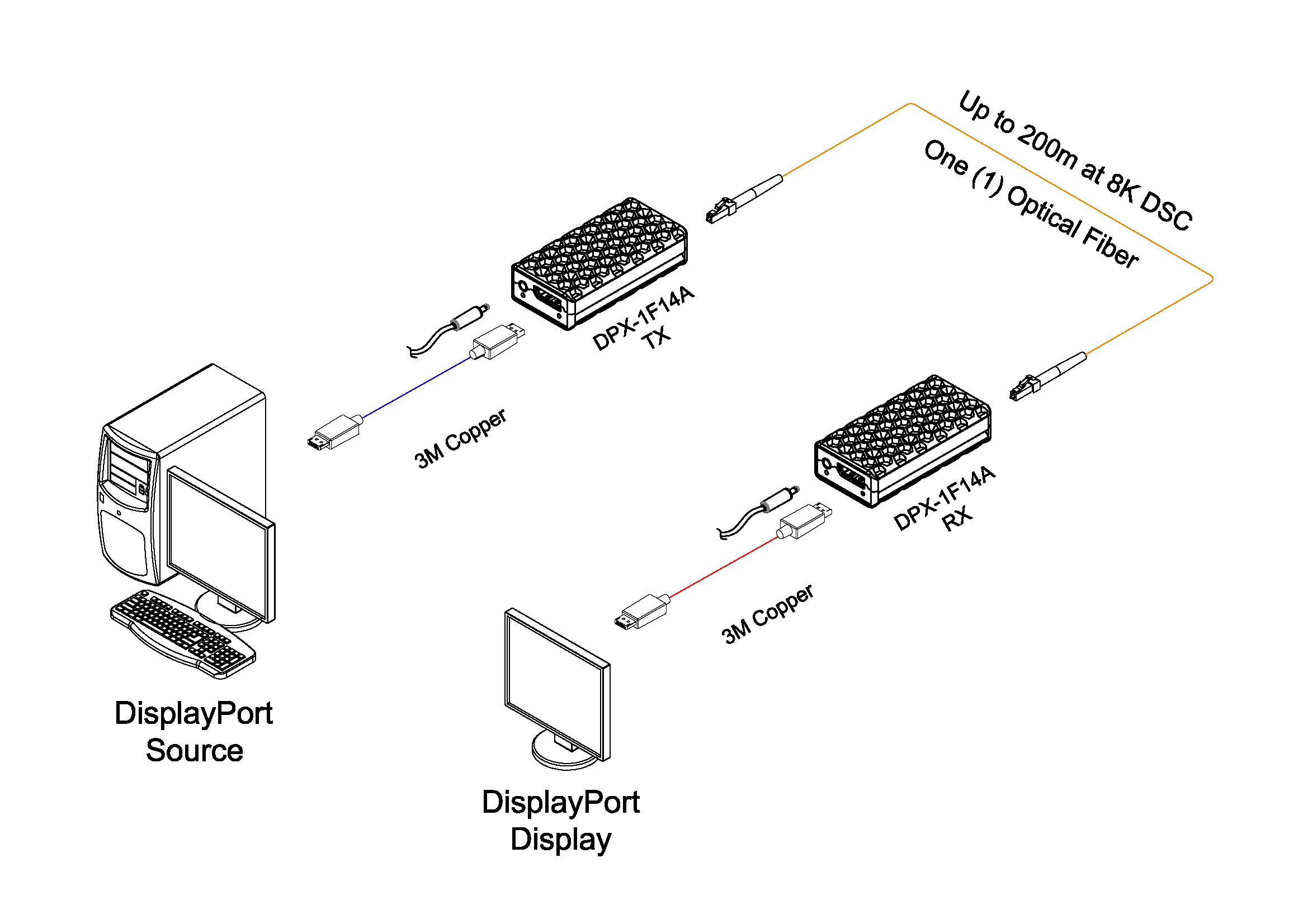

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical imaging systems
- Military and defense installations
- Digital signage networks
- Control rooms and command centers
- Rental and staging AV systems
- Flight simulation environments
