Opticis DisplayPort 1.2 One-Fiber Optical Extender with Copper Extension, 4K60, 300m (DPFX-700-TR)
DisplayPort 1.2 one-fiber optical extender supporting uncompressed 4K60 up to 300m over OM3 fiber with copper extension flexibility.
Resolution
4K60
Distance
300m over OM3 fiber
Extension
3m copper on TX/RX
Bandwidth
21.6Gbps DP 1.2
Technical Architecture & Functionality

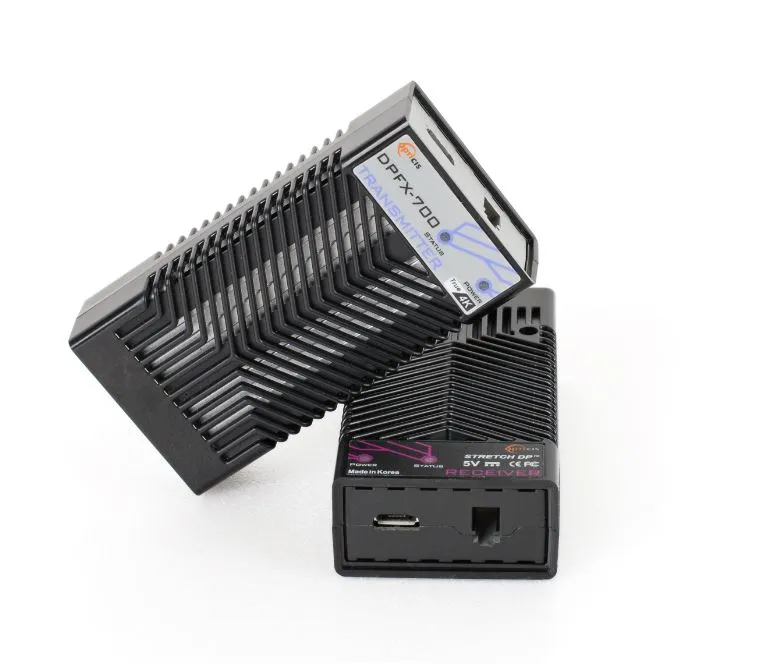

The Opticis DPFX-700-TR is a DisplayPort 1.2 one-fiber detachable optical extender with copper extension, engineered to transmit uncompressed 4K UHD (4096×2160) at 60Hz over long distances using a single LC multi-mode fiber (OM3).
Designed for complex installation environments, the DPFX-700-TR supports up to 3 meters of copper DisplayPort extension on both the transmitter and receiver sides, enabling flexible placement in confined racks, wall boxes, and equipment-dense environments where direct fiber termination is impractical. A 2-meter copper cable is included in the standard shipping group.
Delivering full-bandwidth 21.6Gbps (5.4Gbps per lane) DisplayPort 1.2 performance, the DPFX-700-TR transmits transparent, uncompressed video with zero latency and no signal degradation, making it suitable for professional AV, broadcast, control room, medical imaging, and simulation environments.
For mixed deployment scenarios, the DPFX-700-TR is fully interoperable with the Opticis DPFX-300-TR, allowing direct-connection modules on one side and copper-extension modules on the other. The unit provides complete electrical isolation with negligible EMI emission and operates via an external DC power adapter (included).
Key Engineering Advantages
Long-distance 4K DisplayPort over fiber
Transmit uncompressed 4K60 DisplayPort 1.2 signals up to 300 meters using a single LC OM3 fiber.
Flexible copper extension for tight installs
Add up to 3 meters of copper DisplayPort on both TX and RX sides for equipment racks and wall boxes.
Mix-and-match with DPFX-300 modules
Interoperate with DPFX-300-TR to build hybrid extension layouts without redesigning infrastructure.
Zero latency, zero compression video
Preserves full DisplayPort 1.2 bandwidth for real-time professional AV and simulation use.
Electrically isolated and EMI-safe
Fiber link eliminates ground loops, EMI, and electrical hazard in sensitive environments.
Feature Checklist
- Supports DisplayPort 1.2 standards
- Extends 4K UHD (4096×2160) at 60Hz
- Full color formats RGB / YCbCr 4:4:4
- Transmits DisplayPort 1.2 data up to 300m (984ft) over one LC multimode fiber (OM3)
- Extra copper extension up to 3m on both TX and RX sides
- Fully compatible with DPFX-300-TR for mixed module configurations
- 21.6Gbps total bandwidth (5.4Gbps per lane)
- Supports Multi-Stream Transport (MST)
- Plug & Play installation
- Excellent data security with negligible EMI emission
- Label color distinction: TX (silver) & RX (black)
- FCC and CE certified for EMI/RFI compliance
- Compatible with BR-400 Power Rack (mount up to 8 units)
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DPFX-700-TR
- Brand
- Opticis
- Product Type
- DisplayPort 1.2 Optical Extender (Tx/Rx Set)
- Fiber Type
- Single LC Multimode Fiber (OM3)
- Max Distance
- 300m / 984ft
- DisplayPort Standard
- DisplayPort 1.2
- Max Bandwidth
- 21.6Gbps
- Max Resolution
- 4096×2160 @ 60Hz
- Color Format
- RGB / YCbCr 4:4:4
- Lane Bandwidth
- 5.4Gbps per lane
- MST Support
- Yes
- Copper Extension
- Up to 3m on TX and RX
- Electrical Isolation
- Yes
- EMI Emission
- Negligible
- Power Method
- External DC power adapter
- Installation
- Plug and Play
- Certifications
- FCC, CE
Documentation & Drivers
Package Contents
- User Manual
- Copper DisplayPort cable (2m)
- DC Power Adapter

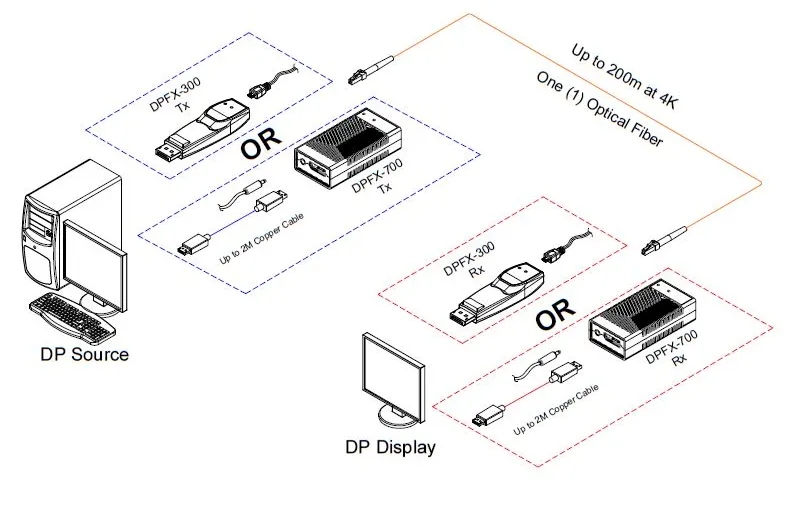

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical imaging systems
- Military and defense AV
- Digital signage and video walls
- Control rooms and command centers
- Simulation and training environments
- Rental staging and event AV
