Opticis DisplayPort 1.4 Pure Optical MPO Extender, 8K60 DSC, 330m (DPC-MP14-TR)
Pure optical DisplayPort 1.4 extender supporting up to 8K@60Hz DSC over MPO fiber up to 330m, delivering zero-latency, EMI-free performance.
Resolution
8K60 DSC
Bandwidth
32.4Gbps
Distance
330m / 1,082ft
Fiber Type
MPO (OM3)
Technical Architecture & Functionality
The Opticis DPC-MP14-TR is a DisplayPort 1.4 pure optical extender engineered for ultra-high-bandwidth, long-distance video transport using MPO multi-mode fiber (OM3). It supports up to 8K (7680×4320) at 60Hz using Display Stream Compression (DSC) with a maximum total bandwidth of 32.4Gbps (8.1Gbps per lane, HBR3).
By transmitting DisplayPort 1.4 signals entirely over optical fiber, the DPC-MP14-TR eliminates latency, EMI, RFI, and electrical interference while preserving full signal integrity. This architecture also enables support for 5K at 60Hz and 4K at up to 144Hz, making it suitable for advanced visualization, simulation, and high-refresh-rate display systems.

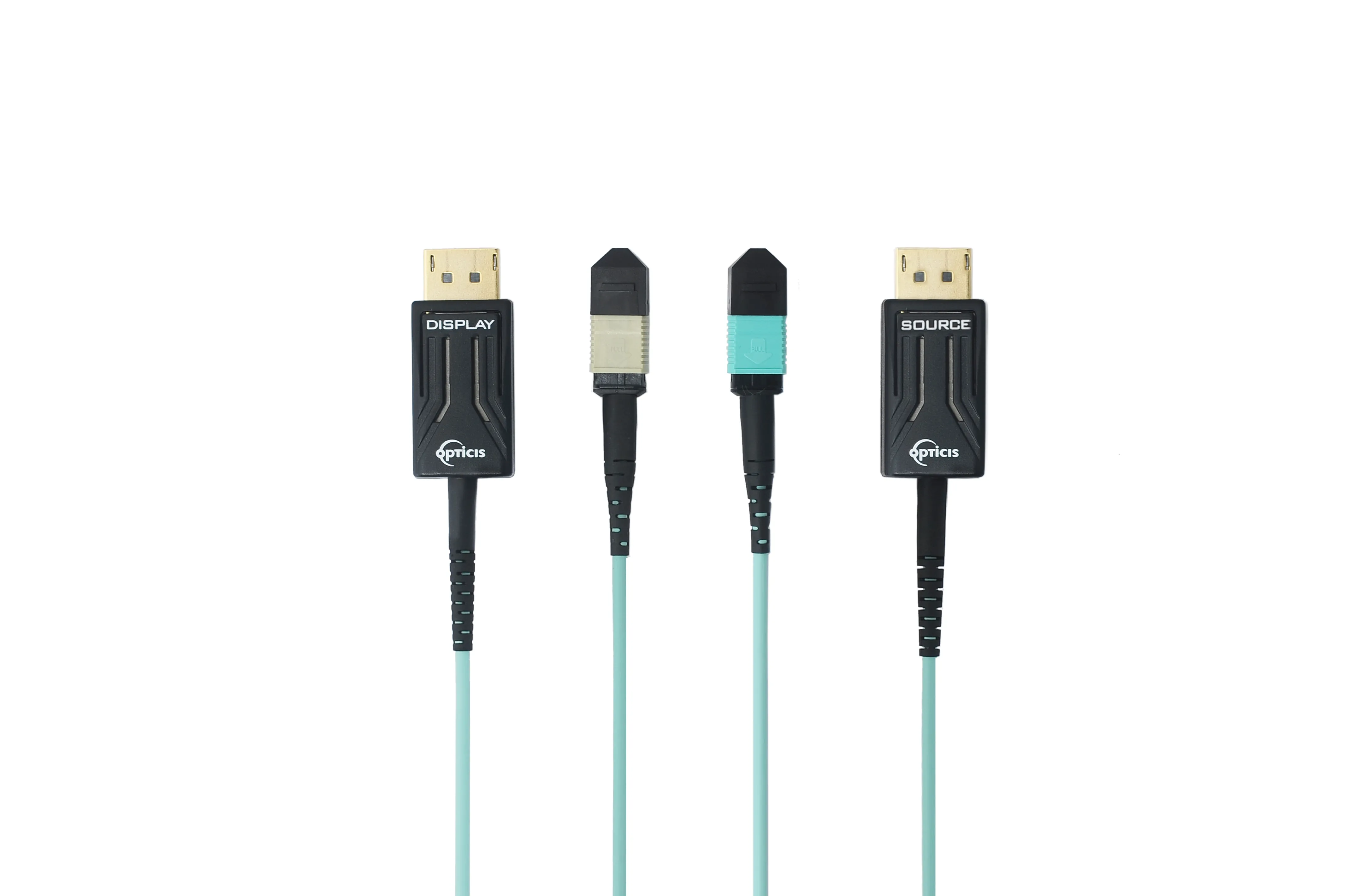

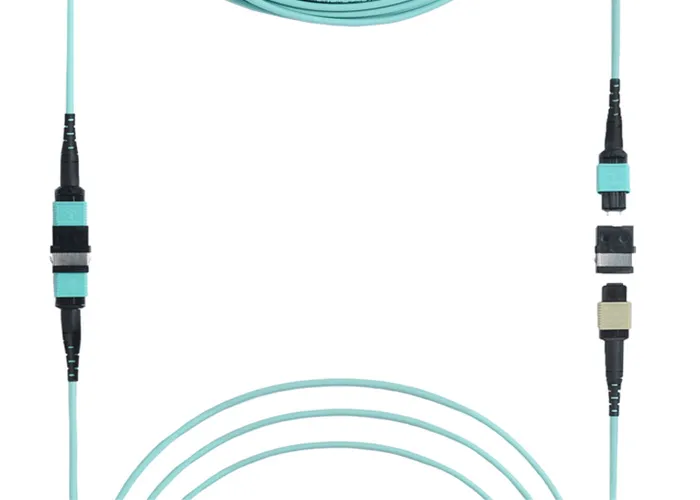

The extender features a detachable pigtail design, allowing the DisplayPort end to connect directly to source or display equipment while the opposite end interfaces with a 12-core OM3 Type-A MPO cable. To simplify installation and avoid polarity or direction errors, the MPO connectors are color-coded:
- TX: Aqua
- RX: Beige
Designed for demanding environments, the DPC-MP14-TR operates reliably across a wide temperature range (-10°C to 60°C) and supports immersive multi-channel audio, including Dolby TrueHD and DTS-HD Master Audio, for theater-quality sound delivery.
Key Engineering Advantages
Pure optical DisplayPort transport
Transmits DisplayPort 1.4 entirely over optical fiber, eliminating latency, EMI, and electrical interference.
8K-ready bandwidth
Supports up to 8K at 60Hz using DSC with a full 32.4Gbps bandwidth for next-generation visualization systems.
High-refresh-rate display support
Enables 5K at 60Hz and 4K at up to 144Hz for simulation, gaming, and advanced visualization environments.
Installer-friendly MPO design
Detachable pigtail architecture and color-coded MPO connectors simplify deployment and reduce installation errors.
Long-distance single-link extension
Extends DisplayPort signals up to 330 meters over MPO fiber without signal degradation.
Designed for harsh environments
Operates reliably from -10°C to 60°C with secure, EMI-free transmission for mission-critical installations.
Feature Checklist
- Supports DisplayPort 1.4
- Extends 8K (7680×4320) at 60Hz using DSC
- Supports 5K @ 60Hz and 4K @ 144Hz
- 32.4Gbps total bandwidth (8.1Gbps per lane, HBR3)
- Transmits DisplayPort signals up to 330m (1,082ft) over MPO multimode fiber (OM3)
- Requires 12-core OM3 Type-A MPO male-to-male cable
- Pure optical transmission with zero latency
- Detachable pigtail design for flexible installation
- Color-coded MPO connectors for error-free deployment
- Wide operating temperature range (-10°C to 60°C)
- Supports Dolby TrueHD, DTS-HD Master Audio, and multi-channel audio
- Excellent data security with negligible EMI/RFI emission
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DPC-MP14-TR
- Brand
- Opticis
- Product Type
- DisplayPort 1.4 Pure Optical Extender
- Fiber Type
- MPO Multimode Fiber (OM3)
- MPO Requirement
- 12-core OM3 Type-A MPO (male-to-male)
- Max Distance
- 330m / 1,082ft
- DisplayPort Standard
- DisplayPort 1.4
- Max Resolution
- 8K (7680×4320) @ 60Hz (DSC)
- Additional Video Support
- 5K @ 60Hz, 4K @ 144Hz
- Max Bandwidth
- 32.4Gbps
- Lane Bandwidth
- 8.1Gbps per lane (HBR3)
- Transmission Type
- Pure Optical
- Audio Support
- Multi-channel, Dolby TrueHD, DTS-HD Master Audio
- Operating Temperature
- -10°C to 60°C
- EMI / RFI Emission
- Negligible
Documentation & Drivers
Package Contents
- DisplayPort 1.4 Optical Extender (Tx/Rx set)
- User Manual
- Two (2) MPO adapters
- Two (2) MPO protective caps

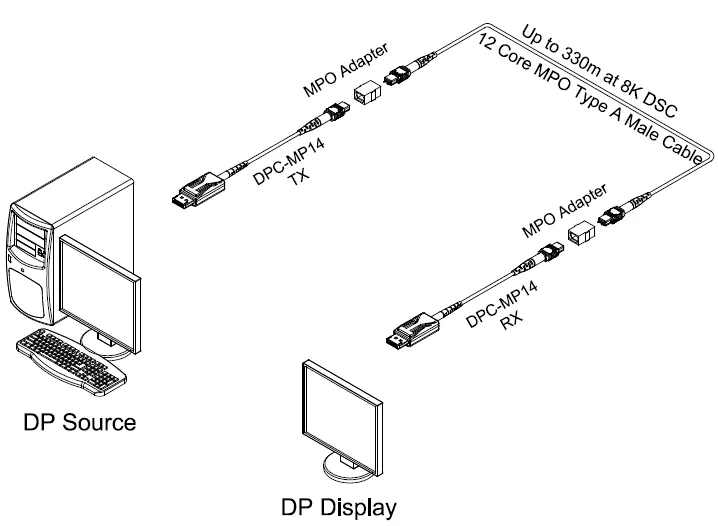

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical visualization systems
- Digital signage networks
- Control rooms and command centers
- Rental and staging AV systems
- Flight simulation environments
- Dome projection and immersive displays
