Technical Architecture & Functionality

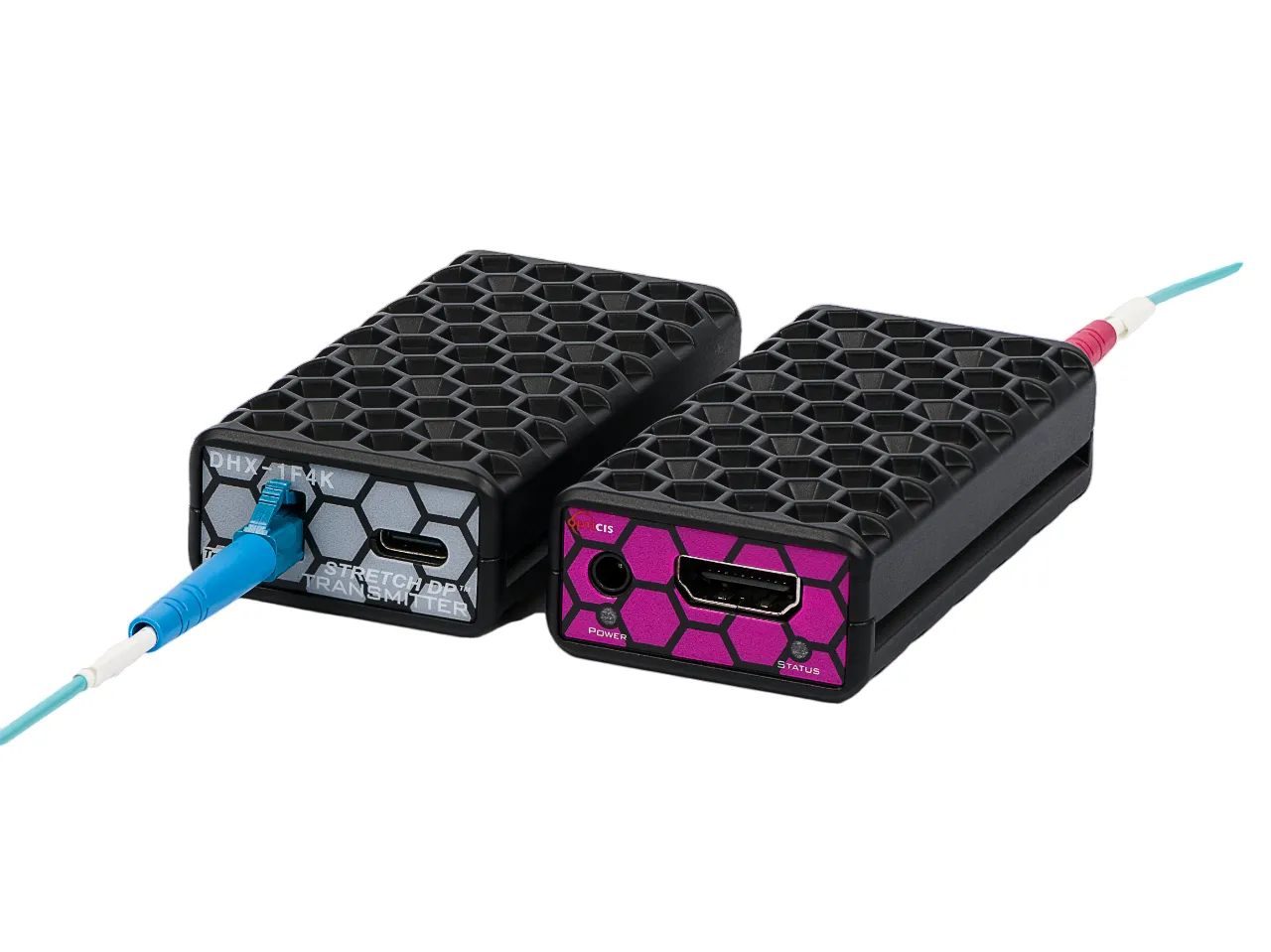

The Opticis DHX-1F4K-TR is a high-performance DisplayPort 1.2 to HDMI 2.0 converting optical extender designed to transmit uncompressed 4K UHD (4096×2160) video at 60Hz over long distances using a single LC multi-mode fiber (OM3).
Capable of extending video signals up to 300 meters (984 feet), the DHX-1F4K-TR enables seamless conversion from DisplayPort 1.2 sources to HDMI 2.0 displays, making it ideal for modern AV systems where DP-based media servers, PCs, or workstations must drive HDMI-based monitors, projectors, or video walls over long distances.
For installation flexibility, the extender supports up to 3 meters of copper extension on both the transmitter and receiver sides, allowing deployment in tight or equipment-dense environments where direct fiber termination is not practical. When paired with the Opticis HDX-1F20-RX, the system delivers transparent, uncompressed 4K HDMI output.
A key advantage of the DHX-1F4K-TR is its integrated diagnostic and management capability. When connected to the Opticis BR-600 Power Rack, the extender supports remote monitoring, centralized management, and real-time status diagnostics, enabling proactive maintenance and reduced system downtime. Firmware upgrades and diagnostics are handled via the Diagnosis Link Manager GUI, with one-step firmware updates for up to eight units simultaneously.
The DHX-1F4K-TR is firmware upgradable via USB Type-C, provides excellent data security with negligible EMI emission, and is certified to FCC and CE standards, making it a robust and future-ready solution for demanding professional AV environments.
Key Engineering Advantages
Long-distance DP to HDMI conversion
Converts DisplayPort 1.2 sources to HDMI 2.0 displays while extending uncompressed 4K video up to 300 meters over fiber.
Uncompressed 4K video transport
Delivers transparent 4K UHD video at 60Hz with no compression or signal degradation.
Integrated diagnostics and remote monitoring
Built-in diagnostic features enable real-time status monitoring and fault detection when used with the BR-600 power rack.
Centralized management at scale
Supports one-step firmware upgrades and centralized control of up to eight extenders via the BR-600 system.
Flexible installation options
Allows up to 3 meters of copper extension on both transmitter and receiver sides for tight or equipment-dense installations.
Secure, interference-free transmission
Fiber-based design provides electrical isolation with negligible EMI, ideal for sensitive AV environments.
Feature Checklist
- Converts DisplayPort 1.2 to HDMI 2.0
- Supports 4K UHD (4096×2160) at 60Hz
- Transmits video up to 300m (984ft) over one LC multimode fiber (OM3)
- Uncompressed, transparent video transmission
- Allows up to 3m copper extension on both TX and RX sides
- Built-in diagnostics and remote monitoring
- Diagnosis Link Manager GUI for status monitoring and firmware management
- Compatible with BR-600 Power Rack
- Centralized management of up to 8 units
- One-step firmware upgrade
- Firmware upgradable via USB Type-C
- Excellent data security with negligible EMI emission
- FCC and CE certified for EMI/RFI compliance

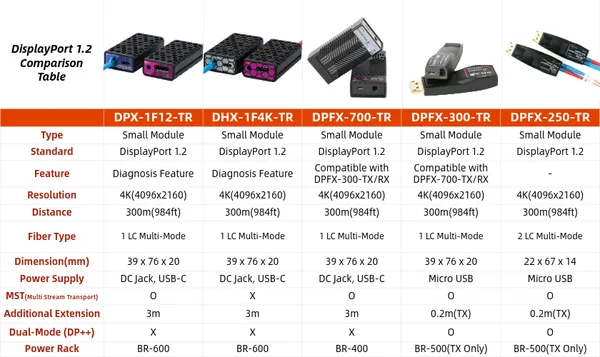

Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DHX-1F4K-TR
- Brand
- Opticis
- Product Type
- DP 1.2 to HDMI 2.0 Optical Extender with Diagnostics
- Input Interface
- DisplayPort 1.2
- Output Interface
- HDMI 2.0
- Fiber Type
- Single LC Multimode Fiber (OM3)
- Max Distance
- 300m / 984ft
- Max Resolution
- 4096×2160 @ 60Hz
- Copper Extension
- Up to 3m on TX and RX
- Diagnostics
- Remote monitoring and management
- Management Software
- Diagnosis Link Manager (GUI)
- Rack Compatibility
- BR-600 (up to 8 units)
- Firmware Upgrade
- USB Type-C
- EMI Emission
- Negligible
- Certifications
- FCC, CE
Documentation & Drivers
Package Contents
- DP to HDMI Optical Extender (Tx/Rx set)
- DC Power Adapter
- User Manual
- Copper cable

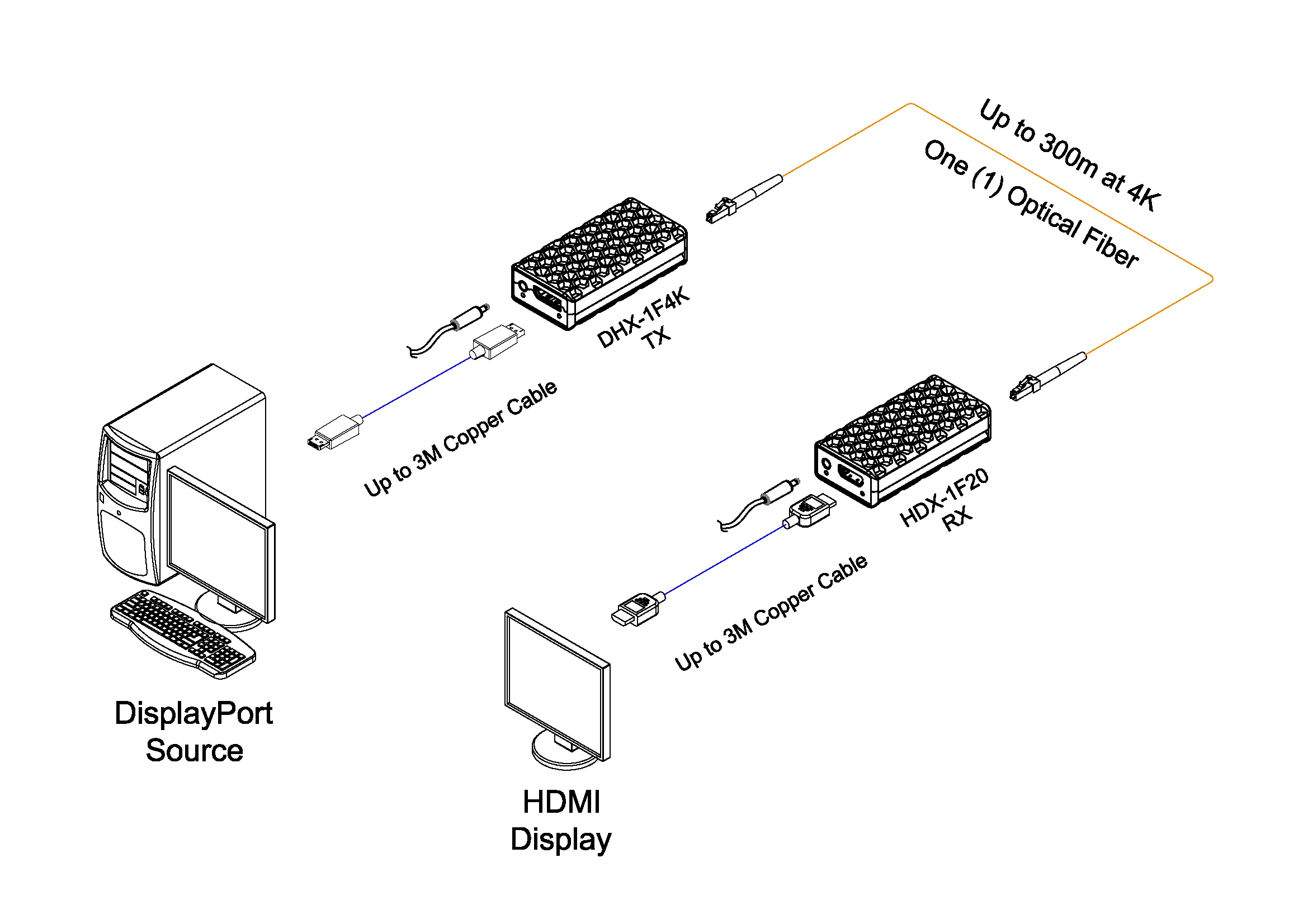

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical imaging systems
- Military and defense installations
- Digital signage networks
- Control rooms and command centers
- Rental and staging AV systems
- Flight simulation environments
