Unibrain FireWire 800 Glass Optical Fiber Repeater Kit (Pair) | LC Fiber • 550m (2553)
FireWire 800 (IEEE 1394b) glass optical fiber repeater pair extending S800 data up to 550m over LC multimode fiber. Includes two units and power supplies.
Interface
FireWire 800 (1394b)
Data Rate
800 Mbps
Max Distance
Up to 550m
Fiber Type
LC Multimode Fiber
Technical Architecture & Functionality
The Unibrain Glass Optical Fiber (GOF) Repeater 800 Kit (SKU: 2553) is a complete FireWire 800 (IEEE 1394b) fiber optic extension kit that includes two repeater units and two +12V power supplies, designed to extend S800 (800 Mbps) 1394b data transmission up to 550 meters (1,804 ft.) over multimode glass optical fiber (GOF). (Note: Single standalone units are available under SKU 2552).
Capable of extending FireWire connections far beyond copper limits, the GOF Repeater 800 enables reliable long-distance connectivity for broadcast systems, industrial machine vision, scientific instrumentation, and legacy professional AV environments where FireWire remains a critical interface.
The repeater is built around the Texas Instruments TSB81BA3D, the latest revision of the 1394b PHY, ensuring stable performance, full backward compatibility, and reliable operation across mixed 1394a and 1394b systems. Each unit includes two bilingual copper FireWire ports and one LC optical fiber port, allowing seamless transitions between copper and fiber segments.
Housed in a galvanized steel enclosure with polyester powder coating, the GOF Repeater 800 provides excellent durability, EMI resistance, and thermal performance in demanding environments. It supports full-duplex operation, automatic speed negotiation, and operates transparently with Windows, macOS, and Linux systems.
Key Engineering Advantages
Long-distance FireWire over fiber
Extends IEEE 1394b FireWire 800 signals up to 550 meters using glass optical fiber, far beyond copper limitations.
Preserves legacy FireWire systems
Designed for professional environments where FireWire remains critical, including broadcast, industrial, and scientific systems.
Seamless copper-to-fiber transition
Includes two bilingual copper FireWire ports and one LC optical port for easy integration into mixed cabling infrastructures.
Reliable Texas Instruments PHY
Built around the TI TSB81BA3D 1394b PHY for stable performance and backward compatibility with 1394a devices.
Full-duplex, multi-speed operation
Supports 100, 200, 400, and 800 Mbps full-duplex operation with automatic speed negotiation.
Industrial-grade construction
Galvanized steel enclosure with powder coating provides durability, EMI resistance, and thermal stability.
Cross-platform transparency
Operates transparently with Windows, macOS, and Linux without drivers or configuration changes.
Feature Checklist
- Supports FireWire 800 (IEEE 1394b) up to 800 Mbps
- Extends FireWire signals up to 550m (1,804ft) over glass optical fiber
- Two (2) bilingual copper FireWire ports (1394a / 1394b compatible)
- One (1) LC duplex optical fiber port
- Full-duplex operation at 100 / 200 / 400 / 800 Mbps
- Built on Texas Instruments TSB81BA3D 1394b PHY
- Backward compatible with IEEE 1394a-2000 and 1394-1995
- Operates with Windows, macOS, and Linux
- Low-power sleep mode
- Cable power presence monitoring
- Galvanized steel enclosure with polyester powder coating
- Laser eye-safe Class 1 optical interface
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- 2553
- Package Style
- Complete Kit (Pair of 2 repeaters + 2 power supplies)
- Alternate SKU
- 2552 (Single Unit OEM)
- Manufacturer
- Unibrain
- Product Type
- FireWire 800 Glass Optical Fiber Repeater Kit
- FireWire Standard
- IEEE 1394b (FireWire 800)
- Backward Compatibility
- IEEE 1394a-2000 / 1394-1995
- Max Data Rate
- 100 / 200 / 400 / 800 Mbps
- Duplex Mode
- Full Duplex
- Optical Interface
- LC Duplex
- Fiber Type
- Multimode Glass Optical Fiber
- Max Distance
- Up to 550m
- Optical Wavelength
- 850 nm VCSEL
- Laser Safety
- IEC 60825-1 Class 1 / CDRH Class 1
- Copper Ports
- 2 × Bilingual 1394b
- Housing
- Galvanized steel, powder-coated
- Dimensions (W × H × D)
- 94.45 × 25.10 × 85.61 mm
- Weight
- 266 g
- Power Features
- Low-power sleep, cable power monitoring
- OS Support
- Windows, macOS, Linux
Documentation & Drivers
Package Contents

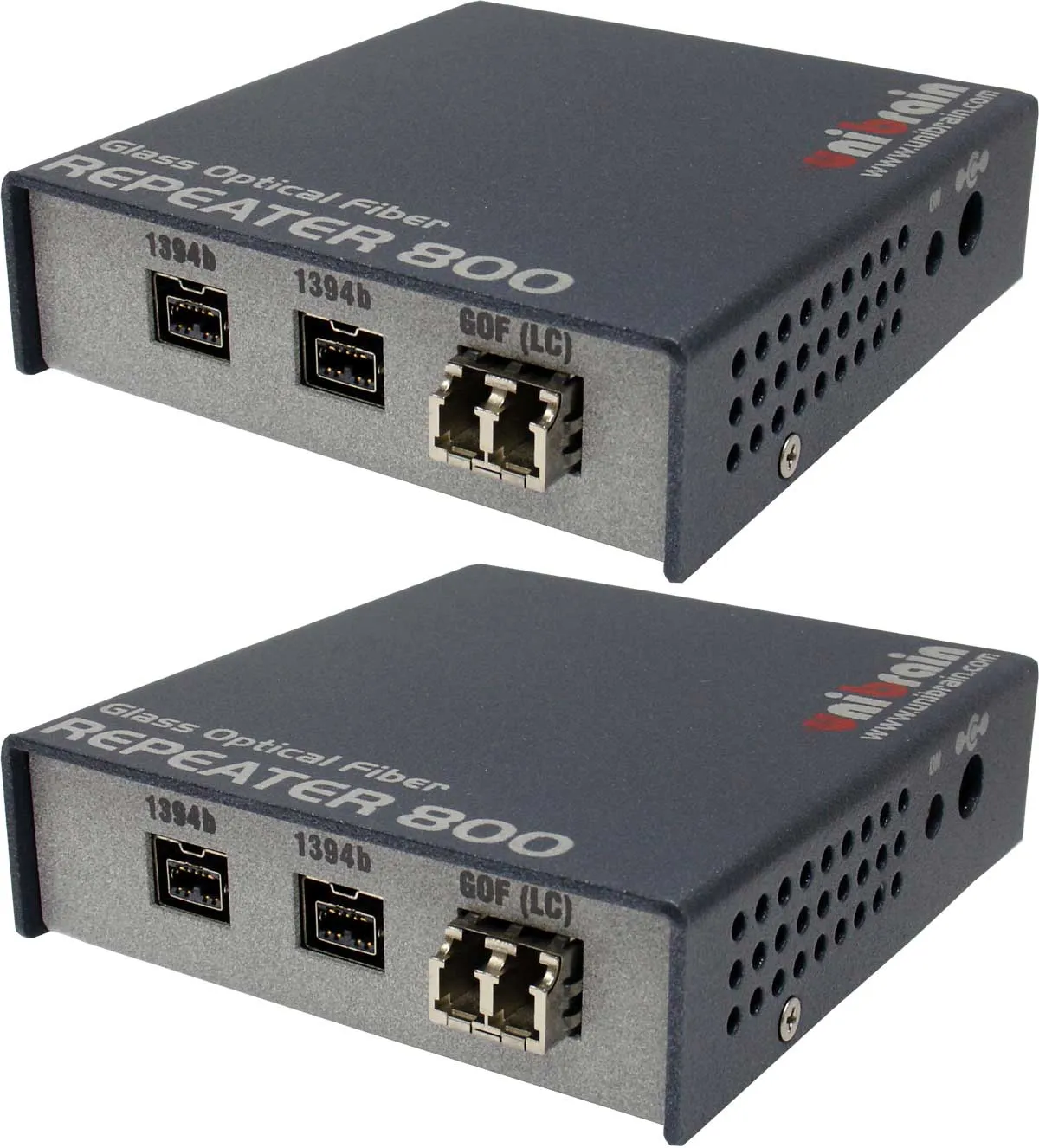

- 2x Unibrain LC GOF Repeater800™ Units

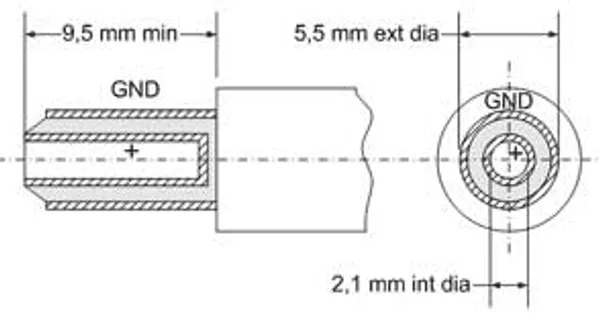

- 2x 12V DC Power Supplies
- 1x User Manual & ubCore Software Documentation

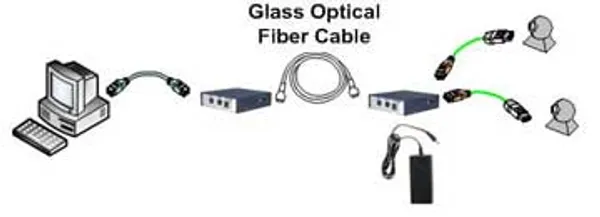

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Broadcast and video production systems
- Scientific and laboratory instrumentation
- Industrial control and automation equipment
- Long-distance FireWire camera and storage links
- Legacy professional AV installations
