Newnex FireNEX™-uLINK-40G USB-C Active Cable, 40Gbps, DP 2.0, 60W PD, 4m (ULK40GLCC-4M)
Active USB-C cable supporting up to 40Gbps data, DisplayPort 2.0 Alt Mode, and 60W USB Power Delivery over 4 meters with plug-and-play operation.
Data Rate
40Gbps
Video Support
DP 2.0
Power Delivery
60W PD
Cable Length
4m / 13.1ft
Technical Architecture & Functionality
The Newnex FireNEX™-uLINK-40G (ULK40GLCC-4M) is a high-performance USB-C active cable engineered to extend full-speed USB4 / Thunderbolt performance beyond the limits of passive copper cables.
Supporting USB and Thunderbolt data rates up to 40Gbps, DisplayPort 2.0 Alt Mode (UHBR20), and USB Power Delivery up to 60W, this cable enables a single, reliable connection between modern hosts and high-performance devices such as high-resolution displays, docking stations, and external storage.
Unlike short passive cables, the uLINK-40G maintains maximum USB-C performance over a full 4 meters (13.1 ft.), using advanced active repeater technology to preserve signal integrity. It supports both 4-lane Display + USB 2.0 and 2-lane Display + USB 3.2 modes with automatic detection and switching, ensuring seamless compatibility across different device configurations.
The cable is fully plug-and-play, requires no drivers, and operates bi-directionally for USB Power Delivery, automatically selecting the appropriate power direction between host and device.
With a slim, flexible TPE jacket, full shielding, and VW-1 flammability rating, the FireNEX™-uLINK-40G is suitable for professional, industrial, and AV environments where reliability matters more than fashion.
Key Engineering Advantages
Full USB-C performance at 4 meters
Maintains maximum USB4 and Thunderbolt data rates up to 40Gbps well beyond passive cable length limits.
Next-generation display support
Supports DisplayPort 2.0 Alt Mode (UHBR20) for high-resolution and high-refresh-rate displays.
Single-cable data, video, and power
Combines high-speed data, video output, and up to 60W USB Power Delivery in one cable.
Automatic mode switching
Dynamically selects between 4-lane display or mixed data/display modes for maximum compatibility.
True plug-and-play operation
Requires no drivers or configuration on Windows, macOS, or Linux systems.
Professional-grade construction
Fully shielded cable with TPE jacket and VW-1 rating for reliable use in professional environments.
Feature Checklist
- USB4 / Thunderbolt™ data up to 40Gbps
- Extends full-performance USB-C connectivity up to 4m (13.1 ft.)
- DisplayPort 2.0 Alt Mode support (UHBR20)
- Backward compatible with DisplayPort 1.4 / 1.2
- Supports 4-lane Display + USB 2.0 or 2-lane Display + USB 3.2 (auto-switching)
- USB Power Delivery 3.0 up to 60W (20V / 3A)
- Power delivery supported host ↔ device (auto direction)
- Compatible with Thunderbolt™ 3 & 4
- Compatible with USB 3.2 Gen 2, USB 2.0/1.1
- No drivers required (Windows, macOS, Linux)
- Fully shielded construction
- Slim TPE jacket with VW-1 flammability rating
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- ULK40GLCC-4M
- Brand
- Newnex
- Product Type
- USB-C Active Cable
- USB Standard
- USB4 / Thunderbolt™
- Max Data Rate
- 40Gbps
- Display Support
- DisplayPort 2.0 Alt Mode (UHBR20)
- Display Compatibility
- DP 2.0, DP 1.4, DP 1.2
- Max Cable Length
- 4m / 13.1 ft
- Power Delivery
- USB PD 3.0 up to 60W
- Voltage / Current
- Up to 20V / 3A
- Connector Type
- USB-C Male ↔ USB-C Male
- Shielding
- Fully shielded
- Cable Jacket
- TPE
- Cable Diameter
- 4.8 mm
- Flammability
- VW-1
- Driver Requirement
- None
- OS Support
- Windows, macOS, Linux
- Warranty
- 1-year manufacturer warranty
Documentation & Drivers
Package Contents
- USB-C Active Cable (4m)
- User Manual

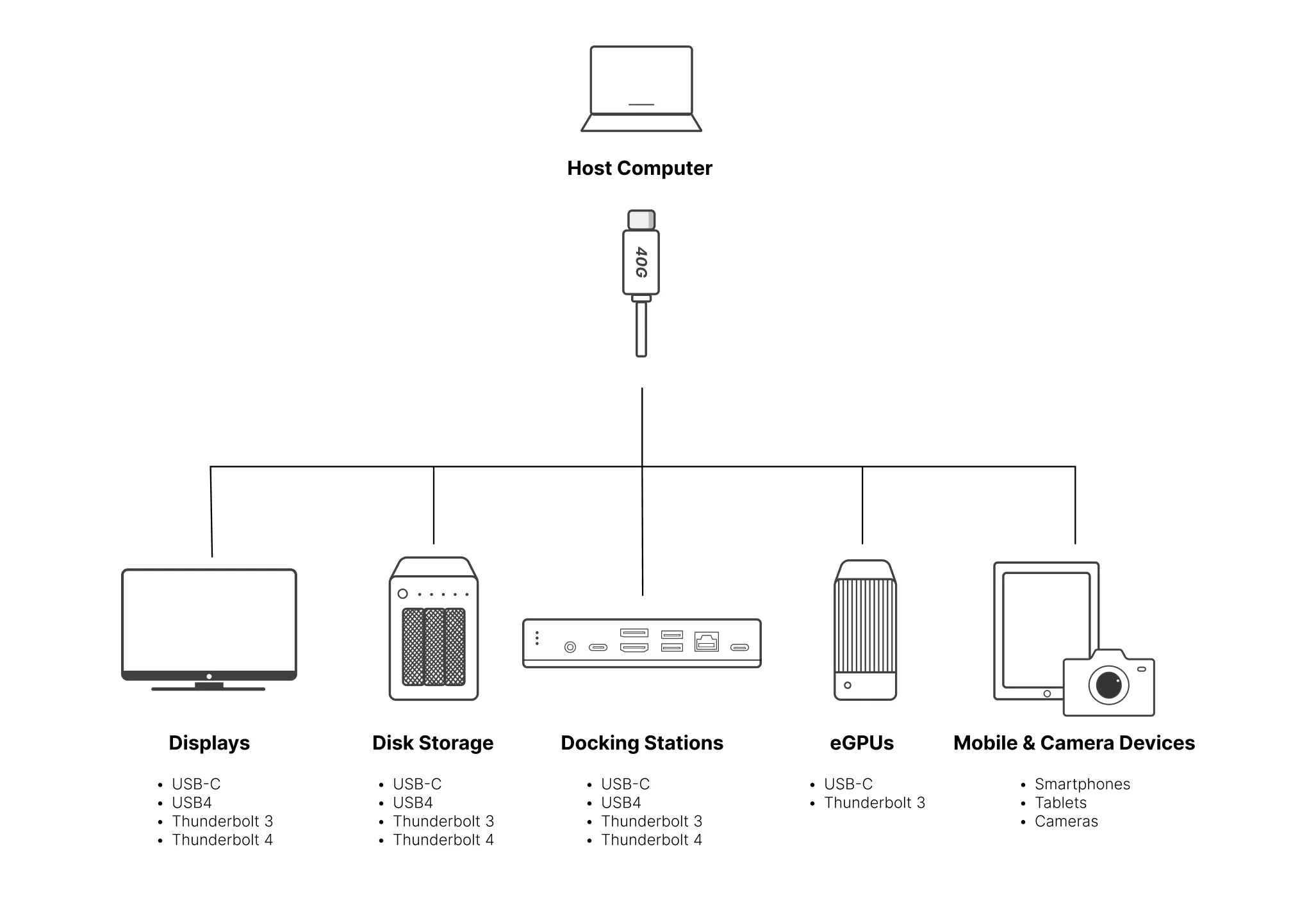

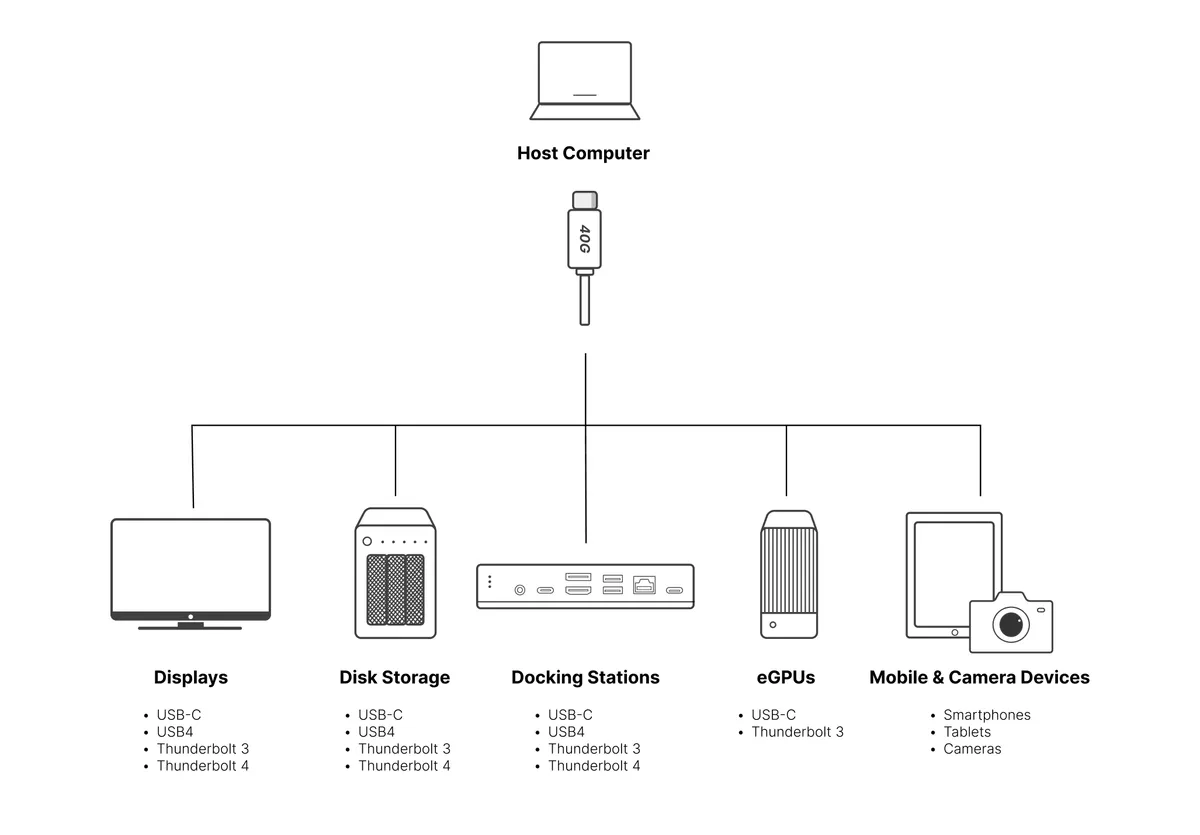

Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Thunderbolt docking stations
- High-resolution USB-C / DP displays
- Professional AV and conference rooms
- External SSDs and high-speed storage
- Control rooms and workstation setups
- Rental and staging environments
