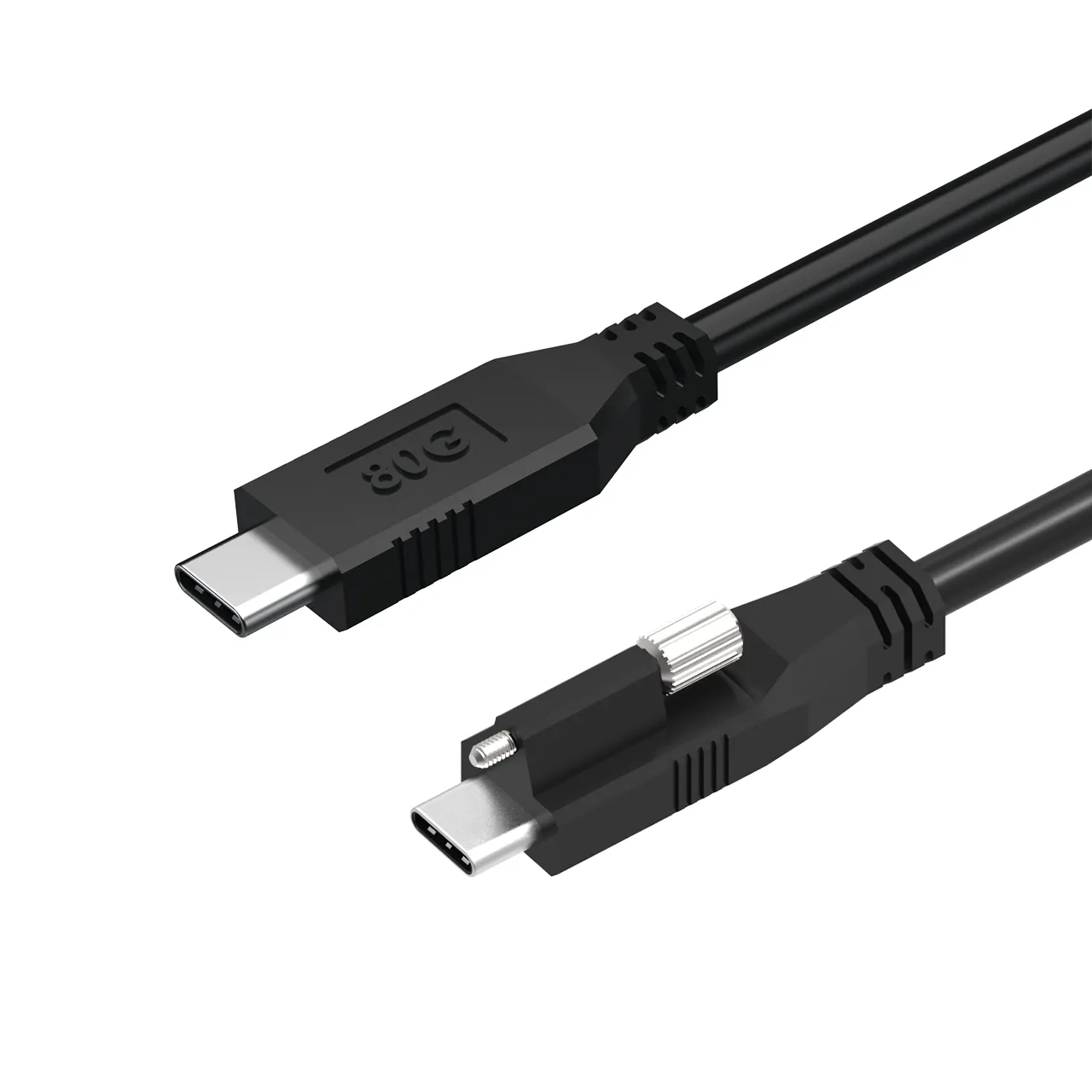

Newnex USB4 Gen 4×2 80Gbps USB-C Cable, 240W PD, DP 2.1, Screw Lock, 1m (U4T1C01C04P010)
Industrial-grade USB4 Type-C cable supporting up to 80Gbps data, 240W USB PD 3.1 (EPR), and DisplayPort 2.1 Alt Mode with single screw-locking connectors.
Data Rate
80Gbps
Power Delivery
240W PD 3.1
Video Support
DP 2.1 / 16K
Connector
USB-C Screw Lock
Technical Architecture & Functionality
The Newnex U4T1C01C04P010 is a USB4 Gen 4×2 active-performance USB-C to USB-C cable engineered for maximum bandwidth, power delivery, and signal integrity in professional and industrial environments.
Supporting USB4 data rates up to 80Gbps, USB Power Delivery 3.1 up to 240W (Extended Power Range), and DisplayPort 2.1 Alt Mode, this cable is designed to handle the most demanding modern workloads including high-resolution video, high-speed storage, GPU enclosures, docking systems, and industrial computing platforms.
Video support follows DisplayPort 2.1 specifications, enabling resolutions up to 16K @60Hz (with DSC), 2× 8K @120Hz, or multiple high-refresh-rate 4K displays, making the cable suitable for advanced visualization, simulation, and multi-display workstation setups.
The cable employs a coaxial cable structure, delivering superior signal integrity compared to traditional twisted-pair designs. Combined with 360-degree shielding, it meets USB-IF EMI shielding effectiveness requirements, ensuring reliable operation even in electrically noisy environments.

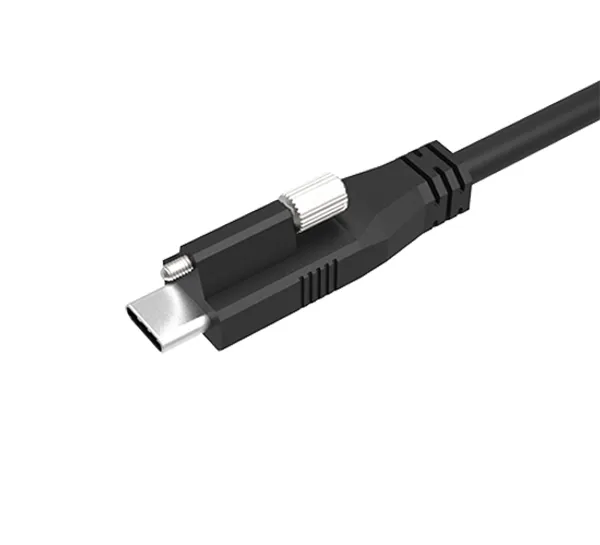

Mechanical durability is a core design focus. The single screw-locking USB-C connectors prevent accidental disconnection, while the flex-rated cable construction is tested to withstand 5 million flex cycles. A ruggedized overmold and reinforced strain relief extend service life in continuous-use and industrial applications.
Key Engineering Advantages
Maximum USB4 bandwidth
Supports USB4 Gen 4×2 signaling up to 80Gbps, including asymmetric modes for next-generation workloads.
Extreme power delivery
Delivers up to 240W using USB Power Delivery 3.1 Extended Power Range for high-power systems.
Next-generation display support
Supports DisplayPort 2.1 Alt Mode with resolutions up to 16K@60Hz or multiple high-refresh-rate displays.
Industrial-grade connection security
Single screw-locking USB-C connectors prevent accidental disconnects in vibration-prone environments.
Superior signal integrity
Coaxial cable architecture and 360° shielding outperform traditional twisted-pair USB-C designs.
Built for continuous motion
Enhanced flex design tested to 5 million cycles with reinforced strain relief for long service life.
Feature Checklist
- USB4 Gen 4×2 support up to 80Gbps
- Supports USB Power Delivery 3.1 (EPR) up to 240W
- DisplayPort 2.1 Alt Mode support
- Up to 16K @60Hz (DSC)
- Up to 2× 8K @120Hz
- Up to 3× 4K @90Hz
- Compatible with USB4, Thunderbolt™ 5, Thunderbolt™ 4, Thunderbolt™ 3
- Backward compatible with USB 3.x, USB 2.0/1.1
- Single screw-locking USB-C connectors
- Coaxial cable architecture for enhanced signal integrity
- 360° EMI shielding meeting USB-IF requirements
- No external power required
- Enhanced flex life tested to 5 million cycles
- Ruggedized overmold and strain relief
- USB-IF certified
- Plenum-safe VW-1 flammability rating
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- U4T1C01C04P010
- Brand
- Newnex
- Product Type
- USB4 Active-Performance USB-C Cable
- USB Standard
- USB4 Gen 4×2
- Max Data Rate
- Up to 80Gbps
- Power Delivery
- USB PD 3.1 up to 240W (EPR)
- Voltage Range
- 5V, 9V, 15V, 20V, 28V, 36V, 48V
- Current
- Up to 5A
- Video Support
- DisplayPort 2.1 Alt Mode
- Max Video
- Up to 16K @60Hz (DSC)
- Cable Length
- 1m / 3.3ft
- Cable Diameter
- 4.8 ± 0.2 mm
- Cable Jacket
- TPE
- Connector Type
- USB-C Male to USB-C Male
- Locking Mechanism
- Single screw-locking
- Shielding
- Fully shielded (360° EMI)
- Flex Life
- 5 million cycles
- Connector Plating
- Gold contacts, nickel shell
- Mating Cycles
- Up to 10,000
- Operating Temperature
- −10°C to +70°C
- Storage Temperature
- −20°C to +80°C
- Compliance
- USB-IF, RoHS, REACH
- Flammability
- VW-1
- Warranty
- 1-year manufacturer warranty
Documentation & Drivers
Package Contents
- USB4 Type-C to Type-C Screw-Locking Cable (1m)
- User Manual
Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- USB4 and Thunderbolt™ docking stations
- High-performance workstations and GPUs
- Industrial PCs and embedded systems
- 8K / multi-display professional AV setups
- Simulation, visualization, and XR platforms
- Secure, vibration-prone industrial environments
