Opticis Miniature Fiber-optic 3G SDI Digital Video Extender (SDIX-100)

Opticis Miniature Fiber-optic 3G SDI Digital Video Extender (SDIX-100)


$1450.00 ea.  Quantity:

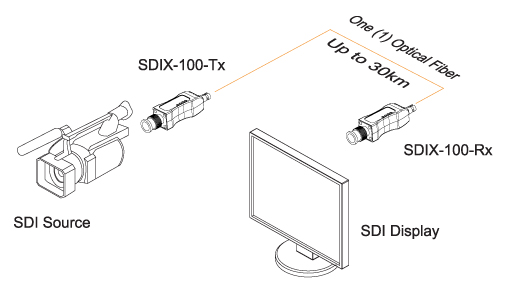

The OPTICIS 3G SDI extender, SDIX-100 is a miniature, fiber-optic 3G SDI Digital Video Transport System, supporting the new 1080p, 3Gbps SDI format. The SDIX-100 is designed to transport one(1) channel SMPTE-424M 3G-SDI, SMPTE-292M HD or SMPTE-259M serial digital video signal over long distance through either single-mode or multi-mode fiber with the same model.


Due to the use of advanced digital fiber optic transmission technology, no user adjustments are required in the Mini 3G-SDI extender system, enabling quick setup and trouble-free operation. The SDIX-100 series can handle SDI, DVB-ASI, HD-SDI, 3G-SDI, and many other video formats. The power connector has a latch-locking mechanism, thus no power disruption due to miss-handling problem and also adopts ST terminated fiber-optic connector and HD-SDI BNC input connector for suitable application and both modules guarantee the signal quality by equalizing and re-clocking features.
The SDIX-100 series comes with a rugged, standalone, miniature unit.

Key Features:

  • Supports up to 3G-SDI.
  • Offers re-clocker included model SDIX-100C as an option.
  • Extends up to 30km @3G.
  • Transports Multi-rate HD-SDI Digital Video over 1 Fiber.
  • Latch-Locking Power Connector.
  • HD-SDI BNC input connector and ST terminated fiber optical connector.
  • Robust metal die-casting enclosure for harsh environment.

Digital Video Specifications:
  • Signal Format: SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI, and many others.
  • Input Connector: 75 Ohm SDI BNC
  • Data Rate: 3 Gbps
  • Signal Level: 800mVp-p +/- 50mV
Optical Specifications:
  • Fiber Type: Single-mode and Multi-mode.
  • Number of Fibers: 1
  • Output Connector: ST (Single-mode and Multi-mode)
  • Power Budget: Min. 11dB
  • Distance: 30km @ 3G
Physical Specifications:
  • Dimension (H x W x D): 19.5 x 19.5 x 50.7 (mm)
  • Power Level: +5 VDC @ 1.5 A
  • Operating Temperature: -20 ~ 70 C
  • Humidity: 0 to 95% RH, non-condensing.


Additional Links:
Brochure
Data Sheet
User Manual
